Week 1 HW: Principles and Practices

1.Biological engineering tool/application

I am trying to develop a dyeing method for fabrics and surfaces by using Physarum Polycephalum, or the slime mould as an activator. The aim is to let the slime mould create one-of-one designs by growing on the surface, letting a level of unpredictabiity of growth control the outcome. Slime moulds are very good at creating pathways while expanding in search of optimum survival conditons. During this travel, they tend to leave behind residual pigment, usually yellow in colour. After drying it looks something like this. In this bioengineered application, physarum polycephalum expresses a pigment forming enzyme(tyrosinase/laccase-type oxidase) that catalyzes the oxidation of benign phenolic or cathechol precursors into reactive quinones that polymerize into and insoluble melanin-like pigment.

The target surface/fabric is to be first coated with a reservoir layer (mild binder+humectant) that is stable and non-coloured when dry. As the plasmodium (active foraging stage of slime mould), it leaves back a hydrateed, anionic extracellular slime film (acidic polysaccharide rich) that locally rehydrates the layer and provides a high water, ionically active environment for the reaction to take place. Enzyme delivered at the surface via organism converts the reservoir layer into pigment only with the trail’s footprint, and the newly formed polymer precipitates in place. The slime’s polyanionic matrix and the binder layer together act as immobilizing scaffold, physically and electrostatically retainining the pigment on fibres so the organism still moves while the dyed path remains as a persistent spatial record of its presence.

2.Next, describe one or more governance/policy goals related to ensuring that this application or tool contributes to an “ethical” future, like ensuring non-malfeasance (preventing harm). Break big goals down into two or more specific sub-goals. Below is one example framework (developed in the context of synthetic genomics) you can choose to use or adapt, or you can develop your own. The example was developed to consider policy goals of ensuring safety and security, alongside other goals, like promoting constructive uses, but you could propose other goals for example, those relating to equity or autonomy.

2.Safety + Non-malfeasance

Exposure:

Ensuring rigourous quality tests ensuring the engineered organism/pigment polymer/enzyme does not create risks like allergens/irritation, sensitizers, or use unsafe binders/precursors with result in volatile+unpredicatble by-products. Developing narrow function envelope for the to curb new emergent pathways that may produce undocumented results. Create a timeline documenting the processes that have been enacted and by which actors. Ensure “program changes” cannot be done by end-users (e.g., no easy swapping of genetic payloads or addition of external DNA to redirect production).

Containment and handling:

Developing systems that prevent accidental spread/mishandling of the GMO from the process of R&D to Distribution to end-of -life. (Develop clear handling protocols, containment during demonstrations and training, maintaining workspaces etc.) Ensuring design features that reduce aerosolization/smearing (sealed edges, protective breathable membranes, simple decontamination steps for handlers). Making failure modes public will also ensure the same errors are not repeated

Environmental safety:

Ensuring all the agents used in the process especially the GMO go through assess,,emt of whether it can sporulate in local environments and accordingly come up with stronger safeguarding.

Assessing toxicity levels for precursors and binders to avoid accumulative compounds post end-of-life. Ensuring biological activity is terminated before disposal and the waste is integrated with local waste stream systems.

3.Governance actions

Tiered Containment + Targeted Efficacy Testing

Purpose: Currently, GMO-based products face generic biosafety review not tailored to organisms that move and leave residues. This option proposes a tiered, risk-scaled containment framework specific to motile GMOs used in consumer applications — with physical, biological, and procedural containment requirements scaling with risk level.

Design: Requires engagement from regulatory actors (EPA, FDA, or equivalent national agencies), academic researchers to define risk tiers, and manufacturers to implement. Needs standardized testing protocols for motility, residue toxicity, and allergenicity before market entry.

Assumptions: Assumes regulators can distinguish between organisms by risk profile and that motility is a meaningful risk differentiator. Also assumes adequate testing infrastructure exists at the manufacturer level.

Risks of Failure & “Success”: If tiers are drawn too broadly, low-risk applications face unnecessary delays. If too narrowly, high-risk ones slip through. “Success” could standardize a framework that inadvertently excludes small-scale or community lab innovators due to compliance costs.

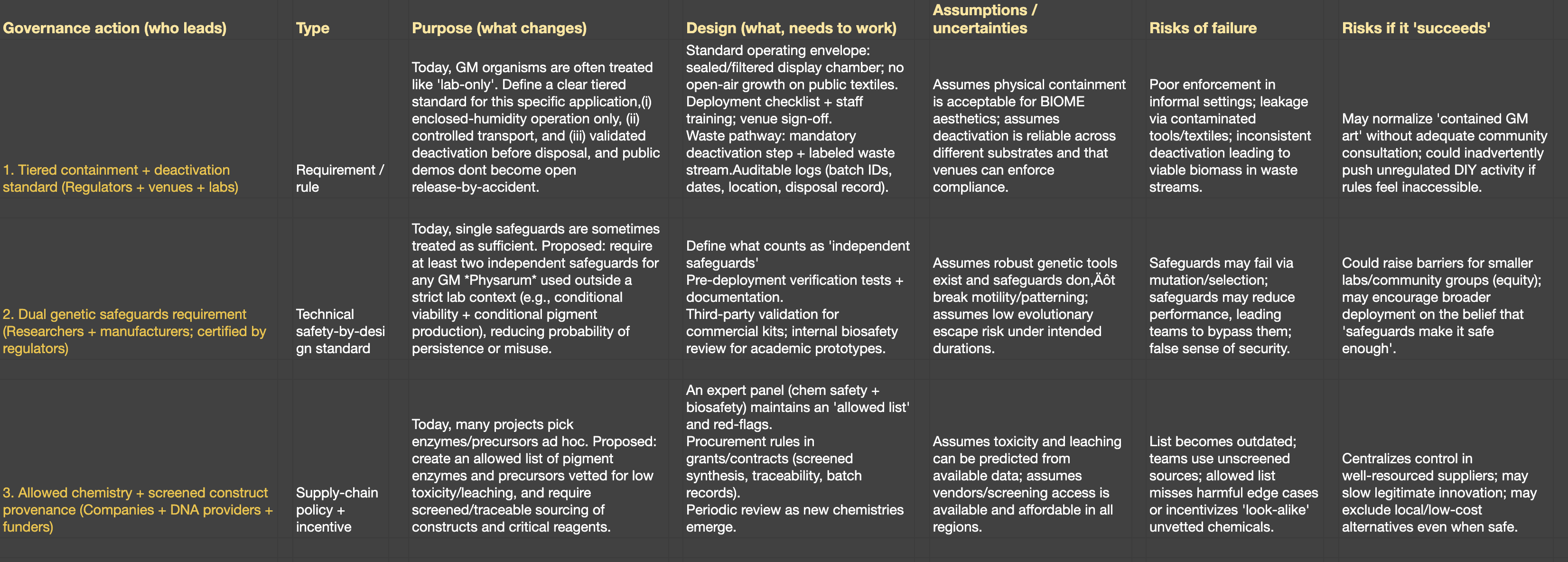

4. Scoring matrix

Matrix

Option 1: Tiered containment + targeted efficacy Option 2:DNA Synthesis screening + Dual genetic safeguard requirement Option 3:Standardizing end-of-life management

1 = strongest , 3 = weakest

A radial graph to show the level of involvement of different actors in enforcing policies

5. Ideal combination

My choice of policies is to combine Dual safeguard and screening of developed application + Standardizing end-of-life management Choosing option 1 would reduce the scope of innovation, but Option 2 that ensures thourough assessment of the modified product whcih enables it to be replicated and scaled widely. It also mitigates concerns like pathogenic propogation risks, mutations in local environments, and/or any unintended consequences since a standardized model of development will be certified and followed.

Standardization of post-use processes also ensures responsible disposal of the product again, applied to the same scale.

Answers to questions from Professor Jacobson

1. DNA Polymerase has an inherent error rate of 1 in (10^{5}) to (10^{6}) bases. Human genome’s size is (\approx 3\times 10^{9}) base pairs. If replication is 100 percent efficient 0 errors would occur. With mistakes at (10^{-5}) rate it would result in 30,000 to 50,000 errors. Due to post replication mismatch error the final error rate in human cells is reduced to less than 10 mutations per genome per replication. To deal with this, enzymes ((\delta ) and (\epsilon )) check each nucleotide as they go, removing mispaired bases instantly, increasing accuracy 100-fold. After replication fork passes special repair proeins scan newly synthesized DNA for mismatches that slipped past the proofreading step and throughout the cell cycle other mechanisms like base excision repair nucleotide excision repair fixes spontaneous damage that could possibly cause a failure.

2. An average human protein (~450-500 amino acids) can be coded by different DNA sequences, potentially exceeding (10^{100}) possibilities, due to the genetic code’s degeneracy (61 codons for 20 amino acids). The reasons for failure to produce functional proteins are due to cases of improper protein folding, premature stop codons, incorrect splicing etc.

Answers to questions from Dr.LeProust

1. The mist used method currently is solid-phase phosphoramidite chemistry.
2. It is difficult due to exponential accumulation of minor chemical errors and significant drops in overall yield.
3. It is again not possible due to the limitations of the phosphoramidite chemistry. While it is possible to make them assembling shorter, multiple, purified and error checked oligonucleotides of around 50-100 bases long, attempting to make it in one go may result in extremely low yields, high error rates, inability to purify long correct and single stranded molecule.

Answers to quesitons from Prof. George Church

1. The 10 essential amino acids are lysine, methionine, tryptophan, threonine, valine, isoleucine, leucine, arginine, histidine and phenylalanine. 10 amino acids I think lysine contingency is not a failsafe biocontainment strategy, it is available in food. It is a good way to look at what started as an example from fiction, to understanding biocontainment in real -life scenarios. What will happen if a synthetic organism is released in the wild, or how will it evolve as natural forces act upon it.

Ethical Reflections from Week 1

One concern that emerged from this week’s lecture is the ambiguity around who bears responsibility when a biological system behaves unexpectedly at scale — particularly with organisms like Physarum polycephalum that are not traditionally considered “engineered” yet are being modified for commercial purposes. The Lysine Contingency discussion highlighted how biocontainment strategies that seem robust in theory may be insufficient in natural environments with abundant nutrient availability.

Week 11 HW: Bioproduction and Cloud Labs

Part A: Pixel Artwork Canvas | Collective Artwork

This was great fun and I kept open multiple tabs and in incognito to quickly fill up boxes (Thanks Georg for the trick!) and somehow managed having parts of my work in the final artwork. For reference I started making the ducks in the first quadrant and someone decided to take it ahead and keep them till the end :)

I ended up being #26 on the leaderboard too!

Something for the next year could be maybe a real-time display of who is hovering around and editing the board (something similar to when you can see where people are on google slides). But this also was super fun!

Part B: Cell-Free Protein Synthesis | Cell-Free Reagents

Referencing the cell-free protein synthesis reaction composition (the middle box outlined in yellow on the image above, also listed below), provide a 1-2 sentence description of what each component’s role is in the cell-free reaction.

BL21 (DE3) Star Lysate (includes T7 RNA Polymerase) provides the complete transcription and translation machinery (ribosomes, tRNAs, elongation factors, chaperones), with the DE3 strain supplying T7 RNA Polymerase to transcribe plasmid DNA under a T7 promoter into translatable mRNA.

Salts/Buffer

Potassium Glutamate (312.6 mM): The dominant monovalent salt that stabilizes ribosomes and mimics the ionic environment of the cytoplasm, supporting efficient translation. HEPES-KOH pH 7.5 (45.00 mM): Maintains the reaction at a stable, physiologically relevant pH throughout the 20-hour incubation, preventing enzymatic inactivation from pH drift. Magnesium Glutamate (7.0 mM): Supplies Mg²⁺, an essential cofactor for ribosome integrity, nucleotide stabilization, and polymerase activity. Potassium Phosphate 1.6:1 dibasic:monobasic (5.6 mM) & monobasic:dibasic (5.6 mM): This paired phosphate buffer system provides additional pH buffering and inorganic phosphate to support nucleotide regeneration and energy metabolism over the extended reaction time.

Energy / Nucleotide System

Ribose (77.4 mM): The central energy and nucleotide precursor in this NMP-Ribose system; cellular enzymes in the lysate use ribose to regenerate nucleotides and sustain energy metabolism across the full 20-hour reaction, enabling sustainable protein production. Glucose (6.9 mM): Supplements ribose as a carbon/energy source, feeding glycolytic and metabolic pathways in the lysate to help regenerate ATP and maintain energy charge. AMP (600.00 µM) & UMP (400.00 µM) & CMP (400.00 µM): These nucleoside monophosphates are the building blocks phosphorylated by lysate kinases into their triphosphate forms (ATP, UTP, CTP) for use in transcription; notably AMP is supplied at the highest concentration reflecting ATP’s dominant role in energy currency and transcription. GMP (0.00 µM): Notably absent/zero in this formulation, suggesting that guanosine nucleotides are instead derived entirely from the guanine base supplied separately via salvage pathways. Guanine (200 µM): A free nucleobase that is salvaged by lysate enzymes and converted to GMP and ultimately GTP, supplying the guanosine nucleotides needed for transcription initiation and ribosome function without adding GMP directly.

Translation Mix (Amino Acids)

17 Amino Acid Mix (4.10 mM): Provides the majority of the 20 standard amino acids as substrates for ribosomal peptide bond formation during translation. Tyrosine pH 12 (4.10 mM): Tyrosine’s poor solubility at neutral pH requires it to be dissolved at pH 12 and added separately to ensure it is present at sufficient concentration without crashing out of solution. Cysteine (4.00 mM): Added separately due to its chemical instability and oxidation sensitivity; its concentration is also independently tunable for proteins requiring precise redox conditions or disulfide bonds.

Nicotinamide (3.10 mM): A NAD⁺ precursor that replenishes the lysate’s nicotinamide cofactor pool, sustaining the redox reactions and energy regeneration enzymes that keep the reaction productive over the full 20-hour incubation.

Nuclease-Free Water: Brings the master mix to its final working volume without introducing RNases or DNases that would degrade the mRNA template or DNA plasmid, which would be particularly damaging over a long 20-hour reaction.

2. Describe the main differences between the 1-hour optimized PEP-NTP master mix and the 20-hour NMP-Ribose-Glucose master mix. The most fundamental difference between the two formulations lies in their energy and nucleotide supply strategy. The 1-hour PEP/NTP system provides nucleotides in their fully phosphorylated triphosphate forms (ATP, GTP, CTP, UTP) along with phosphoenolpyruvate (PEP-Mono) and Maltodextrin 17 as immediate high-energy phosphate donors for rapid, front-loaded transcription and translation, whereas the 20-hour NMP-Ribose system supplies nucleotides as monophosphates (AMP, CMP, UMP) and relies on ribose and glucose as metabolic precursors that are gradually processed by lysate enzymes to regenerate energy over a sustained period. The 1-hour formulation also includes several additives like Spermidine, DMSO, cAMP, NAD, and Folinic Acid that work together to boost immediate transcriptional and translational efficiency, where for example spermidine stabilizes nucleic acids, cAMP activates metabolic pathways, and folinic acid supports one-carbon metabolism, while the 20-hour formulation simplifies this and relies solely on Nicotinamide to maintain redox cofactor pools throughout the longer reaction. There are also notable differences in salt concentrations between the two, with the 1-hour mix using slightly higher Potassium Glutamate (330.47 mM vs. 312.6 mM) and more HEPES (80 mM vs. 45 mM), which likely reflects optimization for a short burst of high activity rather than the more stable ionic environment needed to keep enzymes functional across a full 20-hour incubation.

Part C: Planning the Global Experiment | Cell-Free Master Mix Design

1. Given the 6 fluorescent proteins we used for our collaborative painting, identify and explain at least one biophysical or functional property of each protein that affects expression or readout in cell-free systems.

   Here are the key biophysical or functional properties for each of the six fluorescent proteins used in the collaborative painting:

1. sfGFP (Superfolder GFP) sfGFP was specifically engineered with folding and solubility-enhancing mutations that allow it to fold robustly even when fused to poorly folded polypeptides, and it shows increased thermal stability and superior resistance to chemical denaturants compared to conventional GFPs. In a cell-free context, this makes sfGFP a highly reliable reporter since its robust folding characteristics mean it can mature efficiently even in the relatively unstructured, open environment of a lysate-based reaction.

2. mRFP1 mRFP1 is reported to be a somewhat slowly-maturing monomer, though it still matures more than 10 times faster than its tetrameric predecessor DsRed, with lower extinction coefficient, quantum yield, and photostability as tradeoffs. In a cell-free system, its relatively slow maturation and reduced brightness compared to newer RFPs means that significant incubation time is needed before a strong red fluorescence signal can be detected, which is particularly relevant when interpreting endpoint reads of a short reaction.

3. mKO2 (monomeric Kusabira-Orange 2) mKO2 is a mutant of mKO1 that was specifically engineered to feature rapid maturation while maintaining the brilliance and pH stability of the parent Kusabira-Orange protein. However, it does exhibit moderate acid sensitivity, which is worth considering in cell-free systems where pH can drift during extended incubation, potentially quenching the orange fluorescence signal over time.

4. mTurquoise2 mTurquoise2’s maturation kinetics are complex and cannot be captured by a single exponential, and in vivo characterization placed it among the slowest-maturing cyan fluorescent proteins tested, requiring a two-step maturation model. Despite this slow maturation being a potential limitation for short cell-free reactions, mTurquoise2 compensates with an exceptionally high quantum yield of 0.93, making it one of the brightest cyan fluorescent proteins available and capable of providing strong signal even at low expression levels.

5. mScarlet-I The single amino acid substitution T74I in mScarlet-I results in a marked acceleration of maturation compared to the parent mScarlet, though at the cost of a moderate decrease in quantum yield (0.54) and fluorescence lifetime (3.1 ns), both of which still remain higher than those of all previously engineered bright mRFPs. This faster maturation makes mScarlet-I particularly well suited for cell-free reactions, as the red fluorescence signal accumulates more quickly and can be reliably detected within the timeframe of the incubation.

6. Electra2 Electra2 is a blue fluorescent protein derived from mRuby3 (itself derived from the sea anemone Entacmaea quadricolor), and intracellular brightness measurements showed it to be over 2-fold brighter than mTagBFP2. However, like other eqFP611-derived proteins, aggregate formation is a known property of Electra2 across multiple organisms and expression contexts, which in a cell-free system could reduce the effective soluble fluorescent protein concentration and lead to an underestimation of actual expression yield if aggregates are not accounted for during fluorescence readout.

2. Create a hypothesis for how adjusting one or more reagents in the cell-free mastermix could improve a specific biophysical or functional property you identified above, in order to maximize fluorescence over a 36-hour incubation.

mScarlet-I — Exhibits oxygen-dependent chromophore maturation, meaning that as molecular oxygen is progressively depleted over a long incubation, late-translated mScarlet-I molecules may fail to fully mature and remain non-fluorescent despite being successfully synthesized.

As mScarlet-I chromophore maturation requires molecular oxygen and is sensitive to reducing conditions, one solution could be increasing nicotinamide to sustain the NAD⁺/NADH redox balance over the full 36-hour window, while simultaneously reducing cysteine concentration to prevent excess reducing equivalents from competing with the oxidation step required for chromophore cyclization.

In order to validate and optimize this hypothesis, the following experimental set could be performed:

Sample 1 — Control

• Nicotinamide: 3.10 mM
• Cysteine: 4.00 mM

Sample 2 — Increased nicotinamide only

• Nicotinamide: 6.00 mM
• Cysteine: 4.00 mM

Sample 3 — Reduced cysteine only

• Nicotinamide: 3.10 mM
• Cysteine: 2.00 mM

Sample 4 — Combined nicotinamide increase and cysteine reduction

• Nicotinamide: 6.00 mM
• Cysteine: 2.00 mM

3. The second phase of this lab will be to define the precise reagent concentrations for your cell-free experiment.

For this experiment, 8 wells were designed across two fluorescent protein hypotheses, both building on the 20-hour NMP-Ribose master mix preset as a baseline. The first set of 4 wells targets mScarlet-I, which requires molecular oxygen for chromophore maturation and is sensitive to reducing conditions over extended incubations. The hypothesis is that increasing nicotinamide concentration will sustain the NAD⁺/NADH redox balance across the full 36-hour reaction, supporting the oxidative environment needed for late-translated mScarlet-I molecules to fully mature. Wells J8 (control, 3.125 mM), I10 (4.500 mM), K10 (6.000 mM), and L5 (8.000 mM) form a nicotinamide gradient to identify the optimal concentration for maximizing red fluorescence endpoint readout. The second set of 4 wells targets mKO2, which exhibits pH sensitivity that can cause fluorescence loss as the reaction environment acidifies over time. The hypothesis is that strengthening the buffer system will maintain pH 7.5 throughout the 36-hour incubation, preserving mKO2 fluorescence intensity. Wells N3 (control), F24 (HEPES 60 mM), L21 (HEPES 75 mM), and G1 (HEPES 60 mM + potassium phosphate dibasic/monobasic both at 7.500 mM) test increasing buffer capacity both through HEPES alone and in combination with elevated phosphate support.

Week 3 HW: Opentrons

1.Designing opentrons artwork

I used https://opentrons-art.rcdonovan.com/ to design a four leaf clover design. Using the coordinates from the GUI and with assistance of Gemini in-built within Google colab, I came up with an Opentron code in python for actually creating the design. Google Colab - https://colab.research.google.com/drive/1rBH37jyag6naTs3t0gUx6asZEOQE1XjN#scrollTo=pczDLwsq64mk&line=107&uniqifier=1

The code was visualized and this is the result:

The metadata was then submitted to opentrons google form

Post-Lab Questions

1. Published Paper Using Lab Automation

Wierenga, R. P., et al. (2022). “Opentrons OT-2 as a low-cost liquid handling solution for automated cell culture and high-throughput biological experiments.” PLOS ONE. This paper demonstrated that the Opentrons OT-2 could be used to automate cell culture media exchanges, serial dilutions, and compound screening workflows that would otherwise require constant manual intervention. The authors showed that the robot could reliably perform these tasks with reproducibility comparable to manual pipetting, while significantly reducing hands-on time and human error — enabling experiments at a scale that would be impractical to run manually.

The key insight for my work is that automation is not just about speed — it is about spatial precision and reproducibility of deposition, which is directly relevant to creating consistent bio-dyed patterns across fabric surfaces.

2. Automation Plan for Final Project

My final project involves using Physarum polycephalum to create one-of-one dyed patterns on fabric surfaces by letting the organism grow and leave behind a pigment trail. While the organism’s path is inherently unpredictable (which is the artistic intent), the setup conditions need to be precisely controlled and reproducible for the biology to work consistently.

I would use the Opentrons OT-2 to automate the preparation stage of the experiment:

Automated workflow (pseudocode):

Load reservoir plate with:

Well A1: humectant/binder coating solution Well A2: phenolic precursor substrate solution Well A3: growth medium for Physarum inoculation

For each fabric sample (n=6, arranged in a 6-well plate):

aspirate(50 µL, reservoir[“A1”]) dispense evenly across well surface to coat fabric wait(120 seconds) # allow coating to partially dry

For each well:

aspirate(20 µL, reservoir[“A2”]) dispense(well) # add precursor substrate on top of binder

Manual step: inoculate each well with Physarum plasmodium at defined starting position Automated imaging at fixed intervals (external camera trigger) to document trail growth over 24-48 hours

This setup ensures the binder and substrate layers are applied at consistent volumes and uniformly across the fabric surface — two variables that strongly affect whether the pigment precipitates cleanly along the slime trail. Inconsistent coating thickness in manual application was identified as a likely source of variability in early experiments.

A 3D-printed fabric holder sized to sit inside a standard 6-well plate would allow the fabric swatches to be held flat during robotic dispensing.

Final Project Ideas

I submitted 1–3 slides to the Committed Listeners final project slide deck with the following ideas:

1. Physarum Polycephalum Bio-Dyeing — Engineering Physarum polycephalum to express a pigment-forming enzyme (tyrosinase/laccase) that reacts with a pre-coated fabric substrate to leave a permanent dyed trail as the organism forages across the surface. The goal is one-of-one textile art driven by biological growth behavior.

2. Slime Mould as a Living Sensor — Using the foraging behaviour of Physarum as a readout for environmental conditions (humidity gradients, chemical attractants/repellents) by encoding the gradient as a spatial pattern of growth, readable as a visual output on a surface.

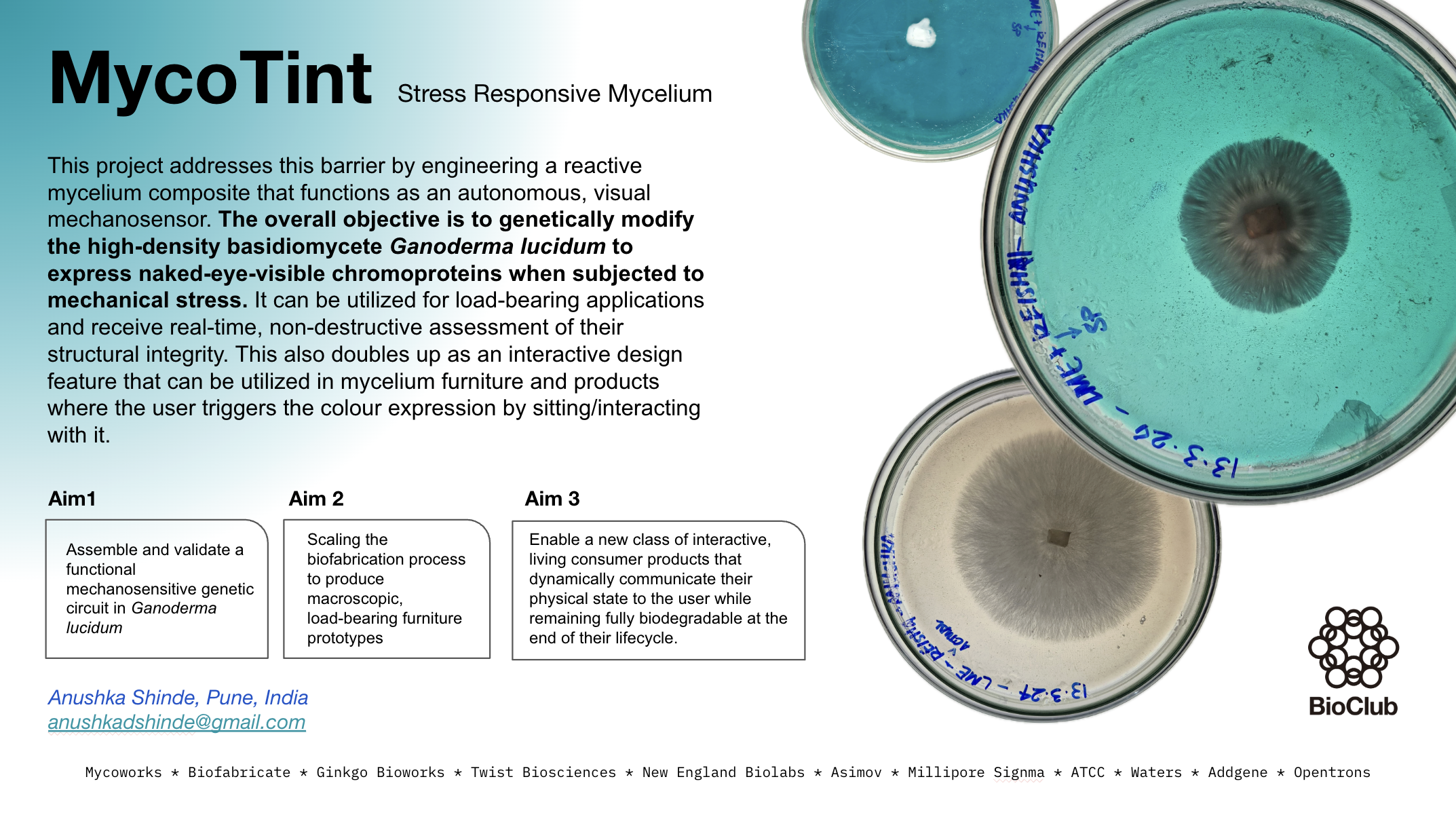

3. Working with mycelium to make heat sensititve products — Designing a Ganordermma lucidum to express colour on heat stress and utilizing it to make a heat sensitive jacket. Exploring interaction with living materials through reactivity.

Week 4 HW: Protein Design Part 1

Part A: Questions by Shuguang Zhang

How many molecules of amino acids do you take with a piece of 500 grams of meat?

500g divided by 100 Da gives you about 3 × 10²⁴ molecules. So there are roughly 3 trillion trillion amino acids in a single serving of meat.

Why do humans eat beef but do not become a cow, eat fish but do not become fish?

Digestion breaks everything down to bare amino acids first. The original protein blueprint is completely destroyed. Then our ribosomes rebuild new proteins using our own genetic code, not the cow’s or the fish’s.

Why are there only 20 natural amino acids?

It is probably just a frozen evolutionary accident. Early life found 20 that worked well enough and the genetic code hardwired them in. At that point there is no going back without breaking every living thing on the planet.

Can you make other non-natural amino acids? Design some new amino acids.

You just swap out the side chain for something chemically stable. For example you can put a fluorine where the methyl group is in alanine and get fluoroalanine which is more hydrophobic and harder to degrade. You can add an azide group for click chemistry. You can even shift to beta amino acids by inserting an extra carbon in the backbone which makes them resistant to proteases.

Where did amino acids come from before enzymes that make them, and before life started?

They formed abiotically. The Miller-Urey experiment showed that just mixing early atmospheric gases with lightning produces amino acids spontaneously. They also show up on meteorites, glycine has been found in carbonaceous chondrites. No enzymes needed at all.

If you make an α-helix using D-amino acids, what handedness (right or left) would you expect?

It would be left-handed. Normal L-amino acids form right-handed helices because of their backbone dihedral angle preferences. Mirror the chirality and you mirror the helix.

Can you discover additional helices in proteins?

We already know the 3-10 helix and the pi helix exist beyond the standard alpha helix. With cryo-EM resolution improving and AlphaFold predictions getting better, there are likely more unusual helical conformations hiding in membrane proteins and intrinsically disordered regions.

Why are most molecular helices right-handed?

Because life uses L-amino acids, and L-amino acids have backbone angles that naturally favor a right-handed turn. It traces all the way back to whichever chirality got selected early in evolution and then just stuck.

Why do β-sheets tend to aggregate?

What is the driving force for β-sheet aggregation? Edge strands have exposed hydrogen bond donors and acceptors sitting there unsatisfied. They are basically sticky edges looking for a partner. The driving force is intermolecular hydrogen bonding combined with hydrophobic burial, and water gets released in the process which makes it entropically favorable too.

Why do many amyloid diseases form β-sheets?

Can you use amyloid β-sheets as materials? When proteins misfold under stress they expose hydrophobic patches that seed beta sheet stacking. Once that nucleus forms it is thermodynamically very stable so more protein keeps piling on. As for materials, amyloid fibers are actually incredibly strong, comparable to silk, and they are self-assembling and tunable. People are already engineering them into scaffolds, nanowires, and hydrogels.

Part B: Protein Analysis and Visualization

1. Briefly describe the protein you selected and why you selected it.

In the plasmodium of Physarum polycephalum, the F-actin capping activity of the actin-fragmin complex is regulated by phosphorylation of actin, mediated by a novel type of protein kinase with no sequence homology to eukaryotic-type protein kinases. This protein sits at the heart of what makes Physarum behavior fascinating. The oscillatory protoplasmic streaming that drives Physarum’s decision-making and network formation depends on rapid, rhythmic reorganization of the actin cytoskeleton. AFK is the molecular switch that controls it by phosphorylating actin, it determines whether actin filaments are being capped and severed (disrupting the cytoskeleton) or allowed to grow (driving streaming). Studying this kinase is therefore studying the molecular basis of Physarum’s behavioral intelligence. The signalling pathway results in phosphorylation of actin, and stage-dependent phosphorylation of actin is associated with morphological alterations and reorganization of the actin cytoskeleton.

2. Identify the amino acid sequence of your protein.

1. The protein sequence has a total length of 737 amino acids. The most frequent amino acid is Serine (S) with 84 occurrences (11.40%), followed by Leucine (L) with 58 occurrences (7.87%), and Glycine (G) with 56 occurrences (7.60%). The least frequent is Cysteine (C) with 10 occurrences (1.36%).

2.

3. Protein family AFK belongs to the eukaryotic protein kinase (ePK) superfamily structurally, but functionally it is classified as the founding member of a unique actin kinase family. It is structurally related to the phosphoinositide kinase superfamily rather than classical Ser/Thr kinases, placing it in an unusual evolutionary position.

3. Identify structure page of your protein

1. It was solved in 1999. At 2.9 Å, you can reliably identify the backbone fold, secondary structure elements, and the position of the AMP ligand, but side-chain details are slightly less precise than higher-resolution structures.

2. The structure contains the protein (actin-fragmin kinase) and adenosine monophosphate (AMP). AMP is not a random co-crystal contaminant. AMP occupies the ATP binding pocket of the kinase. This tells you precisely where the nucleotide binding site is and how the kinase is oriented to receive ATP before phosphorylating actin. In the context of Physarum behavior, this pocket is a potential target for disrupting the actin phosphorylation cycle to study what happens to streaming oscillations when AFK is inhibited.

3.

4. Open the structure of your protein in any 3D molecule visualization software

1. P.S. There are double protein structures in the screenshots accidentally.

visualizing as ‘cartoon’, ‘ribbon’ and ‘ball and stick’

cartoon view

ribbon view

ball and stick

Looking at the structure image, the catalytic module spans about 160 residues, with the nucleotide binding site and catalytic machinery tucked into the cleft between the two lobes. According to PubMed, there is a pretty balanced mix of alpha helices and beta sheets, which is exactly what you expect from this bilobal kinase fold.

The protein surface is a sea of blue hydrophilic residues, which is what allows it to stay dissolved in the crowded cytoplasm of the cell. In contrast, the protein core is packed with orange hydrophobic residues. These are tucked away from water, creating the internal glue that keeps the entire structure stable and folded correctly. In the AMP binding pocket the hydrophobic patches grip the adenine ring of the nucleotide, while polar residues reach out to coordinate the phosphate groups. This mapping is really the key to Physarum biology. Since the kinase has to dock onto actin filaments, that unique flat substrate recognition domain is covered in hydrophilic patches specifically designed to recognize and stick to actin’s surface chemistry.

First, there’s the ATP/AMP binding pocket, a deep cleft that’s carved right between the N-terminal and C-terminal lobes. Since you can clearly see the yellow AMP ligand tucked inside, it’s obviously the biggest “hole” on the surface and the best place for drug targeting. Second, check out the flat substrate recognition domain. Unlike most kinases that have a narrow groove, AFK uses a remarkably flat, broad surface to dock with the large actin substrate. This unique structural flatness is a huge defining trait for this enzyme.

C1. Protein Language Modelling

Position 109 (Asp/D) shows the strongest conservation signal in the mutational scan — nearly all substitutions receive strongly negative log-likelihood scores. This is consistent with this residue being the catalytic base in the kinase active site, directly involved in phosphotransfer to actin’s Thr202. Even conservative mutations (D→E) are penalized, suggesting the precise geometry of this aspartate is essential.

Yes, the t-SNE map forms meaningful neighborhoods where evolutionarily related proteins cluster tightly together, confirming that ESM2 has successfully learned to group biologically similar sequences into shared regions of the latent space.

I ran a request in Gemini to create another 3d t-SNE with the AFK highlighted and this is how it looked

AFK from Physarum polycephalum lands at coordinates (−3.39, −0.29, −0.89) in a sparse, isolated region of the map with no tight cluster, reflecting its status as an evolutionarily unique kinase with no sequence homology to classical eukaryotic protein kinases. Its nearest neighbors are similarly atypical, low-homology proteins rather than mainstream kinases or cytoskeletal proteins like actin

Protein Folding

predicted structure after running it through colab

RMSD score Executive: RMSD = 0.728 (1913 to 1913 atoms) ESMFold predicted the 3D structure of Actin-Fragmin Kinase from Physarum polycephalum using sequence alone, achieving an RMSD of 0.728 Å against the experimentally determined crystal structure 1CJA

Mutation 1 - position 45, changed S (Serine) to A (Alanine)

Executive: RMSD = 0.744 (1918 to 1918 atoms) only

Mutation 2 - changed position 155, which is in the catalytic core. L (Leucine) to P (Proline)

Executive: RMSD = 0.844 (1933 to 1933 atoms)

Inverse Folding

There was an issue with the GPU in my laptop hence I directly did the inverse folding on https://huggingface.co/spaces/simonduerr/ProteinMPNN where for 1CJA i got

cleaned, score=1.6233, fixed_chains=[], designed_chains=[‘A’], model_name=vanilla—v_48_020 AGALWEIEKELFTKLPAPSSAINSHLQPAKPFKVDLSTAVSYNDIGDINWKNLQQFKGIERSEKGTEGLFFVETESGVFIVKRSTNIESETFCSLLCMRLGLHAPKVRVVSSNSEEGTNMLECLAAIDKSFRVITTLANQANILLMELVRGITLNKLTTTSAPEVLTKSTMQQLGSLMALDVIVNNSDRLPIAWTNEGNLDNIMLSERGATVVPIDSKIIPLDASHPHGERVRELLRTLIAHPGHESSQFHSIRDIITLYTGYDVGTEGSISMQEGFLATVRECASFDLDAFERELLSWQESLQKCHNLSISPQAIPFILRMLRIFH

T=0.1, sample=0, score=0.8496, seq_recovery=0.4373 MGRLAALRRELRAKLKPPSDVILPELRPPSPFSVDLSTATPYPDIDRIDWDDLSRFLGIERDPTGHGGDFLVKTKDGVFEVKVEPNPASYVFSTLLALHFGLHAPDVRLVRRDSPEGRALLAALAAIDTSGEFIPTAAPQPVLVLKELVLGIRLDEITAEKAPAILTPETLKQIGKLVAFCDIINDTSRLPLFSDSKGNLGNILLSVRGATVVPTDLDIHPLVGDTPIFEKIKNFLEKLRKDPSKCTPEFQKLGKLIAEATGYDFGEEGCLAIQEGYLELVDKVSKLDLEEFEKFLQEVVDALLRDAGLAIDPDTIPFILKMIKIFK

The sequence recovery of 43.7% means ProteinMPNN retained fewer than half the original residues while designing a backbone-compatible alternative sequence. This is expected for AFK given its unusual fold — the model is not constrained to reproduce the evolutionary sequence, only to find any sequence that satisfies the backbone geometry. Positions it did preserve are likely the most structurally or functionally constrained, such as the catalytic Asp109 and residues lining the nucleotide-binding cleft.

One notable difference: the inverse-folded sequence replaces many of AFK’s surface-exposed serine-rich regions (the native protein is 11.4% serine, unusually high) with a more typical distribution of charged and polar residues. This suggests the high serine content in the native protein is an evolutionary feature — possibly related to phosphorylation regulation of AFK itself — rather than a strict structural requirement for maintaining the fold.

Part D

Text

Week 5 HW: Protein Design Part II

Human SOD1 sequence MATKAVCVLKGDGPVQGIINFEQKESNGPVKVWGSIKGLTEGLHGFHVHEFGDNTAGCTSAGPHFNPLSRKHGGPKDEERHVGDLGNVTADKDGVADVSIEDSVISLSGDHCIIGRTLVVHEKADDLGKGGNEESTKTGNAGSRLACGVIGIAQ

After adding A4V mutation MATKVVCVLKGDGPVQGIINFEQKESNGPVKVWGSIKGLTEGLHGFHVHEFGDNTAGCTSAGPHFNPLSRKHGGPKDEERHVGDLGNVTADKDGVADVSIEDSVISLSGDHCIIGRTLVVHEKADDLGKGGNEESTKTGNAGSRLACGVIGIAQ

Therefore, produced peptides:

##Part 2: Evaluating Binders with alpha fold3

The alpha fold results for some reason are not loading for me, despite multiple attempst and troubleshooting. Hence the results were analyzed with the help of Claude using PAE matrices

peptide 1 ipTM 0.38 The PAE matrix shows a uniformly mid-green inter-chain strip with no distinct dark patch, indicating no preferred binding site and the peptide appears to be floating without specific engagement.

peptide 2 ipTM 0.35 The inter-chain strip is mostly light green with a very faint darker region around residues 60–100, suggesting a weak, non-specific affinity toward the β-barrel region, though confidence is low.

peptide 3 ipTM 0.36 The inter-chain strip is the lightest and most uniform of all five, indicating the highest positional uncertainty. It appears to have the least defined interaction with SOD1.

peptide 4 ipTM 0.37 A slightly darker patch in the inter-chain strip around residues 1–30 hints at proximity to the N-terminal region where the A4V mutation sits, making this the most therapeutically interesting placement among the PepMLM peptides.

peptide 5 ipTM 0.41 Shows the darkest and most defined inter-chain strip overall, with a signal around residues 60–110 suggesting some affinity toward the β-barrel mid-region consistent with it being a known SOD1 binder and having the highest ipTM.

Part 2: AlphaFold3 Summary

Across all five peptides, ipTM scores ranged from 0.35 to 0.41 — all falling below the 0.5 threshold generally considered indicative of confident binding. The known SOD1-binding peptide FLYRWLPSRRGG achieved the highest ipTM of 0.41, and none of the four PepMLM-generated peptides matched or exceeded this score. Peptide 4 (ipTM 0.37) was the most therapeutically interesting placement among the generated candidates, showing a faint signal near the A4V mutation site at the N-terminus, but the overall structural confidence for all generated peptides was low. This suggests PepMLM sampling alone, without site-specific guidance, does not reliably outperform an experimentally validated binder on structural confidence metrics.

Part 3: Evavluating properties of generated peptides in Peptiverse

Peptide 1 WLYVVAAVRWKA

Peptide 2 WRYVAAAAAHKE

Peptide 3 WLYVPAGLALWA

Peptide 4 WLYYVVAVAHKA

Peptide 5 FLYRWLPSRRGG

All four peptides demonstrated favorable therapeutic profiles when evaluated through PeptiVerse, and outperformed FLYRWLPSRRGG in predicted binding affinity. Every peptide showed perfect solubility (1.000 probability) and was predicted to be non-hemolytic, confirming a safe baseline. In terms of binding affinity, Peptide 3 (WLYVPAGLALWA) emerged as the strongest binder with a medium binding score of 7.599 pKd/pKi, followed by Peptide 1 (WLYVVAAVRWKA) at 7.214. FLYRWLPSRRGG achieved a weak binding score of 5.968. This is a significant finding as it suggests PepMLM successfully generated peptides with stronger predicted affinity than an experimentally validated binder. Based on this analysis, Peptide 3 (WLYVPAGLALWA) remains the top candidate to advance. It has the highest predicted binding affinity, full solubility, low hemolytic risk, and a drug-like molecular weight of 1359.6 Da, making it the strongest overall therapeutic candidate from this screen pending AlphaFold3 structural confirmation.

Part 3: PeptiVerse Cross-Comparison

Comparing AlphaFold3 ipTM scores against PeptiVerse-predicted binding affinity reveals a partial disconnect: higher ipTM did not consistently predict stronger binding affinity. FLYRWLPSRRGG had the highest ipTM (0.41) but the weakest predicted affinity at 5.968 pKd — the lowest of all five peptides. Meanwhile Peptide 3 (WLYVPAGLALWA), which had a mid-range ipTM of 0.36, showed the strongest predicted affinity at 7.599 pKd. This discrepancy highlights the complementary nature of the two tools: AlphaFold3 captures structural plausibility while PeptiVerse captures predicted biochemical potency, and they do not necessarily agree.

In terms of safety, all four PepMLM-generated peptides were predicted to be non-hemolytic with perfect solubility (1.000), meaning none present an obvious therapeutic liability on those axes. FLYRWLPSRRGG, despite being an experimentally validated binder, was outperformed on predicted affinity by three of the four generated peptides, suggesting that PepMLM can generate sequences with improved computational properties even if structural confidence remains modest.

Peptide 3 (WLYVPAGLALWA) best balances predicted binding affinity, solubility, non-hemolytic profile, and drug-like molecular weight and is the top candidate to advance.

Interpretation of PeptiVerse results

The generated peptides showed trade-offs between predicted binding affinity, therapeutic safety, and developability.

Peptide 7 (GKRYYYYKDKCF) showed the strongest predicted binding affinity (pKd = 9.123), making it the most promising binder from an interaction standpoint. However, it had a relatively low motif score (0.340), suggesting weaker alignment with the desired design motif.

Peptide 8 (VGTCYCIKKKKM) had the highest hemolysis probability (0.978), which makes it less attractive as a therapeutic candidate despite a reasonably strong predicted affinity (pKd = 7.123) and a strong motif score (0.730).

Peptide 9 (TKQCKFTRPQNE) had the strongest motif score (0.876), indicating good alignment with the desired interaction pattern, but its predicted binding affinity (pKd = 5.533) was lower than the best-performing candidates.

Overall, Peptide 7 appears strongest in terms of predicted affinity, while Peptide 9 may represent a more motif-consistent but weaker-binding alternative. Since all candidates showed high hemolysis probabilities, additional optimization would likely be required before therapeutic development.

Part 4: Optimized peptide generation with moPPIt

Overall, moPPIt gives more rational, multi-objective candidates anchored to a therapeutic hypothesis (binding the A4V site), while PepMLM provides broader sequence diversity without site or safety guidance.

Among the moPPIt candidates, GKRYYYYKDKCF (Peptide 7) is the strongest candidate to advance. It has by far the highest predicted binding affinity (9.12 pKd), a hemolysis score of 0.945 (non-hemolytic), and a solubility score of 0.917. Its motif score of 0.340 is the lowest among the four, suggesting it may not perfectly engage the exact residues targeted near position 4, but given that its affinity is dramatically higher than all other candidates from both tools, it warrants further structural and experimental investigation to determine where exactly it binds SOD1.

Before advancing any moPPIt candidate to clinical studies, I would evaluate them through: (1) experimental binding assays (SPR or ITC) to confirm predicted affinity against recombinant A4V SOD1, (2) cell-based toxicity assays in neuronal cell lines to validate the non-hemolytic predictions, (3) serum stability assays to assess protease resistance, and (4) aggregation inhibition assays to confirm the candidate reduces A4V SOD1 misfolding rather than merely binding without functional effect.

Part B skipped since optional

Part C: Final project L-Protein Mutants

Option 1: Mutagenesis

Attaching MSA output

looking at the TM region in Image 2, almost every sequence ends with EAVIRTVTTLQQLLT. This stretch is extremely conserved, which means residues ~62–75 (VIRTVTTLQQLLT) are very risky to mutate.

And the L Protein mutation heatmap,

The heatmap x-axis follows the full L-protein sequence. Mapping positions to amino acids: M(1) E(2) T(3) R(4) F(5) P(6) Q(7) Q(8) S(9) Q(10)Q(11)T(12)P(13)A(14)S(15)T(16) N(17)R(18)R(19)R(20)P(21)F(22)K(23)H(24)E(25)D(26)Y(27)P(28)C(29)R(30)R(31)Q(32) Q(33)R(34)S(35)S(36)T(37)L(38)Y(39)V(40) | L(41)I(42)F(43)L(44)A(45)I(46)F(47)L(48) S(49)K(50)F(51)T(52)N(53)Q(54)L(55)L(56)L(57)S(58)L(59)L(60)E(61)A(62)V(63)I(64) R(65)T(66)V(67)T(68)T(69)L(70)Q(71)Q(72)L(73)L(74)T(75)

ESM Score vs. Experimental Data Correlation

To evaluate whether the ESM-based mutational scores capture real functional information, I cross-referenced the heatmap against the experimental L-protein mutant dataset from the spreadsheet. Positions such as those in the conserved EAVIRTVTTLQQLLT stretch of the TM domain (residues 62–75) consistently appear as dark columns in the ESM heatmap, indicating strong negative predicted fitness for any substitution. This aligns well with the MSA data, where these positions show near-zero variation across related phage sequences. Conversely, some positions in the soluble N-terminal domain (residues 1–40) show yellow-to-neutral scores at certain substitutions, suggesting the model predicts these changes are tolerable and consistent with the experimental observation that many soluble-domain mutations retain partial lysis activity.

The following 5 mutations were selected based on positive ESM LLR scores, MSA conservation analysis, and structural reasoning. Two mutations fall in the TM domain (residues 41–75) and three in the soluble N-terminal domain (residues 1–40). The mutations I chose to continue with in the Soluble Domain and Transmembrane domain are:

Alphafold multimer runs

8 chains of L-protein (including proposed mutations) separated by colons, total length 600 residues.

METRFPQQSQQTPASTNRRRPFKHEDYPCRRQQRSSTLYVLIFLAIFLSKFTNQLLLSLLEAVIRTVTTLQQLLT:METRFPQQSQQTPASTNRRRPFKHEDYPCRRQQRSSTLYVLIFLAIFLSKFTNQLLLSLLEAVIRTVTTLQQLLT:METRFPQQSQQTPASTNRRRPFKHEDYPCRRQQRSSTLYVLIFLAIFLSKFTNQLLLSLLEAVIRTVTTLQQLLT:METRFPQQSQQTPASTNRRRPFKHEDYPCRRQQRSSTLYVLIFLAIFLSKFTNQLLLSLLEAVIRTVTTLQQLLT:METRFPQQSQQTPASTNRRRPFKHEDYPCRRQQRSSTLYVLIFLAIFLSKFTNQLLLSLLEAVIRTVTTLQQLLT:METRFPQQSQQTPASTNRRRPFKHEDYPCRRQQRSSTLYVLIFLAIFLSKFTNQLLLSLLEAVIRTVTTLQQLLT:METRFPQQSQQTPASTNRRRPFKHEDYPCRRQQRSSTLYVLIFLAIFLSKFTNQLLLSLLEAVIRTVTTLQQLLT:METRFPQQSQQTPASTNRRRPFKHEDYPCRRQQRSSTLYVLIFLAIFLSKFTNQLLLSLLEAVIRTVTTLQQLLT

Structural Interpretation

All five ranked models show uniformly very low pLDDT scores (20–28, well below the <50 threshold). The PAE matrices are nearly uniformly red (~25–30 Å error) across all off-diagonal inter-chain blocks, with confidence only on the per-chain diagonal. This means the model cannot confidently place any chain relative to any other.

Despite the low confidence scores, the predicted structures display a biologically interesting pattern: in the Mol* viewer, helical secondary structure is visible at the center of the assembly, with disordered tails radiating outward in a sunburst arrangement. This is consistent with the pore-formation hypothesis for the L-protein. the TM helices converge at the central axis (as expected for a membrane pore), while the soluble N-terminal domains remain disordered and point outward into the cytoplasm. The per-position IDDT plot shows periodic peaks that correspond to the TM helix region of each chain, which is the only portion with marginally higher local confidence (~40–50).

Run 2: L-Protein + DnaJ CoFold

L-protein (mutant sequence, 75 residues, Chain A) + DnaJ (357 residues, Chain B), submitted as a two-chain heterodimer to ColabFold AlphaFold2 Multimer v3

METRFPQQSQQTPASTNRRRPFKHEDYPCRRQQRSSTLYVLIFLAIFLSKFTNQLLLSLLEAVIRTVTTLQQLLT:MAKQDYYEILGVSKTAEEREIRKAYKRLAMKYHPDRNQGDKEAEAKFKEIKEAYEVLTDSQKRAAYDQYGHAAFEQGGMGGGGFGGGADFSDIFGDVFGDIFGGGRGRQRAARGADLRYNMELTLEEAVRGVTKEIRIPTLEECDVCHGSGAKPGTQPQTCPTCHGSGQVQMRQGFFAVQQTCPHCQGRGTLIKDPCNKCHGHGRVERSKTLSVKIPAGVDTGDRIRLAGEGEAGEHGAPAGDLYVQVQVKQHPIFEREGNNLYCEVPINFAMAALGGEIEVPTLDGRVKLKVPGETQTGKLFRMRGKGVKSVRGGAQGDLLCRVVVETPVGLNERQKQLLQELQESFGGPTGEHNSPRSKSFFDGVKKFFDDLTR

Structural interpretation:

In contrast to the octamer run, the L-protein + DnaJ co-fold produces substantially higher confidence scores across all five models (pLDDT 70–78, pTM ~0.527), indicating that AlphaFold2 can form a meaningful structural prediction for this complex. This difference is expected: DnaJ is a well-characterised soluble protein with rich MSA coverage (~2000 sequences, Image 1), which anchors the prediction and allows confident inter-chain contact modeling.

The per-position IDDT plot reveals the key asymmetry of the complex: Chain A (L-protein, positions 0–75) consistently scores in the 20–50 range across all models while Chain B (DnaJ, positions 75–450) scores 80–95 throughout, well into the “confident” to “very high” range. This is biologically meaningful: the L-protein is a largely disordered, membrane-dependent protein that AF2 cannot confidently fold in isolation, while DnaJ is a structured chaperone that the model predicts with high accuracy. The L-protein’s low per-residue confidence does not invalidate the interaction prediction — it reflects the intrinsic disorder of the L-protein rather than a failure of the complex model.

All five ranked models show distinct blue (low error, ~0–10 Å) regions in the inter-chain quadrants, specifically, the L-protein (chain A, rows 0–75) shows confident predicted placement relative to the N-terminal J-domain region of DnaJ (approximately positions 100–250 in chain B). This is a strong signal: the model is confidently predicting that the L-protein contacts DnaJ, and that the interaction interface is localised rather than diffuse. Crucially, the contact region maps to L-protein residues in the soluble N-terminal domain (residues 1–40), not the TM domain — consistent with the published biological evidence that DnaJ interacts with the soluble domain of the L-protein (Chamakura et al., 2017).

The Mol* structure shows DnaJ folded as a large, confident beta-sheet and helix domain (blue/dark blue throughout), with the L-protein appearing as a short helix (red, low pLDDT) docked against DnaJ’s surface at the J-domain. The helical secondary structure of the L-protein’s TM region is partially preserved even in this soluble context, appearing as a compact helical element adjacent to the DnaJ interaction surface.

Relevance to proposed mutations:

Three of the five proposed mutations (S9Q, F22R, and C29R) fall directly within the soluble domain (residues 1–40) that the PAE matrix identifies as the predicted DnaJ contact region. This strongly supports their therapeutic rationale:

• C29R introduces a positively charged arginine at a cysteine position within the predicted interface. This could either strengthen hydrophilic contacts with DnaJ or, more importantly, sterically and electrostatically disrupt the native interaction — potentially enabling DnaJ-independent folding by forcing the L-protein to adopt a stable conformation without chaperone assistance.

• F22R replaces an aromatic residue with arginine at another interface-proximal position, similarly altering the electrostatic character of the binding surface.

• S9Q lies at the N-terminal edge of the predicted contact zone; the glutamine substitution introduces new hydrogen-bonding capacity that could stabilize the soluble domain’s fold autonomously.

The two TM mutations (K50L and N53L) fall in Chain A positions beyond the confident inter-chain contact region, consistent with TM residues not participating in DnaJ binding — instead targeting membrane insertion efficiency independently of the DnaJ interaction.

The L-protein’s low per-residue pLDDT throughout means the exact contact geometry should be treated as a hypothesis rather than a reliable atomic model. AlphaFold2 lacks membrane context, so the TM domain is modeled as if soluble. Validation via co-immunoprecipitation or crosslinking mass spectrometry of the wildtype and mutant complexes would be required to confirm the predicted interface. A more reliable structural prediction for just the soluble domain co-folded with DnaJ’s J-domain (rather than full-length L-protein) could also be attempted, as this would focus modeling resources on the well-defined interaction region.

Week 6 HW: Genetic Circuits Part I

1. What are some components in the Phusion High-Fidelity PCR Master Mix and what is their purpose?

Phusion High-Fidelity PCR Master Mix contains most of the key ingredients needed for PCR, except the template DNA and primers. It is designed to make DNA amplification more accurate and easier to set up.

Some of the main components are:

• Phusion High-Fidelity DNA Polymerase – the enzyme that synthesizes new DNA strands.
• dNTPs – the nucleotide building blocks (A, T, G, and C) used to build the new DNA.
• MgCl₂ – provides magnesium ions, which are required for the polymerase to function.
• Reaction buffer – maintains the correct pH and salt conditions so the reaction can proceed efficiently.

Together, these components create the right environment for accurate and efficient PCR amplification.

2. What are some factors that determine primer annealing temperature during PCR?

The annealing temperature in PCR depends on how well the primers can bind to the target DNA sequence. If the temperature is too low, the primers might bind non-specifically. If it is too high, they may not bind properly at all. So overall, the annealing temperature is chosen to balance specificity and efficiency during PCR.

3. There are two methods from this class that create linear fragments of DNA: PCR, and restriction enzyme digests. Compare and contrast these two methods, both in terms of protocol as well as when one may be preferable to use over the other.

PCR works by amplifying a specific region of DNA using primers, DNA polymerase, dNTPs, and thermal cycling. The main advantage of PCR is that it is highly flexible. PCR is especially useful when I need a specific insert or when I only have a small amount of starting DNA.

Restriction enzyme digestion works by cutting DNA at specific recognition sites using restriction enzymes. Unlike PCR, it does not amplify DNA but cuts the DNA wherever those enzyme sites are present. This method is often easier and more straightforward if the plasmid or DNA sequence already contains the right restriction sites.

4. How can you ensure that the DNA sequences that you have digested and PCR-ed will be appropriate for Gibson cloning?

To make sure that the DNA fragments are appropriate for Gibson cloning, the main thing I need to check is whether they have the correct overlapping ends. Gibson Assembly works by joining DNA fragments that share homologous sequences at their ends, so the insert and the vector backbone need to have matching overlap regions. Usually, these overlaps are designed into the PCR primers so that the amplified insert already contains the right sequences for assembly. The plasmid backbone also needs to be linearized in a way that exposes the corresponding matching ends.

5. How does the plasmid DNA enter the E. coli cells during transformation?

Plasmid DNA enters E. coli cells when the cell membrane is temporarily made permeable during transformation. Normally, DNA cannot easily cross the bacterial membrane because of charge repulsion and the barrier created by the cell envelope.

In chemical transformation, the cells are made competent using salts such as calcium chloride, which helps the DNA interact more easily with the cell surface. A brief heat shock is then used to create temporary changes in membrane permeability, allowing the plasmid DNA to enter.

In electroporation, a short electrical pulse creates temporary pores in the membrane, and the DNA enters through those openings.

6. Describe another assembly method in detail (such as Golden Gate Assembly)

Gibson Assembly is a molecular cloning method that joins multiple DNA fragments in a single, isothermal reaction. Each fragment is designed with short overlapping ends, and a mix of enzymes, a 5′ exonuclease, DNA polymerase, and DNA ligase, works together to assemble them seamlessly. The exonuclease creates single-stranded overhangs, allowing complementary regions to anneal; the polymerase fills in gaps, and the ligase seals the nicks. This enables rapid and scarless construction of complex DNA constructs without the need for restriction enzymes.

Gibson Assembly — Construct Design in Benchling

I used Benchling’s Gibson Assembly tool with pSB1C3 as the expression vector. I chose pSB1C3 because it is the standard iGEM backbone used throughout this course, is high-copy, and worksreliably in E. coli, making it the most practical choice for expressingthe L-protein mutant.

The construct architecture I used was: Anderson constitutive promoter BBa_J23106, followed by the Elowitz RBS BBa_B0034, the mutant L-protein coding sequence, and the double terminator BBa_B0015, all cloned into the pSB1C3 backbone. I built it as a separate DNA sequence in Benchling, then concatenated them into a single insert fragment per construct before attempting assembly.

The assembly process was not straightforward. When I first tried using Benchling’s new Gibson Assembly tool, the vector slot showed a persistent orange dot indicating it couldn’t resolve the cut site on the circular pSB1C3 sequence.

I tried lowering the minimum Tm, widening the homology length range, increasing the Tm difference tolerance but the orange dot remained. After troubleshooting, I realised the issue was that Benchling’s newer assembly interface couldn’t automatically determine where to linearise an imported iGEM vector, likely because pSB1C3 lacks a standard cut site annotation that the tool expects.

To navigate this, I switched to Benchling’s legacy assembly tool, which handles vector linearisation differently and gave me direct control over the cut position. I also manually created a linearised version of pSB1C3 by reorienting the sequence to start at position 22, effectively pre-cutting the vector at the BioBrick MCS insertion site between the BioBrick suffix and the his operon terminator. This bypassed the auto-detection issue entirely. Using the linearised vector with the legacy tool, the assembly ran successfully on the first attempt.

The final assembled plasmid for Construct 1 (F22R + C29R) came out at 2483 bp, with all four insert annotations J23106 promoter, B0034 RBS, L-protein CDS, and B0015 terminator correctly placed and visible in the circular map. Benchling also auto-designed all four Gibson primers (vector forward, vector reverse, insert forward, insert reverse) with appropriate overlapping tails for in vitro assembly.

Asimov Kernel

Bacterial Demo

I ran the bacterial demo in the repository on Asimov first

And then tried to recreate it using the given parts in the Characterizeed bacterial parts repository

The recreated Repressilator appears to match the original very closely at the circuit-design and dynamical-behavior level. The topology is preserved, the annotated sequence structure is essentially the same, and the simulated outputs show the expected three-node oscillatory repression dynamics.

L-Protein Mutant Constructs

Construct 1: Constitutive GFP Expression Circuit

This is a simple constitutive expression circuit used as a reference design to test the Kernel simulation environment.

Construct 2: Mammalian Promoter-Driven Expression Circuit

This construct uses a Short HsEef1a1 promoter driving expression of BBa_K3630002 and BBa_K3128009, with an L3S2P24 bacterial terminator. The RNAP flux was lower here (~0.27 relative units) compared to Construct 1, which makes sense since the HsEef1a1 promoter is a mammalian promoter and not optimised for bacterial simulation contexts. I also asked the asimov AI for assistance

Construct 3: Multi-Part L-Protein Expression Circuit

This uses the constitutive promoter BBa_J23119, RBS BBa_B0034, the L-protein coding sequence BBa_E0040, a coding sequence extension BBa_B0032, an insulator BBa_E1010, and terminator BBa_B0015. The simulation showed RNAP flux, and interestingly the ribosome flux graph showed two distinct peaks suggesting the simulator is resolving translation at two separate coding regions. This is the construct architecture most directly applicable to expressing L-protein mutants in E. coli for the downstream plaque assay experiments.

Week 7 HW: Genetic Circuits Part II

Part1: Intracellular Artificial Neural Networks

1. What advantages do IANNs have over traditional genetic circuits, whose input/output behaviors are Boolean functions?

Traditional genetic circuits treat inputs as binary. This works for simple logic but breaks down when you need nuanced, graded decisions based on multiple continuous signals. Biology itself is almost never binary; cells exist on spectrums of gene expression and signalling intensity. IANNs overcome this by operating in the analog domain. An IANN computes a weighted sum of all inputs and applies a nonlinear activation function, exactly like an artificial neuron. The same molecular parts can be reused to implement completely different decision boundaries just by changing the weights, without engineering new biological parts from scratch. IANNs can also be stacked into multiple layers, enabling hierarchical computation that is completely impossible with single-layer Boolean circuits.

2. Describe a useful application for an IANN; include a detailed description of input/output behavior, as well as any limitations an IANN might face to achieve your goal.

Application: multi-signal tumour detection A compelling use case is engineering a cancer-detecting IANN in CAR-T cells that triggers apoptosis only when multiple tumour markers are simultaneously present at the right levels, while ignoring healthy cells that express some markers at lower concentrations. Three inputs (HER2, MUC1, HIF-1a) drive promoters at strengths proportional to their concentration. Those promoters produce endoribonucleases whose expression encodes the weighted input combination. Layer 1 outputs Csy4, whose concentration reflects the weighted sum. In layer 2, a caspase gene carries a Csy4-recognition hairpin in its 5’ UTR. If Csy4 is below threshold, the hairpin is intact and the cell triggers apoptosis in the target. If Csy4 is high, it cleaves the mRNA and nothing happens. Limitations: the number of well-characterised orthogonal ERNs is small, capping practical input dimensionality. The system is also sensitive to transcriptional noise at low signal concentrations, and tuning promoter strengths reliably across cell types is difficult.

3. Draw a diagram for an intracellular multilayer perceptron where layer 1 outputs an endoribonuclease that regulates a fluorescent protein output in layer 2.

Part 2: Fungal Materials

1. What are some examples of existing fungal materials and what are they used for? What are their advantages and disadvantages over traditional counterparts?

The most developed fungal material is mycelium composite, where filaments of fungi like Ganoderma are grown through agricultural waste substrates like corn stalks and grain husks. The mycelium binds these particles into a solid mass that can be moulded. Ecovative Design uses this for packaging foam replacing expanded polystyrene. Bolt Threads grows mycelium leather sheets (Mylo) used by fashion brands, and Mogu produces acoustic wall panels and floor tiles.

Here are some samples of mycelium I grew in 2024. The strains used are reishi and florida oyester mushroom strains.

Mycelium composites are biodegradable, grown on agricultural waste with no petrochemical inputs, naturally fire-resistant, and thermally insulating. Mycelium leather avoids tanning chemicals and animal welfare concerns, and unlike synthetic PU leather it does not shed microplastics. Disadvantages: the material must be heat-killed at the end of growth to stop fungal activity, causing dehydration and shrinkage that can warp precision shapes. Moisture resistance is limited without coatings. The growth process is sensitive to contamination. And mechanical properties like tensile strength still fall short of high-performance synthetics.

2. What might you want to genetically engineer fungi to do and why? What are the advantages of doing synthetic biology in fungi as opposed to bacteria?

The most impactful engineering target is producing complex therapeutic glycoproteins that bacteria cannot make correctly. Beyond therapeutics, engineering mycelium to produce chitin fibres with controlled orientation or to express spider silk proteins could yield composites with dramatically improved mechanical properties. Fungi could also be engineered for mycoremediation, bioaccumulating heavy metals from contaminated soil. Fungi secrete proteins at rates 10 to 1000 times higher than bacteria, survive harsh conditions like low pH and desiccation, and build three-dimensional hyphal networks enabling solid-state fermentation without large water volumes.

Part 3: First DNA Twist Order

Final Project Summary

Project title: Stress-Chromatic Mycelium: Engineering Ganoderma lucidum to Visually Report Mechanical Stress via Indigoidine Biosynthesis

My individual final project engineers Ganoderma lucidum to function as a living mechanical stress reporter. The central hypothesis is that placing the bpsA gene from Streptomyces lavendulae — encoding the non-ribosomal peptide synthetase (~141 kDa) responsible for blue indigoidine pigment production — under the control of the GlSwi6B-responsive GL18134 chitin synthase promoter will drive spatially localized blue pigmentation in hyphal zones experiencing elevated cell wall stress, including mechanical compression. As mycelium-based composites scale into architecture and furniture, no current bio-based structural material can non-destructively report its internal stress history — this project directly addresses that gap.

Insert Sequence Design

The integration construct was designed in Benchling as a linear DNA sequence (8,375 bp total) targeting the G. lucidum leu2 locus by homologous recombination. Episomal vectors were explicitly excluded — they are unreliable in basidiomycetes and genomic integration is the established approach for stable G. lucidum transformation.

Construct name: pGl_bpsA_leu2_integration (renamed from pGl_GL18134_bpsA_integration_8375bp to meet Twist’s 32-character name limit)

Part map:

Signal transduction logic: Mechanical stress → cell wall deformation → CWI/MAPK cascade (GlSlt2) → GlSwi6B phosphorylation → GlSwi6B binds CGCGAAA motif in GL18134 promoter → bpsA transcription → BpsA + constitutively expressed Sfp PPTase → indigoidine (blue pigment, peak absorbance 590 nm).

Codon Optimization

bpsA and Sfp PPTase were both codon-optimized using JCat with S. cerevisiae codon usage tables. G. lucidum was not available as a codon optimization host in either Twist’s tool or JCat; S. cerevisiae was selected as the closest available eukaryotic reference with published functional bpsA expression precedent (Wehrse et al., 2018). This substitution is a documented limitation flagged for iterative optimization in Aim 2.

Backbone Vector

Backbone vector: pTwist Amp High Copy — selected for E. coli propagation before fungal transformation. Before G. lucidum transformation, the plasmid is linearized by restriction digest within one homology arm; the backbone does not integrate into the fungus.

Google Form Submission

I submitted the Google Form with draft Aim 1, project summary, and shared Benchling folder link. Industry council selections prioritized: Twist Bioscience, MycoWorks, BioFabricate, and Ginkgo Bioworks — all directly relevant to the stress-chromatic mycelium composite application.

https://docs.google.com/spreadsheets/d/1UsoGDb2TVIM-r8aScY800lMelQP_JPp1pCr5CB4y0zM/edit?gid=882133822#gid=882133822

Week 9 HW: Cell Free Systems

General Questions

1. Explain the main advantages of cell-free protein synthesis over traditional in vivo methods, specifically in terms of flexibility and control over experimental variables. Name at least two cases where cell-free expression is more beneficial than cell production.

Cell-free protein synthesis gives you a level of control over the reaction environment that you simply cannot get when working inside a living cell. Because there’s no cell membrane, you can directly add or remove components, adjust concentrations in real time, and introduce molecules that would be toxic to a living cell without worrying about killing your chassis. You also get direct access to the product without needing to lyse cells or purify through layers of cellular debris.

Two cases where cell-free is better than cell-based production is

MS2 L-protein punches holes in membranes and kills bacteria, you can’t reasonably produce it inside a living E. coli because it would lyse its own host before you getting meaningful yield. Cell-free lets you synthesize toxic protein in a controlled environment without that problem. It also lets you iterate and test on dozens of variants quickly.

2. Describe the main components of a cell-free expression system and explain the role of each component.

A cell-free expression system is essentially the inside of a cell, extracted and reconstituted in a tube. It conssits of:

• Cell extract: This is the ‘machinery’ containing ribosomes, translation factors, chaperones, and all the machinery needed to read an mRNA and assemble a protein.

• DNA template or mRNA: This is what you want expressed. You can add a plasmid, linear PCR product, or pre-transcribed mRNA depending on whether you want transcription to happen in the reaction or not.

• RNA polymerase: Needed if you’re starting from DNA typically T7 RNAP is added for prokaryotic systems since it’s fast and highly processive.

• Amino acids: The building blocks. You supply all 20 at defined concentrations so the ribosomes have raw material.

• Energy regeneration system: ATP is consumed rapidly during translation. You need a system to regenerate it typically phosphocreatine + creatine kinase, or PEP (phosphoenolpyruvate).

3. Why is energy provision regeneration critical in cell-free systems? Describe a method you could use to ensure continuous ATP supply in your cell-free experiment.

Energy regeneration is critical because translation is ATP- intensive. The cell-free reaction has a finite supply, and without regeneration the reaction stalls within minutes.

The most common approach is the phosphocreatine/creatine kinase system that catalyzes the transfer of a phosphate group from phosphocreatine to ADP, regenerating ATP. This is simple to add and works well for reactions up to a few hours.

4. Compare prokaryotic versus eukaryotic cell-free expression systems. Choose a protein to produce in each system and explain why.

Prokaryotic cell-free systems (E. coli-based) are faster to prepare, cheaper, and give higher yields for most simple proteins. The extract is easy to make in bulk and the system is well characterized. I’d use it to produce the MS2 L-protein, its natural context is E. coli, all the relevant chaperones are present in the E. coli extract, and I need high yield quickly for membrane insertion assays.

Eukaryotic systems are needed when your protein requires post-translational modifications like glycosylation, disulfide bond formation in the ER, or mammalian-specific folding chaperones. I’d use a mammalian cell-free system to produce human SOD1 it’s a cytosolic metalloenzyme that requires proper copper and zinc cofactor loading, and its folding energetics in the A4V mutant form are already perturbed, so having the right chaperone environment matters.

5. How would you design a cell-free experiment to optimize the expression of a membrane protein? Discuss the challenges and how you would address them in your setup.

Membrane proteins are the hardest class to express in cell-free systems because they’re hydrophobic and aggregate instantly in aqueous solution without a membrane to insert into. The key is to provide a hydrophobic environment during synthesis.

I would design the experiment as follows: use an E. coli-based cell-free system supplemented with nanodiscs or liposomes added directly to the reaction so the protein co-translationally inserts into a lipid bilayer as it comes off the ribosome. For the L-protein specifically, I’d prepare nanodiscs made from POPC and MSP1D1 scaffold protein, add them at ~0.2 mg/mL to the cell-free reaction, and run the reaction to slow translation slightly and give the protein more time to fold beforethe next ribosome catches up.

The main challenges are: (1) aggregation before membrane insertion addressed by pre-adding nanodiscs before starting transcription; (2) low yield because hydrophobic proteins titrate out ribosomes, addressed by using a PURE system where you have more control over ribosome concentration; (3) confirming proper insertion addressed by running a protease protection assay where correctly inserted protein is shielded from externally added proteinase K.

6. Imagine you observe a low yield of your target protein in a cell-free system. Describe three possible reasons for this and suggest a troubleshooting strategy for each.

Reason 1: The genetic template isn’t intact or there isn’t enough of it. The machinery can only build what it can read. If the DNA or RNA blueprint has degraded, or if there simply isn’t enough of it in the reaction, the output will be low no matter how healthy everything else is. To fix this, I’d first verify the quality and quantity of my template before adding it to the reaction. If the instructions are broken, no amount of tweaking elsewhere will help. I’d also protect the template from being destroyed mid-reaction by adding agents that block the enzymes responsible for degrading nucleic acids.

Reason 2: The energy or building blocks ran out. Protein synthesis is energy-hungry, and a cell-free reaction has a fixed starting supply. Once it is exhausted, the machinery stops, even if everything else is fine. Similarly, if the amino acid pool gets depleted partway through, the ribosomes stall. To troubleshoot this, I’d make sure the reaction includes an energy regeneration system so the fuel gets continuously recycled rather than just consumed, and I’d check that all twenty amino acids are present and well-supplied throughout the reaction.

Reason 3: The reaction environment isn’t right for this particular protein. The chemical conditions inside the tube things like salt balance and pH affect how well the machinery functions and whether the protein folds correctly after being made. A protein that misfolds immediately gets flagged and broken down, so even if translation is happening, the yield of intact product stays low. I’d troubleshoot this by running a small set of test reactions where I vary the buffer conditions slightly and see which environment gives the best result for my specific protein, rather than assuming the default conditions work for everything.

Homework Question from Kate Adamala

1. Function

a. What would your synthetic cell do? What is the input and what is the output?

My synthetic cell would act as a targeted antibiotic delivery vesicle for treating antibiotic-resistant bacterial infections. The input is a specific lipopolysaccharide (LPS) signature from a pathogenic gram-negative bacterium (e.g. K. pneumoniae). The output is localized release of a pore-forming peptide payload directly at the bacterial surface, lysing the pathogen without systemic antibiotic exposure.

b. Could this function be realized by cell-free Tx/Tl alone, without encapsulation?

No. Without encapsulation, there is no spatial specificity. The pore-forming peptide would be released everywhere and would be toxic to host cells as well. Encapsulation is what makes the delivery targeted: the synthetic cell only releases its payload when it docks onto a pathogen-specific surface signal.

c. Could this function be realized by a genetically modified natural cell?

Not easily. A living cell programmed to lyse bacteria would face serious immune clearance, regulatory hurdles, and the risk of horizontal gene transfer to other organisms. A synthetic minimal cell is non-replicating, non-living, and therefore much safer and more controllable.

d. Describe the desired outcome of your synthetic cell operation.

When the synthetic cell encounters a K. pneumoniae surface, a LPS-sensing aptamer on the membrane surface triggers expression of a pore-forming peptide (colistin mimetic) from the encapsulated Tx/Tl system. The peptide inserts into the bacterial membrane, causing lysis specifically at the site of infection, while host mammalian cells which lack LPS are untouched.

2. Component Design

a. What would the membrane be made of?

POPC (1-palmitoyl-2-oleoyl-sn-glycero-3-phosphocholine) as the main structural lipid, supplemented with 30% cholesterol for membrane stability, and 5% DSPE-PEG2000 for steric stabilization and extended circulation time in biological fluids. The LPS-sensing aptamer would be conjugated to DSPE-PEG-maleimide on the outer leaflet.

b. What would you encapsulate inside?

• Bacterial cell-free Tx/Tl system (E. coli S30 extract)
• Linear DNA template encoding the pore-forming peptide under a T7 promoter with an aptazyme riboswitch responsive to LPS
• ATP regeneration mix (phosphocreatine + creatine kinase)
• All 20 amino acids at standard PURE system concentrations
• Mg²⁺ optimized to 8 mM

c. Which organism will your Tx/Tl system come from?

Bacterial (E. coli S30 extract) — this is sufficient because the trigger is an aptazyme riboswitch, which works in bacterial Tx/Tl. No mammalian promoter system is needed since I’m not using Tet-ON or similar mammalian-specific inducible systems.

d. How will your synthetic cell communicate with the environment?

The LPS signal is detected by a surface-conjugated aptamer that, upon binding, triggers local membrane destabilization — releasing the Tx/Tl system contents or initiating fusion with the bacterial outer membrane. The pore-forming peptide produced inside the synthetic cell is hydrophobic enough to insert directly into the adjacent bacterial membrane upon release, without needing a dedicated membrane channel for export.

3. Experimental Details

a. List all lipids and genes:

Lipids:

• POPC (main bilayer)
• Cholesterol (30 mol%)
• DSPE-PEG2000-maleimide (5 mol%, for aptamer conjugation)

Genes:

• Pore-forming peptide gene: synthetic codon-optimized gene encoding Magainin-2 (a well-characterized antimicrobial peptide) under T7 promoter, with an LPS-responsive aptazyme (based on the OxyS aptazyme scaffold) in the 5’ UTR
• T7 RNA polymerase gene: for transcription of the peptide gene inside the vesicle

Aptamer: LPS-binding aptamer sequence (Johnson et al., 2008, derived from SELEX against LPS from E. coli O111:B4) conjugated to DSPE-PEG-maleimide via thiol chemistry.

b. How will you measure the function of your system?

Primary readout: mix synthetic cells with K. pneumoniae in liquid culture and measure optical density at 600 nm over 6 hours a drop in OD600 indicates bacterial lysis. Secondary readout: add SYTOX Green (a membrane- impermeant DNA dye) to the co-culture. If bacteria are lysed, SYTOX enters and fluorescence increases, which can be quantified by plate reader or flow cytometry.

Homework Question from Peter Nguyen

Field chosen: Architecture

One-sentence pitch: A building facade material embedded with dormant slime mould networks and freeze-dried cell-free reporters that together map and visually display real-time moisture stress, structural load distribution, and ventilation dead zones across a building’s surface thereby turning the wall itself into a living diagnostic instrument.

How it works: Slime mould (Physarum polycephalum) is a remarkable organism that naturally grows its network along paths of least resistance, optimises for efficient transport between nodes, and retreats from dry or chemically hostile zones. These are exactly the same problems a building faces: where is moisture accumulating behind cladding? Where are thermal bridges concentrating stress? Where is air circulation failing?

The material would work in two layers. The first is a slime mould network layer a thin hydrogel matrix embedded in the interior face of a facade panel, seeded with dormant freeze-dried Physarum. When humidity inside the wall cavity rises above a threshold (indicating moisture ingress, condensation, or a failing vapour barrier), the slime mould rehydrates and begins growing. Because Physarum preferentially colonises humid corridors and avoids dry zones, its network topology after 24–48 hours of growth literally traces the moisture distribution map of that wall section — the densest growth appears where the problem is worst.

The second layer is a freeze-dried cell-free biosensor layer sitting just inside the visible surface of the panel. As the slime mould network grows, it releases metabolic byproducts specifically extracellular ATP and changes in local pH that diffuse into the cell-free layer. These chemical signals activate a riboswitch in the encapsulated Tx/Tl system, driving expression of a pigment or structural protein that causes a visible color shift on the panel’s surface. The wall literally marks its own problem zones in a colour visible from outside, without any wiring, sensors, or power supply.

When the moisture problem is resolved and the wall dries out, Physarum desiccates back into its dormant spore state, the cell-free reaction stops (no more trigger signal), and the panel resets, ready to respond again if the problem returns. Multiple panels across a facade create a distributed, self-reporting moisture map of the entire building skin.

Societal challenge addressed: Hidden moisture damage is one of the most expensive and dangerous failure modes in construction. It causes structural rot, mould growth, and insulation failure, and it is almost always detected too late because it is invisible until the damage is severe. Current monitoring requires either invasive physical inspection or expensive embedded electronic sensor networks that need power, maintenance, and replacement. A passive biological system that self-activates, self-maps, and self-resets would give architects and building managers a continuous, maintenance-free diagnostic layer in the fabric of the building itself is particularly valuable in social housing, schools, and infrastructure in lower-resource settings where sensor networks are not economically viable.

Addressing cell-free limitations: The one-time-use limitation is turned into a feature here. Each activation event corresponds to a real moisture event, and the system resetting when conditions improve means the panel is always ready for the next event rather than giving a permanent false positive. Stability is handled by the slime mould’s own biology by naturally encysting into desiccation-resistant sclerotia when dry, which can survive years without nutrients, and the freeze-dried cell-free layer sits dormant in the same conditions. Activation is not by externally added water but by the building’s own pathological moisture. The system only triggers when there is a genuine problem, not from rain on the outer surface or ambient humidity fluctuations. The spatial resolution of the diagnostic comes for free from Physarum’s network growth dynamics.

Homework Question from Ally Huang

Using BioBits® Cell-Free Protein Expression System

1. Background

Astronauts on long-duration missions experience significant immune dysregulation, including reduced lymphocyte function and increased susceptibility to latent viral reactivation. In space, standard laboratory-based immune monitoring is completely out of reach. Early detection of immune stress markers is critical for crew health, especially on future Mars missions where communication delays make real-time Earth-based medical support impossible. A lightweight, freeze-dried diagnostic system that can be activated on demand would directly address this gap.

2. Molecular Target

Interleukin-6 (IL-6) mRNA — an early biomarker of systemic immune activation, inflammation, and viral reactivation in astronauts.

3. How the target relates to the challenge

IL-6 spikes within hours of infection or physiological stress and has been documented at elevated levels in astronaut blood samples linked to latent herpesvirus reactivation during ISS missions. Detecting IL-6 mRNA using a cell-free toehold switch biosensor gives real-time immune status information without cold-chain reagents, trained personnel, or centrifuges.

4. Hypothesis

I hypothesize that a freeze-dried BioBits cell-free expression system programmed with an IL-6 mRNA-responsive toehold switch will reliably detect elevated IL-6 transcript levels aboard the ISS, producing a fluorescent output measurable by the P51 Molecular Fluorescence Viewer. The toehold switch keeps the ribosome binding site sequestered in a hairpin until the target IL-6 mRNA binds and unfolds it, triggering translation of sfGFP. A visible fluorescence signal indicates immune activation. The system will be validated against known IL-6 concentration standards before flight.

5. Experimental Plan

Freeze-dried BioBits pellets will be rehydrated with a small whole blood lysate sample from crew members at pre-flight, mid-mission, and post-flight timepoints. The miniPCR thermal cycler will maintain isothermal incubation conditions, and fluorescence will be read on the P51 viewer. Controls include a synthetic IL-6 mRNA positive control and a buffer-only negative control. Fluorescence presence or absence relative to a set threshold identifies immune activation events across mission timepoints.

Part B: Individual Final Project

Project Selection

I submitted the Final Project selection form and placed my project slide in the Committed Listener final project slide deck.

Project title: MycoTint - Stress-Chromatic Mycelium: Engineering Ganoderma lucidum to Visually Report Mechanical Stress via Indigoidine Biosynthesis

One-sentence summary: I am engineering Ganoderma lucidum to couple its cell wall integrity (CWI) signaling pathway to heterologous indigoidine (bpsA) biosynthesis, so that mycelium composite panels permanently record internal mechanical stress history as visible blue pigmentation, enabling non-destructive structural diagnostics in bio-based architecture without instrumentation.

Aim 1

Design and order a genomic-integration construct (pGl_bpsA_leu2_integration, 8,375 bp) encoding bpsA from Streptomyces lavendulae under the GlSwi6B-responsive GL18134 chitin synthase promoter, co-expressed with a constitutively expressed Sfp PPTase cassette, flanked by homology arms targeting the G. lucidum leu2 locus. Transform into G. lucidum protoplasts via PEG-mediated transformation. Apply mechanical compression, osmotic stress (1 M sorbitol), and heat stress (37°C) as parallel conditions, then measure indigoidine production by absorbance at 590 nm on the Spark Plate Reader to determine whether mechanical compression produces a statistically distinct indigoidine signal (≥1.5-fold, p < 0.05) relative to other CWI-activating stressors.

The full experimental design, construct map, and Benchling/Twist documentation are on my https://pages.htgaa.org/2026a/anushka-shinde/projects/individual-final-project/index.html.

DNA Twist Order

I entered my first DNA order in the HTGAA Ordering Spreadsheet (Twist Nodes tab)

Week 2 HW: DNA read-write-edit

Part 1: Gel Electrophoresis

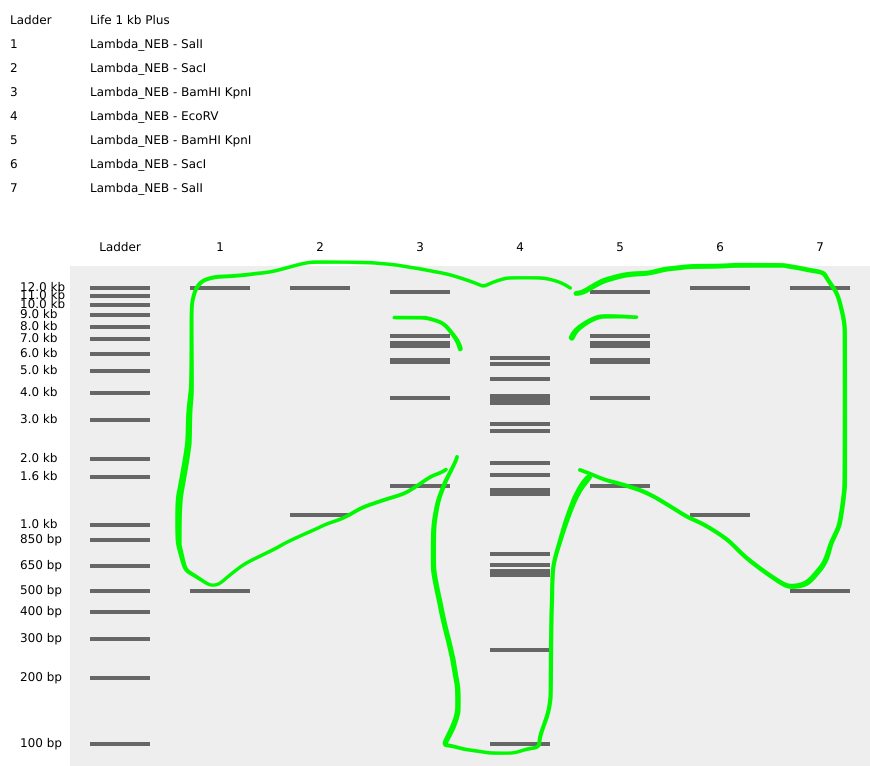

Due to no access to equipment and space for gel electrophoresis I simulated the same to understand the process on https://www.labxchange.org/library/items/lb:LabXchange:9548bee3:lx_simulation:1?fullscreen=true

Workflow: Design plasmid DNA with protein of interest → Transform bacteria with plasmid DNA → Get many copies of plasmid DNA → Introduction of plasmid DNA to cells

Working in Benchling

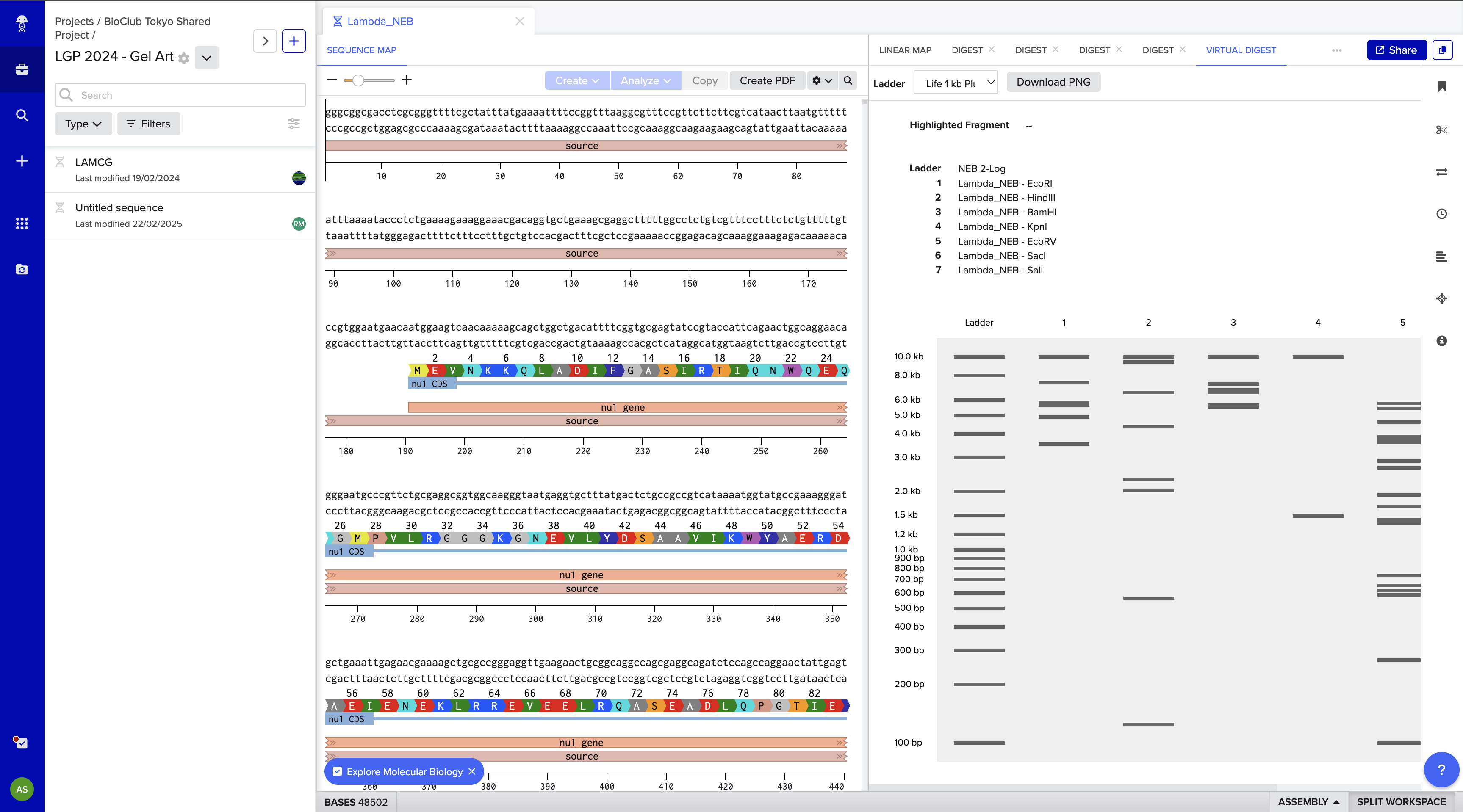

After signing in I imported it into Benchling and ran digests for:

• EcoRI
• HindIII
• BamHI
• KpnI
• EcoRV
• SacI
• SalI

And then ran digests on SalI, SacI, BamHI, KpnI, EcoRV, BamHI, KpnI, SacI, SalI to create an Elephant! 🐘

For this, I referred to an iGEM video to understand how enzyme digesting works: https://www.youtube.com/watch?v=7cGev-SKLao

Part 3: DNA Design Challenge

3.1 Chosen Protein: Actin

tr|D3BD07|D3BD07_HETP5 Actin OS=Heterostelium pallidum (strain ATCC 26659 / Pp 5 / PN500) OX=670386 GN=act10 PE=3 SV=1 MEGEDVQALVIDNGSGMCKAGFAGDDAPRAVFPSIVGRPRHTGVMVGMGQKDSYVGDEAQ SKRGILTLKYPIEHGIVTNWDDMEKIWHHTFYNELRVAPEEHPVLLTEAPLNPKANREKM TQIMFETFNTPAMYVAIQAVLSLYASGRTTGIVMDSGDGVSHTVPIYEGYALPHAILRLD LAGRDLTDYMMKILTERGYSFTTTAEREIVRDIKEKLAYVALDFENEMQTAASSSALEKS YELPDGQVITIGNERFRCPEALFQPSFLGMESAGIHETTYNSIMKCDVDIRKDLYGNVVL SGGTTMFPGIADRMQKELTALAPSTMKIKIIAPPERKYSVWIGGSILASLSTFQQMWISK EEYDESGPSIVHRKCF

3.2 Reverse Translation

ATGGAAGGCGACGTTCAAGCGCTGGTGATCGACAATGGTTCTGGCATGTAAAGCGGGTTTCGCAGGCGACGACGCACCGCGCGCGCGCGTTCTTTCCTTCGATTGTGCGCCGTCGCCGTCATACCGGCGTGATGGTTGTGGGGATGCAGCAAGAGGACTCCTACGTGGGCGACGAGGCGCAGTCGAAAGGTGGGATCCTGACCCTGAAGTACCCGATCGAACACGGGATTGGTGACTAACAATGGGACGATATGAAGGAAATCTGGCACCACACGTTCTTATAACGAATTAAGAGTGGCGCCGGAAGAACCAGTTCCTGTGCTGCTGACCGAGGCGCCGCTGAACCCGAAAGCCAACCGTGAAGAAATGAAGACCAGGATTATGTTTGAACCTTTCAACACGCCGGCGATGTATGTGGCGATTCAAGCGGTGTTGTCGCTGTATGCCTCGGGTCGTACCACCGGTATTGTGATGGATTCTGGCGACGGCGTGTCCCATACGGTGCCCATCTATGAAGGTTATGCCTTACCGCACCGCATCCTCCGCCTGGATCTGGCGGGTCGCGATCTGACTGACTATGATGATGAAGATCCTGACTGAACGTGGTTATTCGTTTACGACCACCGCCGAAAGGGAAATCGTCGACATCAAAGAGAAGCTGGCGTATGTGGCACTTGATTTCGAGAACGAGATGCAAACGGCGGCGTCGTCGTCGTCGCGTTGAAAAGT CGTATGAACTGCCGGACGGCCAGGTCATCACTATCGGTAACGAACGTTTCCGCTGCCCTGCGCTTTCAACCGTCGTTCTTAGGCATGGAAAGCGCGGGCATACACGAAACCACGTACAACAGCATTATGAAATGCGATGTCGACATTCGCAAGGATCTGTATGGTAACGTGGTCCTGGGCGGCACCACGATGTTCCCGGGCATCGCCGAACGCATGCAAGAAACTGACCACCGCGCTGGCGCCGTCGACCATGAAAATCAAGATCATTGCCGCGCCGGAACGTAAGTCTTGGGTCATCGGCGGCTCGTTGGCCTCGTCGACCTTCCAGCAGATGTGGATCAGCAAAGAAGAGTATGACGAAAGCGGTCCTTCGGTGATCCACCGTAAGTTCTTCGCGAAACCGCAAGATTAA

3.3 Codon Optimization

Codon optimization is necessary because different organisms use synonymous codons (DNA triplets encoding the same amino acid) at different frequencies. Even if the amino acid sequence is identical, a coding sequence with rare codons for the host organism causes ribosome stalling, reduced translation efficiency, and lower protein yield. By swapping rare codons for frequently used equivalents in the host, we maximize the probability that the host’s tRNA pool can keep up with translation demand.

I optimized the actin sequence for E. coli expression, since it is the most common and accessible bacterial chassis for initial protein production. E. coli is fast-growing, inexpensive to culture, and has well-characterized expression systems, making it the practical choice for early characterization work even though actin is a eukaryotic protein.

Optimized DNA Sequence (1122 bp):

atggaaggcgatgtccaggcgctggtgatcgacaacggctccggcatgaaggccggcttcgccggcgatgatgcccccagggcggcggtgtcttcccctcgatcgtgggccgtccgcgtcacaccggtgtgatggtggtgggtatgcagcagaaagattcctatgtgggcgacgaagcgcaatcgaaagggcatcctgaccctgaagtatccgatcgagcatggcatcgtgaacaactgggacatggagaagatctggcaccacatgttctacaacgagctgcgtgtggcgccggaagaaccccacgtgctgctgaccgaggcgccgctgaacccgaaggccaaccgtgaacgcaagatgaagaccaggatcatgatgttcgaacagttcaacacgccggcgatgtatgtggcgattcaagcggtgctgtcgctgtatgcctcgggccgtaccaccggcatcgtgatggactccggcgatggcgtttcccacatcgtgcccatctatgaaggctatgcgctgccgcatgccatcctgcgcctggatctggcgggcagggatctgaccgactacatgatgaagatcctgaccgaacgcggttatagcttcaccaccaccgcggagaagatcgtccgggacatcaagaagaaactggcgtatgtggcgctcgatttcgaaaacgaaatgcaagcgaccgcgagctcgagcgccctggagaagtcgtatgagctgccggacggccaggtgatcaccatcggcaacgaacgcttccgttgccctgccgctgttccagccctcgttcggcatggagagcgccggcatccatgagaccacctacaacagcatcatgaagacctgcgatgtggacatccgcaaggacctgtatggcaacgtggtgctcggcggcaccaccatgttccccggcatcgccgacaggatgcaaaaggagctgaccgccgcgctgccgcccagcaccatgaagatcaagatcatcgcgccgccggagcgtaagtcgtgggtgatcggcggctcgctggcgagcctgagcacgttccagcagatgtggatcagcaaggaggaatacgacgagtcgggcccgagcatcgtgcaccgcaagtgcttcggcaagcgcaagatgaa

3.4 Production Strategy

I would recommend a plasmid-based cloning approach for initial expression work. The optimized DNA can be inserted into a standard expression plasmid and introduced into E. coli via transformation. Once inside the bacterial cells, the plasmid replicates autonomously, allowing the host machinery to transcribe my DNA into mRNA and subsequently translate it into actin protein. However, since actin is a eukaryotic cytoskeletal protein and my sequence lacks the signal peptides and targeting sequences necessary for membrane localization or secretion, the expressed protein will likely accumulate intracellularly. This necessitates cell lysis and downstream purification via affinity chromatography or other protein separation techniques to isolate and characterize my recombinant actin.

Alternatively, the PURE system (Protein synthesis Using Recombinant Elements) presents a compelling option due to its turnaround time. In this cell-free approach, my DNA template is incubated with a defined set of recombinant enzymes and cellular extracts that provide the necessary transcriptional and translational machinery. This in vitro reaction proceeds rapidly without the overhead of maintaining living cells, generating my actin protein directly in the reaction mixture. The resulting product must subsequently be purified via affinity chromatography to obtain homogeneous, functional protein suitable for downstream biochemical investigations.

Part 4: Twist DNA Synthesis Order

I used GFP (from Aequorea victoria, UniProt P42212) as my synthesis target, as it is a useful fluorescent reporter for tracking actin dynamics in Physarum polycephalum tubes. Physarum polycephalum has actin and myosin predominantly, and to understand the movements within the Physarum tubes, fluorescence can help visualize protein dynamics.

Protein sequence (UniProt):

sp|P42212|GFP_AEQVI Green fluorescent protein OS=Aequorea victoria OX=6100 GN=GFP PE=1 SV=1 MSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLTLKFICTTGKLPVPWPTL VTTFSYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFKDDGNYKTRAEVKFEGDTLV NRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKNGIKVNFKIRHNIEDGSVQLAD HYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDHMVLLEFVTAAGITHGMDELYK

Reverse translated DNA sequence:

reverse translation of sp|P42212|GFP_AEQVI to a 714 base sequence using https://www.bioinformatics.org/sms2/rev_trans.html atgagcaaaggcgaagaactgtttaccggcgtggtgccgattctggtggaactggatggc gatgtgaacggccataaatttagcgtgagcggcgaaggcgaaggcgatgcgacctatggc aaactgaccctgaaatttatttgcaccaccggcaaactgccggtgccgtggccgaccctg gtgaccacctttagctatggcgtgcagtgctttagccgctatccggatcatatgaaacag catgatttttttaaaagcgcgatgccggaaggctatgtgcaggaacgcaccatttttttt aaagatgatggcaactataaaacccgcgcggaagtgaaatttgaaggcgataccctggtg aaccgcattgaactgaaaggcattgattttaaagaagatggcaacattctgggccataaa ctggaatataactataacagccataacgtgtatattatggcggataaacagaaaaacggc attaaagtgaactttaaaattcgccataacattgaagatggcagcgtgcagctggcggat cattatcagcagaacaccccgattggcgatggcccggtgctgctgccggataaccattat ctgagcacccagagcgcgctgagcaaagatccgaacgaaaaacgcgatcatatggtgctg ctggaatttgtgaccgcggcgggcattacccatggcatggatgaactgtataaa

4.1 Accounts

Created accounts on Twist Bioscience and Benchling.

4.2 Expression Cassette (built in Benchling)

I assembled the following parts in Benchling as a linear DNA sequence, annotating each region:

• Promoter (BBa_J23106): TTTACGGCTAGCTCAGTCCTAGGTATAGTGCTAGC
• RBS (BBa_B0034): CATTAAAGAGGAGAAAGGTACC
• Start Codon: ATG
• Coding Sequence: codon-optimized GFP sequence (see above)
• 7x His Tag: CATCACCATCACCATCATCAC
• Stop Codon: TAA
• Terminator (BBa_B0015): CCAGGCATCAAATAAAACGAAAGGCTCAGTCGAAAGACTGGGCCTTTCGTTTTATCTGTTGTTTGTCGGTGAACGCTCTCTACTAGAGTCACACTGGCTCACCTTCGGGTGGGCCTTTCTGCGTTTATA

[Screenshot of annotated Benchling linear map]

4.3–4.6 Twist Order

On Twist, I selected Genes → Clonal Genes and uploaded the FASTA file of my expression cassette. I selected pTwist Amp High Copy as the cloning vector (Ampicillin resistance, high copy origin). I downloaded the full construct as a GenBank file and re-imported it into Benchling to view the complete plasmid map.

[Screenshot of Twist order screen and Benchling plasmid map]

Part 5: DNA Read / Write / Edit

5.1 DNA Read

(i) What DNA would I want to sequence and why?

I would want to sequence the genome of wild-type Physarum polycephalum and compare it against my engineered strain expressing tyrosinase/laccase-type oxidase. Sequencing would allow me to confirm the insertion site, verify no off-target integrations have occurred, and monitor for any spontaneous mutations that emerge over passages. This is directly relevant to the biosafety goals outlined in Week 1 — tracking genomic stability of the GMO is essential to ensuring the narrow functional envelope I described there.

(ii) Sequencing technology: Nanopore long-read sequencing (Oxford Nanopore Technologies)

1. Generation: Third-generation sequencing. Nanopore reads single DNA molecules directly without PCR amplification, enabling very long reads (tens of kilobases), which is well suited to assembling the large, complex Physarum genome.
2. Input & preparation: Genomic DNA extracted from the plasmodium, end-repaired and adapter-ligated using a ligation sequencing kit. No fragmentation is needed for long-read mode.
3. Essential steps & base calling: DNA strands are driven through protein nanopores by an applied voltage. As each base translocates, it causes a characteristic disruption in ionic current. A neural-network basecaller (e.g., Dorado) converts the current signal into a nucleotide sequence.
4. Output: Long-read FASTQ files, assembled into a draft genome or aligned to a reference for variant and insertion-site calling.

5.2 DNA Write

(i) What DNA would I want to synthesize and why?

I would synthesize the expression cassette for tyrosinase fused to a secretion signal peptide, optimized for expression in Physarum polycephalum. This is the core genetic payload for my dyeing application — the enzyme needs to be secreted into the extracellular slime trail to catalyze pigment formation on the substrate fabric. The GFP sequence prepared above would also be synthesized as a reporter to co-localize with the enzyme and confirm secretion into the trail.

(ii) Synthesis technology: Phosphoramidite-based gene synthesis (via Twist Bioscience)

1. Essential steps: Solid-phase synthesis of oligonucleotides (~200 nt max per oligo), followed by error-correction, oligo assembly via overlap extension or Gibson Assembly into the full gene, and sequence verification by Sanger sequencing before delivery.
2. Limitations: Maximum direct synthesis length is ~200 nt per oligo, so longer genes require assembly of multiple fragments introducing additional error-checking steps. Error rate of approximately 1 in 200 bases per oligo necessitates error-correction. Very GC-rich or repetitive sequences (common in some signal peptide sequences) require special synthesis handling.

5.3 DNA Edit

(i) What DNA would I want to edit and why?

I would edit the Physarum polycephalum genome to knock in the tyrosinase expression cassette at a defined safe-harbor locus — a genomic location where insertion causes no disruption to essential genes. Targeted integration is preferable to plasmid-based expression because it provides stable, heritable expression without plasmid loss over successive growth cycles, which is important for a consumer product where batch-to-batch consistency matters.

(ii) Editing technology: CRISPR-Cas9

1. How it works: A guide RNA (gRNA) complementary to the target locus directs the Cas9 nuclease to create a double-strand break at a specific site adjacent to a PAM sequence (5’-NGG-3’). The break is repaired via homology-directed repair (HDR) using a donor template containing the tyrosinase expression cassette flanked by homology arms matching the safe-harbor locus.
2. Preparation & inputs: Design gRNA targeting the safe-harbor locus using Benchling’s CRISPR design tool, synthesize the gRNA, prepare Cas9 protein or plasmid, and construct an HDR donor template with ~500 bp homology arms flanking the insertion site.
3. Limitations: HDR efficiency in Physarum is not well characterized and may require significant optimization of delivery method (electroporation or lipofection). Off-target cuts remain a concern and require whole-genome sequencing to verify clean edits. PAM site availability constrains the exact targetable positions within the locus.

Week 10 HW: Imaging and Measurement

Final Project: Measurements

Tthe primary measurable output is indigoidine production by engineered Ganoderma lucidum in response to mechanical and other stress conditions. The key measurement aspects are:

1. Indigoidine quantification — The most direct readout of bpsA expression and BpsA enzyme activity is the blue pigment indigoidine, which has a peak absorbance at 590 nm. I will use the Spark Plate Reader to measure absorbance at 590 nm across all stress conditions (mechanical compression, osmotic, heat, no-stress control) in 384-well format, with a standard curve of purified indigoidine (0–100 µM) to convert absorbance to concentration. This gives a quantitative measure of promoter activity under each stress condition and is the primary success metric for Aim 1.

2. Construct integration verification — Colony PCR + gel electrophoresis After PEG-mediated transformation of G. lucidum, I will use colony PCR with one primer outside the leu2 homology arm (genomic) and one inside bpsA to confirm correct genomic integration. The expected band is ~800 bp. Gel electrophoresis on a 1.5% agarose gel with ethidium bromide staining will visualize the PCR product.

3. Single-copy integration confirmation — qPCR (CFX Opus) Quantitative PCR will compare the copy number of the integrated bpsA gene relative to a single-copy genomic reference gene, confirming that the construct has integrated once (not multi-copy tandem insertions that could confound expression data).

4. Protein-level confirmation — SDS-PAGE and Western blot If indigoidine production is detected, I will confirm BpsA protein expression by running total cell lysate on SDS-PAGE (expected band ~141 kDa) and probing with an anti-His antibody (the construct does not include a His-tag in the current design — this could be added in Aim 2 for easier detection).

5. Mass spectrometry (future Aim 2) If I can purify BpsA from the engineered strain, intact protein LC-MS on a system like the Waters Xevo G3 QTof would confirm the molecular weight of the expressed protein and verify it matches the predicted 141 kDa, ruling out truncation or incorrect translation. Peptide mapping after tryptic digest would further confirm the primary sequence of the expressed BpsA.

Waters Part I Molecular Weight

Question 1: Based on the predicted amino acid sequence of eGFP (see below) and any known modifications, what is the calculated molecular weight?

Using the ExPASy Compute pI/Mw tool with the provided eGFP sequence

Theoretical MW = 28,006.60 Da

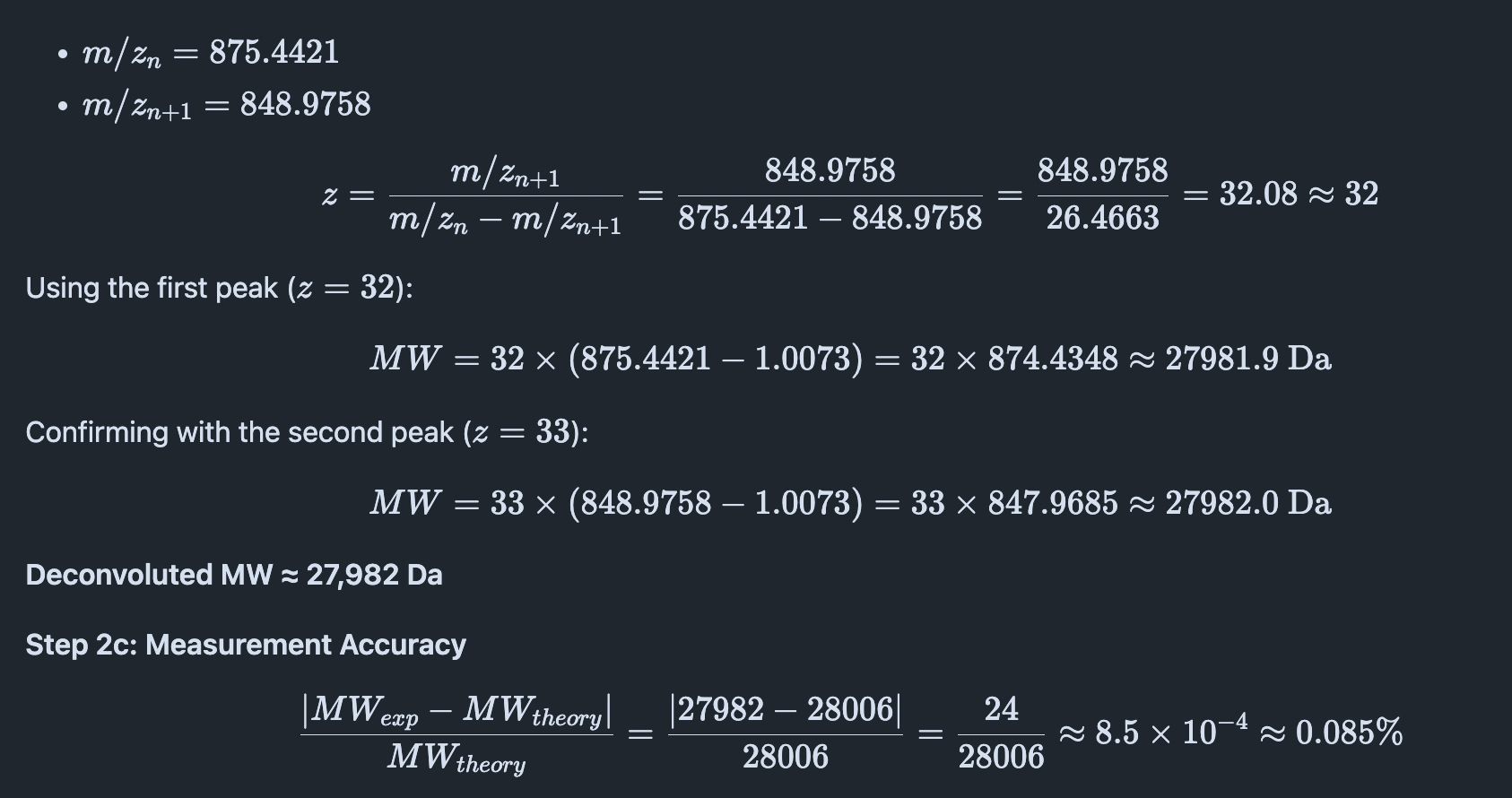

Question 2: Calculate the molecular weight of the eGFP using the adjacent charge state approach described in the recitation.

Using the two adjacent charge state peaks:

Deconvoluted MW ≈ 27,982 Da

Question 3: Can you observe the charge state for the zoomed-in peak in the mass spectrum for the intact eGFP? If yes, what is it? If no, why not?

No, the charge state cannot be determined from the zoomed-in peak. Determining the charge state requires at least two adjacent charge-state peaks so their spacing can be used to calculate $z$. In the zoomed region, only a single isolated peak is shown with no neighboring charge-state peak visible, so there is insufficient information to assign a charge state.

Waters Part III — Peptide Mapping (Primary Structure)

Q1.How many Lysines (K) and Arginines (R) are in eGFP? Please circle or highlight them in the eGFP sequence given in Waters Part I question 1 above.

There are 20 Lysines (K) and 6 Arginines (R) in the eGFP sequence, for a total of 26 cleavage sites.

Highlighted sequence (K and R in bold):

MVSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLTLKFICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFKDDGNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKNGIKVNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEK****RDHMVLLEFVTAAGITLGMDELYKLEHHHHHH

Q2. How many peptides will be generated from tryptic digestion of eGFP?

Using the PeptideMass tool at https://web.expasy.org/peptide_mass/ with the eGFP sequence, trypsin as enzyme, no missed cleavages, and the parameters shown in Figure 4, the tool generates 19 tryptic peptides.

Q3. Based on the LC-MS data for the Peptide Map data generated in lab (please use Figure 5a as a reference) how many chromatographic peaks do you see in the eGFP peptide map between 0.5 and 6 minutes? You may count all peaks that are >10% relative abundance.

Counting peaks above 10% relative abundance in Figure 5a between 0.5 and 6 minutes, there are approximately 18–20 chromatographic peaks visible in the total ion chromatogram.

Q4. Assuming all the peaks are peptides, does the number of peaks match the number of peptides predicted from question 2 above? Are there more peaks in the chromatogram or fewer?

Accounting for all peaks the total would be 22, more than the predicted 19 peaks

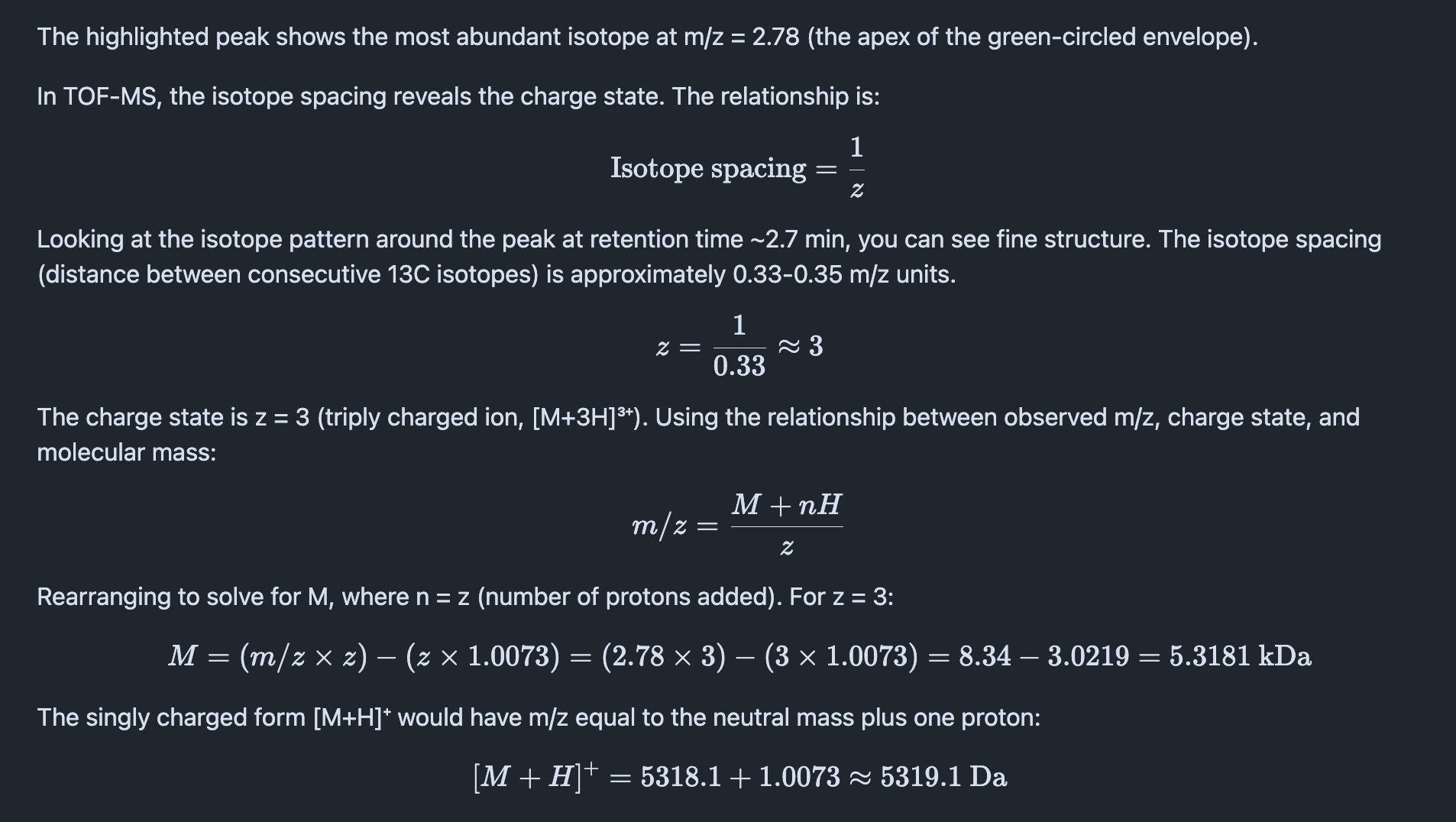

Q5. Identify the mass-to-charge of the peptide shown in Figure 5b. What is the charge of the most abundant charge state of the peptide (use the separation of the isotopes to determine the charge state). Calculate the mass of the singly charged form of the peptide ([M+H])+ based on its m/z and z.

The singly charged form [M+H]⁺ would have m/z equal to the neutral mass plus one proton:

$$[M+H]^+ = 5318.1 + 1.0073 \approx 5319.1 \text{ Da}$$

Q6. Identify the peptide based on comparison to expected masses in the PeptideMass tool. What is mass accuracy of measurement? Please calculate the error in ppm.

• Observed peptide mass (MW_experiment): 1050.52438 Da
• Theoretical peptide mass (MW_theory): 1050.5214 Da

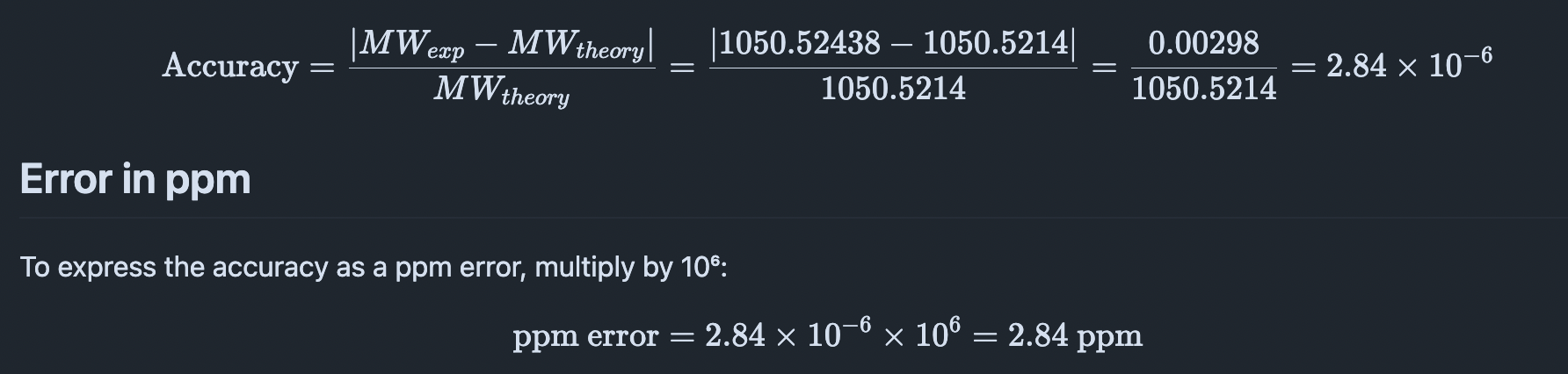

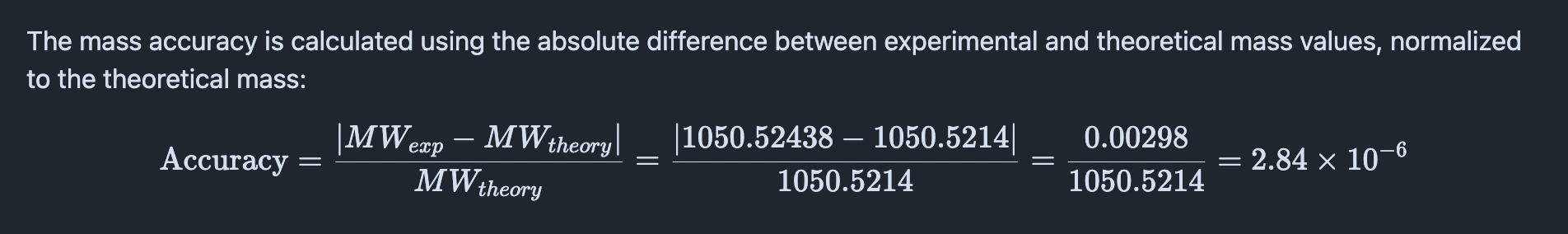

The mass accuracy is calculated using the absolute difference between experimental and theoretical mass values, normalized to the theoretical mass:

Error in ppm

Final Answer

• Observed peptide mass: 1050.52438 Da
• Closest predicted peptide mass: 1050.5214 Da
• Mass error: 2.84 ppm
• Assessment: This error is well below the <10 ppm threshold, indicating excellent measurement accuracy for high-resolution mass spectrometry

Q7. Number of peptides from tryptic digestion

88 percent

Homework: Waters Part IV — Oligomers

The oligomer masses are

1. 7FU Decamer: Mass = 10 x 340 kDa = 3400 kDa (3.4 (MDa))
2. 8FU Didecamer: Mass = 20 x 400 kDa = 8000 kDa (8 (MDa))
3. 8FU 3-Decamer: 30 × 400 kDa = 12,000 kDa (12 MDa)
4. 8FU 4-Decamer: 40 × 400 kDa = 16,000 kDa (16 MDa)

Waters Part V — Did I Make GFP?

Week 1 Lab: Pipetting

Individual Final Project

Stress-Chromatic Mycelium: Engineering Ganoderma lucidum to Visually Report Mechanical Stress via Indigoidine Biosynthesis

I am carrying over some previous experience working with mycelium over here

Abstract

Mycelium-based composites are emerging as sustainable alternatives to conventional materials in furniture and architecture, yet no current bio-based structural material can non-destructively report its internal stress history after fabrication. This project proposes engineering Ganoderma lucidum to function as a living mechanical stress reporter by coupling the cell wall integrity (CWI) signaling pathway to heterologous indigoidine biosynthesis. The central hypothesis is that placing the bpsA gene from Streptomyces lavendulae — encoding the non-ribosomal peptide synthetase (~141 kDa) responsible for indigoidine production — under the control of the experimentally validated GlSwi6B-responsive GL18134 promoter element will drive spatially localized blue pigmentation in hyphal zones experiencing elevated cell wall stress, including mechanical compression. Critically, the CWI pathway responds broadly to osmotic, heat, oxidative, and mechanical stress; demonstrating mechanical specificity over these other stressors is a central experimental objective, not an assumed outcome. Aim 1 establishes proof-of-concept by designing and ordering a genomic-integration construct from Twist Bioscience (pGl_GL18134_bpsA_integration, 8,375 bp), transforming G. lucidum, and measuring indigoidine production under compression versus osmotic and heat stress controls using the Spark Plate Reader. Aim 2 optimizes spatial resolution, stress specificity, and pigment retention through post-processing. Aim 3 envisions deployment of stress-chromatic mycelium panels as a scalable, non-destructive diagnostic platform for bio-based architecture. This work sits at the intersection of synthetic biology, materials science, and sustainable design, with direct relevance to partners including MycoWorks, BioFabricate, Ginkgo Bioworks, and Twist Bioscience.

Project Aims

Aim 1 — Experimental: Construct Design, Transformation, and Stress-Induced Indigoidine Detection in G. lucidum

Design and order a genomic-integration construct (pGl_GL18134_bpsA_integration, 8,375 bp) encoding bpsA under the experimentally validated GlSwi6B-responsive GL18134 chitin synthase promoter, flanked by homology arms targeting the G. lucidum leu2 locus. Order from Twist Bioscience. Transform into G. lucidum protoplasts via PEG-mediated transformation. Apply defined mechanical compression, osmotic stress (1 M sorbitol), and heat stress (37°C) as parallel conditions during growth, then measure indigoidine production by visual inspection and absorbance at 590 nm on the Spark Plate Reader. Determine whether mechanical compression produces a statistically distinct indigoidine signal relative to other stress types. This comparison is essential because the CWI pathway — and by extension the GL18134 promoter — responds broadly to any cell wall perturbation, not exclusively to mechanical load; mechanical specificity must be demonstrated empirically, not assumed.

Aim 2 — Medium-Term: Optimization of Stress Specificity, Spatial Resolution, and Post-Processing Retention

Systematically vary compression magnitude, duration, and growth stage to map indigoidine distribution relative to load-bearing zones. Perform ChIP-seq on G. lucidum to validate GlSwi6B binding site occupancy at the engineered promoter under mechanical stress, confirming that the CGCGAAA (SCB) motif is occupied by GlSwi6B in vivo under mechanical conditions and not equivalently under osmotic or heat stress. Validate that blue pigmentation is retained after heat-killing at 80°C and standard composite surface finishing. If mechanical specificity is insufficient, explore synthetic promoter engineering combining multiple SCB motifs with repressor elements active under non-mechanical stress conditions.

Aim 3 — Visionary: Stress-Chromatic Bio-Panels as a Permanent Structural Diagnostic Platform

Deploy engineered stress-chromatic G. lucidum composites as architectural and furniture panels that permanently encode their mechanical loading history in visible color gradients — enabling non-destructive inspection of internal stress distribution in bio-based building materials without instrumentation, at the point of use, anywhere in the world.

Background

Literature Context

Jones et al. (2020) conducted a critical review synthesizing published mechanical property data for mycelium composites derived from Ganoderma and related species, establishing that these materials achieve compressive strengths comparable to expanded polystyrene when grown on lignocellulosic substrates. Importantly, their review identifies the lack of integrated structural health monitoring as an unaddressed challenge in the field — no current mycelium composite product offers any method for post-fabrication stress mapping, representing a clear gap for safety-critical applications. Separately, Wehrse et al. (2018) demonstrated that the bpsA NRPS gene from Streptomyces lavendulae can be functionally expressed in the heterologous host Saccharomyces cerevisiae to produce indigoidine, confirming cross-kingdom portability of the pathway from bacteria to a eukaryotic fungal host. However, S. cerevisiae is an ascomycete yeast; expression in a basidiomycete such as G. lucidum has not been demonstrated, and this represents a key experimental risk that Aim 1 directly addresses.

Innovation

This project introduces the first genetically encoded mechanical stress reporter proposed for a mycelium composite organism, grounded in a promoter element with direct experimental validation in G. lucidum (GlSwi6B/GL18134 by Y1H, EMSA, and BLI assays) rather than cross-species inference. Unlike fluorescent reporters, indigoidine is a stable, non-fluorescent pigment visible to the naked eye in finished materials without UV illumination or instrumentation. The pivot from the originally proposed Rlm1/Fks1 promoter strategy — abandoned after empirical in silico confirmation of zero Rlm1 binding sites in the G. lucidum Fks1 upstream region — to the GlSwi6B/GL18134 system represents a meaningful improvement in biological grounding and constitutes itself a finding documented in this proposal.

Significance

Bio-based structural materials are projected to capture a significant share of the sustainable construction market within the next decade, yet no current product offers integrated structural health monitoring. A mycelium panel that visually records its own stress history could transform quality control in bio-fabrication, reducing the need for destructive testing. This technology is directly relevant to companies like MycoWorks and BioFabricate, who are scaling mycelium leather and composite products. Beyond furniture, stress-chromatic panels could find application in aerospace, packaging, and medical device contexts where load history matters. Finally, this project advances the broader synthetic biology principle that living materials can be programmed to sense and report their physical environment, opening a new design space at the intersection of biology and engineering.

Bioethical Considerations

G. lucidum is a non-pathogenic saprotrophic fungus with a long history of safe human use. Introducing a heterologous pigment biosynthesis gene does not confer pathogenicity or antibiotic resistance to the environment. However, the release of genetically modified fungal spores into open environments during manufacturing must be carefully controlled. Transparency with consumers about the use of engineered organisms in commercial products is an ethical obligation, and labeling standards should be developed in consultation with regulatory bodies before commercialization.

All experimental work will be conducted under BSL-1 containment with standard fungal biosafety protocols. The engineered strain will carry a genetic kill switch — a conditional auxotrophy — to prevent survival outside controlled growth conditions. Finished heat-killed composite panels contain no viable organisms and pose no biological risk to end users. Engagement with SecureDNA’s screening framework is recommended before any scale-up to verify that the bpsA sequence and construct design do not inadvertently encode sequences of concern. The sequence was screened via SecureDNA before Twist submission.

Experimental Design

Step 1 — Bioinformatic Identification of the G. lucidum Stress-Responsive Promoter Element

Purpose: Identify a validated stress-responsive cis-regulatory element to drive bpsA expression in G. lucidum.

What was attempted, what failed, and what worked:

Attempt 1 — Rlm1/Fks1 strategy (AI-suggested initial approach, FAILED): The original proposal, designed with AI assistance, suggested mining the G. lucidum genome for sequences matching the S. cerevisiae Rlm1 consensus motif (CTAWWWWTAG) upstream of the Fks1 glucan synthase homolog. The AI correctly identified this as a hypothesis-generating step with unvalidated cross-species conservation. The student executed this search against the correct genome assembly (GCA_000271565.1, strain G.260125-1, GanLuc1.0). The Fks1 homolog (XLV31108.3, 1,777 aa) was localized to scaffold AGAX01000145.1 at coordinates 154,315–157,050 (+ strand, 78.1% identity, 50.1% query coverage) by tBLASTn. A 1,500 bp upstream region (positions 152,815–154,315) was extracted and subjected to both exact string search for CTAWWWWTAG (including relaxed 3–5 W variants) and PWM-based FIMO scanning (JASPAR MA0369.2, Rlm1, p < 0.001 threshold). Both searches returned zero hits on both strands. This is an empirically confirmed negative result.

Attempt 2 — GlSwi6B/GL18134 strategy ( SUCCEEDED): The GlSwi6B transcription factor — an APSES-family regulator in the G. lucidum CWI pathway, experimentally shown by Y1H, EMSA, and BLI assays to directly bind the GL18134 chitin synthase promoter — was selected as the new target. The GL18134 chitin synthase protein (QDK64614.1) was localized to scaffold AGAX01000194.1 at coordinates 12,486–13,325 (+ strand) by tBLASTn (99% query coverage, 86.43% identity, E = 0.0). A 500 bp upstream region (positions 11,986–12,485) was extracted and scanned by FIMO using the SCB motif (CGCGAAA). FIMO returned one significant hit at scaffold position 12,147–12,153 (minus strand, score = 13.46, p = 5.35×10⁻⁵), located approximately 333 bp upstream of the predicted gene start — a textbook promoter-proximal position. This result is consistent with published experimental validation of GlSwi6B binding at this locus.

Final promoter selected: GL18134 upstream region, AGAX01000194.1:11986–12485 (500 bp), containing one confirmed CGCGAAA SCB motif (p = 5.35×10⁻⁵).

Automation: NCBI tBLASTn, MEME Suite FIMO (v5.5.9), JASPAR MA0369.2.
Timeline: Days 1–3.

Step 2 — Codon Optimization of bpsA and Sfp PPTase for G. lucidum Expression

Purpose: Maximize translation efficiency of the heterologous NRPS gene and its required activating PPTase.

What was attempted, what failed, and what worked:

Twist Bioscience codon optimization tool (FAILED): The AI initially suggested using the Twist Bioscience integrated codon optimization tool with G. lucidum codon usage tables. The student attempted this on the Twist portal. G. lucidum was not available as a host organism in Twist’s tool. Basidiomycete codon tables are absent from the Twist optimization interface.

JCat with G. lucidum tables (FAILED): JCat (https://www.jcat.de) was also checked for G. lucidum tables. G. lucidum is not available as a codon optimization host in JCat.

Executed approach — JCat with S. cerevisiae tables (SUCCEEDED, with documented limitation): bpsA (GenBank AB240063, 3,849 bp CDS, protein BAE93896.1) and Sfp PPTase (GenBank PV014869.1, 678 bp) were both codon-optimized using JCat with S. cerevisiae codon usage tables. This substitution is scientifically justified: Wehrse et al. (2018) demonstrated functional BpsA expression in S. cerevisiae, making it the only published eukaryotic bpsA expression system and a validated reference point. The limitation (divergence from G. lucidum-optimal codons) is documented and flagged for iterative optimization in Aim 2.

bpsA optimization results:

Sfp PPTase optimization results:

Timeline: Days 3–4.

Step 3 — Construct Design and GenBank File Preparation in Benchling

Purpose: Assemble the complete integration construct map in Benchling for Twist ordering.

Method: The construct was designed in Benchling with the following finalized architecture, targeting the G. lucidum leu2 locus by homologous recombination. ARS/CEN episomal origins were explicitly excluded — episomal vectors are unreliable in basidiomycetes and integration is the established approach for G. lucidum transformation.

Construct name: pGl_GL18134_bpsA_integration
Topology: Linear (integration construct)
Total length: 8,375 bp
File exported: MycoTint_-_all_DNA_RNA.gb (Benchling GenBank export)

Part map:

Signal transduction logic (AI-clarified):
Mechanical stress → cell wall deformation → CWI/MAPK cascade (GlSlt2) → GlSwi6B phosphorylation → GlSwi6B binds CGCGAAA motif in GL18134 promoter → bpsA transcription → BpsA + Sfp → indigoidine (blue pigment). Sfp PPTase is constitutively expressed under GlGPD to ensure BpsA is always post-translationally activated and competent.

GenBank snippet (exported from Benchling):

LOCUS       pGl_GL18134_bpsA_integr 8375 bp ds-DNA     linear       10-MAY-2026
DEFINITION  Stress-inducible indigoidine genomic integration construct for G. lucidum.
FEATURES             Location/Qualifiers
     Promoter        1..500
                     /label="GL18134_promoter_500bp"
                     /note="GlSwi6B-responsive; CGCGAAA SCB motif at pos 12147-12153
                      (p=5.35e-05); AGAX01000194.1:11986-12485"
     CDS             501..4349
                     /label="bpsA_codon_optimized"
                     /note="AB240063, 3849 bp, JCat S. cerevisiae CAI=0.860, GC=44.2%"
     Terminator      4350..4650
                     /label="GlTef1_terminator_301bp"
     Promoter        4651..5150
                     /label="GlGPD_promoter_500bp"
                     /note="Constitutive; drives Sfp PPTase"
     CDS             5151..5828
                     /label="Sfp_PPTase_codon_optimized"
                     /note="PV014869.1, 678 bp, JCat S. cerevisiae CAI=0.969, GC=42.0%"
     CDS             5829..7375
                     /label="hph_hygromycin_resistance"
                     /note="V01499.1, aph(4), 50 µg/mL hygromycin B selection"
     Misc feature    7376..7875
                     /label="Left_homology_arm_leu2"
                     /note="AGAX01000176.1:c717491-716992"
     Misc feature    7876..8375
                     /label="Right_homology_arm_leu2"
                     /note="AGAX01000176.1:c715275-715276"

Timeline: Days 4–5.

Step 4 — Twist Bioscience Order Submission

Purpose: Obtain sequence-verified integration construct for transformation.

What was attempted, what failed, and current status:

Attempted — Clonal Gene product : Uploaded the construct as a Clonal Gene order. Two errors were encountered:

1. Name too long: Twist maximum is 32 characters. The original name pGl_GL18134_bpsA_integration_8375bp exceeded this. Fixed: renamed to pGl_bpsA_leu2_integration (25 characters).
2. Sequence too long: Twist Clonal Gene (and Gene Fragment) products are limited to 0.3–5 kb. The construct is 8,375 bp. This error cannot be resolved within the current product tier.

Vector selected: pTwist Amp High Copy (preferred over pTwist Chlor High Copy — ampicillin is the standard for cloning workflows; construct already carries hygromycin resistance for fungal selection, so avoiding a third antibiotic keeps the system cleaner).

Note: The pTwist backbone is for E. coli propagation only. Before G. lucidum transformation, the plasmid is linearized by restriction digest within one homology arm; the backbone does not enter the fungus.

Current status: Order saved as draft on Twist portal. Blocked pending resolution of size limit.

Resolution options:

• Option A: Contact Twist support (customersupport@twistbioscience.com) for a custom large construct workflow
• Option B: Split into 3 overlapping ~2.8 kb Gibson assembly fragments with 40 bp overlaps; order as Gene Fragments; assemble via NEB HiFi Assembly

HTGAA Ordering Sheet fields prepared:

Expected Result: Sequence-verified construct delivered in 10–14 business days.
Timeline: Days 5–6 (submission); Days 15–20 (receipt).

Step 5 — G. lucidum Protoplast Preparation

Purpose: Generate transformation-competent cells.
Method: Grow G. lucidum (ATCC 42535) in PDB liquid culture for 5 days. Digest hyphal cell walls with Lysing Enzymes (Sigma L1412) in osmotic stabilizer (1.2 M sorbitol). Pellet protoplasts by centrifugation on HiG Centrifuge.
Microplate: 96-v-eppendorf-951033502-deep (centrifugation steps).
Timeline: Days 20–22.

Step 6 — PEG-Mediated Transformation and Genomic Integration

Purpose: Introduce the linearized Twist-synthesized construct into G. lucidum for integration at the leu2 locus.
Method: Linearize the construct by restriction digest within one homology arm. Mix protoplasts with linearized DNA and PEG4000/CaCl₂ solution. Plate on regeneration medium with hygromycin B selection (50 µg/mL).
Timeline: Days 22–23; colonies visible Days 30–35.

Step 7 — Colony PCR Verification of Transformants

Purpose: Confirm genomic integration at the leu2 locus.
Method: Pick 24 hygromycin-resistant colonies. Extract genomic DNA. Run PCR with one primer outside the homology arm (genomic) and one primer inside bpsA — a band forms only if integration occurred at the correct locus.
Automation: ATC Thermal Cycler (PCR); CFX Opus (qPCR, single-copy integration confirmation).
Microplate: 96-Armadillo-PCR-AB2396X.
Expected Result: ~800 bp junction band in correctly integrated transformants.
Timeline: Days 35–37.

Step 8 — Liquid Handling Setup for Stress Assay Plate

Purpose: Prepare replicate cultures for multi-condition stress assay in a standardized format.
Method: Use Tempest liquid handler to dispense 50 µL PDB medium per well. Inoculate with verified transformant spore suspension via Echo525.
Automation: Echo525, Tempest.
Microplate: 384 Greiner black-well clear-bottom.
Timeline: Day 38.

Step 9 — Multi-Condition Stress Application

Purpose: Compare indigoidine induction across mechanical, osmotic, and heat stress to assess CWI pathway specificity. This is the critical experiment — mechanical specificity is not assumed, it must be empirically demonstrated.
Method: Divide the 384-well plate into four quadrants: (A) mechanical compression (10 kPa via custom jig), (B) osmotic stress (1 M sorbitol), (C) heat stress (37°C), (D) no-stress negative control. Wild-type G. lucidum (no bpsA) is included in each quadrant as an additional negative control.
Automation: Cytomat (28°C standard incubation); Inheco Plate Incubator (37°C heat stress wells).
Timeline: Days 38–40.

Step 10 — Plate Sealing and Incubation

Purpose: Prevent evaporation and contamination during stress incubation.
Method: Seal plates with Plateloc thermal sealer. Remove seal with XPeel before reading.
Automation: Plateloc, XPeel.
Timeline: Day 38 (seal), Day 40 (unseal).

Step 11 — Visual Inspection of Pigmentation

Purpose: Qualitative confirmation of stress-induced blue coloration across conditions.
Method: Photograph plates under white light. Score wells for blue pigmentation (0 = none, 1 = faint, 2 = strong) across all stress conditions and wild-type controls.
Expected Result: Blue coloration in stressed wells; no color in wild-type or no-stress controls.
Timeline: Day 40.

Step 12 — Quantitative Absorbance Measurement at 590 nm

Purpose: Quantify indigoidine production per well across all stress conditions.
Method: Read plates on Spark Plate Reader at 590 nm. Include standard curve of purified indigoidine (0–100 µM) in columns 1–2.
Automation: Spark Plate Reader.
Microplate: 384 Greiner black-well clear-bottom.
Expected Result: Elevated A590 in stressed conditions vs. no-stress control; statistical comparison to assess whether mechanical compression is distinguishable from osmotic/heat stress.

Example Assay Plate Layout (384-well):

Columns 1–2:    Indigoidine standard curve (0, 1, 5, 10, 25, 50, 100 µM)
Columns 3–8:    Mechanical compression — engineered transformant (n=16/row)
Columns 9–14:   Osmotic stress (1 M sorbitol) — engineered transformant
Columns 15–20:  Heat stress (37°C) — engineered transformant
Columns 21–22:  No-stress negative control — engineered transformant
Columns 23–24:  Wild-type G. lucidum (no bpsA) — all stress conditions
Rows A–P:       Biological replicates (16 replicates per condition)

Timeline: Day 40.

Step 13 — Data Analysis and Statistical Comparison

Purpose: Determine whether stress induction is statistically significant and whether mechanical stress is distinguishable from other CWI stressors.
Method: Export Spark data to CSV. Calculate mean A590 ± SD per condition. Run one-way ANOVA with Tukey’s post-hoc test across all four stress conditions. Generate bar graphs with error bars.
Success criterion (AI-suggested explicit threshold): Mechanical compression A590 must be ≥1.5-fold higher than both osmotic and heat stress conditions (p < 0.05 by Tukey’s) to claim mechanical enrichment, not merely pathway activation.
Timeline: Day 41.

Step 14 — Heat-Killing and Pigment Retention Test

Purpose: Confirm indigoidine survives the composite finishing process.
Method: Transfer mycelium from positive wells to agar slabs. Heat-kill at 80°C for 2 hours in Inheco Plate Incubator. Re-photograph and re-read A590 on Spark.
Expected Result: >80% A590 signal retained post-heat-killing.
Timeline: Days 42–43.

Step 15 — Macroscale Compression Jig Validation

Purpose: Confirm spatial stress mapping in a furniture-scale prototype.
Method: Grow engineered G. lucidum on a 10×10 cm lignocellulosic substrate block. Apply point loads at defined positions using a mechanical press. Heat-kill, section, and photograph cross-sections to visualize blue pigmentation distribution relative to load points.
Expected Result: Blue zones co-localize with applied load positions; spatial resolution assessed by image analysis.
Timeline: Days 44–55.

Techniques, Tools, and Technology

Course Technique Checklist

• DNA design and synthesis (Benchling + Twist Bioscience Clonal Gene)
• Codon optimization (JCat, S. cerevisiae tables)
• Fungal transformation (PEG-mediated protoplast, genomic integration)
• Colony PCR and gel verification
• qPCR (CFX Opus, integration copy number)
• Automated liquid handling (Echo525, Tempest)
• Plate reader assay (Spark, absorbance at 590 nm)
• Automated incubation (Cytomat, Inheco)
• Plate sealing/peeling (Plateloc, XPeel)
• Bioinformatics (promoter mining — BLAST, FIMO; codon optimization — JCat)
• Cell-free expression (TXTL validation, Opentrons OT-2)
• CRISPR (not used in Aim 1; candidate for Aim 2 precise knockin)

Expanded Technique 1 — Non-Ribosomal Peptide Synthetase (NRPS) Heterologous Expression

Non-ribosomal peptide synthetases are large, modular enzyme complexes that synthesize bioactive small molecules independently of the ribosome. The bpsA gene (AB240063) encodes a single-module NRPS that condenses two glutamine molecules into indigoidine, a vivid blue pigment with peak absorbance at 590 nm; the protein is 1,282 amino acids (~141 kDa) and requires the 4’-phosphopantetheine cofactor for activity, added post-translationally by a dedicated phosphopantetheinyl transferase (PPTase). Expressing a multi-domain NRPS of this size in a heterologous basidiomycete host is non-trivial — codon optimization, correct folding, and Sfp PPTase co-expression are all critical prerequisites that must be addressed simultaneously. In this project, bpsA is co-expressed with codon-optimized Sfp PPTase (PV014869.1) under the constitutive GlGPD promoter, ensuring BpsA is post-translationally activated and competent for indigoidine synthesis; the closest published precedent for this cross-kingdom expression strategy is Wehrse et al. (2018), who demonstrated functional BpsA expression in S. cerevisiae, though basidiomycete expression remains to be established and constitutes a primary experimental risk of Aim 1.

Expanded Technique 2 — Stress-Responsive Promoter Engineering in Fungi

The cell wall integrity (CWI) pathway in fungi is a conserved MAPK signaling cascade that responds to a broad range of stresses — mechanical perturbation, osmotic shock, heat, oxidative stress, and cell-wall-damaging agents — and is not a dedicated mechanosensory system; this breadth of activation is the central design constraint of this project. The original design (Rlm1/Fks1 strategy) was abandoned after empirical in silico confirmation that the G. lucidum Fks1 upstream region contains zero Rlm1 binding sites detectable by exact motif search or PWM-based FIMO scanning at any stringency, representing an important negative result. The pivot to GlSwi6B/GL18134 is grounded in published experimental validation (Y1H, EMSA, BLI) of direct GlSwi6B binding at this locus, with a FIMO-confirmed CGCGAAA SCB motif (p = 5.35×10⁻⁵) in the 500 bp upstream region. Confirming that GlSwi6B occupies the engineered GL18134 promoter preferentially under mechanical stress — and not equally under all CWI-activating conditions — is the central experimental question of Aim 2, to be addressed by ChIP-seq and multi-condition reporter assays.

Project Validation

10a — Validation Choice

The chosen validation is DNA construct design and cell-free expression testing: the GL18134-bpsA integration plasmid is designed in Benchling, ordered from Twist Bioscience, and a parallel T7-driven TXTL validation construct is tested for functional bpsA expression using a cell-free transcription/translation (TXTL) system dispensed by an Opentrons OT-2 robot. This directly validates the most critical molecular assumption of the project — that the designed bpsA coding sequence and Sfp PPTase co-expression logic can drive indigoidine biosynthesis — before committing to the full fungal transformation workflow, which has a longer timeline and more experimental risk.

10b — Step-by-Step Validation Protocol

1. Open Benchling and create a new plasmid file named pGl_T7_bpsA_TXTL. Replace the GL18134 fungal promoter with a T7 promoter (the fungal promoter is not recognized by prokaryotic TXTL kits). This is a parallel validation construct; the GL18134-driven version remains the primary experimental construct for Aim 1.
2. Arrange construct elements: T7 promoter → codon-optimized bpsA → T7 terminator → codon-optimized Sfp PPTase under a second T7 promoter → T7 terminator. Annotate all features.
3. Export as GenBank (.gb) from Benchling.
4. Submit to Twist Bioscience as a Clonal Gene order alongside the primary integration construct.
5. Upon receipt, resuspend in nuclease-free water to 50 ng/µL.
6. Prepare TXTL master mix using NEB PURExpress or myTXTL kit.
7. Program Opentrons OT-2 to dispense 7 µL TXTL master mix + 1 µL plasmid (50 ng/µL) + 2 µL nuclease-free water per well into a 96-well plate. Include three conditions in triplicate: (a) T7-bpsA-Sfp plasmid, (b) GFP positive control (kit-supplied), (c) no-DNA negative control.
8. Seal plate and incubate at 29°C for 4–6 hours.
9. Visual inspection: photograph under white light — blue = active bpsA, green = GFP control, colorless = negative.
10. Read plate on Spark Plate Reader at 590 nm (indigoidine) and 488/510 nm (GFP).
11. Export CSV, calculate mean A590 ± SD per condition, run one-way ANOVA with Tukey’s post-hoc test.
12. Success criterion: ≥2-fold increase in A590 in bpsA wells vs. no-DNA negative control (p < 0.05).

10c — Techniques Used

This validation integrates four course techniques. DNA construct design is performed in Benchling using its sequence editor and annotation tools to produce an annotated plasmid map ready for synthesis. DNA synthesis via Twist Bioscience Clonal Gene ordering ensures the construct is sequence-verified before any expression testing, eliminating assembly errors as a confounding variable. Cell-free expression (TXTL) tests whether the bpsA coding sequence and Sfp PPTase co-expression logic drive indigoidine synthesis in a cell-free environment without requiring fungal transformation; the T7 promoter substitution is an explicit design choice to ensure compatibility with prokaryotic TXTL kits, and the result validates the coding sequence logic independently of the fungal promoter. Automated liquid handling via the Opentrons OT-2 ensures precise, reproducible dispensing across all wells, minimizing pipetting variability and enabling triplicate measurements for statistical confidence.

10d — Hypothetical Data

Simulated TXTL validation data:

The bpsA condition shows a ~6.9-fold increase in A590 over the no-DNA negative control. One-way ANOVA with Tukey’s post-hoc confirms the bpsA condition is significantly different from both controls (p < 0.001).

A590
0.55 |
0.50 |   ████
0.45 |   ████
0.40 |   ████
0.30 |   ████
0.20 |   ████
0.10 |   ████  ████  ████
0.05 |   ████  ████  ████
0.00 +--------+------+------
      bpsA    GFP   No DNA
      (* p<0.001 vs. controls)

Troubleshooting and Limitations

The large size of BpsA (~141 kDa) may strain the finite ATP and amino acid pools of a cell-free TXTL system, resulting in incomplete translation and low indigoidine yield; this can be mitigated by extending incubation to 6–8 hours and supplementing with an energy regeneration buffer. If PPTase is expressed at lower levels than BpsA, the proportion of active enzyme will be insufficient for detectable pigment; the fix is to increase the Sfp:bpsA plasmid molar ratio to 3:1 in the TXTL reaction. A critical limitation is that this TXTL validation tests only the bpsA coding sequence and PPTase co-expression logic — it does not validate the GL18134 promoter, which remains the key unvalidated assumption addressed only by the full Aim 1 fungal transformation experiment. The Twist order for the integration construct is currently blocked at 8,375 bp due to the 5 kb size limit of Clonal Gene and Gene Fragment products; resolution requires either contacting Twist support for a custom large construct order or splitting into three overlapping Gibson assembly fragments — this is a real timeline risk that must be resolved before Days 5–6.

HTGAA Slides for final presentation

Additional Information

Industry Partner Connections

• Twist Bioscience — Clonal Gene synthesis of pGl_GL18134_bpsA_integration and pT7_bpsA_Sfp TXTL validation construct
• MycoWorks / BioFabricate — direct application partners for stress-chromatic mycelium composites in leather and furniture
• Ginkgo Bioworks — automation platform (Echo525, Tempest, Spark, Cytomat) for scaled transformation and screening workflows
• SecureDNA — sequence screening of bpsA construct before synthesis submission
• Thermo Fisher Scientific / Millipore Sigma — reagent supply (hygromycin B, lysing enzymes, PEG4000)
• New England Biolabs — PURExpress TXTL kit and restriction enzymes for plasmid linearization
• Asimov (Kernel Platform) — in silico promoter and circuit modeling to predict GlSwi6B-responsive expression dynamics before wet lab work
• Opentrons — OT-2 liquid handler for automated TXTL reaction setup

Budget

References

• Jones, M., Mautner, A., Luenco, S., Bismarck, A., & John, S. (2020). Engineered mycelium composite structures from fungal biorefineries: A critical review. Materials & Design, 187, 108397. https://doi.org/10.1016/j.matdes.2019.108397
• Wehrse, E., et al. (2018). Heterologous production of indigoidine in Saccharomyces cerevisiae by expression of the non-ribosomal peptide synthetase BpsA from Streptomyces lavendulae. Microbial Cell Factories, 17(1), 200. https://doi.org/10.1186/s12934-018-1048-1
• Levin, D. E. (2011). Regulation of cell wall biogenesis in Saccharomyces cerevisiae: the cell wall integrity signaling pathway. Genetics, 189(4), 1145–1175. https://doi.org/10.1534/genetics.111.128264
• Xu, F., Gage, D., & Zhan, J. (2015). Efficient production of indigoidine in Escherichia coli. Journal of Industrial Microbiology & Biotechnology, 42(7), 1083–1090. https://doi.org/10.1007/s10295-015-1618-5
• Chen, S., et al. (2012). Genome sequence of the model medicinal mushroom Ganoderma lucidum. Nature Communications, 3, 913. https://doi.org/10.1038/ncomms1923
• Zhang, Y., et al. (2017). The MAPK kinase GlSlt2 governs cell wall integrity in Ganoderma lucidum. Fungal Genetics and Biology, PMID 28435030.
• Stamets, P., & Zwickey, H. (2014). Medicinal mushrooms: Ancient remedies meet modern science. Integrative Medicine, 13(1), 46–47.

Group Final Project

from Part D — Group Brainstorm on Bacteriophage Engineering

(Individual submission — solo student)

1. Project Goal

The primary goal of this project is to increase the structural stability of the MS2 bacteriophage lysis protein (L-protein), with a secondary goal of reducing its dependency on the host chaperone DnaJ, while preserving its capacity to lyse bacterial cells through membrane pore formation.

The MS2 L-protein is a 75-residue single-gene lysis toxin. Its architecture divides cleanly into two functional regions:

• Soluble N-terminal domain (residues 1–40): intrinsically disordered, interacts with DnaJ, and is responsible for chaperone-dependent folding and activation
• Transmembrane C-terminal domain (residues 41–75): forms a hydrophobic helix that inserts into the inner bacterial membrane, drives oligomerization into pore complexes, and executes lysis

A key E. coli resistance mechanism is a single point mutation in DnaJ (P330Q) that prevents it from interacting with the L-protein, blocking lysis. Engineering the L-protein to fold and function without DnaJ would directly circumvent this resistance route. Since the lytic activity resides in the transmembrane domain not the soluble domain that DnaJ binds. There is a credible path to separating folding assistance from lytic function through targeted mutagenesis of the N-terminal region.

The engineering strategy therefore focuses on three things simultaneously:

• Stabilizing the soluble domain so it folds autonomously without DnaJ
• Maintaining the transmembrane helix integrity for membrane insertion and pore formation
• Preserving the conserved L48–S49 dipeptide motif and neighboring residues that are essential for function

2. Computational Tools and Approaches

A multi-step computational pipeline combining sequence analysis, protein language model mutagenesis, and structural prediction will be used.

2.1 BLAST — Homolog Discovery

BLAST is used first to find homologous lysis proteins from related bacteriophages across sequence databases.

Purpose:

• Identify which positions across the protein are evolutionarily conserved vs. variable
• Collect natural sequence diversity for multiple sequence alignment
• Understand which parts of the L-protein have tolerated substitutions in nature, giving prior evidence that those positions can be mutated without destroying function

The BLAST results feed directly into the next step.

2.2 Clustal Omega — Multiple Sequence Alignment (MSA)

Homologous sequences retrieved from BLAST are aligned using Clustal Omega.

Purpose:

• Map fully conserved positions (* in the alignment) — these must not be mutated
• Identify partially conserved positions (:) where only similar-chemistry substitutions are tolerated
• Confirm that the L48–S49 motif and surrounding residues are conserved, protecting them from mutagenesis

A key finding from the MSA of MS2 L-protein homologs is that all conserved positions cluster in the soluble domain (residues 1–40), specifically at positions 21, 25, 28–29, 33, 35–37, and 40. This is biologically meaningful these positions likely form the DnaJ-binding epitope and the structural core of the soluble domain. The transmembrane region (41–75) is less conserved, making it more accessible for hydrophobicity-enhancing substitutions.

2.3 ESM Protein Language Models — In Silico Deep Mutational Scan

The ESM2 protein language model is used to generate a log-likelihood ratio (LLR) score for every possible single-point substitution at every position in the L-protein.

Purpose:

• Produce a mutation heatmap across the full 75-residue sequence
• Identify substitutions the model predicts as tolerated or stabilizing (positive LLR) vs. harmful (negative LLR)
• Guide rational mutation selection rather than random or intuition-based choices

Importantly, LLR scores reflect evolutionary plausibility and structural stability — they do not directly predict lytic function. Cross-referencing against the experimental lysis dataset (Chamakura et al., 2017) is therefore essential to exclude mutations that score well computationally but have been shown to abolish lysis in the wet lab.

2.4 ESMFold — Structure Prediction for Candidate Mutants

Promising mutations identified from the ESM scan are input into ESMFold to predict the 3D structure of the mutant L-protein monomer.

Purpose:

• Assess predicted confidence (pLDDT) of the mutant structure vs. wild-type
• Confirm the transmembrane helix remains intact in the TM-domain mutants
• Identify mutations that significantly distort the backbone and discard them

A known limitation here is that ESMFold, like most structure predictors, performs less well on small intrinsically disordered proteins like the L-protein soluble domain. Low pLDDT scores in the N-terminal region may reflect genuine disorder rather than bad mutations — this ambiguity is a recognized pitfall of the approach.

2.5 AlphaFold Multimer — Oligomerization and DnaJ Interaction

AlphaFold Multimer is used for two separate runs per mutant:

Run A — 8-mer pore assembly: Eight copies of the mutant L-protein are submitted as separate chains to test whether the protein retains the capacity to oligomerize into the cylinder-like transmembrane pore that drives lysis.

Run B — DnaJ co-fold: The mutant L-protein is submitted alongside the DnaJ sequence to assess whether soluble-domain mutations reduce the predicted interaction interface between the two proteins.

A key insight from the reference implementation is that all five designed mutants, as well as a known experimentally validated lytic mutant (R30Q), returned very low pLDDT scores (<50) and low-confidence PAE plots for inter-chain contacts. This confirms a systematic limitation of AlphaFold for this class of small membrane-disrupting proteins — low confidence does not rule out functional lysis activity. All five mutants remain viable candidates for wet lab validation.

3. Proposed Engineering Pipeline

Wild-type L-protein sequence (75 aa)
         ↓
    BLAST search
    (find homologous lysis proteins)
         ↓
  Clustal Omega MSA
  (conserved vs. mutable positions)
         ↓
  ESM2 deep mutational scan
  (LLR heatmap across all positions)
         ↓
  Cross-reference with experimental
  lysis dataset (Chamakura et al.)
         ↓
  Select candidate mutations
  ┌──────────────────────────────┐
  │ 2 in soluble domain (1–40)  │
  │ 2 in TM domain (41–75)      │
  │ 1 anywhere (highest LLR)    │
  └──────────────────────────────┘
         ↓
  ESMFold — monomer structure
  (pLDDT check, helix integrity)
         ↓
  AlphaFold Multimer
  ┌──────────────┬──────────────┐
  │ 8-mer pore   │ DnaJ co-fold │
  │ (retained?)  │ (disrupted?) │
  └──────────────┴──────────────┘
         ↓
  Final 5 mutant candidates
  → Submit for synthesis (Twist)

4. Chosen Mutations

Based on the pipeline above, the following five mutations were selected:

All five avoid the fully conserved positions (21, 25, 28–29, 33, 35–37, 40) and the three mutations that appeared on both the ESM heatmap and the experimental sheet with a lysis score of zero.

5. Expected Outcomes

The engineered variants are expected to produce:

• Increased intrinsic structural stability in the soluble domain, particularly for Y39L and S9Q, reducing dependence on DnaJ for folding
• Improved membrane insertion kinetics for K50L, N53L, and T52L, by replacing polar/charged residues with leucine in the hydrophobic TM helix, potentially producing faster or more efficient lysis
• Retention of the pore-forming oligomeric assembly, since the transmembrane domain is not disrupted at the conserved functional core
• A DnaJ-independent folding pathway in the best-case scenario for the soluble-domain mutants, enabling the phage to overcome the P330Q DnaJ resistance mutation in E. coli

6. Potential Pitfalls

6.1 Limited training data for phage proteins ESM2 and ESMFold are trained predominantly on globular, well-characterized proteins. Short transmembrane phage toxins like the MS2 L-protein are under-represented in training data. This likely reduces prediction accuracy and may explain why even experimentally validated lytic mutants return low pLDDT and PAE scores from AlphaFold Multimer.

6.2 LLR scores predict stability, not function The ESM heatmap captures evolutionary plausibility and structural fitness, not lytic activity. Three mutations that had high LLR scores were found to abolish lysis completely in the experimental dataset. This confirms that computational stability predictions must always be cross-referenced against functional data — a lesson that the broader field of computational protein design is still learning to internalize.

6.3 Risk of over-stabilization Mutations that rigidify the soluble domain too much could prevent the conformational changes needed for membrane insertion or DnaJ dissociation. A protein that is too stable may be non-functional even if it folds correctly.

6.4 Poor annotation of amurin-class proteins Single-gene lysis proteins (amurins) are a poorly annotated class. Homolog discovery via BLAST retrieves relatively few high-quality sequences, which limits the power of the MSA for identifying truly conserved vs. mutable positions.

6.5 Host protease sensitivity New surface-exposed residues created by the soluble-domain mutations may accidentally introduce protease cleavage sites, reducing the effective concentration of functional L-protein inside infected bacteria and blunting lytic efficacy.

7. Literature Summaries

MS2 Lysis of E. coli Depends on Host Chaperone DnaJ (Chamakura et al., 2017) This study demonstrates that the L-protein requires the host chaperone DnaJ for efficient lysis. A single missense mutation (P330Q) in DnaJ’s C-terminal domain blocks L-mediated lysis at 30°C, establishing the mechanistic basis of the resistance strategy this project aims to overcome. Genetic suppressor screening found that truncated L-proteins lacking the basic N-terminal domain can bypass DnaJ entirely, directly motivating the idea of engineering the soluble domain to achieve chaperone independence.

Mutational Analysis of the MS2 Lysis Protein L (Chamakura & Young, 2018) Comprehensive random mutagenesis of all 75 residues showed that most loss-of-function mutations cluster in the C-terminal half, particularly around the conserved L48–S49 dipeptide. Many inactivating mutations were conservative substitutions that still allowed protein accumulation and membrane association, suggesting that lysis depends on specific protein–protein interactions rather than nonspecific membrane disruption. This explains why ESM structural scores are insufficient predictors of lytic activity — function is more sensitive than stability.

In Vitro Characterization of the Phage Lysis Protein MS2-L (Arulandu et al., 2023) This study shows that MS2-L assembles into high-order oligomeric complexes (≥10 monomers) after insertion into lipid nanodiscs, driven primarily by the transmembrane domain. DnaJ interacts with the N-terminal domain but is not required for membrane insertion or oligomerization itself, suggesting its role is primarily as a folding or stability partner. This supports the feasibility of engineering DnaJ-independent variants — if the TM domain can self-insert and oligomerize, then eliminating DnaJ dependence through N-terminal modifications should not impair pore formation.

Phage Therapy: From Biological Mechanisms to Future Directions (Gordillo Altamirano & Barr, 2023) This review surveys therapeutic phage applications and engineering strategies. It highlights that phage resistance — including via host factor mutations — remains a central challenge, and that engineered phages with modified lysis proteins represent a promising avenue for overcoming bacterial adaptation. The L-protein engineering effort directly addresses one of the most common and fastest-arising resistance mechanisms identified in clinical phage therapy.

8. Future Wet Lab Validation Steps

If promising computational mutants are identified, the following experimental steps would be required before drawing biological conclusions:

• Chemical synthesis of the mutant L-protein gene via Twist Bioscience
• Cloning into an expression plasmid using Gibson Assembly
• Expression in wild-type and DnaJ-mutant (P330Q) E. coli strains
• Plaque assays to measure lysis activity and compare to wild-type L-protein
• Western blot to confirm protein accumulation levels are not affected by the mutations
• Thermal shift assays (DSF) to directly measure whether the soluble-domain mutants show higher melting temperatures, confirming computational stability predictions
