Week 1 HW: Principles and Practices

1. First, describe a biological engineering application or tool you want to develop and why.

I want to develop a 3D Bio-Art Platform that merges biological growth with interactive synthetic biology. The idea is to use 3D-printed molds and structured agar media to create “living sculptures” that don’t just sit there but actually “feel” and react.

The sculpture uses a quorum sensing circuit to create organic, emergent color gradients as the bacteria colonize the 3D agar structure. However, by engineering the bacteria with inducible promoters sensitive to microcurrents, heat, or other factors, the sculpture reacts to human and environmental touch. When you touch a specific plate, the bacteria trigger a rapid flash of bioluminescence or a sharp color change. It’s a very solarpunk vision where the artwork is a living, sensing entity that bridges the gap between autonomous growth and intentional human interaction.

2. Next, describe one or more governance/policy goals related to ensuring that this application or tool contributes to an “ethical” future, like ensuring non-malfeasance (preventing harm). Break big goals down into two or more specific sub-goals.

Some of the main goals include the following:

A. Preventing Malicious Use & Biological Escape (Biosecurity: To ensure that the bacteria used in the sculptures cannot be extracted and repurposed or survive outside the controlled art environment. This could be achieved with the help of:

1. An Intrinsic Biological Lock: Implementing a strategy where the metabolic reagents and the bacterial chassis are only viable inside a specific chemical or mechanical environment of the 3D bio-art sculpture.

2. Genetic Safeguards: Using “kill switches” so the organisms are biologically incapable of surviving in the local ecosystem if the sculpture is broken, archived, or discarded.

3. Access Control & Registry: Establishing a “Bio-Art registry” where any high-expression or highly interactive strain is registered and tracked from the lab to the gallery or art exposition.

B. End User Safety & Interaction Reliability (Biosafety): To guarantee that the interaction between the public and the “living touch” interface is 100% safe, reliable and follows predictable patterns. This could be achieved with the help of:

1. Interaction Safety Protocols: Establishing clear “bio-etiquette” protocols and adding physical boundaries to prevent accidental ingestion, skin irritation from undesired contact, or environmental transfer during public exhibitions. Also, establishing risk protocols and measures for any accidents or incidents that could happen.

2. Contamination Control: Implementing a strategy to ensure that the emergent bacteria patterns are not contaminated by other wild-type bacteria from the users’ hands, which could ruin the artistic expression, 3D bio-art sculpture, and the biosafety protocols.

3. Real-time Stability Monitoring: Integrating “self-reporting” circuits and sensors where bacteria change to a “warning color” (like a bright red or yellow) if the population begins to mutate or if the containment is failing.

4. Next, describe at least three different potential governance “actions” by considering the four aspects below (Purpose, Design, Assumptions, Risks of Failure & “Success”).

Action 1: Multi-Layered Kill Switches (Technical Strategy that can be applied through international organization like WHO, ASM, etc)

1. Purpose: Currently, containment is mostly physical. In this strategy, all interactive bio-art must use a “dead-end” genetic design.
2. Design: Using nutritionally dependent strains that require a synthetic, non-canonical nutrient embedded in the agar. Without this “artificial food,” the bacteria degrades immediately.
3. Assumptions: We assume that horizontal gene transfer in the environment won’t provide the bacteria a way to bypass this dependency.
4. Risks: A “success” might make the biology too fragile for long exhibitions but in a controlled manner, while a failure would be the organism finding a natural substitute for the synthetic nutrient, which could lead to unwavering growth.

Action 2: Public Interaction “Bio-Etiquette” Certification (New Requirement that is applied by the responsible company)

1. Purpose: To change how the public views OGM interaction from “dangerous” or “uncertain” to “responsible” and “reliable.”
2. Design: Any gallery exhibiting the 3d bio-art sculptures must implement a mandatory hand-sanitizing and briefing station. The actors here are the gallery owner and the artist.
3. Assumptions: We assume that the public will follow all instructions and not try to “vandalize” the sculpture by introducing outside contaminants.
4. Risks: Success creates a safe, educated public; failure is a “success” where the art becomes so popular that the safety protocols are ignored due to high traffic.

Action 3: Peer-Led Biosecurity Audit (Community Strategy that involves the public and synbio community, the artists and the responsible company)

1. Purpose: To move away from slow federal oversight and use the agility of the SynBio community locally and globally.

2. Design: A “Safety Buddy” system where a fellow scientist must audit the genetic circuits and the physical mold design before it leaves the lab.

3. Assumptions: We assume peers will be rigorous and not just let their friends’ projects go on without revising them.

4. Risks: Success builds a strong self-regulating culture. Failure is a lapse in judgment that leads to a public health scare, potentially getting bio-art banned or detained.

5. Next, score (from 1-3 with, 1 as the best, or n/a) each of your governance actions against your rubric of policy goals. The following is one framework but feel free to make your own:

5. Last, drawing upon this scoring, describe which governance option, or combination of options, you would prioritize, and why. Outline any trade-offs you considered as well as assumptions and uncertainties.

Based on the scored framework, I recommend that we prioritize action 1 (Technical Multi-Layered Kill Switches) as the foundation, supported by action 3 (Community Peer Led Biosecurity Audit).

The technical multi-layered kill switches are the only way to ensure the biology is ethical by design; if the bacteria can’t survive outside the mold, the “risk” is effectively zero. However, I’m trading off some technical simplicity for absolute peace of mind. On the other hand, the peer led biosecurity audit is important because it builds the “social tissue” of responsibility among us students. We don’t need more laws; we need better engineers and technicians who check each other’s work. Lastly, my biggest uncertainty is the mutation rate of the kill switches, which is why the community audit must be a recurring process, with constant feedback loops and not a one-time thing.

Reflecting on what you learned and did in class this week, outline any ethical concerns that arose, especially any that were new to you. Then propose any governance actions you think might be appropriate to address those issues. This should be included on your class page for this week.

This project made me realize that when we make biology “interactive” and “eye-catching,” we might lower people’s guard. However, a concern that arose was about the ethical autonomy of the biological parts of 3d bio-art: are we just “enslaving” these bacteria for a 3-second glow? Or are we letting them decide what is best for them? By using Action 3, we ensure that as artists and scientists, we are also managers of the life we modify, treating it with the respect and conscience it deserves.

Week 2 HW: DNA read, write & edit

Homework 02

Part 1: Benchling & In-silico Gel Art

• I successfully made a Benchling account and imported the Lambda DNA.

• Simulate Restriction Enzyme Digestion with the following Enzymes:
  • EcoRI
  • HindIII
  • BamHI
  • KpnI
  • EcoRV
  • SacI
  • SalI

• Create a pattern/image in the style of Paul Vanouse’s Latent Figure Protocol artworks.

For my in-silico Gel Art I wanted to initially make a star! Sadly, after using Ronan’s website to visualize my idea, I realized that it would be a bit complicated using the listed Restriction Enzymes.

So, I ended up making some tulips instead! You can check out my design on Ronan’s website too!

Part 2: Gel Art - Restriction Digests and Gel Electrophoresis

I skipped this one since I do not have Lab access.

Part 3: DNA Design Challenge

3.1. Choose your protein.

I have chosen the Chitinase enzyme from the bacterium Bacillus thuringiensis (NCBI Accession: WCH14858.1).

I found this protein interesting because of its potential in environmental conservation and biotechnology. This enzyme is capable of degrading chitin, which is a primary component of fungal cell walls and insect exoskeletons. Based on the literature, the chitinase protein is particularly efficient due to its modular structure, which typically includes a catalytic domain and chitin-binding domains that enhance its hydrolytic activity (1). Because of that, this protein becomes a very powerful tool for biological control: it can act synergistically with Cry proteins to perforate the peritrophic matrix of insect pests, increasing the efficiency of biopesticides. Additionally, I selected this specific protein because Bacillus thuringiensis is a safe organism to handle in a Level 1 biosafety laboratory (BSL-1), making it a practical and efficient candidate for recombinant protein production in E. coli.

>WCH14858.1 chitinase [Bacillus thuringiensis] MLNKFKFFCCILVMFLLLPLSPFQAQAANNLGSKLLVGYWHNFDNGTGIIKLKDVSPKWDVINVSFGETGGDRSTVEFSPVYGTDAEFKSDISYLKSKGKKIVLSIGGQNGVVLLPDNAAKDRFINSIQSLIDKYGFDGIDIDLESGIYLNGNDTNFKNPTTPQIVNLISAIRTISDHYGPDFLLSMAPETAYVQGGYSAYGSIWGAYLPIIYGVKDKLTYIHVQHYNAGSGIGMDGNNYNQGTADYEVAMADMLLHGFPVGGNANNIFPALRSDQVMIGLPAAPAAAPSGGYISPTEMKKALNYIIKGVPFGGKYKLSNQSGYPAFRGLMSWSINWDAKNNFEFSSNYRTYFDGLSLQK

3.2. Reverse Translate: Protein (amino acid) sequence to DNA (nucleotide) sequence.

To determine the nucleotide sequence that corresponds to the chitinase protein I went to the original Bacillus thuringiensis genome.

[Original sequence of Bacillus thuringiensis from its genome Bacillus thuringiensis - Nucleotide - NCBI]

Chitinase protein DNA sequence
atgttaaacaagttcaaatttttttgttgtattttagtaatgttcttacttctaccgttatcccctttccaagcacaagcagcaaacaatttaggttcaaaattactcgttggatactggcataattttgataacggtactggcattattaaattaaaagacgtttcaccaaaatgggatgtaatcaatgtatcttttggtgaaactggtggtgatcgttccactgttgaattttctcctgtgtatggtacagatgcagaattcaaatcagatatttcttatttaaaaagtaaaggaaagaaaatagttctttcaataggtggacaaaatggggtcgttttacttcctgacaatgccgctaaggatcgttttattaattccatacaatctctgatcgataaatacggttttgacggaatagatattgaccttgaatcaggtatttacttaaacggaaatgacactaacttcaaaaacccaactacccctcaaatcgtaaatcttatttcagctattcgaacaatctcagatcattatggtccagattttctattaagcatggcccctgaaacagcttatgttcaaggcggatatagcgcatatggaagcatatggggtgcatatttaccaattatttatggagtgaaagataaactaacatacattcacgttcaacactacaacgctggtagcgggattggaatggacggtaataactacaatcaaggtactgcagactacgaggtcgctatggcagatatgctcttacatggttttcctgtaggtggtaatgcaaataacattttcccagctcttcgttcagatcaagtcatgattgggcttccagcagcaccagcggcagctccaagtggtggatacatttcgccaactgaaatgaaaaaagctttaaattatatcattaaaggagttccattcggaggaaagtataaactttctaaccagagtggctatcctgcattccgcggcctaatgtcttggtctattaattgggatgcaaaaaacaactttgaattctctagtaactatagaacatattttgatggtctttccttgcaaaaataa

3.3. Codon optimization.

Once a nucleotide sequence of your protein is determined, you need to codon optimize your sequence. You may, once again, utilize google for a “codon optimization tool”. In your own words, describe why you need to optimize codon usage. Which organism have you chosen to optimize the codon sequence for and why?

I need to optimize codon usage because, although the genetic code is redundant, different organisms have distinct ‘codon biases.’ Since I am using a sequence from Bacillus thuringiensis, I have optimized it for Escherichia coli K-12 using Benchling’s Codon Optimization tool to ensure that the host cell can translate it efficiently. I chose the K-12 strain specifically because it is the gold standard in synthetic biology laboratories since it is a safe, non-pathogenic, and well-characterized model that guarantees reliable folding for my chitinase enzyme.

Chitinase protein DNA sequence Codon-Optimization
ATGCTGAACAAATTTAAATTTTTTTGCTGCATTCTGGTGATGTTTCTGCTGCTGCCGCTGAGCCCGTTTCAGGCGCAGGCGGCGAACAACCTGGGCAGCAAACTGCTGGTGGGCTATTGGCATAACTTTGATAACGGCACCGGCATTATTAAACTGAAAGATGTGAGCCCGAAATGGGATGTGATTAACGTGAGCTTTGGCGAAACCGGCGGCGATCGCAGCACCGTGGAATTTAGCCCGGTGTATGGCACCGATGCGGAATTTAAAAGCGATATTAGCTATCTGAAAAGCAAAGGCAAAAAAATTGTGCTGAGCATTGGCGGCCAGAACGGCGTGGTGCTGCTGCCGGATAACGCGGCGAAAGATCGCTTTATTAACAGCATTCAGAGCCTGATTGATAAATATGGCTTTGATGGCATTGATATTGATCTGGAAAGCGGCATTTATCTGAACGGCAACGATACCAACTTTAAAAACCCGACCACCCCGCAGATTGTGAACCTGATTAGCGCGATTCGCACCATTAGCGATCATTATGGCCCGGATTTTCTGCTGAGCATGGCGCCGGAAACCGCGTATGTGCAGGGCGGCTATAGCGCGTATGGCAGCATTTGGGGCGCGTATCTGCCGATTATTTATGGCGTGAAAGATAAACTGACCTATATTCATGTGCAGCATTATAACGCGGGCAGCGGCATTGGCATGGATGGCAACAACTATAACCAGGGCACCGCGGATTATGAAGTGGCGATGGCGGATATGCTGCTGCATGGCTTTCCGGTGGGCGGCAACGCGAACAACATTTTTCCGGCGCTGCGCAGCGATCAGGTGATGATTGGCCTGCCGGCGGCGCCGGCGGCGGCGCCGAGCGGCGGCTATATTAGCCCGACCGAAATGAAAAAAGCGCTGAACTATATTATTAAAGGCGTGCCGTTTGGCGGCAAATATAAACTGAGCAACCAGAGCGGCTATCCGGCGTTTCGCGGCCTGATGAGCTGGAGCATTAACTGGGATGCGAAAAACAACTTTGAATTTAGCAGCAACTATCGCACCTATTTTGATGGCCTGAGCCTGCAGAAATAA

3.4. You have a sequence! Now what?

What technologies could be used to produce this protein from your DNA? Describe in your words the DNA sequence can be transcribed and translated into your protein. You may describe either cell-dependent or cell-free methods, or both.

To produce chitinase from my designed sequence, I can use either cell-dependent or cell-free methods. In a cell-dependent approach, I would insert the DNA into a host like E. coli K-12, where the cell’s own machinery handles the work: RNA polymerase transcribes the DNA into mRNA, and then ribosomes translate that message into the final enzyme. On the other hand, cell-free protein synthesis allows me to skip the living cell entirely by using just the necessary biological “parts” (like enzymes and ribosomes) in a tube. This last approach is a much faster way to prototype the protein without keeping bacteria alive, although I really have a space in my heart for bacterial cultures.

3.5. [Optional] How does it work in nature/biological systems?

1. Describe how a single gene codes for multiple proteins at the transcriptional level.

From what I’ve understood, a single gene can produce different proteins through mechanisms like alternative splicing, where the cell mixes and matches different sections of the message (exons) to create several versions of a protein from the same DNA template. In bacteria like Bacillus thuringiensis, they also use polycistronic operons, which group several related genes under a single promoter. This allows the bacteria to produce a whole set of coordinated enzymes all at once.

2. Try aligning the DNA sequence, the transcribed RNA, and also the resulting translated Protein!!!

Part 4: Prepare a Twist DNA Synthesis Order

4.1. Create a Twist account and a Benchling account

4.2. Build Your DNA Insert Sequence

I’ll make a sequence that will make E. coli glow fluorescent blue under UV light by always expressing sfBFP (a blue fluorescent protein):

Screenshot of the creation of the sfBFP sequence in Benchling

Go through each piece of the given DNA sequences highlighted below (Promoter, RBS, Start Codon, Coding Sequence, His Tag, Stop Codon, Terminator) and paste the sequences into the Benchling file one after the other (replacing the coding sequence with your codon optimized DNA sequence of interest!). Each time you add a new piece of the sequence, make sure to annotate by right clicking over the sequence and creating an annotation that describes what each piece (e.g., Promoter, RBS, etc.) is (see image below).

Screenshot of the whole sequence with its annotations!

• Promoter (BBa_J23106): TTTACGGCTAGCTCAGTCCTAGGTATAGTGCTAGC
• RBS (BBa_B0034 with spacers for optimal expression): CATTAAAGAGGAGAAAGGTACC
• Start Codon: ATG
• Coding Sequence (Codon optimized DNA sfBFP): ATGAGCAAAGGCGAAGAACTGTTTACCGGCGTGGTGCCGATTCTGGTGGAACTGGATGGCGATGTGAACGGCCATAAATTTAGCGTGCGCGGCGAAGGCGAAGGCGATGCGACCAACGGCAAACTGACCCTGAAATTTATTTGCACCACCGGCAAACTGCCGGTGCCGTGGCCGACCCTGGTGACCACCCTGACCCATGGCGTGCAGTGCTTTAGCCGCTATCCGGATCATATGAAACGCCATGATTTTTTTAAAAGCGCGATGCCGGAAGGCTATGTGCAGGAACGCACCATTAGCTTTAAAGATGATGGCACCTATAAAACCCGCGCGGAAGTGAAATTTGAAGGCGATACCCTGGTGAACCGCATTGAACTGAAAGGCATTGATTTTAAAGAAGATGGCAACATTCTGGGCCATAAACTGGAATATAACTTTAACAGCCATAACGTGTATATTACCGCGGATAAACAGAAAAACGGCATTAAAGCGAACTTTAAAATTCGCCATAACGTGGAAGATGGCAGCGTGCAGCTGGCGGATCATTATCAGCAGAACACCCCGATTGGCGATGGCCCGGTGCTGCTGCCGGATAACCATTATCTGAGCACCCAGAGCGTGCTGAGCAAAGATCCGAACGAAAAACGCGATCATATGGTGCTGCTGGAATTTGTGACCGCGGCGGGCATTACCCATGGCATGGATGAACTGTATAAA
• 7x His Tag (Let’s add a 7×His tag at the C-terminus of the protein to enable protein purification from E. coli): CATCACCATCACCATCATCAC
• Stop Codon: TAA
• Terminator (BBa_B0015): CCAGGCATCAAATAAAACGAAAGGCTCAGTCGAAAGACTGGGCCTTTCGTTTTATCTGTTGTTTGTCGGTGAACGCTCTCTACTAGAGTCACACTGGCTCACCTTCGGGTGGGCCTTTCTGCGTTTATA

Screenshot of the Linear map of Constitutive sfBFP DNA and here is the Benchling Link

SBOL of the Linear map of Constitutive sfBFP DNA.

4.3. On Twist, Select The “Genes” Option

4.4. Select “Clonal Genes” option

For this demonstration, we’ll choose Clonal Genes. You’ll select clonal genes or gene fragments depending on your final project.

Historically, HTGAA projects using clonal genes (circular DNA) have reached experimental results 1-2 weeks quicker because they can be transformed directly into E. coli without additional assembly.

Gene fragments (linear DNA) offer greater design flexibility but typically require an assembly or cloning step prior to transformation. An advantage is If designed with the appropriate exonuclease protection, gene fragments can be used directly in cell-free expression.

4.5. Import your sequence

You just took an amino acid sequence of interest and converted it into DNA, codon optimized it, and built an expression cassette around it! Choose the Nucleotide Sequence option and Upload Sequence File to upload your FASTA file.

Screenshot of my uploaded sfBFP FASTA file in Twist

4.6. Choose Your Vector

For this demonstration, choose a Twist cloning vectors like pTwist Amp High Copy.

Screenshot of sfBFP with pTwist Amp High Copy vector

My Twist Ready Plasmid!!

Part 5: DNA Read/Write/Edit

5.1 DNA Read

(i) What DNA would you want to sequence (e.g., read) and why? This could be DNA related to human health (e.g. genes related to disease research), environmental monitoring (e.g., sewage waste water, biodiversity analysis), and beyond (e.g. DNA data storage, biobank).

I want to sequence eDNA from river water samples collected at different points in different regions, especially near my hometown. Rivers collect DNA from fish, amphibians, and even terrestrial animals that drink from or live near the water. By sequencing the DNA, I can perform a biodiversity assessment to detect invasive species (like the trout in some Andean rivers) and/or monitor the presence of endangered amphibians without the need for traditional trapping methods.

(ii) In lecture, a variety of sequencing technologies were mentioned. What technology or technologies would you use to perform sequencing on your DNA and why?\

I would use Illumina (Next-Generation Sequencing) because its massive parallelization would allow me to read millions of sequences from hundreds of species in a single run, which is perfect for complex environmental samples (e.g., in rivers).

Also answer the following questions:

1. Is your method first-, second- or third-generation or other? How so?

Illumina’s NGS is second-generation. That’s because it uses synthesis-based sequencing on a solid surface rather than reading single long molecules.

2. What is your input? How do you prepare your input (e.g. fragmentation, adapter ligation, PCR)? List the essential steps.

My input would be filtered river water DNA. Preparation involves metabarcoding (amplifying specific markers like 16S or COI) and adapter ligation to attach fragments to the flow cell.

3. What are the essential steps of your chosen sequencing technology, how does it decode the bases of your DNA sample (base calling)?

Illumina’s NGS has many steps but these are the essential ones that make the work itself. First, DNA fragments are attached to a flow cell where they form dense clusters through bridge amplification to ensure the detection signal is strong enough. Next, fluorescently labeled nucleotides are added one by one, and a high-resolution camera records the specific color flash emitted as each base is incorporated into the strand. Finally, the software interprets these light patterns and decodes them into a digital DNA sequence through base calling. (2)

4. What is the output of your chosen sequencing technology?

The output of Illumina’s NGS is a FASTQ file containing millions of digital reads that identify the species present in the river samples. Once I get the file I can analyze it. with bioinformatics and get results.

5.2 DNA Write

(i) What DNA would you want to synthesize (e.g., write) and why? These could be individual genes, clusters of genes or genetic circuits, whole genomes, and beyond. As described in class thus far, applications could range from therapeutics and drug discovery (e.g., mRNA vaccines and therapies) to novel biomaterials (e.g. structural proteins), to sensors (e.g., genetic circuits for sensing and responding to inflammation, environmental stimuli, etc.), to art (DNA origamis). If possible, include the specific genetic sequence(s) of what you would like to synthesize! You will have the opportunity to actually have Twist synthesize these DNA constructs! :)

I would like to synthesize a genetic biosensor designed to detect heavy metal contamination, such as mercury, in river water. By placing this circuit into a safe host like E. coli K-12, the bacteria could “glow” or change color when it senses toxins, acting as a real-time environmental monitor to help protect the river’s biodiversity.

(ii) What technology or technologies would you use to perform this DNA synthesis and why?\

I would love to use Twist Bioscience’s Silicon-based Synthesis to perform the DNA synthesis because of its incredible scalability and its promise of making DNA synthesis better and faster. (3)

Also answer the following questions:

1. What are the essential steps of your chosen sequencing methods?

The steps that Twist follows use silicon chips to print thousands of genes simultaneously, which significantly reduces costs and improves precision. First, the digital sequence is uploaded and ‘printed’ onto a silicon chip; using phosphoramidite chemistry, the machine builds thousands of short DNA strands, known as oligonucleotides, base by base. Second, these short oligos are harvested from the chip and gathered together. Finally, the fragments are enzymatically assembled to form the complete, full-length biosensor circuit, ensuring high precision and scalability.

2. What are the limitations of your sequencing method (if any) in terms of speed, accuracy, scalability?

The main limits are that very complex designs can significantly increase the turnaround time and the cost of production. Additionally, sequences with difficult content, such as high GC-rich regions, can lower the synthesis success rate.

5.3 DNA Edit

(i) What DNA would you want to edit and why? In class, George shared a variety of ways to edit the genes and genomes of humans and other organisms. Such DNA editing technologies have profound implications for human health, development, and even human longevity and human augmentation. DNA editing is also already commonly leveraged for flora and fauna, for example in nature conservation efforts, (animal/plant restoration, de-extinction), or in agriculture (e.g. plant breeding, nitrogen fixation). What kinds of edits might you want to make to DNA (e.g., human genomes and beyond) and why?

I would like to edit the chitinase genes in native river bacteria to make them more efficient at degrading organic waste. This would help prevent fungal outbreaks and the accumulation of debris, keeping the river ecosystem balanced and clean in a natural way.

(ii) What technology or technologies would you use to perform these DNA edits and why?\

I would use CRISPR-Cas9 because it is the most precise, well-known, and easy-to-design tool for genome engineering in bacteria. The system works by using a guide RNA (gRNA) that leads the Cas9 nuclease to a specific target in the chitinase gene to create a cut. By providing a DNA repair template, I can then insert a more efficient version of the enzyme into the genome.

Also answer the following questions:

1. How does your technology of choice edit DNA? What are the essential steps?

This technology edits DNA by acting like a pair of molecular scissors. It follows three main steps: first, the guide RNA identifies and binds to a specific target sequence in the genome. Second, the Cas9 nuclease creates a double-strand break at that exact location. Finally, the cell’s natural repair machinery goes and fixes the break; by providing a DNA repair template, the cell can be tricked into incorporating a new, more efficient chitinase sequence during this repair process.

2. What preparation do you need to do (e.g. design steps) and what is the input (e.g. DNA template, enzymes, plasmids, primers, guides, cells) for the editing?

I would need to digitally design a specific gRNA that is perfectly complementary to the chitinase gene to avoid off-target cuts. Additionally, the required inputs for the experiment include the Cas9 protein (or a plasmid encoding it), the custom synthetic gRNA, a DNA donor template containing the desired edit, and the target bacterial cells that will be transformed with these components!

3. What are the limitations of your editing methods (if any) in terms of efficiency or precision?

The biggest limitation of this method is the risk of off-target cuts, where the Cas9 might cut a similar DNA sequence elsewhere in the genome by mistake. Additionally, the efficiency of the edit depends a lot on the cell’s repair mechanism; in some bacteria, the rate of successful “homology-directed repair” can be low, meaning many cells might fail to incorporate the new gene correctly.

References

1. Martínez-Zavala, S. A., Barboza-Pérez, U. E., Hernández-Guzmán, G., Bideshi, D. K., & Barboza-Corona, J. E. (2020). Chitinases of Bacillus thuringiensis: Phylogeny, Modular Structure, and Applied Potentials. Frontiers in Microbiology, 10, 3032. https://doi.org/10.3389/fmicb.2019.03032
2. Next-Generation Sequencing (NGS) | Explore the technology.
3. Twist Bioscience. High quality gene synthesis - Twist Bioscience. Gene synthesis

Week 3 HW: Lab Automation

Homework

Assignment: Python Script for Opentrons Artwork

Your task this week is to Create a Python file to run on an Opentrons liquid handling robot.

1. Generate an artistic design using the GUI at opentrons-art.rcdonovan.com.

For my first design I made a colorful butterfly! I first used the Opentrons art page to design it by using the upload image option. Initially the design

Here you can see the butterfly image that I uploaded and how it generates on the Opentrons art page side by side!

Then after the image upload, I decided to first move the design a bit lower and also change the colors. Lastly I added some fun details like stars and a heart.

Design process

Here’s the final design!

This is my design: a colorful butterfly! Made using the GUI. You can check it out by yourself here!

Initially, I made one artistic design on a circular petri dish, but after finding out you could make designs on a rectangular plate, I decided to try it out! I ended up making 2 more designs on rectangular plates.

This is my second design which is a readaptation of the colorful butterfly! Made using the GUI. You can check it out by yourself here!

This is my third design: an anomalocaris! Made using the GUI. You can check it out by yourself here!

2. Using the coordinates from the GUI, follow the instructions in the HTGAA26 Opentrons Colab to write your own Python script which draws your design using the Opentrons.
   • You may use AI assistance for this coding — Google Gemini is integrated into Colab (see the stylized star bottom center); it will do a good job writing functional Python, while you probably need to take charge of the art concept.
   • If you’re a proficient programmer and you’d rather code something mathematical or algorithmic instead of using your GUI coordinates, you may do that instead.

Here’s the Opentrons Lab Simulation in Google Colab for the first design. You can check it out by yourself here!

Post-Lab Questions — DUE BY START OF FEB 24 LECTURE

One of the great parts about having an automated robot is being able to precisely mix, deposit, and run reactions without much intervention, and design and deploy experiments remotely.

For this week, we’d like for you to do the following:

1. Find and describe a published paper that utilizes the Opentrons or an automation tool to achieve novel biological applications.

Paper: Automation of protein crystallization scale-up via Opentrons-2 liquid handling.

This paper explores the use of the Opentrons OT-2 machine to automate protein crystallization! The researchers developed three Python scripts using the Opentrons Python module to control the robot for mixing and setting up 24-well sitting drop plates using model proteins like lysozyme and a periplasmic protein from Campylobacter jejuni.

The study achieved the desired scale-up goals after minimal trial and error. By automating the liquid handling, the researchers were able to test a wider range of crystallization conditions (reagents, concentrations, and pH) with higher reproducibility than manual pipetting. Although the setup time was around 35 to 40 minutes, it greatly reduces plate variability from person to person. This is a novel application because it makes high-quality structural biology workflows accessible and low-cost, allowing labs to screen protein conditions at a much higher throughput, which is essential for understanding protein function and drug design.

Reference: DeRoo, J. B., Jones, A. A., Slaughter, C. K., Ahr, T. W., Stroup, S. M., Thompson, G. B., & Snow, C. D. (2025). Automation of protein crystallization scaleup via Opentrons-2 liquid handling. SLAS Technology, 32, 100268. https://doi.org/10.1016/j.slast.2025.100268

2. Write a description about what you intend to do with automation tools for your final project. You may include example pseudocode, Python scripts, 3D printed holders, a plan for how to use Ginkgo Nebula, and more. You may reference this week’s recitation slide deck for lab automation details.

While your description/project idea doesn’t need to be set in stone, we would like to see core details of what you would automate. This is due at the start of lecture and does not need to be tested on the Opentrons yet.

For instance, my first idea is an interactive 3D bio-art installation that translates a person’s biological data into a living and blooming sculpture. This idea uses genetically engineered bacteria to create a visual representation of a user’s unique microbial/DNA fingerprint. The process starts when a user interacts with a sensor that captures basic biological data, which is then processed by a script to assign specific colors using fluorescent proteins like GFP, RFP, and BFP. In this case, an Opentrons OT-2 acts as a high-precision bio-printer to deposit these living bio-inks into a 3D-printed scaffold made of agar or hydrogel, allowing the sculpture to grow and glow over time to reveal the user’s identity.

Additionally, I will need to design 3D-printed holders with micro-channels and a specialized needle adapter so the OT-2 can deposit the bacteria without breaking the hydrogel/agar structure. I will use capacitive touch sensors to generate the initial data that determines the bacterial/DNA distribution throughout the sculpture. Moreover, I plan to use cloud laboratories like Ginkgo Nebula to synthesize the custom DNA circuits needed to ensure the bacteria express the exact colors and intensity required for the piece.

Here’s a rough python pseudocode for this 3D sculpture idea.

from opentrons import protocol_api

# This script translates user data into a 3D bacterial pattern
def run(protocol: protocol_api.ProtocolContext):
    # Load the custom 3D printed lattice and the bio-inks (bacteria)
    sculpture_lattice = protocol.load_labware('custom_3d_lattice', '1')
    bio_inks = protocol.load_labware('opentrons_24_tuberack_eppendorf_1.5ml_safelock_snapcap', '2')
    p20 = protocol.load_instrument('p20_single_gen2', 'right')

    # Logic: If user data indicates Trait X, use Blue Fluorescent Protein
    user_trait = "high_diversity" # Example data from sensor

    if user_trait == "high_diversity":
        # Deposit Blue bacteria in the outer ring of the lattice
        for well in sculpture_lattice.rows()[0]:
            p20.pick_up_tip()
            p20.transfer(10, bio_inks['A1'], well, new_tip='never')
            p20.drop_tip()

    # Move in Z-axis to create the 3D effect
    p20.move_to(sculpture_lattice.wells()[0].top(z=10))

Final Project Ideas — DUE BY START OF FEB 24 LECTURE

As explained in this week’s recitation, add a slide in your Node’s section of this slide deck with an idea you have for an Individual Final Project. Be sure to put your name on your slide!

Here are my three individual final project ideas!

An interactive 3D bio-art sculpture

A river-sensing automated robot system

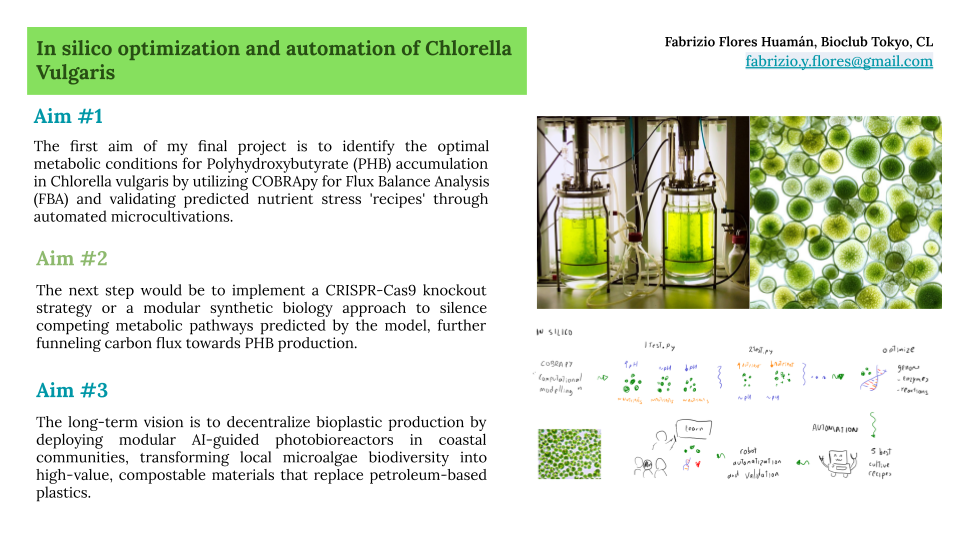

Chlorella vulgaris in silico optimization and automation

Week 4 HW: Protein Design - Part I

Homework: Protein Design I

Objective:

1. Learn basic concepts:
   • amino acid structure
   • 3D protein visualization
   • the variety of ML-based design tools
2. Brainstorm as a group how to apply these tools to engineer a better bacteriophage (setting the stage for the final project).

Part A. Conceptual Questions

Answer any NINE of the following questions from Shuguang Zhang: (i.e. you can select two to skip)

1. How many molecules of amino acids do you take with a piece of 500 grams of meat? (on average an amino acid is ~100 Daltons)

At first, I thought that it would be a simple math conversion, but after a quick internet search, I realized that not every type of meat has the same amount of protein. According to Barr et al. (2025), 100 g of cooked red meat contains ~28–36 grams of protein, and 100 g of cooked white meat contains ~23–31 grams of protein. Because of this, I decided to use 30 grams of protein per 100 grams of meat as an approximation for the calculations.

Since we know that there’s 30 grams of protein per 100 grams of meat, there would be 150 grams of protein in a piece of 500 grams of meat. These 150 grams of protein, then, are divided by 100 Daltons (which is equivalent to 100 g/mol AA) and finally converted into AA molecules, which gives us a result of approximately 9.033 x 10^23 amino acids!

2. Why do humans eat beef but do not become a cow, eat fish but do not become fish?

Everything we eat is broken down into universal micro building blocks (amino acids, lipids, sugars). Our body doesn’t use the cow’s proteins directly; it hydrolyzes them and then uses our own genetic “code” to reassemble those building blocks into human proteins. It’s about the information (DNA), not the source of the bricks.

3. Why are there only 20 natural amino acids?

It’s a balance between functional diversity and translational fidelity. These 20 provide enough chemical groups to build almost any catalytic or structural site. Adding more amino acids would increase the risk of errors during translation without a significant evolutionary “payoff.”

4. Can you make other non-natural amino acids? Design some new amino acids.
5. Where did amino acids come from before enzymes that make them, and before life started?

They likely came from abiotic synthesis (like the Miller-Urey experiment) using simple precursors ($CH_{4}$, $NH_{3}$, $H_{2}$, $H_{2}O$) and energy sources like lightning or hydrothermal vents. Also, carbonaceous meteorites (like Murchison) have shown that amino acids can form in space via Strecker synthesis.

6. If you make an α-helix using D-amino acids, what handedness (right or left) would you expect?

Since natural L-amino acids form right-handed helices, a helix made of D-amino acids would be left-handed. It’s a direct mirror image dictated by the stereochemistry of the Cα atom.

7. Can you discover additional helices in proteins?

Yes, besides the standard α-helix, proteins show other geometries like the tighter &3sub10;-helix or the wider π-helix. We also see Polyproline helices in collagen and can even design synthetic foldamers with helical shapes that do not exist in nature.

8. Why are most molecular helices right-handed?

It’s mostly due to the L-homochirality of life. Because all biological proteins are made of L-amino acids, the steric clashes between side chains and the backbone favor the right-handed twist as the most thermodynamically stable conformation (lowest energy).

9. Why do β-sheets tend to aggregate?

Because they have “sticky” edges. The backbone hydrogen-bond donors and acceptors are exposed at the edges of the sheet, inviting other β-strands to join.

• What is the driving force for β-sheet aggregation?

Mainly inter-strand hydrogen bonding and the hydrophobic effect, as burying nonpolar side chains between sheets is energetically favorable.

10. Why do many amyloid diseases form β-sheets?

Many amyloids form β-sheets because it’s the “global energy minimum” for many sequences; the cross-β structure is incredibly stable and protease resistant.

• Can you use amyloid β-sheets as materials?

Yes, they can be used as nanoscaffolds for tissue engineering or as conductive nanowires because of their extreme mechanical strength and self-assembling properties.

11. Design a β-sheet motif that forms a well-ordered structure.

Part B: Protein Analysis and Visualization

In this part of the homework, you will be using online resources and 3D visualization software to answer questions about proteins. Pick any protein (from any organism) of your interest that has a 3D structure and answer the following questions:

1. Briefly describe the protein you selected and why you selected it.

I have selected the bacteriorhodopsin (bR) protein for this part of the homework because of its light conversion cycle and its structure! I am particularly interested in its light-sensitive properties, which offer great potential for applications in bioart. Scientifically, bR is a perfect model for studying single molecule kinetics, as seen in Perrino et al. (2021). Additionally, it provides key insights into membrane protein stability, specifically regarding helical reorganization in the context of membrane protein folding: Insights from simulations with bacteriorhodopsin (BR) fragments (Chatterjee et al., 2024). This combination of biological efficiency and aesthetic potential makes it an ideal choice for my research.

For the next parts of the homework, I will be using the high-resolution crystal structure of the bacteriorhodopsin protein identified by PDB code 7Z09. This specific model was solved using X-ray diffraction and was published recently (2022), representing the protein in its ground state with a resolution of 1.05 Å. I selected this specific entry because of its atomic-level detail that allows for a precise visualization of the retinal chromophore and the internal water networks that are essential for proton pumping.

2. Identify the amino acid sequence of your protein.

Here’s the bacteriorhodopsin protein sequence I’m using in FASTA format:

>7Z09_1|Chain A|Bacteriorhodopsin|Halobacterium salinarum (2242) QAQITGRPEWIWLALGTALMGLGTLYFLVKGMGVSDPDAKKFYAITTLVPAIAFTMYLSMLLGYGLTMVPFGGEQNPIYWARYADWLFTTPLLLLDLALLVDADQGTILALVGADGIMIGTGLVGALTKVYSYRFVWWAISTAAMLYILYVLFFGFTSKAESMRPEVASTFKVLRNVTVVLWSAYPVVWLIGSEGAGIVPLNIETLLFMVLDVSAKVGFGLILLRSRAIFGEAEAPEPSAGDGAAATS

• How long is it? What is the most frequent amino acid? You can use this Colab notebook to count the frequency of amino acids.

The bR protein is 238 AA long, and the most frequent amino acid is L (leucine), which appears 36 times in the protein sequence.

• How many protein sequence homologs are there for your protein? Hint: Use Uniprot’s BLAST tool to search for homologs.

For this question, I ran Uniprot’s BLAST tool using the bR protein mentioned before. Here’s the Uniprot’s BLAST ID.

The BLAST tool identified 250 homologs for the protein I selected: 234 of these sequences are inferred through homology, 14 have been experimentally validated at the protein level, and 2 are predicted sequences.

• Does your protein belong to any protein family?

Based on my results, my protein belongs to the microbial rhodopsin family, specifically within archaeal-type rhodopsins. Additionally, according to the Pfam PDB annotation (Accession: PF01036), it is classified as a Bacteriorhodopsin-like protein, which are integral membrane proteins characterized by seven transmembrane (TM) domains that utilize a covalently bound retinal to provide light-dependent ion transport.

BLAST’s taxonomy data shows a dominance of homologs within the Haloferacaceae (41%), Haloarculaceae (25%), Natrialbaceae (17%), and Halobacteriaceae (4%) families. The presence of the protein in a wide variety of genera such as Halorubrum, Haloplanus, Haloarcula, and Halobacterium confirms its role as a highly conserved protein across different halophilic microorganisms.

4. Identify the structure page of your protein in RCSB
   • When was the structure solved? Is it a good quality structure? Good quality structure is the one with good resolution. Smaller the better (Resolution: 2.70 Å)

The structure page for my selected protein can be found at RCSB PDB: 7Z09.

The protein I chose was deposited on 2022-02-22 and officially released three months later, on 2022-05-04. It is considered an exceptional quality structure because its resolution is 1.05 Å, which is significantly better (smaller) than the 2.70 Å threshold. At this atomic resolution, the positions of individual atoms and the surrounding water are mapped with a lot of precision.

• Are there any other molecules in the solved structure apart from protein?

Yes, there are other molecules in the solved structure apart from the bR protein.

Based on the RCSB ligand data, I identified the following molecules: 3 ligands and 1 modified residue.

However, on the structure page we can actually see the 3 ligands, the retinal molecule (LYR), and some water molecules.

The 3 ligands found on the protein are lipids and fatty acids like OLC ((2R)-2,3-dihydroxypropyl (9Z)-octadec-9-enoate), eicosane (OLA), and oleic acid. These ligands represent the lipidic environment that surrounds the protein in its natural state.

The modified residue corresponds to retinal (LYR), which is covalently linked to lysine in the protein chain, and it is the chromophore responsible for absorbing light.

Additionally, there are some water molecules around the bR protein structure that are critical for the proton transport mechanism.

• Does your protein belong to any structure classification family?

Yes! According to the SCOP database, my protein belongs to the following structural hierarchy:

• Class: Membrane proteins
• Fold: G protein-coupled receptors, GPCRs-like
• Superfamily: G protein-coupled receptor-like (SCOP ID: 8026950).
• Family: Bacteriorhodopsin-like (SCOP ID: 80393298039329).

5. Open the structure of your protein in any 3D molecule visualization software:
   • PyMol Tutorial Here (hint: ChatGPT is good at PyMol commands)

So this is my first time using PyMol, it feels intimidating but I hope I get the hang of it!

At first, I uploaded the FASTA bR protein sequence file thinking it would give me the protein structure. But after loading it, all I saw was a very long chain of amino acids. I found that funny for my first experience with PyMol. After that I went back to the PDB page and downloaded the correct .pdb file format.

Here’s a screenshot of the bR protein in PyMol using the .pdb file.

• Visualize the protein as “cartoon”, “ribbon” and “ball and stick”.

Visualizing the protein as “cartoon”:

Visualizing the protein as “ribbon”:

Visualizing the protein as “ball and stick”:

• Color the protein by secondary structure. Does it have more helices or sheets?

After coloring the protein according to its secondary structure, I realized there are more helices than sheets. There are 7 alpha helices (colored in cyan), and there are just 2 beta sheets (colored in red) but they are very small. Additionally, PyMol shows that there are 8 loops. which are colored in magenta.

• Color the protein by residue type. What can you tell about the distribution of hydrophobic vs hydrophilic residues?

For this part, I colored the hydrophilic residues marine, the hydrophobic ones green, and the charged residues red and blue. After visualizing the colored protein, I recognize that there are more hydrophobic residues than hydrophilic ones, especially along the outer surface of most of the alpha helices, while the hydrophilic residues are mostly in the extremes of the protein, which are mostly exposed to the aqueous environment.

• Visualize the surface of the protein. Does it have any “holes” (aka binding pockets)?

Here’s a screenshot of the protein visualized by its surface (I set up the transparency to 0.5 to see the inside better):

Here’s a close-up of the protein’s surface:

Finally, here’s another angle of the protein’s surface and its interior:

At first sight, it seems that the protein is very compact and would not have any holes. After using PyMol, I can actually see the central binding pocket that houses the retinal chromophore. Beyond this main site (“hole”), the visualization reveals a continuous internal channel rather than isolated holes along the protein. These results correspond to the bR protein function as a proton pump because of the binding pocket in the middle of it.

Part C. Using ML-Based Protein Design Tools

In this section, we will learn about the capabilities of modern protein AI models and test some of them in your chosen protein.

1. Copy the HTGAA_ProteinDesign2026.ipynb notebook and set up a colab instance with GPU.
2. Choose your favorite protein from the PDB.
3. We will now try multiple things in the three sections below; report each of these results in your homework writeup on your HTGAA website:

Here’s my collab copy for Part C: Fabrizio_Flores_HTGAA_ProteinDesign2026.ipynb

C1. Protein Language Modeling

1. Deep Mutational Scans

   1. Use ESM2 to generate an unsupervised deep mutational scan of your protein based on language model likelihoods.

   For the unsupervised deep mutational scan, I used the ESM2 8M parameter model! Here’s the heatmap the model produced using the bR protein.


   2. Can you explain any particular pattern? (choose a residue and a mutation that stands out)

   After looking at the heatmap for a while, I noticed that there were high model scores for two interesting positions: the 94 and the 214 positions showed mostly yellow colors in comparison to the other positions. But between the two, the 214 position had the highest model score.



   With the help of the zoom tool, we can clearly identify which residue it corresponds to: leucine (L) with a model score of 4.7. However, this mutation corresponds to the wild-type protein, which indicates that it is a conserved position that bR has perfected in its evolution.

   3. (Bonus) Find sequences for which we have experimental scans, and compare the prediction of the language model to experiment.

   I compared my ESM-2 unsupervised predictions with experimental data from Jacobson and Perkins (2021). They measured energy changes for mutations in bacteriorhodopsin using single molecule force spectroscopy in a native lipid bilayer. Their results show that even small mutations in the 7-helix core significantly impact protein stability. This correlates with my ESM-2 heatmap, where internal residues like L214 or A94 get the highest scores while destabilizing changes are penalized with dark, low-probability colors. This proves that the model can sense the physical constraints of 7Z09 without needing experimental labels.

2. Latent Space Analysis

   1. Use the provided sequence dataset to embed proteins in reduced dimensionality.

   I used the ESM-2 model to process a protein sequence dataset from ASTRAL SCOP. The model generates high-dimensional mean embeddings for each sequence, which then is reduced to three dimensions using the t-SNE algorithm to visualize the latent space in a 3D plot.


   2. Analyze the different formed neighborhoods: do they approximate similar proteins?

   The 3D map reveals distinct neighborhoods where proteins are grouped by their structural characteristics. These neighborhoods approximate similar proteins effectively because of the nature of the SCOP dataset (structural classification). For instance, the following neighborhood contains alpha-1-syntrophin, phosphoinositide phospholipase C, and Rho guanine nucleotide exchange factor 12.



   These proteins belong to the PYP-like sensor domain (PAS domain) superfamily since they share the alpha-beta(2)-alpha(2)-beta(3) structure.

   3. Place your protein in the resulting map and explain its position and similarity to its neighbors.

   I place my protein within Class f: Membrane and cell surface proteins and peptides. Its position in the latent space is determined by the specific patterns of its seven transmembrane alpha-helices and its high hydrophobic content. It clusters near other microbial rhodopsins and light-driven pumps, as the model recognizes that these proteins share the same biological logic and structural constraints required to function within a lipid bilayer.



   I couldn’t find my protein exactly, but it is near other bacteriorhodopsin-like proteins since my protein’s Tax ID is 2242. So in the 3D plot I would probably find my protein somewhere in the middle.

C2. Protein Folding

Folding a protein

1. Fold your protein with ESMFold. Do the predicted coordinates match your original structure?

Here’s my protein folded with ESMFold:

And here’s an alignment of the original 7Z09 bR protein and the ESMFolded one (this was done using the align command on PyMol using the ESMFold .pdb result and the 7Z09.pdb)

Aditionally, here’s the PyMOL command results after doing the alignment.

PyMOL>align ptm0.889_r3_default, 7Z09 Match: read scoring matrix. Match: assigning 248 x 340 pairwise scores. MatchAlign: aligning residues (248 vs 340)... MatchAlign: score 1174.000 ExecutiveAlign: 1765 atoms aligned. ExecutiveRMS: 85 atoms rejected during cycle 1 (RMSD=1.38). ExecutiveRMS: 91 atoms rejected during cycle 2 (RMSD=0.83). ExecutiveRMS: 76 atoms rejected during cycle 3 (RMSD=0.66). ExecutiveRMS: 62 atoms rejected during cycle 4 (RMSD=0.59). ExecutiveRMS: 38 atoms rejected during cycle 5 (RMSD=0.54). Executive: RMSD = 0.512 (1413 to 1413 atoms)

The RMSD was only 0.512 Å over 1413 atoms; this statistic confirms that the ESMFold code can accurately reconstruct the bacteriorhodopsin protein. This means that the language model has deeply learned the structural patterns of the bacteriorhodopsin fold with high accuracy.

2. Try changing the sequence, first try some mutations, then large segments. Is your protein structure resilient to mutations?

To test the resilience of the bR 7Z09 fold, I performed two types of sequence modifications. First, I introduced point mutations in the transmembrane helices.

>Point mutation L214P QAQITGRPEWIWLALGTALMGLGTLYFLVKGMGVSDPDAKKFYAITTLVPAIAFTMYLSMLLGYGLTMVPFGGEQNPIYWARYADWLFTTPLLLLDLALLVDADQGTILALVGADGIMIGTGLVGALTKVYSYRFVWWAISTAAMLYILYVLFFGFTSKAESMRPEVASTFKVLRNVTVVLWSAYPVVWLIGSEGAGIVPPNIETLLFMVLDVSAKVGFGLILLRSRAIFGEAEAPEPSAGDGAAATS

The structure showed high resilience to minor changes, maintaining its 7-helix architecture with minimal RMSD shifts. However, when I replaced large segments of the helical core with random or polar sequences, the ESMFold prediction collapsed or showed significant unfolding in those regions.

>Large segment mutation using A's and G's QAQITGRPEWIWLALGTALMGLGTLYFLVKGMGVSDPDAKKFYAITTLVPAIAFTMYLSMLLGYGLTMVPFGGEQNPIYWARYADWLFTTPLLLLDLALLVDADQGTILALVGADGIMIGTGLVGALTKVYSYRFVAAGGAAAGGAAAGGAAAGGAAMLYILYVLFFGFTSKAESMRPEVASTFKVLRNVTVVLWSAYPVVWLIGSEGAGIVPLNIETLLFMVLDVSAKVGFGLILLRSRAIFGEAEAPEPSAGDGAAATS

This confirms that while the bacteriorhodopsin fold is structurally robust, its stability is strictly dependent on the conserved hydrophobic patterns that allow the helices to pack correctly within the membrane.

C3. Protein Generation

Inverse-Folding a protein: Let’s now use the backbone of your chosen PDB to propose sequence candidates via ProteinMPNN

1. Analyze the predicted sequence probabilities and compare the predicted sequence vs the original one.

Here are the results after running the ProteinMPNN colab section

`Generating sequences…

7Z09, score=1.6239, fixed_chains=[], designed_chains=[‘A’], model_name=v_48_020 TGRPEWIWLALGTALMGLGTLYFLVKGMGVSDPDAKKFYAITTLVPAIAFTMYLSMLLGYGLTMVPFGGEQNPIYWARYADWLFTTPLLLLDLALLVDADQGTILALVGADGIMIGTGLVGALTKVYSYRFVWWAISTAAMLYILYVLFFGFTSKAESMRPEVASTFKVLRNVTVVLWSAYPVVWLIGSEGAGIVPLNIETLLFMVLDVSAXVGFGLILLRSRAIFGEAE T=0.1, sample=0, score=0.9490, seq_recovery=0.4410 MSLPAFPWWLLGTIAFLLGTIYFAIRGVGVTDPEARRFYTLLTLIPLIGAICWLLILLGIGWTYVYTDGEWVLVPWAVFIYWLITFPLLLTVIALLVRAPLWLRVALWVSNLVMVLTGLIGALETVPPLRFVFLAISTAALLLILALLLFGFRARLPTLRPERLRTYRVVVLWFVVLWSLYPVILLLGPFGLRLIPLPVTVALLTVLDILLXCGIGLIVLSSPAIYSPRP`

The ProteinMPNN analysis shows a 44.1% sequence recovery and a high 0.9490 confidence score, indicating that the model successfully redesigned over half of the residues while maintaining the protein’s evolutionary “grammar.”

The probability heatmap confirms that internal transmembrane positions remain conserved, while external loops allow for significant sequence variability.

2. Input this sequence into ESMFold and compare the predicted structure to your original.

Here’s a screenshot of the protein generated by ProteinMPNN and folded using ESMFold:

Here’s a screenshot of the protein visualized using PyMOL aligned with the original one:

Folding the redesigned sequence with ESMFold resulted in a structure nearly identical to the original 7Z09 backbone, validating that the inverse-folding process preserved the 7-helix architecture. This proves that ProteinMPNN can “hallucinate” valid sequence variants that strictly obey the biophysical and geometrical constraints of the native bacteriorhodopsin fold.

References

1. Barr, B., Levitt, D. E., & Gollahon, L. (2025). Red Meat Amino acids for Beginners: A narrative review. Nutrients, 17(6), 939. https://doi.org/10.3390/nu17060939
2. Perrino, A. P., Miyagi, A., & Scheuring, S. (2021). Single molecule kinetics of bacteriorhodopsin by HS-AFM. Nature Communications, 12(1), 7225. https://doi.org/10.1038/s41467-021-27580-2
3. Chatterjee, H., Mahapatra, A. J., Zacharias, M., & Sengupta, N. (2024). Helical reorganization in the context of membrane protein folding: Insights from simulations with bacteriorhodopsin (BR) fragments. Biochimica Et Biophysica Acta (BBA) - Biomembranes, 1866(5), 184333. https://doi.org/10.1016/j.bbamem.2024.184333
4. Jacobson, D. R., & Perkins, T. T. (2021). Free-energy changes of bacteriorhodopsin point mutants measured by single-molecule force spectroscopy. Proceedings Of The National Academy Of Sciences, 118(13). https://doi.org/10.1073/pnas.2020083118

Part D. Group Brainstorm on Bacteriophage Engineering

1. Find a group of ~3–4 students

I found a group of 4 students: Sheila Ramani, Ganapathi Naayagam, Deep Dalvi and I, Fabrizio Flores

2. Read through the Phage Reading material listed under “Reading & Resources” below.

3. Review the Bacteriophage Final Project Goals for engineering the L Protein:

   • Increased stability (easiest)
   • Higher titers (medium)
   • Higher toxicity of lysis protein (hard)

4. Brainstorm Session

   • Choose one or two main goals from the list that you think you can address computationally (e.g., “We’ll try to stabilize the lysis protein,” or “We’ll attempt to disrupt its interaction with E. coli DnaJ.”).
   • We will focus on increasing the structural stability of the L protein to ensure it remains functional under different environmental conditions.
   • We will also attempt to increase the toxicity of the lysis protein by optimizing its target regions to enhance bacterial cell wall disruption.
   • Write a 1-page proposal (bullet points or short paragraphs) describing:
     • Which tools/approaches from recitation you propose using (e.g., “Use Protein Language Models to do in silico mutagenesis, then AlphaFold-Multimer to check complexes.”).
   • We will use ESMFold to perform in silico mutational scanning and identify target regions in the L protein.
   • We propose using Genomic Language Models (GLMs) to design and optimize sequences with higher lytic potential.
   • Finally, we will use AlphaFold-Multimer to validate the folding and stability of the engineered protein complexes.
   • Why do you think those tools might help solve your chosen sub-problem?
   • ESMFold allows for high-speed structural feedback, making it easier to test how mutations affect the 7-helix bundle.
   • GLMs are essential for capturing the “evolutionary grammar” of toxicity, helping to design proteins that are more aggressive than natural variants.
   • AlphaFold ensures that our computational designs are biophysically plausible and stable before any potential wet-lab implementation.
   • Name one or two potential pitfalls (e.g., “We lack enough training data on phage–bacteria interactions.”).
   • Contextual Gap: There is a lack of specific data regarding the host bacteria’s environment, which might lead to unexpected results in vivo.
   • Misfolding Risk: The engineered protein might still misfold or aggregate in a real biological system despite having positive simulation results in the pipeline.
   • Include a schematic of your pipeline.

   Here’s a short written schematic of our pipeline: [Sequence Input] → [ESM-2 Mutational Scan] → [GLM Toxicity Optimization] → [AlphaFold Validation] → [Final Design]

   • This resource may be useful: HTGAA Protein Engineering Tools

5. Each individually put your plan on your HTGAA website

   • Include your group’s short plan for engineering a bacteriophage

Week 5 HW: Protein Design - Part II

Homework

Part A: SOD1 Binder Peptide Design (From Pranam)

Superoxide dismutase 1 (SOD1) is a cytosolic antioxidant enzyme that converts superoxide radicals into hydrogen peroxide and oxygen. In its native state, it forms a stable homodimer and binds copper and zinc.

Mutations in SOD1 cause familial Amyotrophic Lateral Sclerosis (ALS). Among them, the A4V mutation (Alanine → Valine at residue 4) leads to one of the most aggressive forms of the disease. The mutation subtly destabilizes the N-terminus, perturbs folding energetics, and promotes toxic aggregation.

Your challenge:

1. Design short peptides that bind mutant SOD1.
2. Then decide which ones are worth advancing toward therapy.

You will use three models developed in our lab:

• PepMLM: target sequence-conditioned peptide generation via masked language modeling
• PeptiVerse: therapeutic property prediction
• moPPIt: motif-specific multi-objective peptide design using Multi-Objective Guided Discrete Flow Matching (MOG-DFM)

Part 1: Generate Binders with PepMLM

1. Begin by retrieving the human SOD1 sequence from UniProt (P00441) and introducing the A4V mutation.

Here’s the FASTA file of the human SOD1 sequence (you can also check it out here):

>sp|P00441|SODC_HUMAN Superoxide dismutase [Cu-Zn] OS=Homo sapiens OX=9606 GN=SOD1 PE=1 SV=2 MATKAVCVLKGDGPVQGIINFEQKESNGPVKVWGSIKGLTEGLHGFHVHEFGDNTAGCTS AGPHFNPLSRKHGGPKDEERHVGDLGNVTADKDGVADVSIEDSVISLSGDHCIIGRTLVV HEKADDLGKGGNEESTKTGNAGSRLACGVIGIAQ

Also, here’s a screenshot of the original SOD1 protein!

The A4V mutation would be the following:

>SOD1 A4V mutation MATKVVCVLKGDGPVQGIINFEQKESNGPVKVWGSIKGLTEGLHGFHVHEFGDNTAGCTS AGPHFNPLSRKHGGPKDEERHVGDLGNVTADKDGVADVSIEDSVISLSGDHCIIGRTLVV HEKADDLGKGGNEESTKTGNAGSRLACGVIGIAQ

2. Using the PepMLM Colab linked from the HuggingFace PepMLM-650M model card:

I made my own copy of the PepMLM Colab; you can access it here: Fabrizio_Flores_PepMLM-650M.ipynb!

3. Generate four peptides of length 12 amino acids conditioned on the mutant SOD1 sequence.

Using the PepMLM-650M model, I generated four potential binders of length 12 AA’s. The model’s confidence is reflected in the pseudo-perplexity scores, where lower values suggest a more plausible binding interaction.

Here’s also a screenshot of the binders generated using the PepMLM colab:

4. To your generated list, add the known SOD1-binding peptide FLYRWLPSRRGG for comparison.

Here’s the updated list with the known SOD1-binding peptide:

5. Record the perplexity scores that indicate PepMLM’s confidence in the binders.

Here’s the final list of binders with their respective perplexity scores

My top-ranked candidate after looking at the generated binders is the third binder WLYYAVAVELGE (perplexity score: 10.11) because of its low perplexity score. That indicates high model confidence, so it should generate the best results out of the four binders.

Part 2: Evaluate Binders with AlphaFold3

1. Navigate to the AlphaFold Server: alphafoldserver.com
2. For each peptide, submit the mutant SOD1 sequence followed by the peptide sequence as separate chains to model the protein-peptide complex.

Side note: since AlphaFold doesn’t support the X’s, I decided to use the neutral amino acid Alanine (A)

Peptide N°1: WRYGVAGVRHWX Seed: 1418500094

Peptide N°2: WLYPPAVVEHKE Seed: 1181188013

Peptide N°3: HRYYPTAVRWKX Seed: 826762887

Peptide N°4: WHYGVVGLAHKK Seed: 1427381627

Peptide N°5: FLYRWLPSRRGG Seed: 449653589

3. Record the ipTM score and briefly describe where the peptide appears to bind. Does it localize near the N-terminus where A4V sits? Does it engage the β-barrel region or approach the dimer interface? Does it appear surface-bound or partially buried?

• Peptide N°1: This one binds predominantly near the β-barrel region and partially engages the dimer interface. It appears partially buried within a surface groove, suggesting strong structural complementarity.
• Peptide N°2: This candidate localizes near the N-terminus, specifically approaching the A4V mutation site. However, it remains mostly surface-bound with lower structural confidence.
• Peptide N°3: Similar to the first binder, this peptide anchors itself against the β-barrel, showing a stable orientation that is partially buried against the protein core.
• Peptide N°4: It localizes at the edge of the dimer interface, appearing as a surface-bound “cap” rather than a buried ligand.
• Peptide N°5 (reference): The known binder shows a moderate ipTM, localizing primarily at the dimer interface of the SOD1 mutant.

4. In a short paragraph, describe the ipTM values you observe and whether any PepMLM-generated peptide matches or exceeds the known binder.

The observed ipTM scores are moderate and lower than 0.5, but two of my peptides, mutant_peptide_1 and mutant_peptide_3, significantly exceeded the known reference binder (0.31). This confirms that PepMLM identified novel sequence patterns with better structural affinity for the mutant surface than the reference. While these scores aren’t yet at “drug-level” affinity, they provide a much better starting point for optimization than the current benchmark.

Part 3: Evaluate Properties of Generated Peptides in the PeptiVerse

Structural confidence alone is insufficient for therapeutic development. Using PeptiVerse, let’s evaluate the therapeutic properties of your peptide! For each PepMLM-generated peptide:

1. Paste the peptide sequence.
2. Paste the A4V mutant SOD1 sequence in the target field.
3. Check the boxes
   1. Predicted binding affinity
   2. Solubility
   3. Hemolysis probability
   4. Net charge (pH 7)
   5. Molecular weight

Peptide N°1:

Peptide N°2:

Peptide N°3:

Peptide N°4:

Peptide N°5:

Analysis of the PeptiVerse Results:

Compare these predictions to what you observed structurally with AlphaFold3. In a short paragraph, describe what you see. Do peptides with higher ipTM also show stronger predicted affinity? Are any strong binders predicted to be hemolytic or poorly soluble? Which peptide best balances predicted binding and therapeutic properties?

Comparing AlphaFold3’s structural confidence with PeptiVerse predictions shows that structural docking alone isn’t enough for drug design. My first and third PepMLM binders, WRYGVAGVRHWX and HRYYPTAVRWKX, both exceeded the known reference binder in ipTM score (0.42 and 0.41 vs. 0.31). Crucially, PeptiVerse shows these new designs are less hemolytic than the reference (0.018 vs. 0.047), which is a significant safety improvement.

Choose one peptide you would advance and justify your decision briefly.

I would choose to advance with my third peptide (HRYYPTAVRWKX) for therapeutic development because it strikes the best balance between structural fit and safety. It has the lowest chance of hemolysis (0.018) and is expected to be completely soluble (1.000). Its low pseudo-perplexity (10.11) also reflects high model confidence. Aditionally, the positive net charge (+2.84) should favor its interaction with the mutant SOD1 surface in the cytosolic environment.

Part 4: Generate Optimized Peptides with moPPIt

Now, move from sampling to controlled design. moPPIt uses Multi-Objective Guided Discrete Flow Matching (MOG-DFM) to steer peptide generation toward specific residues and optimize binding and therapeutic properties simultaneously. Unlike PepMLM, which samples plausible binders conditioned on just the target sequence, moPPIt lets you choose where you want to bind and optimize multiple objectives at once.

1. Open the moPPit Colab linked from the HuggingFace moPPIt model card
2. Make a copy and switch to a GPU runtime.

You can access my Colab moPPit copy here: Fabrizio_Flores_moPPIt-v3

3. In the notebook:

   1. Paste your A4V mutant SOD1 sequence.
   2. Choose specific residue indices on SOD1 that you want your peptide to bind (for example, residues near position 4, the dimer interface, or another surface patch).

   I selected residues 84-90 and 94-102 from two adjacent β-strands (ending at Asp84 and Asp102) to define a broad binding pocket on the β-barrel surface.

   3. Set peptide length to 12 amino acids.
   4. Enable motif and affinity guidance (and solubility/hemolysis guidance if available). Generate peptides.

4. After generation, briefly describe how these moPPit peptides differ from your PepMLM peptides. How would you evaluate these peptides before advancing them to clinical studies?

These are the binders moPPit generated:

1. RVRTYKRTQKEM
2. KCYSLKLKKKYY
3. YEYYKKKTCQKH

Using these parameters:

Additionally, I wanted to see how AlphaFold3 evaluated the new optimized binders, so here are the results:

Optimized Peptide N°1:

Optimized Peptide N°2:

Optimized Peptide N°3:

The third moPPIt-generated peptide is quite interesting since it achieved an ipTM score of 0.45 after evaluating it using AlphaFold3. This means that by “sculpting” a sequence specifically complemented to the Asp84-Asp102 motif, moPPIt created a high-affinity “molecular staple” that reinforces the SOD1 β-barrel core. This targeted motif approach balances affinity, solubility, and specificity and aims to prevent the structural collapse and toxic aggregation triggered by the A4V mutation, providing a precise lead candidate for clinical development.

Part B: BRD4 Drug Discovery Platform Tutorial (Gabriele)

(View Full Screen)

Skipping this one

Part C: Final Project: L-Protein Mutants

High level summary: The objective of this assignment is to improve the stability and auto-folding of the lysis protein of a MS2-phage. This mechanism is key to the understanding of how phages can potentially solve antibiotic-resistance.

This homework requires computation that might take you a while to run, so please get started early.

(View Full Screen)

L-Protein Engineering - Option 1: Mutagenesis

Step 1: Information Gathering

Here are the L-protein and Dnaj sequences

Lysis Protein Sequence (UniProtKB ID: P03609) METRFPQQSQQTPASTNRRRPFKHEDYPCRRQQRSSTLYVLIFLAIFLSKFTNQLLLSLLEAVIRTVTTLQQLLT

DnaJ sequence (UniProtKB ID: P03609) MAKQDYYEILGVSKTAEEREIRKAYKRLAMKYHPDRNQGDKEAEAKFKEIKEAYEVLTDSQKRAAYDQYGHAAFEQGGMGGGGFGGGADFSDIFGDVFGDIFGGGRGRQRAARGADLRYNMELTLEEAVRGVTKEIRIPTLEECDVCHGSGAKPGTQPQTCPTCHGSGQVQMRQGFFAVQQTCPHCQGRGTLIKDPCNKCHGHGRVERSKTLSVKIPAGVDTGDRIRLAGEGEAGEHGAPAGDLYVQVQVKQHPIFEREGNNLYCEVPINFAMAALGGEIEVPTLDGRVKLKVPGETQTGKLFRMRGKGVKSVRGGAQGDLLCRVVVETPVGLNERQKQLLQELQESFGGPTGEHNSPRSKSFFDGVKKFFDDLTR

Note: Lysis protein contains a soluble N-terminal domain followed by a transmembrane protein (blue/last 35 residues). Transmembrane protein affects the lysis activity. The soluble domain (green) is the domain responsible for interaction with DnaJ. Soluble N-terminal domain: METRFPQQSQQTPASTNRRRPFKHEDYPCRRQQRSSTLYV TM domain: LIFLAIFLSKFTNQLLLSLLEAVIRTVTTLQQLLT

Additionally, here’s a screenshot of the BLAST results for L-protein:

Lastly, these results were aligned using Clustal Omega, revealing a highly conserved “island” (HEDYPCRRQQRSST) at residues 24-38. These sites will be avoided during mutagenesis to preserve the critical interaction with DnaJ and overall biological function of the phage.

Clustal Job ID: clustalo-I20260311-043120-0780-2033785-p2m

Step 2: Variant Selection Approach

My approach is very straightforward: I combined computational LLR scores with experimental lab data using a copy of the HTGAA Colab. I filtered for mutations that showed “active lysis” (value 1) in the experimental spreadsheet and high positive LLR scores in the notebook.

Step 3: Filtering and Ranking

I used AlphaFold 3 to model the 8-chain assembly. This step was used to rank candidates that showed both positive computational scores and confirmed experimental activity, ensuring they don’t disrupt the pore’s symmetry.

Step 4: Final Mutated Sequences

These 5 mutations were selected because they are experimentally proven to maintain lysis (score 1) and show improved or stable computational scores.

S9Q mutation 8-chain assembly:

C29R mutation 8-chain assembly:

Y39L mutation 8-chain assembly:

A45L mutation 8-chain assembly:

N53L mutation 8-chain assembly:

While AF3 structures were used to visualize the multimeric orientation, the ipTM scores remained low (~0.17) across all mutations. This is expected given the small, intrinsically disordered nature of the L-protein and the high flexibility required for its lytic function, which challenges standard multimeric confidence metrics.

Week 6 HW: Genetic Circuits Part I

Homework

Assignment: DNA Assembly

Answer these questions about the protocol in this week’s lab:

1. What are some components in the Phusion High-Fidelity PCR Master Mix and what is their purpose?

Some components in the Phusion High-Fideñity PCR Master Mix include the Phusion DNA Polymerase, which is the enzyme that actually builds the new DNA strands with high accuracy. It also contains dNTPs, which are the building blocks (A, T, C, and G) used to synthesize the DNA. There are also buffer salts and magnesium ions (Mg^2+) that provide the right chemical environment for the enzyme to stay stable and work efficiently.

2. What are some factors that determine primer annealing temperature during PCR?

The biggest factor is the melting temperature (T_m) of the primers, which is mostly determined by their length and GC content since G-C pairs have stronger bonds than A-T pairs. The concentration of salts in the PCR buffer and the concentration of the primers themselves also play a huge role. Usually the annealing temperature is set about 2 to 5°C below the lower T_m of the primer pair to make sure they bind specifically to the template.

3. There are two methods from this class that create linear fragments of DNA: PCR, and restriction enzyme digests. Compare and contrast these two methods, both in terms of protocol as well as when one may be preferable to use over the other.

For instance, PCR uses a thermocycler and specific primers to synthesize millions of new copies of a specific DNA segment which is great for adding mutations or overhangs for assembly. While restriction digests use enzymes to cut existing DNA at specific recognition sites, which is a much simpler “cut and paste” protocol.

PCR is preferable when you need to create a lot of DNA from a tiny sample or when you need to change the sequence (like our color mutations). Digests are better when you already have the DNA and just need to move a large, pre-existing block without the risk of mutation errors from a polymerase.

4. How can you ensure that the DNA sequences that you have digested and PCR-ed will be appropriate for Gibson cloning?

I’d have to verify that the ends of my DNA fragments have overlapping sequences of about 20 to 40 base pairs that are identical to the fragment they are being joined to. In the lab protocol, it is verified by designing primers with 5’ overhangs that match the other fragment. I’d also need to check the concentration via Nanodrop to ensure I have enough DNA and run a diagnostic gel to confirm the fragments are the correct size before mixing them.

5. How does the plasmid DNA enter the E. coli cells during transformation?

The DNA enters through temporary pores created in the bacterial cell wall. In heat shock we use an abrupt temperature change to stress the membrane and open these pores, while in electroporation we use a high-voltage pulse to achieve the same thing. Once the pores are open, the plasmid moves into the cell by simple diffusion, and then we give the cells SOC media so they can recover and close those pores back up.

6. Describe another assembly method in detail (such as Golden Gate Assembly)
   1. Explain the other method in 5 - 7 sentences plus diagrams (either handmade or online).

Golden Gate Assembly is a really cool method that uses Type IIS restriction enzymes and T4 DNA ligase to assemble multiple fragments in a single reaction. Unlike standard enzymes, these cut outside of their recognition sites, which allows for “scarless” assembly because the recognition sequences are removed during the process. You design the fragments so that they create unique 4-base pair overhangs that guide the pieces together in the correct order. This is super efficient for building complex circuits because you can put many fragments together at once in one tube. It relies on a cycle of different temperatures to keep the cutting and pasting going until the final circular plasmid is formed.

Here’s a diagram of the first step of Golden Gate Assembly from Snapgene

2. Model this assembly method with Benchling or Asimov Kernel!

Assignment: Asimov Kernel

1. Create a Repository for your work

I created my repository under the name HTGAA 2026 - Fabrizio Flores in Asimov Kernel!

2. Create a blank Notebook entry to document the homework and save it to that Repository

I created a blank notebook entry!

3. Explore the devices in the Bacterial Demos Repo to understand how the parts work together by running the Simulator on various examples, following the instructions for the simulator found in the “Info” panel (click the “i” icon on the right to open the Info panel)

Bacterial Demos repo Exploration

After finding the Bacterial Demos Repo on Asimov Kernel, I started looking at all the constructs, starting with the Repressilator one! There are 3 promoters with different properties, biological logic gates and more complex circuits like the self-regulating one or the Multiplexer.

Repressilator demo

Comparing promoters demo

J23117 promoter demo

Multiplexer demo

4. Create a blank Construct and save it to your Repository
   1. Recreate the Repressilator in that empty Construct by using parts from the Characterized Bacterial Parts repository
   2. Search the parts using the Search function in the right menu
   3. Drag and drop the parts into the Construct
   4. Confirm it works as expected by running the Simulator (“play” button) and compare your results with the Repressilator Construct found in the Bacterial Demos repository
   5. Document all of this work in your Notebook entry - you can copy the glyph image and the simulator graphs, and paste them into your Notebook

Repressilator recreation

So first, I created an empty Construct to start my Repressilator recreation!

Then I searched the Repressilator parts one by one and started adding them up on my empty Construct.

Here you can see the construct, the linear map and the circular map better!

After the Represillator construction, I ran the simulation and got these results:

And here are the results from the Repressilator Construct found in the Bacterial Demos repository:

At first, my results seemed not to match the ones I got from the Represillator from the Bacterial Demos repository since my RNA and protein concentrations over time weren’t oscillating. That made me think that maybe I had made a mistake in my reconstruction, so I started to compare the constructs and realized that I had used pTet instead of pTetR at the start (my bad haha.)

So I changed that promoter and now the construct looks like this:

And here you can see the construct more detailed in its circular map and linear map forms:

And after running the simulation again, my results finally matched the one from the Bacterial Demo repo:

All of the process is documented in my Notebook entry on Asimov Kernel

5. Build three of your own Constructs using the parts in the Characterized Bacterials Parts Repo
   1. Explain in the Notebook Entry how you think each of the Constructs should function
   2. Run the simulator and share your results in the Notebook Entry
   3. If the results don’t match your expectations, speculate on why and see if you can adjust the simulator settings to get the expected outcome

My Constructs

Construct 1

So for my first construct I tried making an inverter (NOT logic gate) where the first operon acts as a “sensor,” driving the expression of the LacI repressor under the pTetR promoter, while the second operon serves as the “output,” where the reporter gene is controlled by the LacI-sensitive promoter pLacI.

To test it, I ran two simulations using these parameters:

Simulation 1 parameters: Chassis: E. coli Duration: 24 hours Timestep: 30 minutes Transfection: Transient transfection

Simulation 2 parameters: Chassis: E. coli Duration: 24 hours Timestep: 30 minutes Transfection: Transient transfection Ligands: add aTc at time 12 Hours

The inverter successfully maintained a “LOW” output state, but the induction failed to flip the switch. Even after adding aTc at the 12-hour mark, the reporter concentration didn’t show a significant increase.

The reason for this result is a missing link in the induction machinery. Here, PTetR behaves as a constitutive promoter unless the TetR protein is already present in the chassis. Since my construct doesn’t include a gene to produce TetR, the aTc ligand has no target to bind to. Consequently, pTetR remains at maximum power, keeping LacI levels high enough to permanently suppress the output.

To improve the circuit and achieve a successful induction, I would need to add a third constitutive operon expressing the TetR protein.

Construct 2

For my second construct, I wanted to demonstrate transcriptional homeostasis by building a negative feedback loop. In this design, I used the pTac promoter to drive the expression of its own repressor, LacI, followed by a strong terminator. Here are the construct and results:

To test it, I ran two simulations using these parameters:

Simulation 1 parameters: Chassis: E. coli Duration: 24 hours Timestep: 30 minutes Transfection: Transient transfection

Simulation 2 parameters: Chassis: E. coli Duration: 24 hours Timestep: 30 minutes Transfection: Transient transfection Ligands: add aTc at time 12 Hours

My expectation was to see a rapid initial burst of protein production that quickly plateaus into a very stable steady state, preventing the expression from overshooting. The simulation results matched this perfectly, showing a clean line after the first two hours, which confirms the circuit’s ability to maintain a consistent equilibrium state.

Construct 3

For my third construct, I decided to build a Double Inverter (Signal Cascade) to demonstrate how signal transduction works between different regulatory layers. I designed a first operon where the pBad promoter (activated by L-arabinose) drives the expression of the TetR repressor. This is followed by a second operon where the pTetR promoter controls the expression of the PhlF reporter protein.

To test it, I ran two simulations using these parameters:

Simulation 1 parameters: Chassis: E. coli Duration: 24 hours Timestep: 30 minutes Transfection: Transient transfection

Simulation 2 parameters: Chassis: E. coli Duration: 24 hours Timestep: 30 minutes Transfection: Transient transfection Ligands: add L-arabinoseat at time 6Hours

Simulation 3 parameters: Chassis: E. coli Duration: 24 hours Timestep: 30 minutes Transfection: Transient transfection Ligands: add L-arabinoseat at time 12 Hours

The simulation results under 6h and 12h induction showed exactly what I expected: as soon as L-arabinose triggers the spike in TetR, there’s a corresponding sharp drop in PhlF. I noticed a slight ’lag’ or delay between the two curves, which is a classic characteristic of biological cascades, as the second repressor needs time to accumulate and saturate the downstream promoter. To decrease this response time, I would suggest using a stronger RBS for the TetR gene to reach the inhibitory threshold faster.

Week 7 HW: Genetic Circuits Part II

This week covers neuromorphic genetic circuits, showing how engineered gene networks can implement neural-network “perceptron”-like computation and learning.

Homework

Assignment Part 1: Intracellular Artificial Neural Networks (IANNs)

1. What advantages do IANNs have over traditional genetic circuits, whose input/output behaviors are Boolean functions?

Traditional Boolean circuits are limited because they only understand “on” or “off” (0 or 1), which doesn’t reflect the noisy and analog reality of a cell. IANNs allow for weighted inputs and non-linear integration, meaning the cell can make decisions based on the concentration of signals rather than just their presence. This allows for complex pattern recognition, like identifying a specific metabolic state or a signature of multiple biomarkers, making the decision-making process much more robust and “intelligent” than a simple AND/OR gate.

2. Describe a useful application for an IANN; include a detailed description of input/output behavior, as well as any limitations an IANN might face to achieve your goal.

A great application would be a Smart Cancer Detector. The inputs (X_1, X_2, … X_n) would be the concentrations of different microRNAs or proteins that are slightly elevated in cancer cells but also present in healthy ones. An IANN could “weight” these signals so that only a specific combination above a certain threshold triggers the output ($Y$), which could be a pro-apoptotic protein to kill the cell.

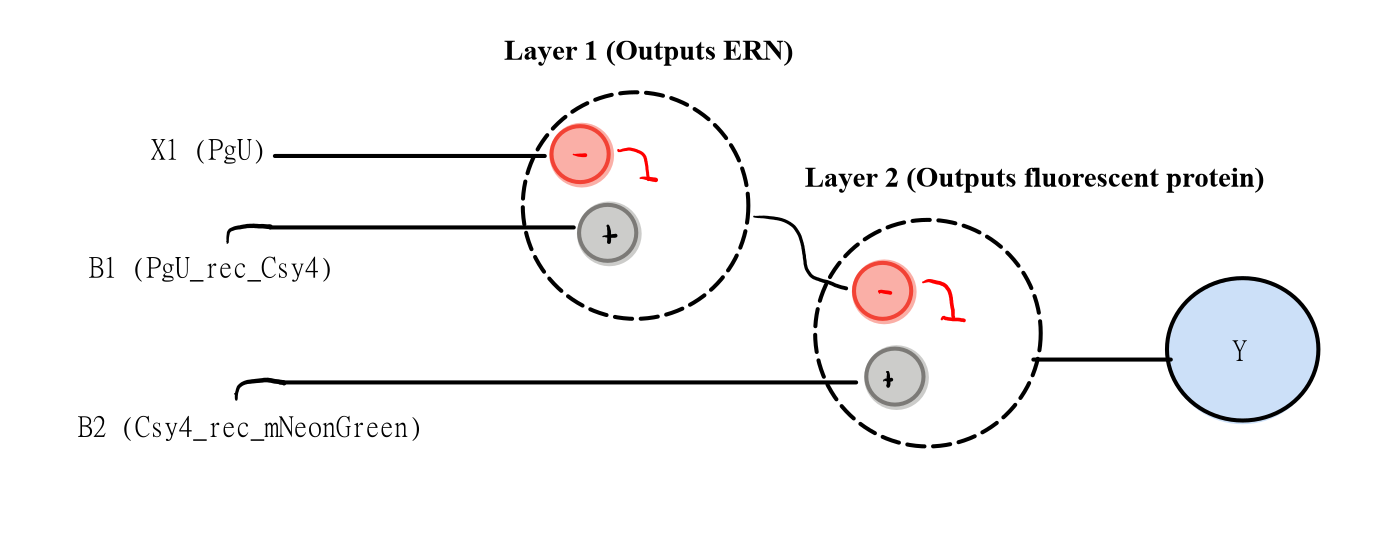

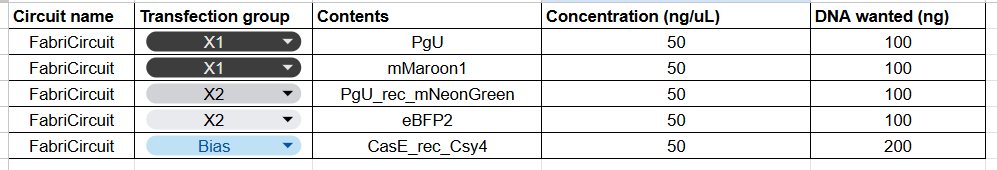

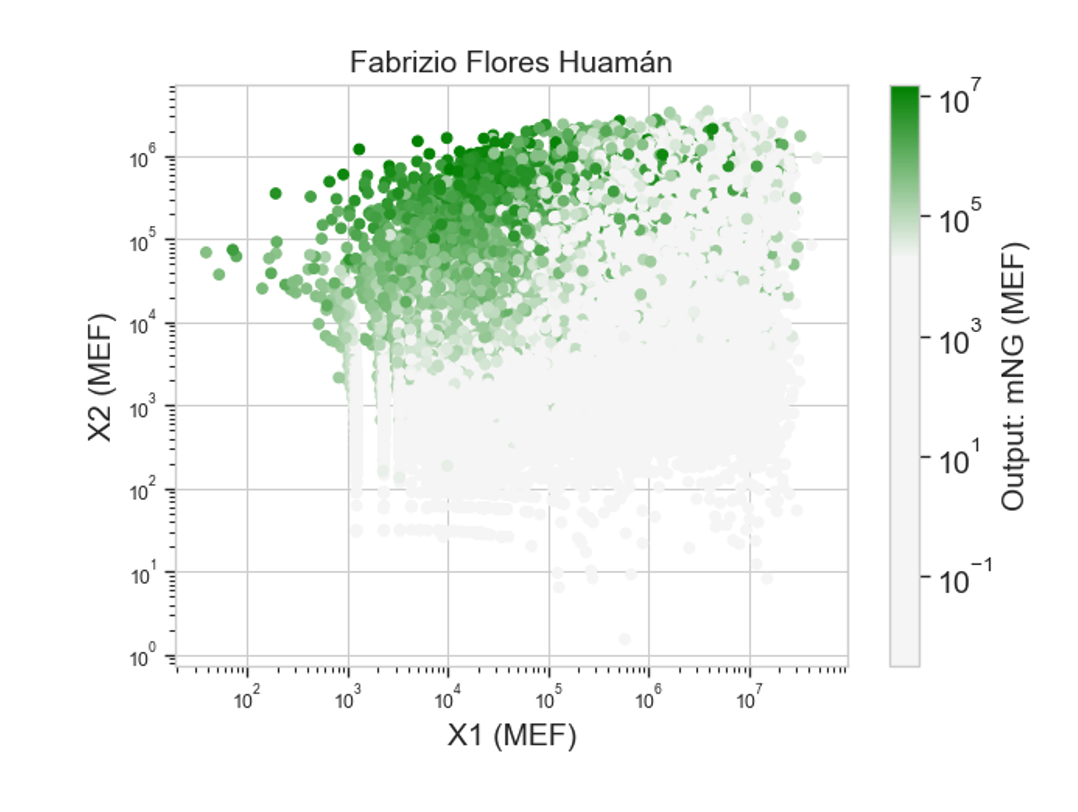

3. Below is a diagram depicting an intracellular single-layer perceptron where the X1 input is DNA encoding for the Csy4 endoribonuclease and the X2 input is DNA encoding for a fluorescent protein output whose mRNA is regulated by Csy4. Tx: transcription; Tl: translation. Draw a diagram for an intracellular multilayer perceptron where layer 1 outputs an endoribonuclease that regulates a fluorescent protein output in layer 2.

Assignment Part 2: Fungal Materials

1. What are some examples of existing fungal materials and what are they used for? What are their advantages and disadvantages over traditional counterparts?

Some of the most well-known fungal materials are mycelium-based packaging, fungal leather like Mylo, and structural bricks used in bio-construction. The main advantage is that they are completely biodegradable and carbon-negative since they grow from agricultural waste, which fits perfectly into a circular economy model. However, they still face disadvantages compared to traditional materials because their mechanical strength is lower than concrete or plastic and their properties vary a lot depending on the substrate used, making industrial standardization quite difficult.

2. What might you want to genetically engineer fungi to do and why? What are the advantages of doing synthetic biology in fungi as opposed to bacteria?

In my case, I would use genetic engineering to make fungi secrete specific enzymes or cross-linking proteins like tyrosinases directly into the mycelium mat, allowing the material to gain stiffness and water resistance automatically as it grows. The advantage of using fungi instead of bacteria is that being eukaryotes, they can perform complex post-translational modifications on proteins. Also, their filamentous growth through hyphae allows them to bridge physical gaps and create 3D structures with inherent mechanical integrity, which is something bacteria cannot achieve since they mostly form biofilms without such an organized physical structure.

Assignment Part 3: First DNA Twist Order

0. Review the Individual Final Project documentation guidelines. Done
1. Submit this Google Form with your draft Aim 1, final project summary, HTGAA industry council selections, and shared folder for DNA designs. DUE MARCH 20 FOR MIT/HARVARD/WELLESLEY STUDENTS Submitted
2. Review Part 3: DNA Design Challenge of the week 2 homework. Design at least 1 insert sequence and place it into the Benchling/Kernel/Other folder you shared in the Google Form above. Document the backbone vector it will be synthesized in on your website.

Week 9 HW: Cell-Free Systems

This week introduces synthesis of proteins using cellular machinery outside of a cell.

Homework

Homework Part A: General and Lecturer-Specific Questions

General homework questions

1. Explain the main advantages of cell-free protein synthesis over traditional in vivo methods, specifically in terms of flexibility and control over experimental variables. Name at least two cases where cell-free expression is more beneficial than cell production.

The biggest advantage of cell-free systems is that they offer an open environment where you have total control over experimental variables like pH and salt concentrations without a cell membrane getting in the way. This flexibility is especially beneficial when producing antimicrobial peptides or lysis proteins that would normally kill a living host, as well as for high-throughput screening of genetic circuits where you need to test many DNA variants in hours rather than waiting days for cultures to grow.

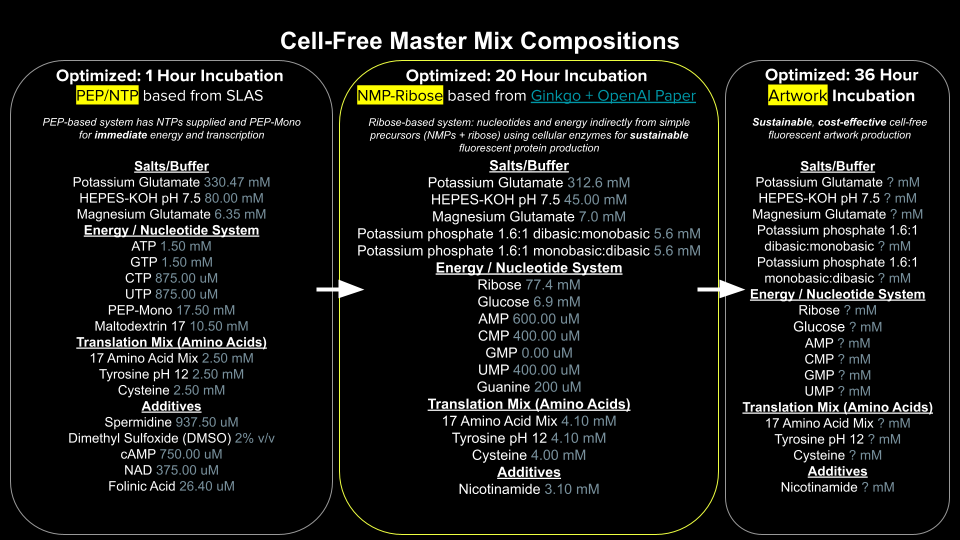

2. Describe the main components of a cell-free expression system and explain the role of each component.

A standard system essentially needs three main parts to function properly. The cell extract acts as the hardware, providing ribosomes and tRNAs, while the Energy Mix serves as the fuel by providing ATP and secondary sources like PEP. Finally, the DNA template works as the software instructions that contain the specific gene sequence you want to express in the tube.

3. Why is energy provision regeneration critical in cell-free systems? Describe a method you could use to ensure continuous ATP supply in your cell-free experiment.

Energy regeneration is absolutely critical in cell-free systems because once the initial ATP is used up, the synthesis stops since there is no active metabolism to recharge it like in a living cell. To ensure a continuous ATP supply during your experiment, you can use an enzymatic system such as creatine phosphate and creatine kinase to constantly convert ADP back into ATP while the reaction is running.

4. Compare prokaryotic versus eukaryotic cell-free expression systems. Choose a protein to produce in each system and explain why.

Prokaryotic systems are generally fast and high-yield but struggle with complex folding, whereas eukaryotic systems are slower but capable of post-translational modifications. For a prokaryotic setup, I would produce GFP because it gives a fast and simple fluorescence readout, but for a eukaryotic system, I would choose human insulin because it requires specific disulfide bonds that bacteria usually get wrong.

5. How would you design a cell-free experiment to optimize the expression of a membrane protein? Discuss the challenges and how you would address them in your setup.

Designing a cell-free experiment for membrane proteins is a challenge because these proteins are hydrophobic and tend to clump up in a liquid environment. To address this in my setup, I would add nanodiscs or liposomes to the reaction to provide a synthetic lipid bilayer where the protein can fold correctly as it is being synthesized, effectively mimicking its natural cellular environment.

6. Imagine you observe a low yield of your target protein in a cell-free system. Describe three possible reasons for this and suggest a troubleshooting strategy for each.

If I observe a low yield, it could usually due to three main issues that require a specific troubleshooting strategy. First, if the DNA template is degraded or salty I should re-purify it and check its integrity on a gel. Second, if the Magnesium (Mg^2+) levels are off for my specific extract I should run a titration assay to find the optimal concentration. Finally, to prevent RNase contamination from destroying my mRNA I should always add RNase inhibitors and use strictly nuclease-free reagents.

Homework question from Kate Adamala

Design an example of a useful synthetic minimal cell as follows:

1. Pick a function and describe it.

   1. What would your synthetic cell do? What is the input and what is the output?

   My synthetic cell would act as a specific biosensor for mercury (Hg²⁺) in water. The input is the mercury ions present in the environment, and the output is the release of a small signaling molecule called AI-2 (Autoinducer-2). This AI-2 then acts as a signal for a secondary population of natural bacteria to trigger a visible response.

   2. Could this function be realized by cell-free Tx/Tl alone, without encapsulation?

   Not effectively. Without encapsulation, the AI-2 signal would be released immediately into the medium regardless of the mercury’s presence. The vesicle acts as a “logic gate” that keeps the signal locked inside until the mercury triggers the production of a membrane pore to release it.

   3. Could this function be realized by genetically modified natural cell?

   Yes, I could engineer a bacterium to do this, but natural cells often have cross-talk with other metals or metabolic burdens that affect the sensor. Using an SMC allows us to create a “clean” sensor that doesn’t die from the mercury toxicity and only responds to that specific input.

   4. Describe the desired outcome of your synthetic cell operation.

   When placed in a contaminated water sample, the SMCs detect mercury and release AI-2. This signal then turns a reporter colony of E. coli bright blue, providing a clear visual warning of the contamination

2. Design all components that would need to be part of your synthetic cell.

   1. What would be the membrane made of?

   I would use a mix of POPC (1-palmitoyl-2-oleoyl-glycero-3-phosphocholine) and cholesterol to ensure a stable, fluid membrane that mimics a natural cell but stays durable for field testing.

   2. What would you encapsulate inside? Enzymes, small molecules.

   I would encapsulate a bacterial cell-free Tx/Tl system (like PURE), a high concentration of the signaling molecule AI-2, and the DNA plasmid containing the mercury-responsive circuit.

   3. Which organism your Tx/Tl system will come from? Is bacterial OK, or do you need a mammalian system for some reason? (hint: for example, if you want to use small molecule modulated promotors, like Tet-ON, you need mammalian)

   A bacterial system is perfect here because the mercury resistance operon (mer operon) is native to bacteria and works very efficiently with bacterial ribosomes and polymerases.

   4. How will your synthetic cell communicate with the environment? (hint: are substrates permeable? or do you need to express the membrane channel?)

   The mercury ions are small enough to diffuse through the lipid bilayer or through small constitutive pores. Once inside, they trigger the expression of a larger membrane channel that finally lets the encapsulated AI-2 escape into the surrounding environment.

3. Experimental details

   1. List all lipids and genes. (bonus: find the specific genes; for example, instead of just saying “small molecule membrane channel” pick the actual gene.)
   • Lipids: POPC and cholesterol.
   • Enzymes: PURExpress (bacterial reconstituted Tx/Tl).
   • Genes: I would use the merR regulatory gene and the merRo/p promoter to control the expression of alpha-hemolysin (hlyA) from Staphylococcus aureus, which will form the output pores.
   • Biological cells: Reporter E. coli strain LSB001 which is engineered to respond to AI-2 by producing chromogenic proteins.
   2. How will you measure the function of your system?

   I would measure the blue color intensity of the reporter bacteria using a standard plate reader or even just a smartphone camera for a qualitative field test. For more precision during development, I could co-encapsulate a fluorescent dye like calcein to track the exact rate of pore formation and signal release via microscopy.

Example solution

Based on: Lentini, R. et al., 2014. Nat comm, 5, p.4012.

1. Pick a function and describe it.
   1. What would your synthetic cell do? What is the input and what is the output?
      Expand the sensing capacity of bacteria. Input: theophylline (inert to bacteria). Output of the SMC: IPTG. Output of the whole system: GFP produced in bacteria. (Theophyline aptamer reference: *Martini, L. & Mansy, S.S., 2011. Cell-like systems with riboswitch controlled gene expression. Chemical Communications, 47(38), p.10734.*)
   2. Could this function be realized by cell-free Tx/Tl alone, without encapsulation?
      No. If the IPTG were not encapsulated, it would go into the bacteria without the need of theophylline-induced membrane channel synthesis, thus the synthetic cell actuator would not exist.
   3. Could this function be realized by genetically modified natural cell?
      Yes, in this particular case: the theophylline aptamer could be incorporated into a transformed gene. This lacks generality though – it is easier to make SMC than modify bacteria, so in this system a single bacteria reporter can be used to detect various small molecules.
   4. Describe the desired outcome of your synthetic cell operation.
      In the presence of SMC, bacteria sense theophylline.
2. Design all components that would need to be part of your synthetic cell.
   1. What would be the membrane made of?
      Phospholipids + cholesterol.
   2. What would you encapsulate inside? Enzymes, small molecules.
      cell-free Tx/Tl system, IPTG, gene for membrane transporter under the control of theophylline aptamer.
   3. Which organism your Tx/Tl system will come from? Is bacterial OK, or do you need a mammalian system for some reason? (hint: for example, if you want to use small molecule modulated promotors, like Tet-ON, you need mammalian)
      Bacterial, because of the theophylline riboswitch used as SMC input.
   4. How will your synthetic cell communicate with the environment? (hint: are substrates permeable? or do you need to express the membrane channel?)
      The membrane is permeable to the input molecule (theophylline), the output is IPTG that will cross the membrane via the membrane pore created after theophyline-initiated gene expression.
3. Experimental details
   1. List all lipids and genes. (bonus: find the specific genes; for example, instead of just saying “small molecule membrane channel” pick the actual gene.)

      • Lipids: POPC, cholesterol
      • Enzymes: bacterial cell-free Tx/Tl
      • Genes: a-hemolysin (aHL) to encapsulate in SMC
      • Biological cells: *E.coli* transformed with GFP under T7 promoter and a lac operator
   2. How will you measure the function of your system?
      Measure GFP output of the cells via flow cytometry. Alternatively, use enzymatic reporter, like luciferase, and measure bulk output of the enzyme.

Homework question from Peter Nguyen

Freeze-dried cell-free systems can be incorporated into all kinds of materials as biological sensors or as inducible enzymes to modify the material itself or the surrounding environment. Choose one application field — Architecture, Textiles/Fashion, or Robotics — and propose an application using cell-free systems that are functionally integrated into the material. Answer each of these key questions for your proposal pitch:

• Write a one-sentence summary pitch sentence describing your concept.

My concept is a smart textile integrated with freeze-dried cell-free sensors that changes color and activates neutralizing enzymes when it detects toxic air pollutants in urban environments.

• How will the idea work, in more detail? Write 3-4 sentences or more.

The fabric is manufactured by embedding freeze-dried cell-free extracts into the fibers using a specialized coating or encapsulation method. When the wearer enters an area with high concentrations of a specific pollutant, the chemical acts as an inducer that triggers the cell-free genetic circuit. This reaction produces both a chromoprotein for a visible color change and a functional enzyme that actively breaks down the toxin on the surface of the fabric. By using a paper-like matrix within the textile, the biological machinery stays localized and ready to react the moment it comes into contact with the air.

• What societal challenge or market need will this address?

This addresses the growing global crisis of air pollution and its impact on public health, especially in hyper-urbanized cities. It provides citizens with a wearable, real-time diagnostic tool that not only alerts them to invisible dangers but also offers a first line of active protection by degrading harmful chemicals around them.

• How do you envision addressing the limitation of cell-free reactions (e.g., activation with water, stability, one-time use)?

To handle the one-time use limitation, the textile could be designed with replaceable “bio-cartridges” or patches that are swapped out after an activation event occurs. We can address the water requirement by using the natural humidity in the air or the wearer’s perspiration to provide the initial hydration needed to restart the freeze-dried machinery. For stability, the cell-free components would be encapsulated in protective polymers to prevent degradation from UV light or temperature swings before the sensor is actually triggered.

Homework question from Ally Huang

Freeze-dried cell-free reactions have great potential in space, where resources are constrained. As described in my talk, the Genes in Space competition challenges students to consider how biotechnology, including cell-free reactions, can be used to solve biological problems encountered in space. While the competition is limited to only high school students, your assignment will be to develop your own mock Genes in Space proposal to practice thinking about biotech applications in space!

For this particular assignment, your proposal is required to incorporate the BioBits® cell-free protein expression system, but you may also use the other tools in the Genes in Space toolkit (the miniPCR® thermal cycler and the P51 Molecular Fluorescence Viewer). For more inspiration, check out https://www.genesinspace.org/ .

1. Provide background information that describes the space biology question or challenge you propose to address. Explain why this topic is significant for humanity, relevant for space exploration, and scientifically interesting. (Maximum 100 words)

Astronauts on long-duration missions face severe nutritional deficiencies because vitamins degrade quickly in space radiation. Vitamin B12 is crucial for neurological health and red blood cell production, yet we currently lack a way to test its levels without sending samples back to Earth. Solving this is vital for deep-space exploration, as it ensures crew health during missions to Mars where resupply is impossible. This is scientifically interesting because it explores how to maintain human homeostasis in an extreme environment using portable synthetic biology tools.

2. Name the molecular or genetic target that you propose to study. Examples of molecular targets include individual genes and proteins, DNA and RNA sequences, or broader -omics approaches. (Maximum 30 words)

My target is a B12-responsive riboswitch DNA sequence that regulates the expression of a fluorescent protein within the BioBits® cell-free system.

3. Describe how your molecular or genetic target relates to the space biology question or challenge your proposal addresses. (Maximum 100 words)

The molecular target acts as a biological sensor that detects the presence of active Vitamin B12 molecules. In space, maintaining specific nutrient levels is a constant battle against radiation-induced degradation and physiological changes. By integrating a B12-sensing riboswitch into a cell-free reaction, we can turn a complex nutritional assay into a simple visual test. This allows the crew to monitor their own health and the stability of their food supplies in real-time using minimal equipment, which is essential for surviving the constraints of microgravity.

4. Clearly state your hypothesis or research goal and explain the reasoning behind it. (Maximum 150 words)

My goal is to demonstrate that a BioBits® cell-free system can accurately quantify Vitamin B12 concentrations in a microgravity environment using fluorescence as a readout. I hypothesize that the B12-responsive riboswitch will remain functional in space and will effectively block or allow the translation of a fluorescent reporter in direct proportion to the vitamin levels present in the sample. The reasoning is that cell-free systems are highly stable when freeze-dried and avoid the complications of maintaining living cultures in orbit. If successful, this provides a low-cost, shelf-stable diagnostic platform that can be adapted to detect many different essential nutrients or even environmental toxins on the International Space Station.

5. Outline your experimental plan - identify the sample(s) you will test in your experiment, including any necessary controls, the type of data or measurements that will be collected, etc. (Maximum 100 words)

I will need to test astronaut serum samples or rehydrated food extracts mixed with the BioBits® B12-sensor pellets. I will incubate the samples in the miniPCR® thermal cycler at 37°C to activate the cell-free reaction. I plan to use three controls: a positive control with a known B12 concentration, a negative control with nuclease-free water, and a non-responsive fluorescent DNA template. I will collect data by observing the reaction tubes in the P51 Molecular Fluorescence Viewer to measure light intensity, which correlates to the B12 concentration in the tested samples.

Homework Part B: Individual Final Project

Documentation on my final project page.

We’d like students to start exploring their final project in depth this week! Of your three Aims, for this week you should have at least Aim 1 decided and written down.

1. Put your chosen final project slide in the appropriate slide deck following the instructions on slide 1:
   • MIT/Harvard/Wellesley ONE FINAL PROJECT IDEA
   • Committed Listener ONE FINAL PROJECT IDEA
2. Submit this Final Project selection form if you have not already.
3. Begin planning how you will write your final project documentation based on these guidelines
4. Prepare your first DNA order and put it in the “Twist (MIT)” or “Twist (Nodes)” tab of the 2026 HTGAA Ordering: DNA, Reagents, Consumables spreadsheet, as appropriate.
   • First Twist order deadline for MIT/Harvard/Wellesley students is Friday, April 3 at 11PM ET
   • First Twist order deadline for Committed Listeners is Friday, April 10 at 11PM ET. (Your Node Lead will place the Twist order, so please work with them to finalize your constructs and ordering decisions.)

Week 10 HW: Imaging and Measurement

Homework

Homework is partly based on data that will be generated in the Waters Immerse Lab in Cambridge, MA. Students will characterize green fluorescent protein (eGFP, a recombinant protein standard) structure (primary, secondary/tertiary) in the lab using liquid chromatography and mass spectrometry, as well as Keyhole Limpet Hemocyanin (KLH) oligomeric states using charge detection mass spectrometry (CDMS). Data generated in the lab needed to do the homework is included both within this document and in the Appendix of the laboratory protocol.

Homework: Final Project

For your final project:

• Please identify at least one (ideally many) aspect(s) of your project that you will measure. It could be the mass or sequence of a protein, the presence, absence, or quantity of a biomarker, etc.
• Please describe all of the elements you would like to measure, and furthermore describe how you will perform these measurements.
• What are the technologies you will use (e.g., gel electrophoresis, DNA sequencing, mass spectrometry, etc.)? Describe in detail.

Homework: Waters Part I — Molecular Weight

We will analyze an eGFP standard on a Waters Xevo G3 QTof MS system to determine the molecular weight of intact eGFP and observe its charge state distribution in the native and denatured (unfolded) states. The conditions for LC-MS analysis of intact protein cause it to unfold and be detected in its denatured form (due to the solvents and pH used for analysis).

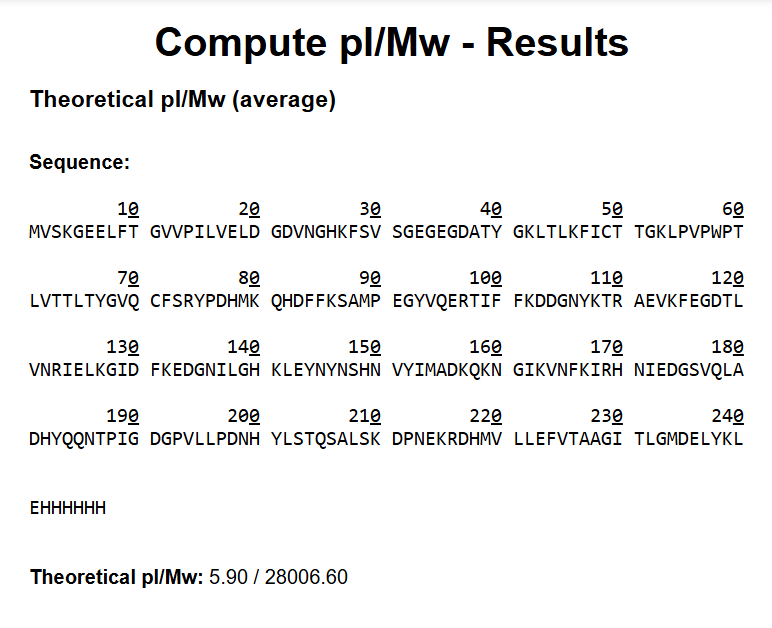

1. Based on the predicted amino acid sequence of eGFP (see below) and any known modifications, what is the calculated molecular weight? You can use an online calculator like the one at https://web.expasy.org/compute_pi/

   eGFP Sequence:
   MVSKGEELFTG VVPILVELDG DVNGHKFSVS GEGEGDATYG KLTLKFICTT GKLPVPWPTL VTTLTYGVQC FSRYPDHMKQ HDFFKSAMPE GYVQERTIFF KDDGNYKTRA EVKFEGDTLV NRIELKGIDF KEDGNILGHK LEYNYNSHNV YIMADKQKNG IKVNFKIRHN IEDGSVQLAD HYQQNTPIGD GPVLLPDNHY LSTQSALSKD PNEKRDHMVL LEFVTAAGIT LGMDELYKLE HHHHHH
   Note: This contains a His-purification tag (HHHHHH) and a linker (the LE before it).

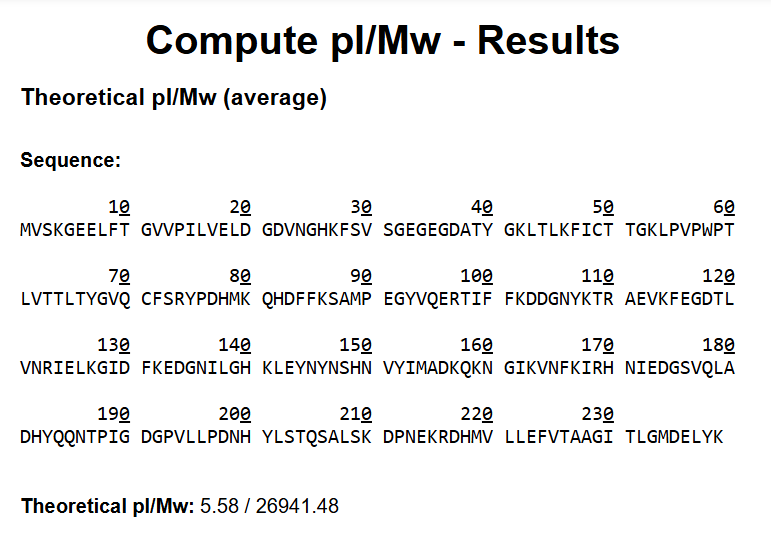

2. Calculate the molecular weight of the eGFP using the adjacent charge state approach described in the recitation. Select two charge states from the intact LC-MS data (Figure 1) and:
   1. Determine $z$ for each adjacent pair of peaks $(n, n+1)$ using: $$ {\large z} = {\Large \frac{\frac{m}{z_{n+1}}}{\frac{m}{z_n} - \frac{m}{z_{n+1}}}} $$
   2. Determine the MW of the protein using the relationship between $\frac{m}{z_n}$, $MW$, and $z$
   3. Calculate the accuracy of the measurement using the deconvoluted MW from 2.2 and the predicted weight of the protein from 2.1 using: $$ \text{Accuracy} = \frac{|MW_{\text{experiment}} - MW_{\text{theory}}|}{MW_{\text{theory}}} $$



3. Can you observe the charge state for the zoomed-in peak in the mass spectrum for the intact eGFP? If yes, what is it? If no, why not?

Homework: Waters Part II — Secondary/Tertiary structure

We will analyze eGFP in its native, folded state and compare it to its denatured, unfolded state on a quadrupole time-of-flight MS. We will be doing MS-only analysis (no liquid chromatography, also known as “direct infusion” experiments) on the Waters Xevo G3-QToF MS.

1. Based on learnings in the lab, please explain the difference between native and denatured protein conformations. For example, what happens when a protein unfolds? How is that determined with a mass spectrometer? What changes do you see in the mass spectrum between the native and denatured protein analyses (Figure 2)?



2. Zooming into the native mass spectrum of eGFP from the Waters Xevo G3 QTof MS (see Figure 3), can you discern the charge state of the peak at ~2800 $\frac{m}{z}$? What is the charge state? How can you tell?



Homework: Waters Part III — Peptide Mapping - primary structure

We will digest the eGFP protein standard into peptides using trypsin (an enzyme that selectively cleaves the peptide bond after Lysine (K) and Arginine (R) residues. The resulting peptides will be analyzed on the Waters BioAccord LC-MS to measure their molecular weights and fragmented to confirm the amino acid sequence within each peptide – generating a “peptide map”. This process is used to confirm the primary structure of the protein.

There are a variety of tools available online to calculate protein molecular weight and predict a list of peptides generated from a tryptic digest. We will be using tools within the online resource Expasy (the bioinformatics resource portal of the Swiss Institute of Bioinformatics (SIB)) to predict a list of tryptic peptides from eGFP.

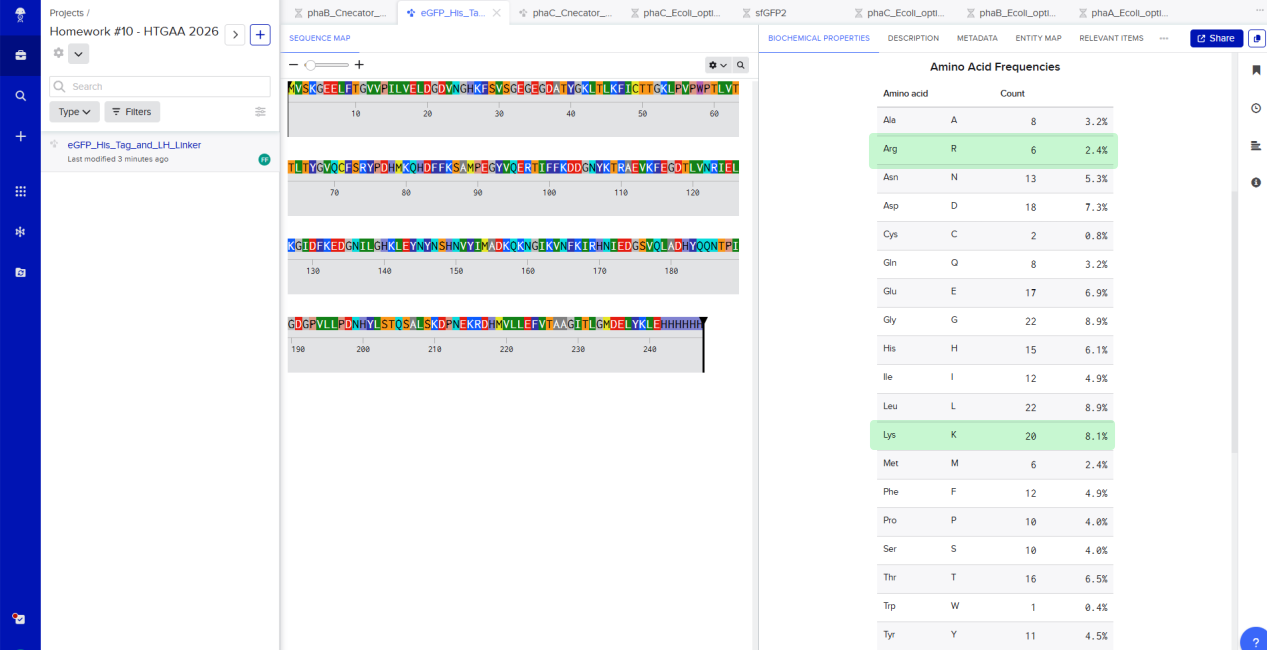

1. How many Lysines (K) and Arginines (R) are in eGFP? Please circle or highlight them in the eGFP sequence given in Waters Part I question 1 above. (Note: adding the sequence to Benchling as an amino acid file and clicking biochemical properties tab will show you a count for each amino acid).
2. How many peptides will be generated from tryptic digestion of eGFP?
   1. Navigate to https://web.expasy.org/peptide_mass/
   2. Copy/paste the sequence above into the input box in the PeptideMass tool to generate expected list of peptides.
   3. Use Figure 4 below as a guide for the relevant parameters to predict peptides from eGFP.
   4. Click “Perform the Cleavage” button in the PeptideMass tool and report the number of peptides generated when using trypsin to perform the digest.

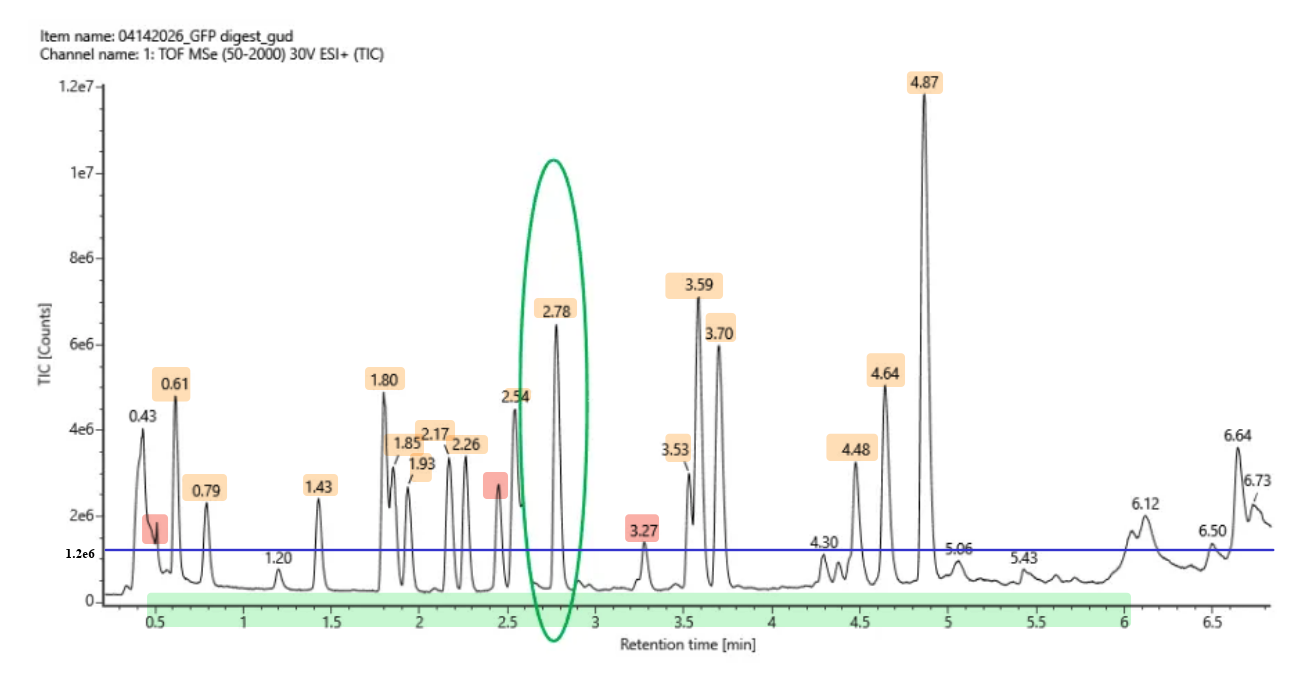

3. Based on the LC-MS data for the Peptide Map data generated in lab (please use Figure 5a as a reference) how many chromatographic peaks do you see in the eGFP peptide map between 0.5 and 6 minutes? You may count all peaks that are >10% relative abundance.



4. Assuming all the peaks are peptides, does the number of peaks match the number of peptides predicted from question 2 above? Are there more peaks in the chromatogram or fewer?
5. Identify the mass-to-charge ($\frac{m}{z}$) of the peptide shown in Figure 5b. What is the charge ($z$) of the most abundant charge state of the peptide (use the separation of the isotopes to determine the charge state). Calculate the mass of the singly charged form of the peptide ($\small{[M\!\!+\!\!H]^+}$) based on its $\frac{m}{z}$ and $z$.





6. Identify the peptide based on comparison to expected masses in the PeptideMass tool. What is mass accuracy of measurement? Please calculate the error in ppm. (Recall that $ \text{Accuracy} = \frac{|MW_{\text{experiment}} - MW_{\text{theory}}|}{MW_{\text{theory}}} $ )
7. What is the percentage of the sequence that is confirmed by peptide mapping? (see Figure 6)



Bonus Peptide Map Questions

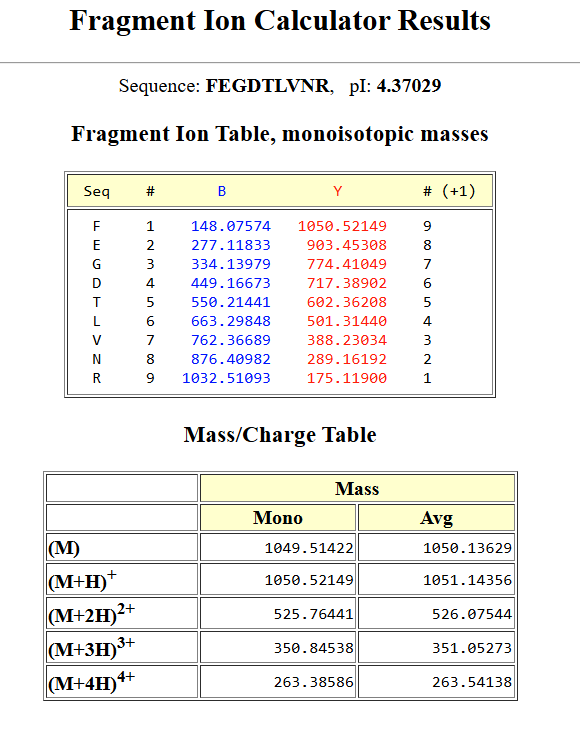

8. Can you determine the peptide sequence for the peptide fragmentation spectrum shown in Figure 5c? (HINT: Use your results from Question 2 above to match the peptide molecular weight that is closest to that shown in Figure 5b. Copy and paste its sequence into this tool online to predict the fragmentation pattern based on its amino acid sequence: http://db.systemsbiology.net/proteomicsToolkit/FragIonServlet.html. What is the sequence of the eGFP peptide that best matches the fragmentation spectrum in Figure 5c?
9. Does the peptide map data make sense, i.e. do the results indicate the protein is the eGFP standard? Why or why not? Consult with Figure 6, which depicts the % amino acid coverage of peptides positively identified using their calculated mass and fragmentation pattern.

Homework: Waters Part IV — Oligomers

We will determine Keyhole Limpet Hemocyanin (KLH)’s oligomeric states using charge detection mass spectrometry (CDMS). CDMS single-particle measurements of KLH allow us to make direct mass measurements to determine what oligomeric states (that is, how many protein subunits combine) are present in solution. Using the known masses of the polypeptide subunits (Table 1) for KLH, identify where the following oligomeric species are on the spectrum shown below from the CDMS (Figure 7):

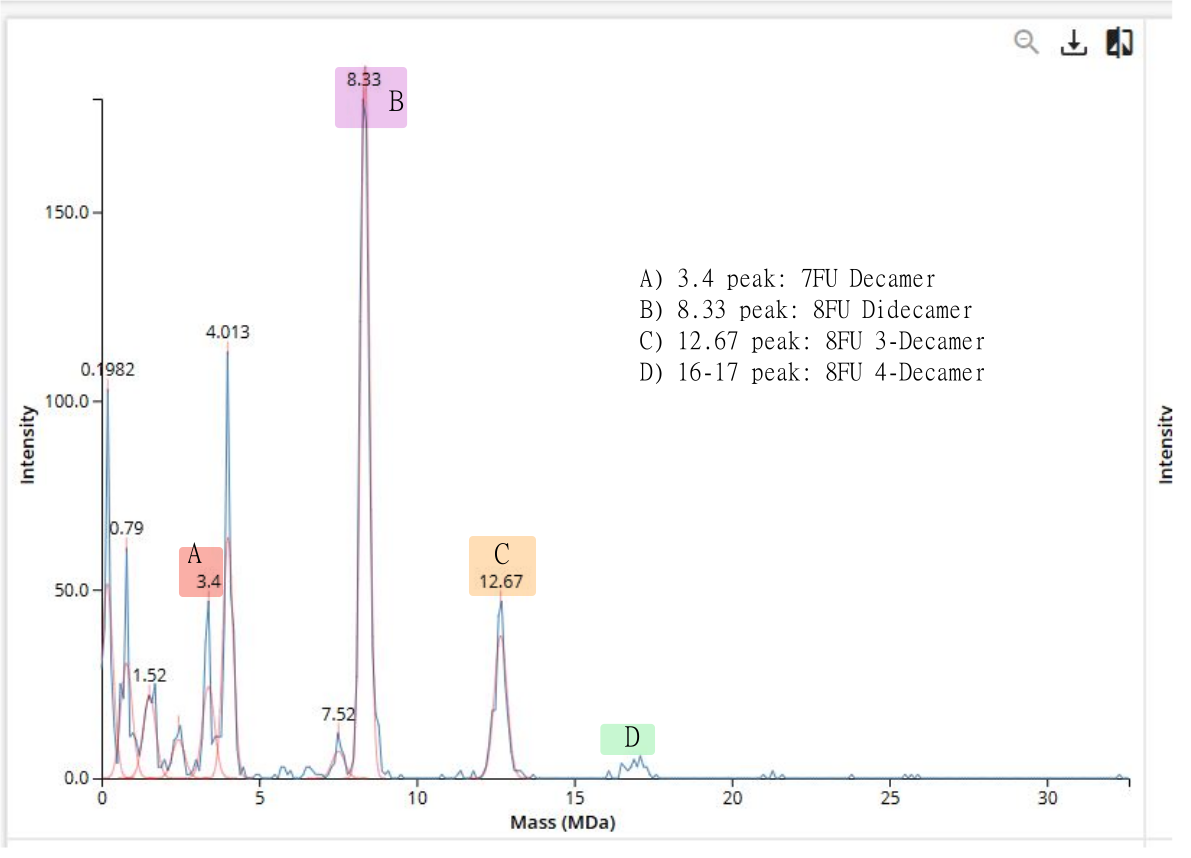

• 7FU Decamer
• 8FU Didecamer
• 8FU 3-Decamer
• 8FU 4-Decamer

Homework: Waters Part V — Did I make GFP?

Please fill out this table with the data you acquired from the lab work done at the Waters Immerse Lab in Cambridge, or else the data screenshots in this document if you were unable to have lab work done at Waters.

Week 11 HW: Building Genomes

Week 1 Lab: Pipetting

Individual Final Project

Here are my three individual final project ideas!

An interactive 3D bio-art sculpture where human touch meets living bioluminiscence bloom.

A river-sensing automated robot system that helps both advance research and act as a tourist spot for the community to reunite and spend time together.

Chlorella vulgaris in silico optimization and automation for the optimal accumulation of polyhydroxybutyrate (PHB).

After some thought and consideration, I decided to go with my third idea for my final individual project, here you can find a more detailed view of it:

SECTION 1: ABSTRACT

Provide a concise, self-contained summary of your project (minimum 150 words). The abstract should allow a reader to understand the purpose, approach, and expected outcomes of the work without referring to other sections.

Your abstract should briefly address the following elements:

Significance: What problem or question does the project address, and why is it important?

The accumulation of petroleum-derived plastics has led to irreversible ecological damage, particularly in marine ecosystems like the ones in the coast of Peru. While Polyhydroxybutyrate (PHB) offers a 100% biodegradable and biocompatible alternative, its industrial scaling is hindered by low yields and the high cost of optimizing metabolic pathways. Microalgae like Chlorella vulgaris are ideal “chassis” because they fix CO2, but current optimization methods rely on slow, manual trial-and-error, creating a significant gap between laboratory research and industrial relevance.

Broad Objective: What is the overall goal of the project?

The overall goal of the project is to develop a high-throughput, closed-loop pipeline that integrates computational metabolic modeling with robotic automation. The goal is to rapidly identify and implement optimal “metabolic stress” environments that pivot Chlorella vulgaris from standard vegetative growth to specialized bioplastic accumulation, making the production of sustainable materials more predictable and effective.

Hypothesis: What prediction or principle is the project testing or demonstrating?

I hypothesize that Flux Balance Analysis (FBA) can accurately identify the metabolic “tipping points” where nutrient limitation (e.g., nitrogen or phosphorus) forces a shift in carbon flux. By using these models to predict the exact concentration of nutrients that inhibit biomass production without killing the cell, we can design “stress recipes” that maximize the partition of carbon into the PHB biosynthetic pathway (such as phaA, phaB, phaC).

Specific Aims: What key steps or milestones will be completed to achieve the objective?

Some of the steps I attempt to cover in the project are as follows:

• Step 1: In Silico Modeling Reconstruct and simulate a genome-scale metabolic model of C. vulgaris using COBRApy to identify optimal flux distributions for PHB precursors (Acetyl-CoA). This involves mapping the metabolic shifts during the transition from biomass growth to polymer accumulation.

• Step 2: Automated Protocol Design Develop and simulate Python-based automation protocols for the Opentrons OT-2 to execute parallelized micro-cultivations. The goal is to program the logic for complex “nutrient stress recipes” that can be deployed in a Biofoundry setting to validate model-driven growth and yield predictions.

• Step 3: Visionary Scaling of the proccess Develop a theoretical framework for an AI-guided, modular photobioreactor system. This conceptual design focuses on the integration of real-time sensing data with metabolic models to enable decentralized bioplastic manufacturing in coastal communities, empowering them to utilize local biodiversity.

Methods: What experimental or technical approaches will be used?

The project follows a Design-Build-Test-Learn (DBTL) cycle, prioritizing computational engineering and standardized automation protocols:

• Metabolic Modeling (Design): I will utilize COBRApy (Python) to perform Flux Balance Analysis (FBA) on a genome-scale metabolic model of Chlorella vulgaris. This involves defining a mathematical objective function for PHB production and applying environmental constraints (nitrogen, phosphorus, and carbon levels) to predict the metabolic states that maximize bioplastic precursors like acetyl-CoA.

• Automation Protocol Development (Build): The predicted nutrient “recipes” will be translated into Python scripts for the Opentrons OT-2 robot. This ensures that the logic for combinatorial screening is high-precision and reproducible. By programming the liquid handling workflows, the project demonstrates how to scale the preparation of complex media that would be prone to human error if done manually.

• Micro-scale Validation (Test - If resource availability permits): If laboratory access and resources allow, the programmed protocols will be executed in 24-well or 96-well plates. Growth dynamics would be monitored via optical density (OD) measurements at 680 nm and 750 nm to track chlorophyll health and cell density, providing the real-world data needed to refine the initial FBA models.

• Genetic Construct Design (Future Build): Using Benchling, I will design a synthetic operon containing the phaA, phaB, and phaC genes. These sequences will be codon-optimized for Chlorella and placed under the control of nitrate-inducible promoters (e.g., NIT1). This genetic “switch” ensures that bioplastic synthesis only triggers when the system detects or creates a nitrogen-depleted environment, as predicted by the model.

• System Architecture (Vision): For the visionary phase, the focus shifts to a theoretical system architecture for a modular photobioreactor. Instead of physical manufacturing, this involves defining the integration of low-cost sensors (pH, temperature, and light) with a closed-loop AI model to maintain the optimal metabolic conditions identified during the computational phase.

The global crisis of plastic pollution demands a shift toward biodegradable materials like polyhydroxybutyrate (PHB) or poly lactic acid (PLA). Microalgae such as Chlorella vulgaris are natural candidates for bio-factories, but the traditional trial-and-error process to optimize their growth conditions remains a major industrial bottleneck. This project addresses the challenge by developing an integrated pipeline that combines in silico metabolic modeling with standardized automation protocols. The broad objective is to maximize PHB yield from Peruvian coastal strains by treating biology as an engineering problem optimized through data-driven predictions. I hypothesize that constraint-based modeling via COBRApy can accurately predict which nutrient stress conditions trigger the highest carbon flux toward PHB synthesis.

To test this, my experimental approach involves using Flux Balance Analysis (FBA) to design specific culture recipes translated into Python-based automation protocols for the Opentrons OT-2. This demonstrates how metabolic logic can be scaled in a Biofoundry setting to ensure high-precision media preparation. If resource availability permits, these protocols will be validated through micro-scale cultivations to refine the model. Furthermore, the project includes the design of synthetic genetic constructs in Benchling to overexpress the PHB pathway under inducible control. Finally, the visionary aim proposes a theoretical architecture for AI-guided modular photobioreactors, focusing on decentralizing production to empower coastal communities by transforming local biodiversity into sustainable materials through a closed-loop integration of sensors and models.

SECTION 2: PROJECT AIMS

Define three aims for your final project (minimum one sentence per aim).

Aim 1: Experimental Aim (this project):

“The first aim of my final project is to [achievable experimental goal] by utilizing [protocols, tools, or strategies].” This aim should describe the core experimental objective you will attempt during this class. List or link any relevant methods or resources you plan to use (e.g., experimental protocols, automation workflows, DNA or protein designs, protein design tools, or Twist orders). You will provide a detailed step-by-step experimental plan for Aim 1 in the Experimental Design section of this assignment.

“The first aim of my final project is to identify the optimal metabolic conditions for PHB accumulation in Chlorella vulgaris by utilizing COBRApy for Flux Balance Analysis (FBA) and developing automated Python-based protocols for the Opentrons OT-2 to simulate high-throughput nutrient stress ‘recipes.’”

Aim 2: Development Aim:

Describe the next step that would follow a successful Aim 1, extending the work beyond the scope of this course. This aim should represent a realistic progression of the project, such as executing additional experiments, solving a technical limitation, or developing the system or technology further.

“The next step following the computational validation would be to experimentally implement the designed genetic constructs using a modular synthetic biology approach, overexpressing the PHB biosynthetic pathway under the control of the nitrate-inducible NIT1 promoter to evaluate real-time polymer accumulation.”

Aim 3: Visionary Aim:

Describe the long-term vision for the project. Explain how the broader concept could have an impact if fully realized. Examples include: Challenging an existing paradigm or clinical practice. Addressing a major barrier in a field. Enabling a new experimental capability or research approach.

“The long-term vision is to establish a decentralized framework for bioplastic production through AI-guided, closed-loop modular photobioreactors, enabling coastal communities to transform local microalgae biodiversity into sustainable, high-value compostable materials that replace petroleum-based plastics.”

SECTION 3: BACKGROUND

Background and Literature Context Provide background research that explains the current state of knowledge and identifies the gap in knowledge or capability that your project addresses.

Briefly summarize two peer-reviewed research citations relevant to your research (minimum four sentences).

Explain how your project is novel or innovative. (Minimum 3 sentences.) Examples of topics to discuss: New applications or uses of existing biological tools or concepts. Development of new approaches, methodologies, or technologies. Ways the project challenges existing paradigms or assumptions. How the work expands the boundaries of synthetic biology.

Explain why your project matters and what impact it could have. (Minimum 5 sentences.) Examples of topics to discuss: The problem addressed: What pressing real-world problem does your project attempt to solve? Importance of the problem: Why is this problem significant, or what critical barrier to progress in the field does it represent? Broader societal contribution: How could the outcomes of your project benefit society beyond the immediate research context? Advancement of knowledge or capability: How might the project improve scientific understanding, technical capability, or clinical practice within one or more fields? Field-level change: If your aims are achieved, how could the concepts, methods, technologies, treatments, services, or preventative approaches used in this field of research change?

Describe the ethical implications associated with your project and identify relevant ethical principles (e.g., non-maleficence, beneficence, justice, or responsibility). (Minimum 2 paragraphs.) First paragraph: Include what ethical implications are involved in your project. Try to suggest ethical the principle(s) you may apply (e.g. non-maleficence, justice)? Second paragraph: Describe the measures that should be taken to ensure that your project is ethical (both in how the research is conducted and in its broader implications for society). You may wish to answer the following questions: What action(s) do you propose? What are potential unintended consequences of your proposed actions? What could you have been wrong (e.g., incorrect assumptions and uncertainties)? What are alternatives to your proposed actions? Note: in an NIH proposal, an ethics statement is used to describe the relevance of this research to public health

SECTION 4: EXPERIMENTAL DESIGN, TECHNIQUES, TOOLS, AND TECHNOLOGY

Use Claude AI skills to refine your HTGAA final project experimental design here

Create a detailed experimental plan for your final project. Include a timeline for each part of your experimental plan (i.e., how long you would expect each step in your final project to take). (min. 15 lines/sentences—a numbered list is acceptable) Include specific methods/tools/technologies/biological concepts for each part of the final project and analysis This section will be used to determine whether the experiments are well designed, feasible, and likely to succeed in testing your hypothesis Often this section is broken into discrete tasks/sub-aims For each experiment and/or analysis, include a description of your expected results If possible, include figure(s) that visually shows a broad workflow of your project or a specific aspect of your experimental plan Reminder: All HTGAA projects must include some DNA design! Make sure this form is submitted.

We discussed and practiced various techniques related to synthetic biology throughout the semester. Place a check next to the techniques relevant to your project.

Pipetting Pipetting Lab Safety Bioethical Considerations (must check this box)

DNA Gel Art DNA Sequencing DNA Editing DNA Construct Design Restriction Enzyme Digestion Gel Electrophoresis DNA Purification From Gel Databases (e.g., GenBank, NCBI, Ensembl, and UCSC Genome Browser)

Lab Automation Creating Code for Laboratory Automation Using Liquid Handling Robots (e.g., Opentrons) Designing a Twist Order Creating a plan to use the Autonomous lab at Ginkgo Bioworks

Protein Design Protein Design Use of Boltz or PepMLM Use of Asimov Kernel Use of Benchling Models and Notebooks Databases Bioproduction Bioproduction Chassis Selection (e.g., DH5alpha) Registry of Standard Biological Parts Plasmid Preparation Bacterial Culturing Quality Control/Analysis Bacterial Processing (e.g., Centrifugation, Lysis, DNA Purification)

Cell-Free Systems Cell Free Reactions Freeze-Dried Cell Free Systems miniPCR Tools Protein Purification

Gibson Assembly Primer Design or Selection PCR Reactions Gibson Assembly Other Cloning Methods (e.g., Restriction Enzyme Digestion or Gateway Cloning)

CRISPR CRISPR/Cas9 Designing Prime Editing gRNA

Expand upon two techniques you checked in the previous question by describing how you would utilize those techniques in your final project. (min. 4 sentences)

Identify any How To Grow (Almost) Anything Industry Council companies which are associated with your final project (optional)

Addgene Asimov (Kernel) ATCC Basecamp Research BioFabricate Biome Consortia Bolt Boltz.bio Cultivarium DeepCure Epibone Ginkgo Bioworks Helix Nano Millipore Sigma Mycoworks New England Biolabs Nuclera Opentrons SecureDNA Takeda Pharmaceuticals Thermo Fisher Scientific Transfyr.ai Twist Biosciences Upside Foods Waters Corporation

SECTION 5: Results & Quantitative Expectations

You are required to validate at least one aspect of your final project aims. This is to ensure that you are able to successfully apply a relevant synthetic biology technique to your project. Include figures if you have them—accuracy is critical in figures, tables, and graphs Here is a non-exhaustive list of acceptable validations: Designing DNA relevant to your final project Performing a PCR reaction using primers relevant to your final project Performing a Gibson assembly relevant to your final project Creating and performing a cell-free assay related to your final project Creating and running code to validate an aspect of your final project Developing a model or completing a computational analysis relevant to your project Designing DNA construct(s) that can express at least one gene of interest, ordering it (via Twist), and testing of the expression of the construct(s) (potentially using an Opentrons robot)

What aspect of your final project did you choose to validate? (min. 2 sentences)

Write down a detailed protocol of how you validated this aspect of your final project. (Numbered list or paragraph is fine)

What synthetic biology techniques did you utilize in validating this aspect of your final project? You can refer to the list of techniques in question 8. (min. 4 sentences)

You must present data as part of your final project and include some analysis of that data. The data may be collected experimentally in the lab or generated as simulated data (e.g., using the Asimov Kernel or another simulation method). (min. 2 sentences)

Did you encounter any unexpected challenge(s) when performing your validation? If so, describe the challenge(s) and strategies to overcome it. If not, discuss potential problems, difficulties, limitations, and/or alternative strategies to overcome challenges in your final project. (min. 4 sentences).

SECTION 6: ADDITIONAL INFORMATION

12. List all references cited in this assignment (bullet-point list)

13. Create a supply list and budget for your project (bullet-point list)

• What supplies, equipment, and budget is needed for your project to work?

Group Final Project

Bacteriophage Engineering: L-Protein Optimization

1. Hypothesis: Engineering Lysis Protein Stability

Our core hypothesis is that the thermodynamic stability and lytic efficiency of the MS2 L-protein can be enhanced through two strategic pathways:

1. Structural Reinforcement: Introducing targeted mutations that promote independent folding or stabilize the 7-helix bundle, reducing dependence on the host chaperone DnaJ.
2. Generative Optimization: Utilizing evolutionary conservation data and generative protein design to create variants with improved membrane-insertion kinetics and host compatibility, thereby minimizing host-mediated resistance.

2. Specific Aims and Validation Pipeline

Aim 1: Mutation Design via Conservation and Predictive Modeling

We will perform Clustal Omega alignments of homologous lysis proteins to identify conserved residues (specifically the “HEDYPCRRQQRSST” island). This is followed by:

• In silico Mutational Scanning: Using ESM-2 embeddings and LLR scores to nominate stabilizing mutations.
• Folding Assessment: Validation of fold accuracy via ESMFold and AlphaFold-Multimer to ensure independent folding propensity and multimeric pore symmetry.

Aim 2: Generative Design for Chaperone Independence

We propose using generative models (like ProteinMPNN or RFdiffusion) to optimize the soluble N-terminal domain. The goal is to redesign the interface to either:

• Enhance co-folding with DnaJ under controlled structural constraints.
• Enable “folding rescue” by alternative or orthogonal chaperones (e.g., DnaK or GroEL) to bypass host adaptation.

Aim 3: Evolutionary Analysis and Host Factor Integration

Using pBLAST to survey orthologs, we will reconstruct evolutionary trajectories of stability. Candidates will be screened against E. coli host factors to minimize proteotoxicity while maximizing the “aggressive” lytic potential identified through Genomic Language Models (GLMs).

3. Computational Tools and Workflow

Our design-build-test-learn (DBTL) framework utilizes the following stack:

• Sequence & Conservation: Clustal Omega and pBLAST for “evolutionary grammar” analysis.
• Mutational Analysis: ESM-2 (LLR scores) for high-speed structural feedback on the 7-helix bundle.
• Generative Design: ProteinMPNN for sequence backbone optimization.
• Structural Validation: AlphaFold 3 and AlphaFold-Multimer to ensure biophysical plausibility of the 8-chain pore assembly.

Schematic Pipeline: [Sequence Input] → [ESM-2 Mutational Scan] → [GLM Toxicity Optimization] → [AlphaFold/AF3 Validation] → [Final Design Selection]

4. Potential Pitfalls

• Contextual Gap: A lack of specific data regarding the host bacteria’s in vivo environment may lead to unexpected results despite positive simulations.
• Functional Trade-offs: Mutations that improve structural stability might inadvertently perturb the membrane-interaction properties or the native lytic activity, leading to a loss of function.
• Misfolding Risk: Compact lysis proteins are highly sensitive; even high-confidence predicted folds (pLDDT > 80) may aggregate or fail to insert into the membrane in a real biological system.

5. Expected Outcomes

If successful, this framework will yield L-protein variants with:

1. Increased Stability: Robust functionality under diverse environmental conditions.
2. Reduced Host Dependency: Decreased reliance on native DnaJ interactions, making the phage less vulnerable to host-dependent failure modes.
3. Optimized Lysis: Retention of a mature fold compatible with aggressive lytic activity, establishing a generalizable template for synthetic antimicrobial modules.

6. Group Brainstorming Details

• Collaborators: Sheila Ramani, Ganapathi Naayagam, Deep Dalvi and Fabrizio Flores.
• Selected Goals: * Stabilization: Increasing structural integrity.
  • Toxicity Optimization: Enhancing bacterial cell wall disruption.

Part D. Group Brainstorm on Bacteriophage Engineering

1. Find a group of ~3–4 students

I found a group of 4 students: Sheila Ramani, Ganapathi Naayagam, Deep Dalvi and I, Fabrizio Flores

2. Read through the Phage Reading material listed under “Reading & Resources” below.

Here are the summaries of the phage reading materials:

Phage Reading

• Identification MS2 lysis protein dependency on DnaJ By: @2026a-fabrizio-flores-huaman

  The study explains that the MS2 phage L protein is a 75 amino acid polypeptide that kills bacteria through a unique mechanism. Unlike other proteins like E or A2, which block cell wall synthesis, the L protein does not affect peptidoglycan production. Using a smart screening system with a lacZ reporter to filter out false positives, the researchers discovered that L depends entirely on the host chaperone DnaJ to function. Interestingly, a specific mutation in DnaJ called P330Q completely blocks lysis at 30°C. Through pulldown assays, they confirmed that DnaJ physically binds to the N-terminal “head” of the protein, which is full of basic charges and is actually dispensable for the killing process, serving instead as a control unit.

  The final model proposes that this N-terminal domain of L acts as a biological brake that auto-inhibits the protein. The DnaJ chaperone acts like a key that unlocks this brake, allowing the hydrophobic tail of the protein to reach its actual target inside the cell. This was proven with Lodj mutants, which are versions of the L protein lacking the head. These mutants do not need DnaJ and kill the bacteria 20 minutes faster than the wild type. This system mirrors what happens with the E protein and its chaperone SlyD, suggesting that phages evolved these charged domains as a strategy to control lysis timing and ensure the virus has enough time to replicate before destroying the host.

• Mutational analysis of the MS2 lysis protein L By: @2026a-sheila-ramani

  The MS2 lysis protein (L) is a 75-amino acid polypeptide that triggers bacterial cell death without disrupting net peptidoglycan synthesis. Research reveals a conserved LS (Leu-Ser) dipeptide motif at residues Leu48-Ser49, which serves as the essential core for protein-protein interactions. While the N-terminal half of the protein is dispensable for lytic activity, the C-terminal domain is critical; specifically, the S49C mutation in the LS motif causes an absolute lysis defect. This motif is highly conserved across diverse phages, indicating it is a universal structural requirement for the lytic function in amurins.

  The study suggests that the L protein interacts with a host membrane target through the LS motif and surrounding essential domains. The N-terminus functions as a regulatory domain that naturally inhibits this interaction, while the host chaperone DnaJ binds to the N-terminus to displace it from its inhibitory position. Interestingly, deleting the basic N-terminal domain allows the protein to bypass the need for DnaJ entirely. This confirms that the N-terminus acts as a regulatory gatekeeper, and DnaJ is the key that unlocks the protein’s ability to engage its cellular target.

• Characterization of the MS2 lysis protein properties By: @2026a-deep-dalvi

  The MS2 bacteriophage lysis protein (MS2L) facilitates host cell escape by punching holes in the bacterial wall through a dual-domain mechanism. It consists of a soluble HEAD domain and a transmembrane TAIL domain that anchors into membranes, behaving similarly to soap or micelles. A key finding is that the TAIL domain drives oligomerization, causing 10 or more proteins to clump into large complexes. CryoEM data confirms these clusters gather at specific spots to trigger a sequential rupture: first the outer membrane breaks, followed by the peptidoglycan layer, and finally the inner membrane, causing the cell contents to leak out.

  The researchers identified the HEAD domain as a biological brake that regulates the timing of lysis. While the full MS2L protein is difficult to insert into membranes, removing the HEAD allows for relatively easy insertion, suggesting it functions as a timer to prevent premature cell death. Additionally, the helper protein DnaJ binds to MS2L but does not influence its membrane entry or oligomerization. From an engineering perspective, removing the HEAD domain could bypass this brake to achieve a “quicker kill,” a strategic goal for optimizing lytic toxicity in synthetic biology.

• Phage therapy: From biological mechanisms to future directions By: all

  This paper explains how phages have evolved from a biological curiosity into a sophisticated therapeutic tool by focusing on their life cycles and resistance mechanisms. The review highlights that success in therapy depends on more than just injecting phages; it requires a deep understanding of pharmacokinetics and the patient’s immune response, as the body might neutralize the viruses before they reach the infection site. A key advancement mentioned is the use of genetic engineering to create “designer” phages that do more than just kill bacteria, such as degrading biofilms or working alongside traditional antibiotics to restore drug sensitivity. The future of the field points toward precision medicine where specific phages are selected or edited for each patient to overcome the regulatory and technical barriers that previously limited mass clinical use.

• Phage Therapy: Past, Present and Future By: all

  This text explores the historical evolution and the modern resurgence of phage therapy in response to the global antibiotic resistance crisis. It begins by reminding us that phages were used long before penicillin but were largely forgotten in the West due to a lack of standardized protocols and the convenience of broad-spectrum antibiotics. Currently, we are in a stage of “compassionate use” where phages are successfully applied in desperate cases of multi-drug resistant infections, which is driving new controlled clinical trials. The study concludes that the biggest challenge today is not just biological but also logistical and legal, as a global infrastructure is needed to collect and characterize phage libraries that can be quickly deployed against emerging pathogens. This marks a shift from general treatments to a completely personalized paradigm.

• Generative design of novel bacteriophages with genome language models By: @2026a-ganapathi-naayagam

  This research utilizes the Evo 1 and Evo 2 DNA foundation models to design functional biological systems at the whole-genome scale. Using the phiX174 lytic phage as a chassis, the AI successfully generated 16 viable phages with substantial evolutionary novelty. Some variants were highly distant from common natural sequences, proving that genomic language models (GLMs) can expand the known biological space. This is critical for phage therapy, as these AI-designed variants demonstrated a superior ability to overcome bacterial resistance in E. coli strains where natural phages failed.

  The computational method employed taxonomic prompting (e.g., Riboviria) to guide the generative process toward specific viral realms. Novelty was rigorously validated using nucleotide BLAST against core databases to confirm the emergence of original sequences. This strategy offers a robust framework for creating diverse phage cocktails, a key requirement for modern antimicrobial treatments. By leveraging taxonomic labels and pretraining, the study establishes a “design-build-test” workflow for engineering complex, multi-gene systems beyond the limits of natural evolution.

3. Review the Bacteriophage Final Project Goals for engineering the L Protein:

   • Increased stability (easiest)
   • Higher titers (medium)
   • Higher toxicity of lysis protein (hard)

4. Brainstorm Session

   • Choose one or two main goals from the list that you think you can address computationally (e.g., “We’ll try to stabilize the lysis protein,” or “We’ll attempt to disrupt its interaction with E. coli DnaJ.”).
   • We will focus on increasing the structural stability of the L protein to ensure it remains functional under different environmental conditions.
   • We will also attempt to increase the toxicity of the lysis protein by optimizing its target regions to enhance bacterial cell wall disruption.
   • Write a 1-page proposal (bullet points or short paragraphs) describing:
   • Which tools/approaches from recitation you propose using (e.g., “Use Protein Language Models to do in silico mutagenesis, then AlphaFold-Multimer to check complexes.”).
   • We will use ESMFold to perform in silico mutational scanning and identify target regions in the L protein.
   • We propose using Genomic Language Models (GLMs) to design and optimize sequences with higher lytic potential.
   • Finally, we will use AlphaFold-Multimer to validate the folding and stability of the engineered protein complexes.
   • Why do you think those tools might help solve your chosen sub-problem?
   • ESMFold allows for high-speed structural feedback, making it easier to test how mutations affect the 7-helix bundle.
   • GLMs are essential for capturing the “evolutionary grammar” of toxicity, helping to design proteins that are more aggressive than natural variants.
   • AlphaFold ensures that our computational designs are biophysically plausible and stable before any potential wet-lab implementation.
   • Name one or two potential pitfalls (e.g., “We lack enough training data on phage–bacteria interactions.”).
   • Contextual Gap: There is a lack of specific data regarding the host bacteria’s environment, which might lead to unexpected results in vivo.
   • Misfolding Risk: The engineered protein might still misfold or aggregate in a real biological system despite having positive simulation results in the pipeline.
   • Include a schematic of your pipeline.

   Here’s a short written schematic of our pipeline: [Sequence Input] → [ESM-2 Mutational Scan] → [GLM Toxicity Optimization] → [AlphaFold Validation] → [Final Design]

   • This resource may be useful: HTGAA Protein Engineering Tools

5. Each individually put your plan on your HTGAA website

   • Include your group’s short plan for engineering a bacteriophage

Part C: Final Project: L-Protein Mutants

High level summary: The objective of this assignment is to improve the stability and auto-folding of the lysis protein of a MS2-phage. This mechanism is key to the understanding of how phages can potentially solve antibiotic-resistance.

L-Protein Engineering - Option 1: Mutagenesis

Step 1: Information Gathering

Here are the L-protein and Dnaj sequences

Lysis Protein Sequence (UniProtKB ID: P03609) METRFPQQSQQTPASTNRRRPFKHEDYPCRRQQRSSTLYVLIFLAIFLSKFTNQLLLSLLEAVIRTVTTLQQLLT

DnaJ sequence (UniProtKB ID: P03609) MAKQDYYEILGVSKTAEEREIRKAYKRLAMKYHPDRNQGDKEAEAKFKEIKEAYEVLTDSQKRAAYDQYGHAAFEQGGMGGGGFGGGADFSDIFGDVFGDIFGGGRGRQRAARGADLRYNMELTLEEAVRGVTKEIRIPTLEECDVCHGSGAKPGTQPQTCPTCHGSGQVQMRQGFFAVQQTCPHCQGRGTLIKDPCNKCHGHGRVERSKTLSVKIPAGVDTGDRIRLAGEGEAGEHGAPAGDLYVQVQVKQHPIFEREGNNLYCEVPINFAMAALGGEIEVPTLDGRVKLKVPGETQTGKLFRMRGKGVKSVRGGAQGDLLCRVVVETPVGLNERQKQLLQELQESFGGPTGEHNSPRSKSFFDGVKKFFDDLTR

Note: Lysis protein contains a soluble N-terminal domain followed by a transmembrane protein (blue/last 35 residues). Transmembrane protein affects the lysis activity. The soluble domain (green) is the domain responsible for interaction with DnaJ. Soluble N-terminal domain: METRFPQQSQQTPASTNRRRPFKHEDYPCRRQQRSSTLYV TM domain: LIFLAIFLSKFTNQLLLSLLEAVIRTVTTLQQLLT

Additionally, here’s a screenshot of the BLAST results for L-protein:

Lastly, these results were aligned using Clustal Omega, revealing a highly conserved “island” (HEDYPCRRQQRSST) at residues 24-38. These sites will be avoided during mutagenesis to preserve the critical interaction with DnaJ and overall biological function of the phage.

Clustal Job ID: clustalo-I20260311-043120-0780-2033785-p2m

Step 2: Variant Selection Approach

My approach is very straightforward: I combined computational LLR scores with experimental lab data using a copy of the HTGAA Colab. I filtered for mutations that showed “active lysis” (value 1) in the experimental spreadsheet and high positive LLR scores in the notebook.

Step 3: Filtering and Ranking

I used AlphaFold 3 to model the 8-chain assembly. This step was used to rank candidates that showed both positive computational scores and confirmed experimental activity, ensuring they don’t disrupt the pore’s symmetry.

Step 4: Final Mutated Sequences

These 5 mutations were selected because they are experimentally proven to maintain lysis (score 1) and show improved or stable computational scores.

S9Q mutation 8-chain assembly:

C29R mutation 8-chain assembly:

Y39L mutation 8-chain assembly:

A45L mutation 8-chain assembly:

N53L mutation 8-chain assembly:

While AF3 structures were used to visualize the multimeric orientation, the ipTM scores remained low (~0.17) across all mutations. This is expected given the small, intrinsically disordered nature of the L-protein and the high flexibility required for its lytic function, which challenges standard multimeric confidence metrics.

BioClub Committed Listener MoU

HTGAA Committed Listener (CL) Agreement

I am a HTGAA Committed Listener, my responsibilities are:

• Watching class lectures and recitations
• Participating in node reviews
• Developing and documenting my homework
• Actively communicating with other students and TAs on the forum
• Allowing HTGAA and BioClub to share my work (with attribution)
• Honestly reporting on my work, and appropriately attributing and citing the work of others (both human and non-human)
• Following locally applicable health and safety guidance
• Promoting a respectful environment free of harassment and discrimination

Signed by committing this file to my documentation page/repository,

Fabrizio Yasuo Flores Huamán

09-03-2026
