Week 1 HW: Principles and Practices
Class Assignment Question 1: Biological Engineering Application First, describe a biological engineering application or tool you want to develop and why.
Week 2 HW: DNA: Read, Write, and Edit
Class Assignment Part 1: Benchling & In-silico Gel Art Make a Benchling account. Import Lambda DNA. Simulate RE digestion using EcoRI, HindIII, BamHI, KpnI, EcoRV, SacI, and SalI. Create a Gel Art Pattern
Automation Art: https://opentrons-art.rcdonovan.com/?id=ipo5wv9ww1wwm0c Post-lab Questions 1. Find and describe a published paper that utilizes the Opentrons or an automation tool to achieve novel biological applications. I picked this paper by the Baker Lab because its definition of automation drew my attention. The paper developed what the authors refer to as a “partial automation instead of complex end-to-end robotics”, claiming that, although they did integrate robotic liquid handlers for some of the characterizations, the workflow should be widely adoptable to streamline workflows, even without the robotic liquid handlers. The argument that a many wet lab workflows are time, energy, and resource intensive resonated with my work.
First, describe a biological engineering application or tool you want to develop and why.
Coral reefs cover roughly 284,300 km² of the ocean — an area larger than the United Kingdom — and are the only living structures visible from space. Named the “rainforests of the sea,” they support nearly a quarter of all marine life, encompassing more than 830,000 multicellular species, despite occupying less than one percent of the ocean’s surface. Their importance extends far beyond marine ecosystems: coral reefs contribute an estimated $11 trillion annually to the global economy and sustain the livelihoods of around one billion people, making their health tightly linked to that of the planet as a whole.
Despite this wealth of ecological and economic value, coral reefs are in rapid decline. Approximately 50% of global coral reef cover has been lost since the 1950s, and ongoing anthropogenic pressures —particularly rising CO₂ emissions and ocean warming —threaten the extinction of most corals by 2070. Among the most devastating consequences of these stressors is coral bleaching. Since the late 20th century, reefs have experienced four mass bleaching events, each more severe than the last, highlighting severity of this issue.
A stable microbiome is critical for coral health, but it is highly sensitive to environmental change. The microbial hypothesis of coral bleaching proposes that warming oceans drive a dysbiosis in the coral microbiome, shifting it toward opportunistic and pathogenic communities that increase susceptibility to disease. While elevated temperatures and microbiome shifts are strongly correlated with coral disease, disease emergence ultimately depends on the disease triad, which include a causative agent. Members of the genus Vibrio are strongly implicated in bacterial bleaching, as they can disrupt the coral–algal symbiosis. Notably, their virulence is temperature-dependent, intensifying under thermal stress and exacerbating bleaching outcomes.
Engineered probiotics offer a promising strategy to counteract these challenges by enabling targeted manipulation of beneficial coral-associated microbes. Endozoicomonas, a dominant symbiont in healthy corals, is widely regarded as an indicator of coral health, offering corals with a host of benefits. By engineering Endozoicomonas to express oxidoreductase systems, heat shock proteins for thermal resilience, and narrow-spectrum quorum-sensing inhibitors that disrupt pathogenic signaling, it may be possible to enhance coral resistance to thermal stress and bacterial bleaching, thereby stabilizing the coral microbiome and supporting reef survival in a warming ocean. Furthermore, expressing the aforementioned genes under a heat-sensitive genetic switch both reduces burden and increases specificity.
Next, describe one or more governance/policy goals related to ensuring that this application or tool contributes to an “ethical” future, like ensuring non-malfeasance (preventing harm). Break big goals down into two or more specific sub-goals.
Next, describe at least three different potential governance “actions” by considering the four aspects below (Purpose, Design, Assumptions, Risks of Failure & “Success”).
| Action | Purpose | Design | Assumptions | Risks of Failure & “Success” |
|---|---|---|---|---|
| Coral Farming | What is done now: Coral larvae are harvested and farmed underwater or on land in designated nurseries, before being outplanted onto reefs What changes are you proposing? • Standardizing coral aquaculture methodologies for more efficient scale-up • Integration with research institutions | Actors / Stakeholders: • Coral aquaculture players • Regulatory agencies (e.g. NOAA) | • Impacted communities have the resources to continuously support coral nurseries | How might this fail: • Coral larvae may not mature • Outplanting/engraftment may not be successful Unintended consequences of “success”: • Ecosystem shift • Reduces urgency to address root cause of bleacing |
| Artificial Reefs | What is done now: Man-made benthic structures are placed on the ocean floor to support coral reef restoration and/or provide marine life with a ‘replacement’ niche. What changes are you proposing? • Replacing inert artificial reefs with reef-supporting materials • Monitoring population changes and artificial reef stability over time | Actors / Stakeholders: • Researchers • Regulatory agencies (e.g. NOAA) | • Research prior to deployment • Intentional design considerations | How might this fail: • Acts as a fish-aggregating device (FAD) rather than stimulating an increase in marine populations • Overtake the local ecosystem Unintended consequences of “success”: • Ecosystem shift • Disguised ocean dumping |
| Coral Probiotics | What is done now: Beneficial Microorganisms (BMCs) are screened, identified, and inoculated with corals to confer health benefits such as heat and disease resistance. What changes are you proposing? • Generate unique ‘blends’ of probiotics, rather than consortia, with desired functionalities • Introduce synbiotics: probiotics + prebiotics | Actors / Stakeholders: • Researchers and microbiome databases • Regulatory agencies (e.g. NOAA) | • Microbiome flexibility and persistence of introduced microbes • Probiotics confer tangible health outcomes | How might this fail: • Engraftment may not be successful • Genetic mutations may occur in so-called probiotics Unintended consequences of “success”: • Introduction of potential pathogens or opportunists • Enhanced fitness and subsequent ecosystem shift |
Next, score (from 1-3 with, 1 as the best, or n/a) each of your governance actions against your rubric of policy goals. The following is one framework but feel free to make your own:
| Rank each option: | Coral Farming | Artificial Reefs | Coral Probiotics |
|---|---|---|---|
| Beneficence | |||
| • Improves coral health | 1 | 2 | 1 |
| • Maintains or pormotes healthy coral ecosystems | 1 | 2 | 2 |
| Non-malfeasance | |||
| • Minimizes burdens on stakeholders | 1 | 2 | 1 |
| • Balances risks and benefits | 2 | 3 | 2 |
| Safety | |||
| • Minimizes dual-use risk | 2 | 2 | 1 |
| • Minimizes breached containment | 1 | 2 | 3 |
| Community | |||
| • Fosters collaboration | 1 | 2 | 1 |
| • Includes stakeholder voices | 2 | 2 | 2 |
| Management | |||
| • Establishes monitoring protocols | 1 | 2 | 1 |
| • Feasible | 2 | 1 | 3 |
Last, drawing upon this scoring, describe which governance option, or combination of options, you would prioritize, and why. Outline any trade-offs you considered as well as assumptions and uncertainties.
Keeping in mind both the current coral conservation research state and the rapid decline in coral health, a dual-pronged approach would be ideal. Specifically, an approach that combines both a well-established governance option yielding modest effects with a high-risk, high-reward governance option will result in both short-term and long-term effects. Thus, given the governance rubric above, I would prioritize coral farming as the well-established option and coral probiotics as the high-risk, high-reward option. I think aritifical reefs should will likely not result in the optimal end (i.e. coral conservation) and may in fact lead to off-tagret effects; thus, they should not be pursued at this time. Coral farming, which has yielded positive results, should be scaled-up to areas susceptible to bleaching, while including local stakeholders. On the other hand, a call-to-action for research into the more radical coral probiotics approach should be initiated and ongoing research supported.
Reflecting on what you learned and did in class this week, outline any ethical concerns that arose, especially any that were new to you. Then propose any governance actions you think might be appropriate to address those issues. This should be included on your class page for this week.
A point of both interest and concern is the concept of bio-futures. With any given technology – be it developed beneficently or otherwise – there is a chance for a destructive future in place of the constructive future it was (hopefully) intended for; and with that, a greater ethical obligation on scientists to be intentional in their endeavors and critical in what they consider ‘safe’, as dual-use is always a possibility in research. Therefore, conversations regarding responsible conducts and biosafety measures should be initiated, and regulations should keep up with rapidly changing fields, such as synthetic biology.
Nature’s machinery for copying DNA is called polymerase. What is the error rate of polymerase? How does this compare to the length of the human genome. How does biology deal with that discrepancy?
How many different ways are there to code (DNA nucleotide code) for an average human protein? In practice what are some of the reasons that all of these different codes don’t work to code for the protein of interest?
An average human protein is ~345 amino acids (1,036 bp ) long. Because the genetic code is degenerate, most amino acids can be encoded by multiple synonymous codons (on average ~3 per amino acid, since there are 64 codon triplets yet 20 amino acids). Therefore, the number of distinct DNA sequences that can encode the same protein is approximately 3^400. However, not all of these may be functional due to factors, such as codon bias and splicing, that limit their efficient translation.
What’s the most commonly used method for oligo synthesis currently?
Phosphoramidite DNA Synthesis Cycle
Why is it difficult to make oligos longer than 200nt via direct synthesis?
The error rate is 1 per 10^2 steps, so many of the oligos larger than 200 nt will have decreased accuracy and fidelity.
Why can’t you make a 2000bp gene via direct oligo synthesis?
The error rate 1 per 10^2 steps, so it is highly unlikely that any of the 2000 bp genes will be accurate.
What are the 10 essential amino acids in all animals and how does this affect your view of the “Lysine Contingency”?
The 10 essential amino acids are valine, isoleucine, leucine, methionine, phenylalanine, tryptophan, threonine, histidine, and lysine, and, for children and those under stress, arginine. The lysine contingency is used as a biocontainment strategy in the movie Jurassic Park in which dinosaurs are engineered to lack the lysine production gene and thus only survive if they are fed lysine; however, this does not make sense as no animal can make their own lysine.
Make a Benchling account. Import Lambda DNA. Simulate RE digestion using EcoRI, HindIII, BamHI, KpnI, EcoRV, SacI, and SalI. Create a Gel Art Pattern
The Benchling file is linked here: “https://benchling.com/s/seq-8fknpF6pJKrFg2o79vYc?m=slm-T9RMQvF1LswIKEhWWpSP

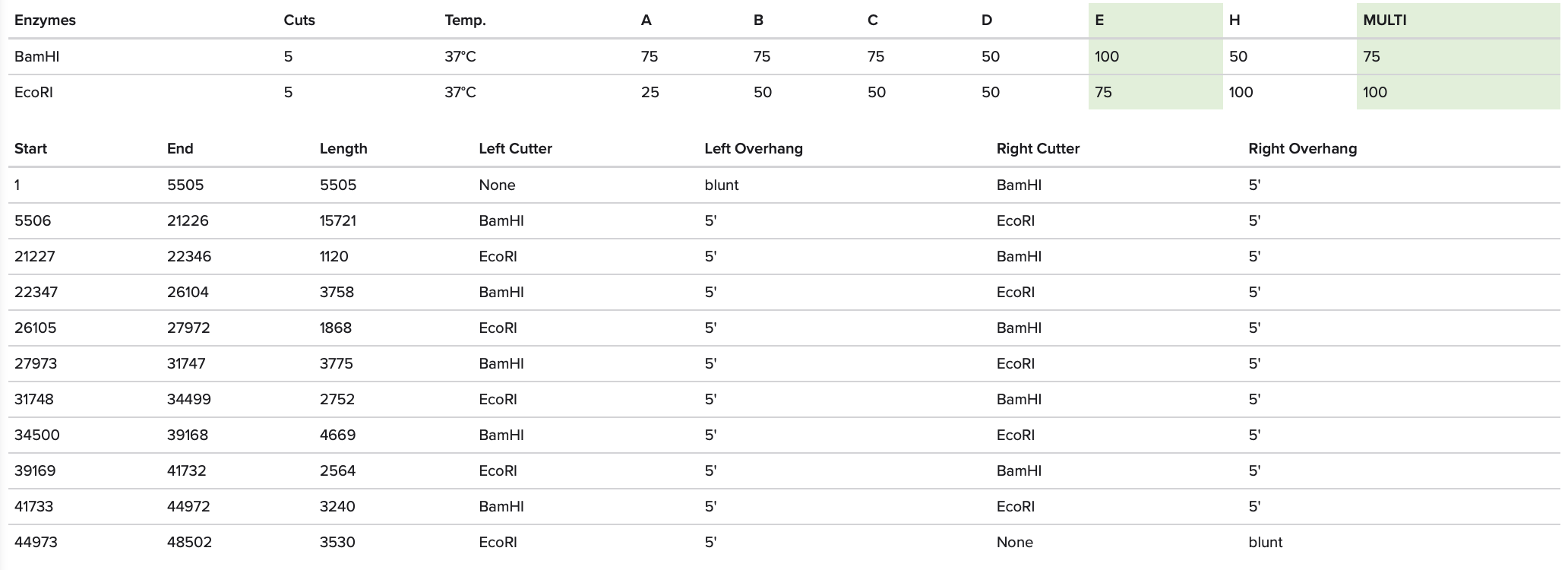

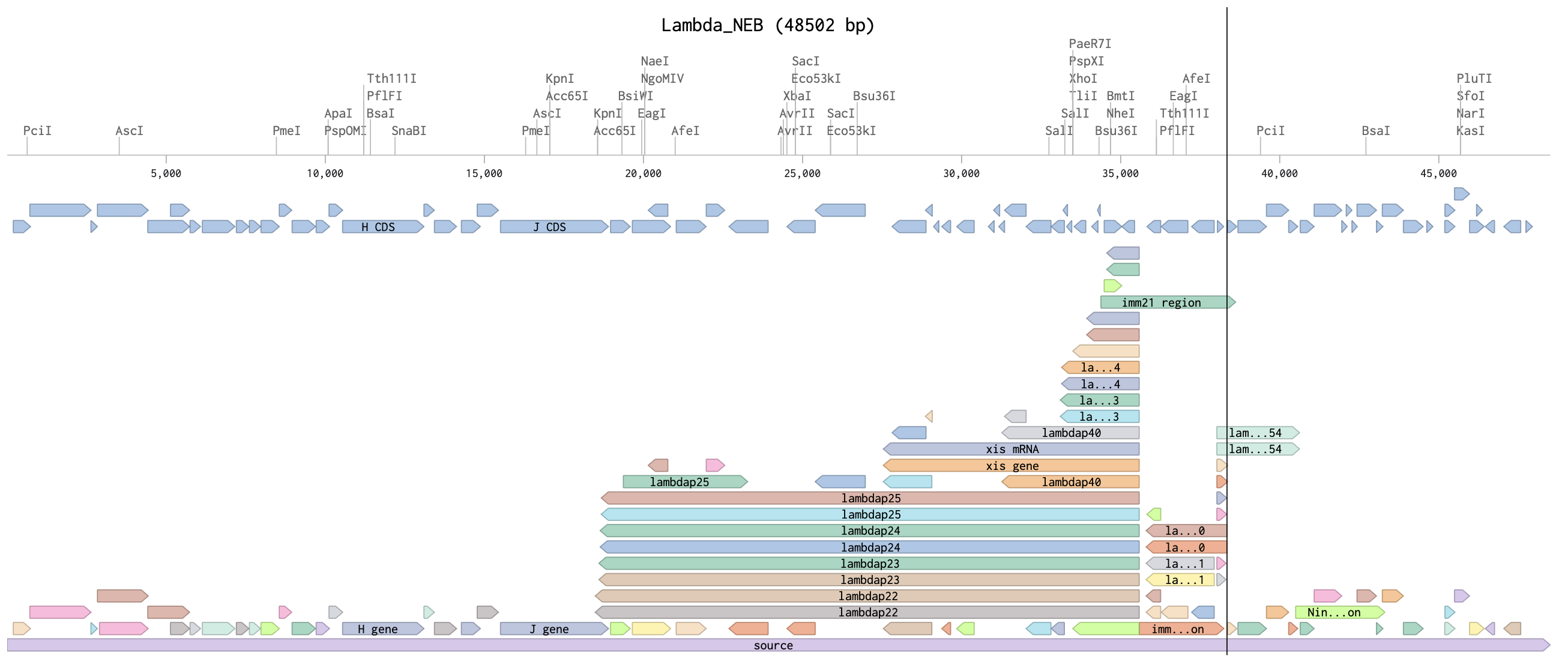

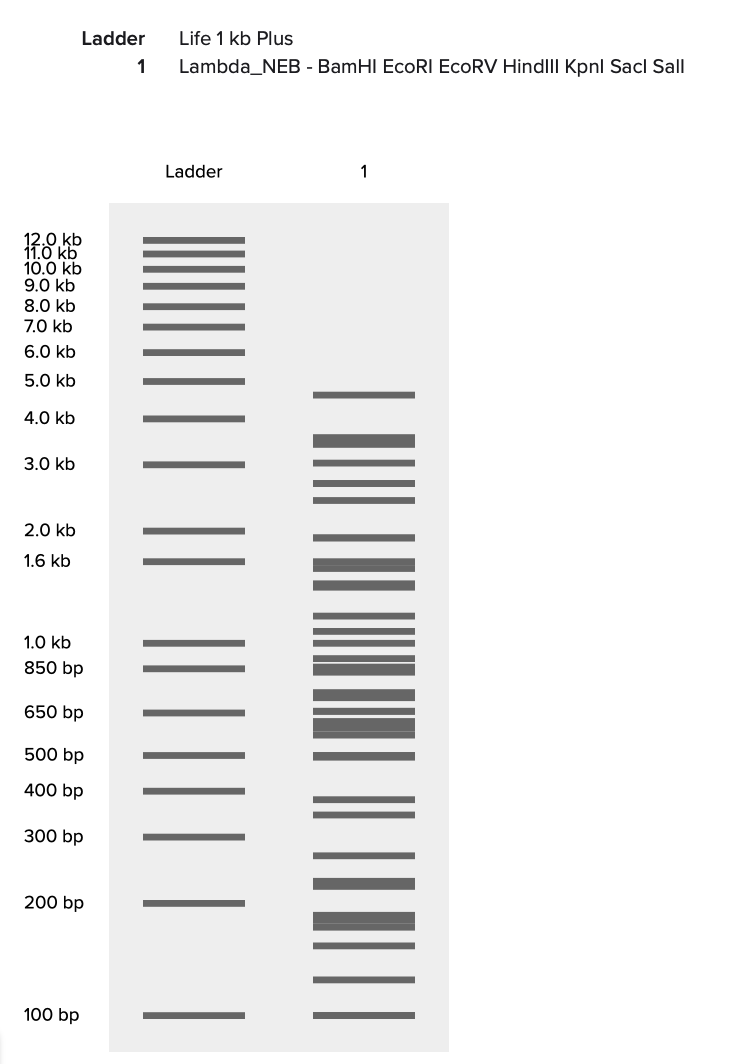

I imported the annotated Lambda DNA and ran a digest using the enzymes listed above.

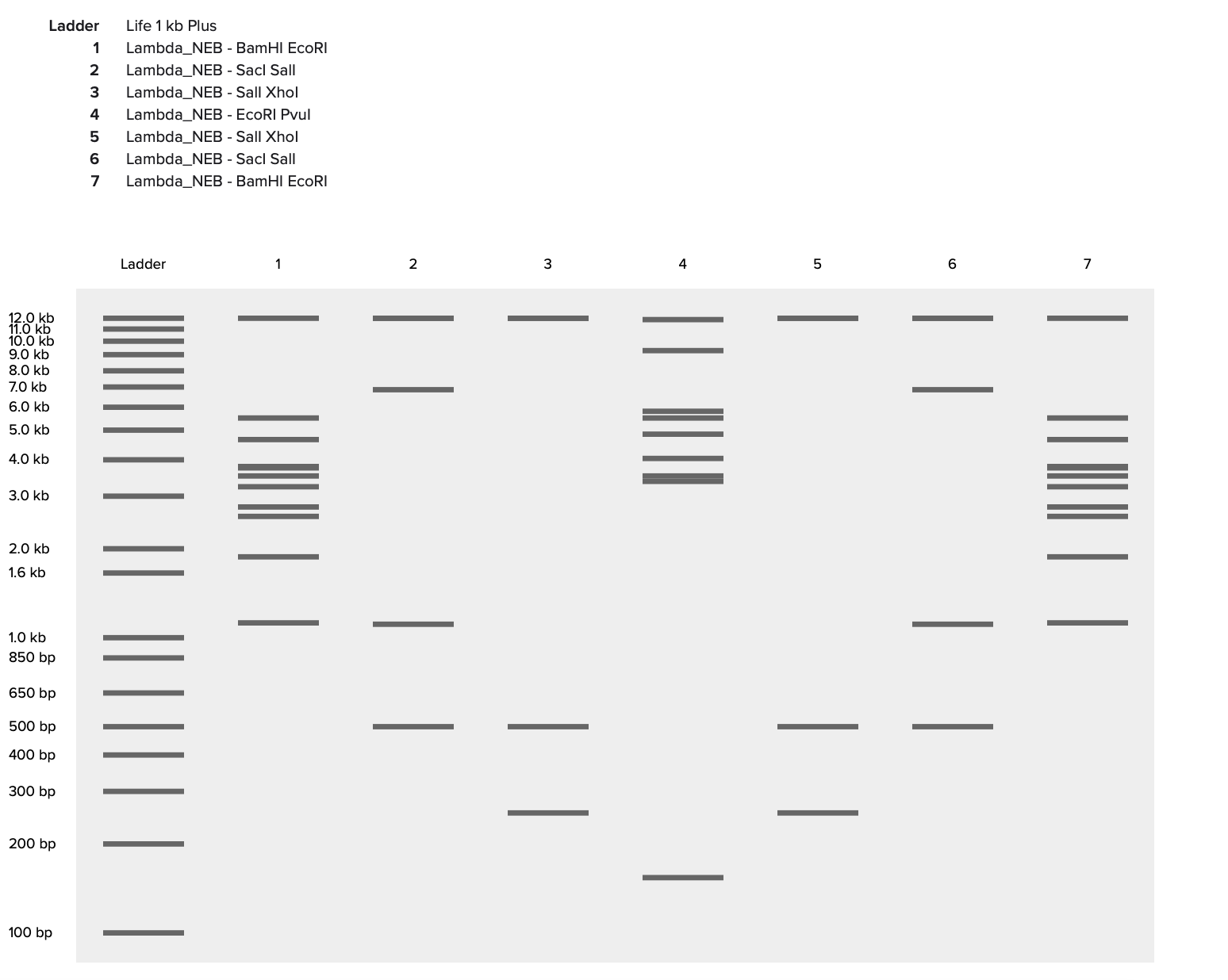

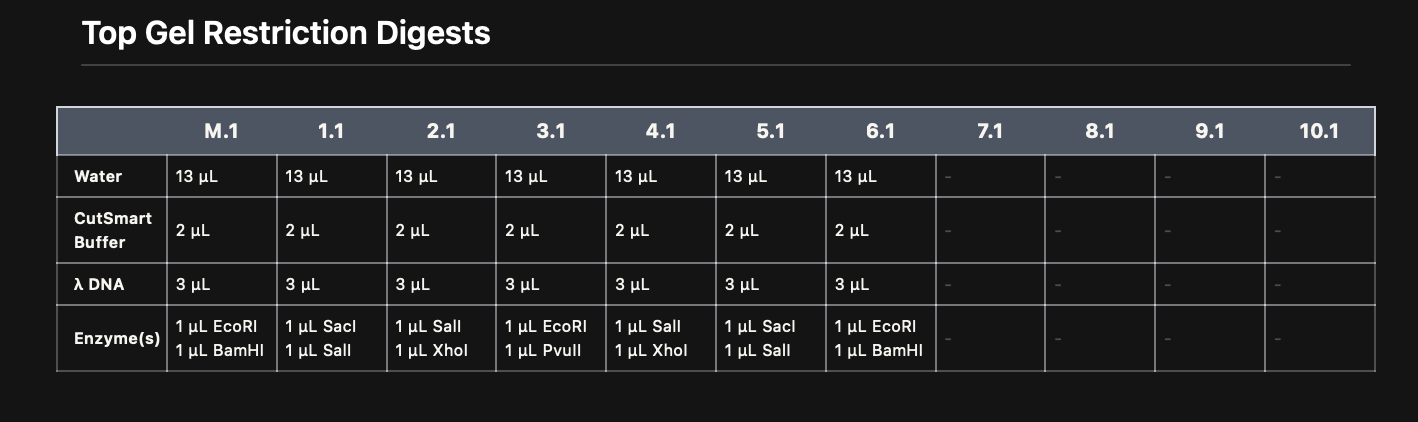

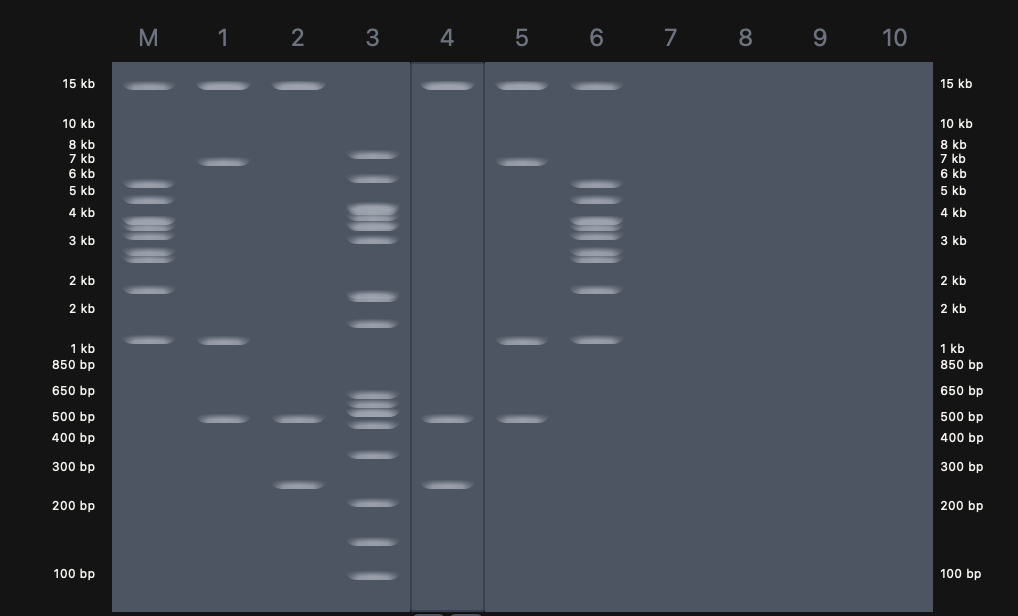

I then created a gel art pattern resembling a heart (to the best of my abilities!!!). To do so, I first simulated the gel run using DNA Gel Art Interface, before replicating the experiment on Benchling.
In recitation, we discussed that you will pick a protein for your homework that you find interesting. Which protein have you chosen and why? Using one of the tools described in recitation (NCBI, UniProt, google), obtain the protein sequence for the protein you chose.
3.1. Choose your protein.
The protein I picked is luciferase, a bioluminescent protein that offers a sustainable, highly efficient alternative to high-intensity, artificial lighting any can aid in tackling light pollution.
The NCBI accession of luciferase from Armillaria gallica is A0A2H3E985.
3.2. Reverse Translate: Protein (amino acid) sequence to DNA (nucleotide) sequence.
Amino Acid Sequence: MSFIDSMKLDLVGHLFGIRNRGLAAACCALAVASTIAFPYIRRDYQTFLSGGPSYAPQNI RGYFIVCVLALFRQEQKGLAIYDRLPEKRRWLPDLPPRNGPRPITTSHIIQRQRNQAPDP KFALEELKATVIPRVQARHTDLTHLSLSKFEFHAEAIFLLPSVPIDDPKNVPSHDTVRRT KREIAHMHDYHDFTLHLALAAQDGKEVVSKGWGQRHPLAGPGVPGPPTEWTFIYAPRNEE ELAVVEMIIEASIGYMTNDPAGVVIA
Nucleotide Sequence: atgagctttattgatagcatgaaactggatctggtgggccatctgtttggcattcgcaac cgcggcctggcggcggcgtgctgcgcgctggcggtggcgagcaccattgcgtttccgtat attcgccgcgattatcagacctttctgagcggcggcccgagctatgcgccgcagaacatt cgcggctattttattgtgtgcgtgctggcgctgtttcgccaggaacagaaaggcctggcg atttatgatcgcctgccggaaaaacgccgctggctgccggatctgccgccgcgcaacggc ccgcgcccgattaccaccagccatattattcagcgccagcgcaaccaggcgccggatccg aaatttgcgctggaagaactgaaagcgaccgtgattccgcgcgtgcaggcgcgccatacc gatctgacccatctgagcctgagcaaatttgaatttcatgcggaagcgatttttctgctg ccgagcgtgccgattgatgatccgaaaaacgtgccgagccatgataccgtgcgccgcacc aaacgcgaaattgcgcatatgcatgattatcatgattttaccctgcatctggcgctggcg gcgcaggatggcaaagaagtggtgagcaaaggctggggccagcgccatccgctggcgggc ccgggcgtgccgggcccgccgaccgaatggacctttatttatgcgccgcgcaacgaagaa gaactggcggtggtggaaatgattattgaagcgagcattggctatatgaccaacgatccg gcgggcgtggtgattgcg
3.3. Codon optimization.
Codon optimization is a pre-processing step in recombinant DNA design which takes into account the chassis’s codon bias – the non-random, preferential use of specific synonymous codons over others to encode the same amino acid – in order to optimize the expressed protein’s translation, folding, and quantity. This works because, although the genetic code is degenerate, different organisms favor different codons. If a cognate tRNA is unavailable during protein synthesis, the amino acid’s translation may halt and impact the final product.
Since A. gallica is not typically used industrially, E. coli will be used. Thus, the nucleotide sequence will be codon optimized to E. coli.
Optimized Nucleotide Sequence:
ATG AGC TTT ATT GAT AGC ATG AAA CTG GAC CTG GTC GGC CAC CTG TTT GGT ATC CGC AAC CGC GGC CTG GCG GCG GCC TGC TGT GCG CTG GCG GTG GCC AGC ACC ATT GCC TTC CCG TAT ATC CGT CGT GAT TAT CAG ACC TTC CTC TCC GGT GGG CCG AGC TAT GCT CCG CAG AAC ATC CGC GGT TAT TTT ATC GTC TGT GTG CTG GCG CTG TTC CGC CAG GAG CAG AAA GGC CTG GCG ATT TAT GAC CGC CTG CCG GAG AAA CGC CGC TGG CTG CCG GAC CTG CCG CCG CGC AAC GGT CCG CGT CCG ATT ACC ACC AGC CAC ATC ATT CAG CGC CAG CGT AAC CAG GCA CCG GAT CCG AAA TTT GCG CTG GAA GAG CTG AAA GCG ACC GTG ATT CCG CGC GTG CAG GCG CGC CAC ACC GAC CTG ACC CAC CTC TCG CTG AGC AAG TTT GAG TTC CAT GCA GAA GCG ATC TTC CTG CTG CCG TCT GTG CCG ATC GAT GAT CCG AAA AAC GTG CCC AGC CAC GAC ACC GTG CGC CGC ACC AAA CGT GAG ATC GCC CAC ATG CAC GAC TAC CAC GAC TTC ACC CTG CAC CTG GCG CTG GCG GCA CAG GAT GGC AAA GAG GTG GTG AGC AAA GGC TGG GGG CAG CGC CAT CCG CTG GCG GGC CCG GGT GTG CCG GGC CCG CCG ACC GAA TGG ACC TTT ATT TAT GCG CCG CGC AAC GAA GAA GAG CTG GCG GTG GTT GAA ATG ATC ATT GAA GCC TCA ATC GGT TAC ATG ACC AAC GAC CCG GCA GGC GTG GTG ATT GCC
4.2. Build Your DNA Insert Sequence

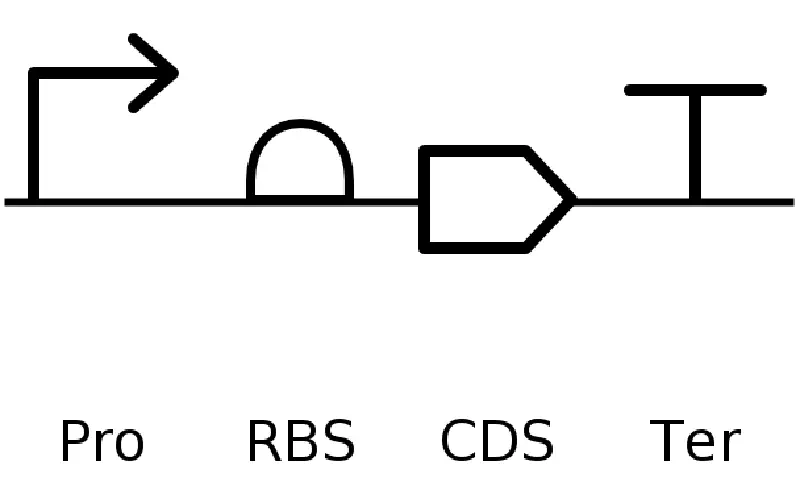

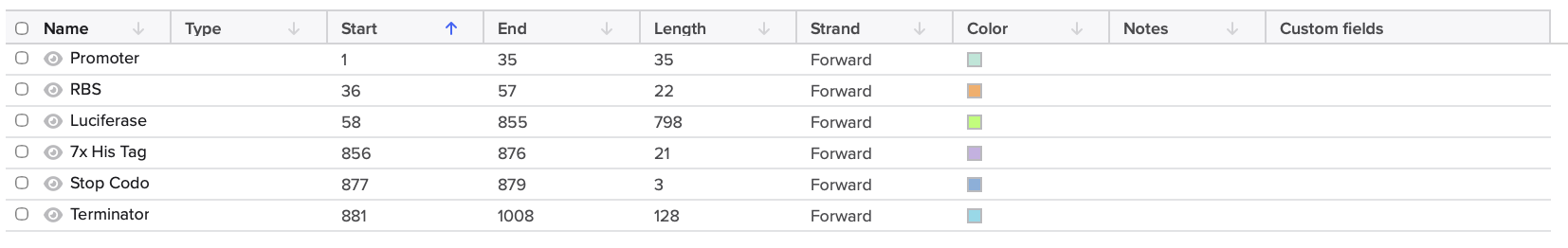

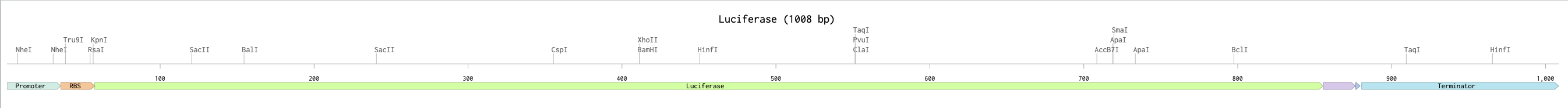

Using the listed promtoer, RBS, 7x His-tag, and terminator, I assembled and annotated the gene expression casette below.
5.1 DNA Read
(i) I would want to sequence the microbiome (MB) associated with a specific niche, such as the gut, focusing on both species abundance and functionalities. Bacteria co-evolved with a lot of species and thus play crucial roles in their health. In humans, this involves digestion, immunity, and even gut-brain health.
(ii) I would use Illumina sequencing for shotgun metagenomics. This is second-generation sequencing, where input DNA is extracted from stool, fragmented, adapter-ligated, PCR-amplified, and sequenced. Bases are decoded via fluorescence (Illumina), producing FASTQ files for downstream taxonomic and functional analysis.
5.2 DNA Write
(i) I would synthesize a genetic circuit in gut bacteria that senses inflammation and responds by producing a therapeutic molecule, such as an anti-inflammatory peptide or short-chain fatty acid. This enables localized, on-demand treatment of gut disorders while minimizing systemic side effects. The circuit would include a sensor promoter, regulatory logic, and an effector gene.
(ii) I would use phosphoramidite-based DNA synthesis to generate individual circuit components, followed by Gibson Assembly.
Essential steps include gene and oligo synthesis, genetic parts assembly, cloning, and validation (in vitro and in vivo). Limitations include sequence length constraints, synthesis errors, and batch-to-batch variations.
5.3 DNA Edit
(i) I would edit the genomes of gut-resident microbes to improve circuit stability, safety, and therapeutic performance. This could include knocking out competing pathways, tuning promoter strength, or enhancing stress tolerance to ensure reliable function in the gut environment.
(ii) I would utilize various forms of CRISPR technolgoies (e.g. Cas9, CRISPRa/CRISPRi) to introduce edits of different magnitdues as needed.
Automation Art: https://opentrons-art.rcdonovan.com/?id=ipo5wv9ww1wwm0c
1. Find and describe a published paper that utilizes the Opentrons or an automation tool to achieve novel biological applications.
I picked this paper by the Baker Lab because its definition of automation drew my attention. The paper developed what the authors refer to as a “partial automation instead of complex end-to-end robotics”, claiming that, although they did integrate robotic liquid handlers for some of the characterizations, the workflow should be widely adoptable to streamline workflows, even without the robotic liquid handlers. The argument that a many wet lab workflows are time, energy, and resource intensive resonated with my work.
Standard biochemistry workflows are the major bottleneck in de novo protein design.
Protein production and characterization are:
Iterative design–build–test cycles are slow, limiting throughput and innovation.
Single design → multiple downstream functional assays.
Write a description about what you intend to do with automation tools for your final project. You may include example pseudocode, Python scripts, 3D printed holders, a plan for how to use Ginkgo Nebula, and more. You may reference this week’s recitation slide deck for lab automation details.
Below is a protocol for a protein-agnostic directed evolution protocol:
Python: Generate library of starting proteins DMX: Generate genetic parts Python: Reverse translate Python: Codon optimize and remove stop codons Python: Design PCR primers DMX: Generate PCR primers Echo: Perform error-prone PCR Multiflo: dispense the PCR products to all wells containing competent cells to start protein expression. PlateLoc: seal plates. Inheco: incubate. Xpeel: remove seal. Identify variants with desired features (e.g. PHERAstar: measure and compare fluorescence ) Echo525: Amplify best-performing variants via PCR and use these as templates Repeat
