Week 3 pentrons Bio-Art & Lab Automation

Assignment: Telecaster Guitar Bio-Art

This week’s task was to create a Python script for the Opentrons OT-2 robot to draw an artistic design on an agar plate using colored bacteria.

1. Design Concept: The Telecaster

My design is based on the Fender Telecaster, an iconic electric guitar. I used different fluorescent proteins to represent the components:

  • Body Contour: mKO2 (Orange)
  • Neck & Headstock: mTurquoise2 (Cyan)
  • Pickguard: mBanana (Yellow)
  • Pickups & Hardware: mRFP1 / DsRed (Red)

2. The Challenge: Recovering a “Lost” Design

While I successfully generated the coordinates using the Automation Art Interface, I made the mistake of closing the browser before taking a screenshot.

How I Solved It:

Instead of re-clicking hundreds of points, I took the coordinate list from the exported Python script and used Google Colab with Matplotlib to recreate the design visually. This allowed me to:

  • Verify that all points were within the 40mm safety radius.
  • Ensure the aesthetic balance of the guitar was preserved.

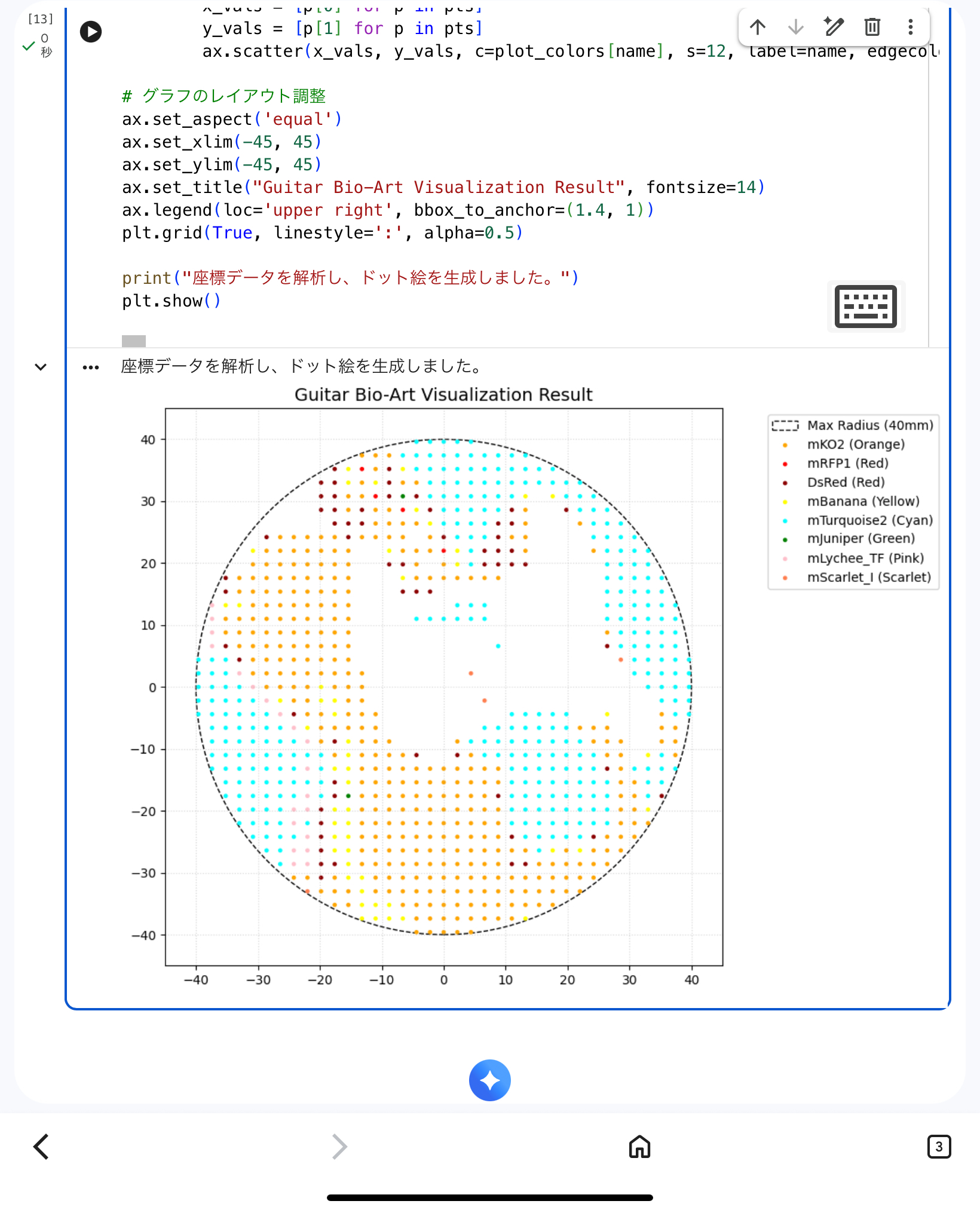

  • Generate a high-fidelity simulation image to replace the lost screenshot.

3. Coding & Troubleshooting (Technical Journey)

I refined the script in Google Colab. Several technical hurdles were overcome:

  • Environment Setup: Standard Colab environments do not have the opentrons library. I resolved this by running !pip install opentrons and restarting the runtime.
  • Simulator Errors:
    • Labware Missing: The simulator didn’t recognize the custom htgaa_agar_plate. I swapped it for a standard corning_96_wellplate_360ul_flat for simulation purposes.
    • Slot Occupied Error: An error occurred because Slot 6 was already occupied by the system. I updated the script to load the source plate into Slot 1 to avoid hardware conflicts.
  • Droplet Precision: To prevent smearing or “stringing” between dots, I implemented a dispense_and_detach function that moves the pipette 2mm upward after each drop.

4. AI Documentation

I collaborated with Gemini 3 Flash for this assignment:

  • Logic Support: Reorganizing raw coordinate data into a clean, iterable dictionary.
  • Debugging: Interpreting “LocationIsOccupiedError” and suggesting slot reassignment.
  • Visualization: Writing the Matplotlib script to plot the coordinates for verification.

Post-Lab Questions

Q1: Automation in Research

Paper: “An open-source, high-throughput liquid handling system for automated DNA assembly.” (Example: [Kanigowski et al., 2021]) This paper utilizes the Opentrons OT-2 to automate Golden Gate Assembly. By using robots, they reduced human error in complex pipetting steps and scaled up the creation of genetic constructs, achieving a 90% reduction in cost compared to proprietary systems.

Q2: Final Project Automation Plan

def screen_composite(broth_vol, spore_density):
    pipette.aspirate(broth_vol, reservoir['broth'])
    pipette.dispense(broth_vol, plate.wells())
    # Automated inoculation
    pipette.transfer(5, spore_source, plate.wells(), mix_after=(3, 10))
