Week 7 Lab: Neuromorphic Circuits

Louisa, Yao, and I worked together to complete this lab.

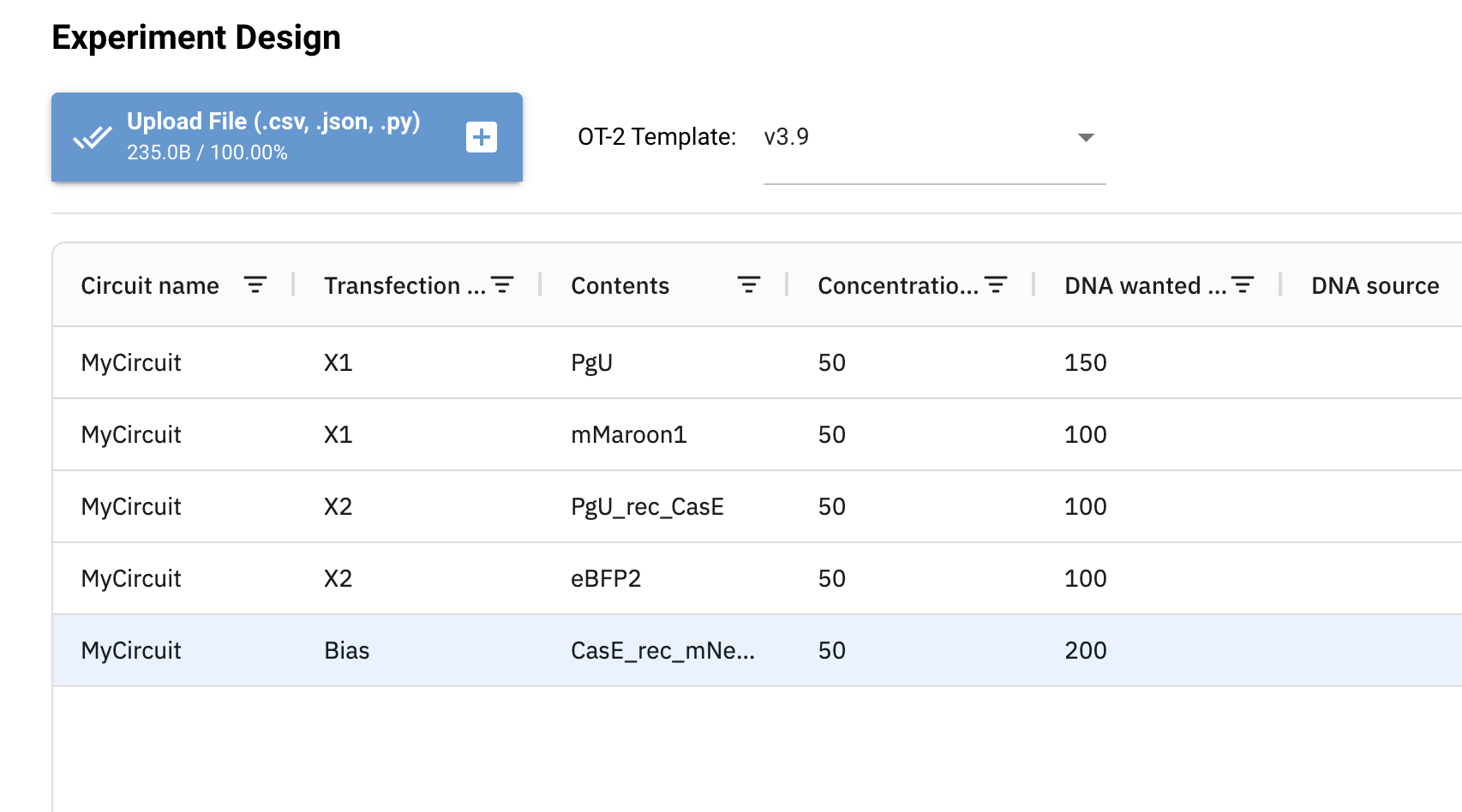

Below is the design of the neuromorphic circuit. The first input signal X1 is PgU, and the second input signal X2 is PgU_rec_CasE. When PgU is high, it will repress CasE, and when CasE is repressed, mNeon will be high.

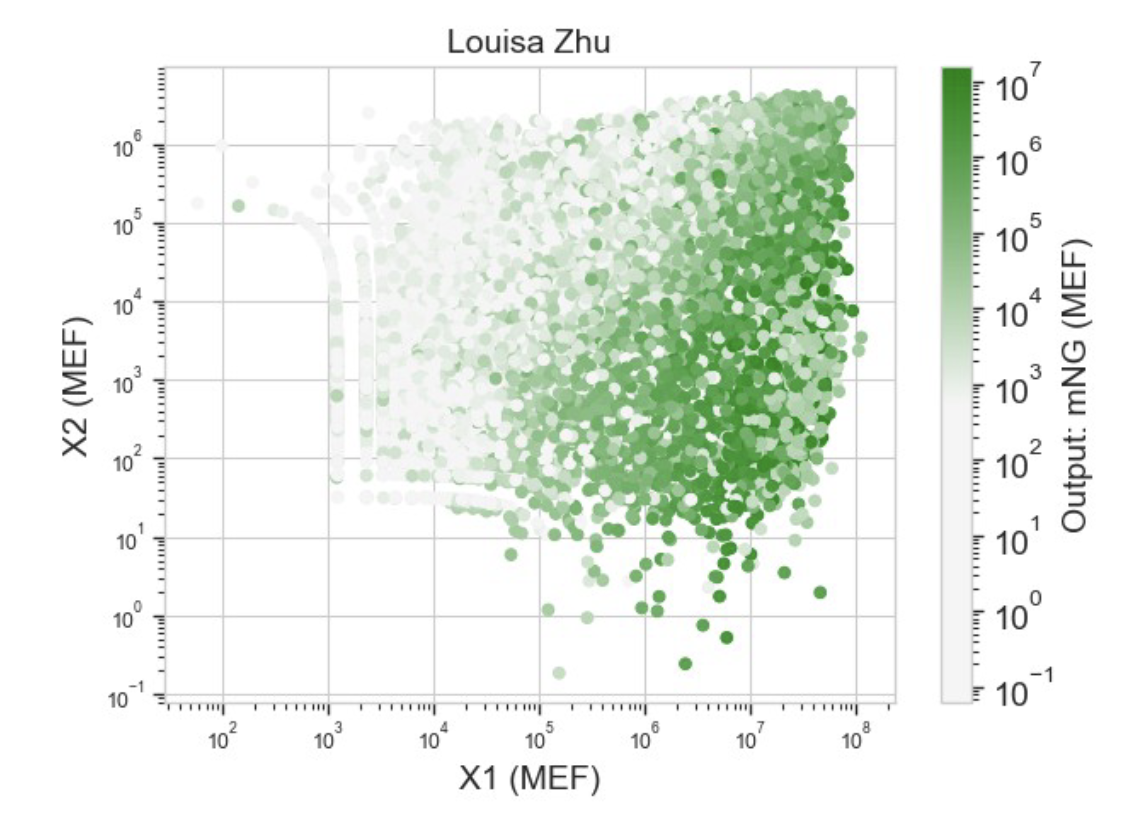

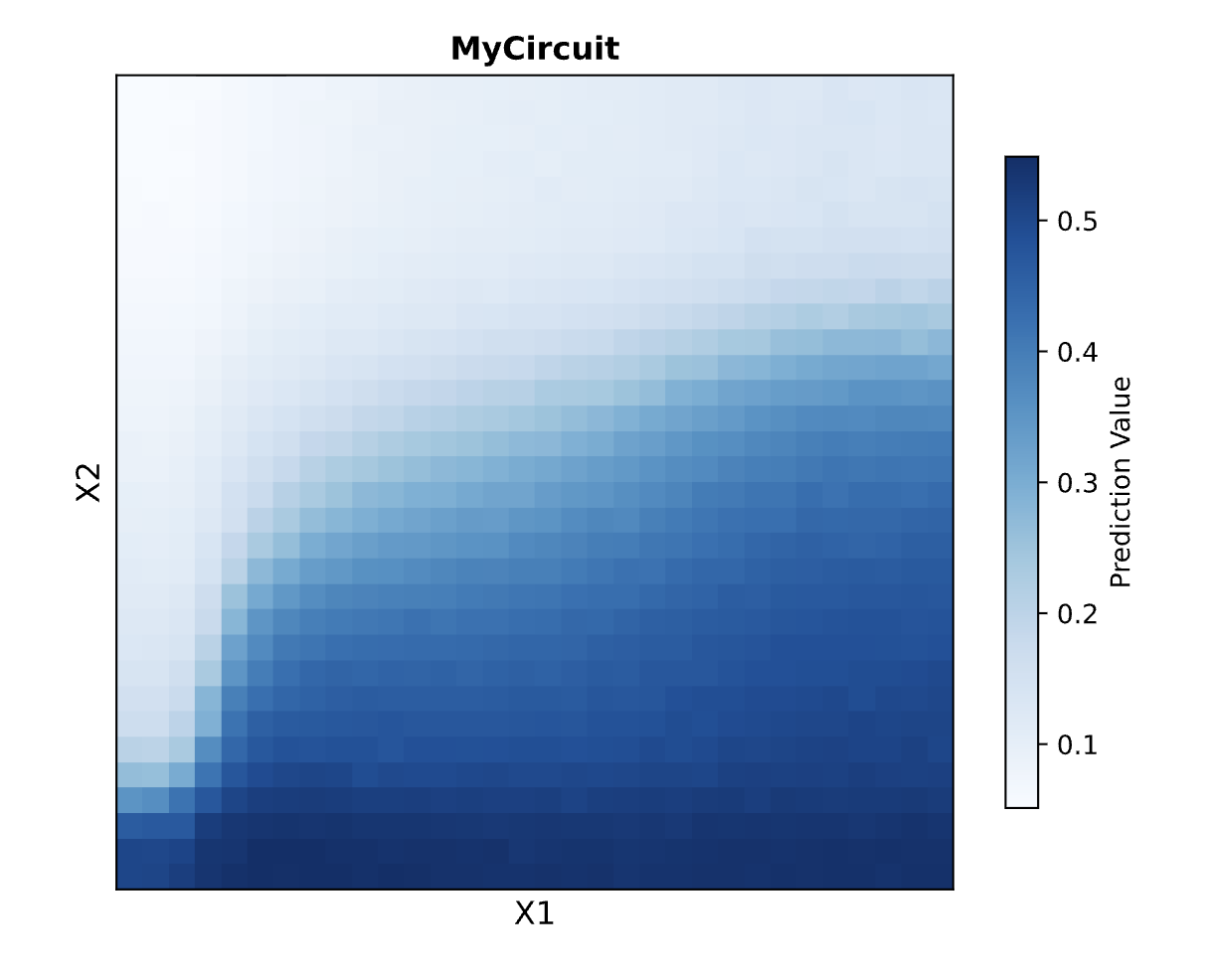

Below are the simulation and results of the neuromorphic circuit.

Simulation	Result
