Week 1 HW: Final Project Ideas

Week 2 HW: DNA Design — RootGuard TasA Prototype

Naufal Tsabitul Azmi · HTBAA Fall 2026 · Homework #2
Revised 2 October 2026. Kernel evidence was captured on 29 September–1 October; recovered sequence files were rechecked on 2 October. No wet-lab results are reported.

I designed a TasA expression prototype for my Homework 1 RootGuard concept. The assembled baseline is RootGuard_pHT01_Pveg_TasA_v2_DRAFT, an 8,734-bp pHT01-based construct containing native TasA CDS. Its actual Kernel GenBank export matches the prepared DNA. A separate 786-bp DNA Chisel candidate is a synonymous codon-usage comparison; it has not replaced the baseline.

This report answers Parts 0–6 and documents the available evidence. Host-specific codon optimization inside Kernel remains unresolved, and the exact course-workspace naming/membership also needs confirmation. The observed optimizer form did not offer Bacillus subtilis. I report the external alternative and its limits; instructor acceptance is not assumed. The assignment permits an imperfect design with explicit reasonable assumptions, but that does not waive this tool requirement.

Design brief: connecting HW1 to HW2

HW1 proposes RootGuard, a microbial inoculant carried on co-pyrolyzed cocoa pod husk and okara biochar, for eventual evaluation with maize under water limitation in Sumbawa. Its first goal is reproducible viable-cell loading and survival. Attachment, biofilm formation and plant benefit remain hypotheses. HW2 narrows that concept to a matrix-protein expression design; TasA is one component to investigate, not the complete inoculant.

Part 0 — Set up in Kernel

My Kernel repository is RootGuard-HTBAA2026, and my folder is azmi-rootguard-tasa. The baseline construct is RootGuard_pHT01_Pveg_TasA_v2_DRAFT, ID 306fda68-569a-4502-9a08-7cf18035d57e.

I explored existing parts and constructs. A part has an assigned biological role, such as promoter or CDS; a construct holds an assembled sequence and its annotations. A CDS imported into a construct container is still CDS-only unless vector DNA is actually present. I used the editor, functional part linking, sequence search, checker, sequence statistics, schematic export, Biosecurity sequence scanner and Kernel AI.

The screenshots show a workspace called HTGAA 2026, whereas the handout asks for HTBAA 2026. Repository and folder creation are documented; membership in the exact requested workspace needs course-team confirmation. The process documentation records the sequence of decisions and errors; the Notion journal retains the broader screenshot history.

Part 1 — Define the expression target

What molecule am I expressing?

TasA, a protein, is the selected expression target. The proposed role is to investigate one protein component of extracellular matrix in the RootGuard chassis. I am not encoding biochar synthesis, a complete biofilm pathway, drought sensing or a proven plant-growth effect.

What is the sequence, and where does it come from?

The sequence reference is B. subtilis NCIB 3610, chromosome NCBI NZ_CP020102.1, annotated feature complement(2553102..2553887), protein WP_004398632.1. The 786-bp native TasA CDS, including start and stop, matches iGEM BBa_K1701005 in the recorded full-length search. Download the complete native CDS and 261-aa protein sequence.

The imported strain-168 CDS is identical in this comparison. Consequently, the CDS match does not identify a strain background or prove that NCIB 3610 is the best production strain. NCIB 3610 remains the documented sequence source.

The chromosome feature lies on the reverse strand. For the construct, the CDS is represented in its own 5′→3′ coding direction, using the reverse complement of that chromosome interval. It starts ATG, ends TAA, contains 262 codons including the stop, and translates to 261 amino acids with no internal in-frame stop.

What is the chassis?

The intended expression host remains B. subtilis, consistent with HW1. An actual production strain still needs selection and qualification. I therefore do not claim that a named strain has been engineered, cultured or validated. Kernel metadata uses Other, with the intended Bacillus host stated in the description; a generic menu choice does not establish biological compatibility.

Where should the protein go?

The desired destination is extracellular matrix. I retain the full native N-terminal region and add no separate signal peptide or tag. Processing/export and the relevant SipW/TapA/matrix context must be checked in the eventual strain. The biological literature describes SipW-associated processing and matrix regulation in this system; it does not demonstrate performance of my construct. Terra et al. (2012), DOI 10.1128/JB.06780-11.

Part 2 — Design and compare the parts

Selected parts: type, sequence, source and justification

All expression-cassette sequences are supplied in the functional-parts FASTA. The annotation TSV pairs each sequence with its type, source, direction and coordinates. The complete reused vector context is included in the actual GenBank and reference FASTA.

The Pveg and terminator sequences, extracted from the actual Kernel export in forward orientation, are:

Pveg — 97 bp
AATTTTGTCAAAATAATTTTATTGACAACGTCTTATTAACGTTGATATAATTTAAATTTTATTTGACAAAAATGGGCTCGTGTTGTACAATAAATGT

Terminator — 54 bp
AAGAAGAAGTGTGAAAAAGCGCAGCTGAAATAGCTGCGCTTTTTTGTGTCATAA

There is no extra targeting element, because the full native N-terminal sequence is retained. There is no eukaryotic Kozak or poly(A) design: this is a bacterial expression cassette.

Candidate part comparison

The selected RBS has a nominal AAAGGAGG core followed by TGT; with the designed AATTA spacer, this gives a nominal eight-base interval before ATG. This is a sequence description, not proof of optimal initiation spacing or mRNA structure.

Replication and selection context

The copied 7,956-bp pHT01 DNA matches the archived Addgene vector sequence. This verifies the digital sequence relationship, not a physical clone or present-day purchasing availability. The MoBiTec Bacillus vector manual describes shuttle-vector use and chloramphenicol/ampicillin selection context. The design retains reference-mapped cat/CmR, bla/AmpR, lacI and replication-associated regions outside the replacement.

ColE1 is the E. coli replication-origin annotation. Minimal Bacillus origin boundaries are not assigned here. Marker/regulator annotations remain mapped reference regions, not newly validated complete CDS models. I would confirm the exact vector and its Bacillus replication/selection context before physical construction.

Part 3 — Assemble the minimum construct and check direction

The expression order is Pveg → RBS → spacer → full native TasA CDS → terminator, within the pHT01-derived context. The original 953-bp v1 contained this cassette only. Its circular topology metadata did not supply a replication backbone. Current v2 contains 8,734 bp.

I provisionally replaced pHT01 2684–2858, a 175-bp reference-mapped expression interval, with the 953-bp cassette: 7,956 − 175 + 953 = 8,734 bp. The left 2,683 bp and right 5,098 bp are unchanged. The replacement boundaries are engineering assumptions, not validated assembly junctions. Reference annotations were mapped by aligning an annotated NovoPro pHT01 variant to the exact copied DNA; differing variants were not assigned identical coordinates blindly. Residual lacI context remains.

Sequence-level checks and result

The actual Kernel GenBank export was checked against prepared v2 DNA. The original 1 October export QC passed 16 assertions. A separate 2 October re-verification passed 25 local checks, including length, unchanged flanks, cassette/CDS identity, typed forward annotations, start/stop, translation and the native–candidate comparison.

The RBS–spacer–start junction is AAAGGAGGTGT–AATTA–ATG. TasA is divisible by three, starts and stops at the intended positions, and has no accidental internal stop in its reading frame. Whole-v2 GC is 40.26%; native-CDS GC is 37.66%. Normalized v2 DNA SHA-256 is 23c372fad614d39adb670cf5291f002524fd956d518e39186b48047c7d81eba1. This DNA hash is distinct from the hash of the GenBank file bytes.

Figure 1. Actual Kernel PNG export, unchanged. Part-name labels are absent from this transparent export; the table above and labeled editor screenshot below supply the legend.

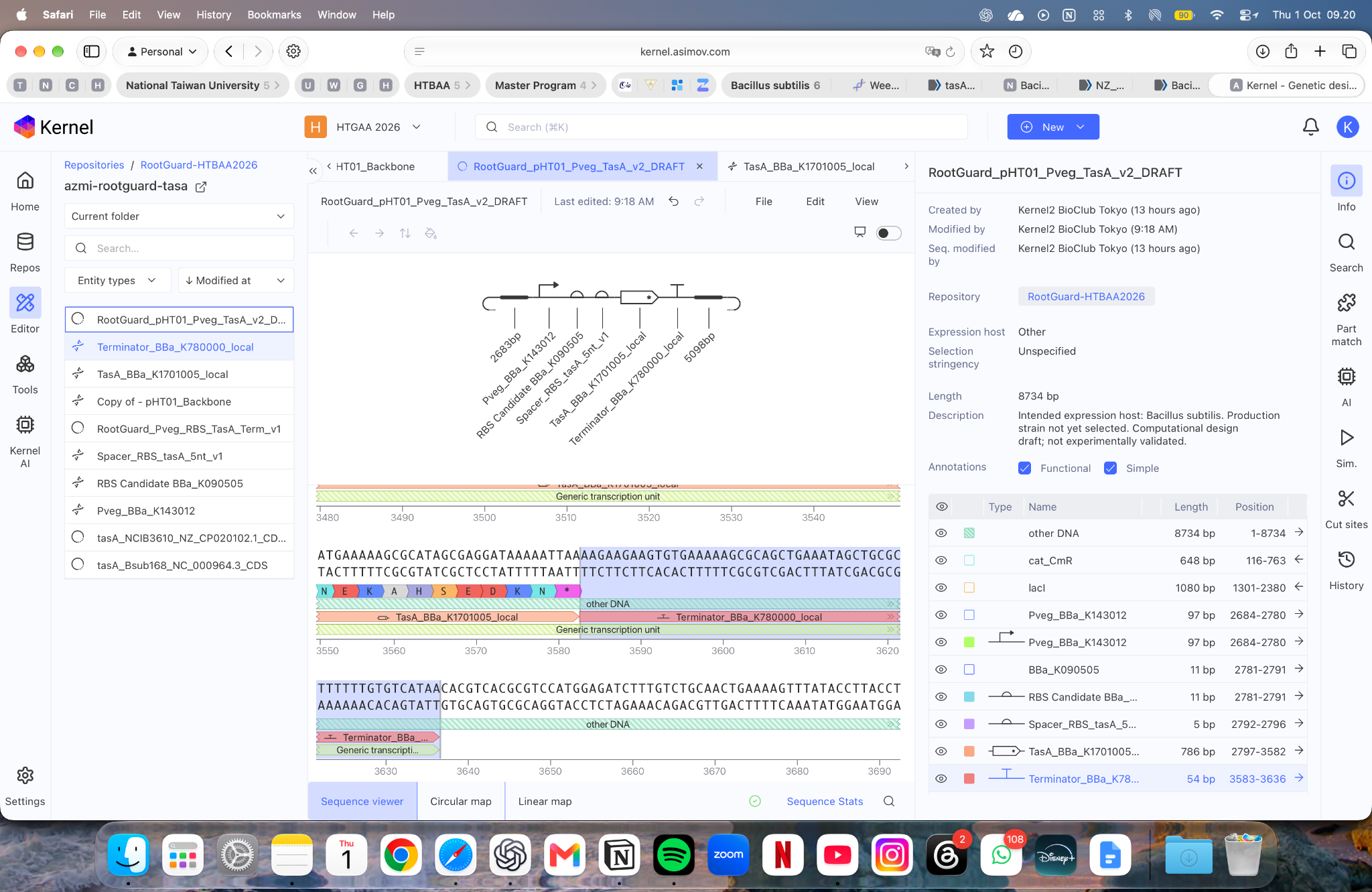

Figure 2. Original editor screenshot, 1 October 09:20 WIB. The functional definitions coexist with simpler feature labels; this does not mean extra copies of the DNA were inserted.

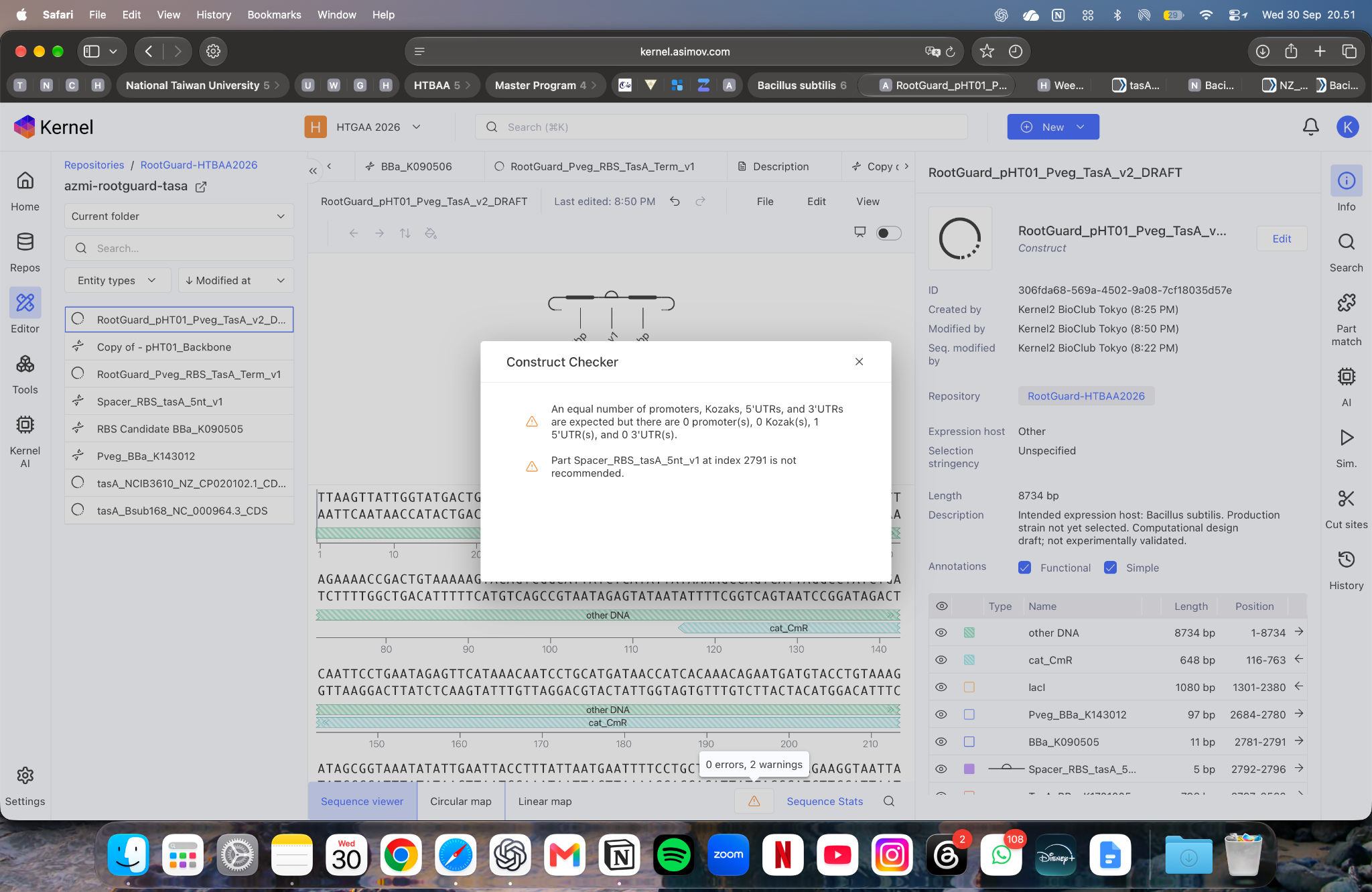

An earlier v2 checker showed 0 errors and 2 warnings, including a promoter-count inconsistency and an unrecommended local spacer. Typed functional parts were subsequently verified in the export. A complete updated v2 warning dialog is not supplied, so I do not claim that all v2 warnings disappeared. The documentation retains the earlier warning screenshot and explains its interpretation.

Part 4 — Optimize and quality-check

Codon optimization: what was attempted, returned and concluded

I inspected Kernel’s Simple v0.3 optimizer. The observed expression-organism menu offered Chinese hamster, human, E. coli and yeast, with no B. subtilis option. Kernel AI suggestions did not establish an available Bacillus setting. I did not substitute another host and call the result Bacillus optimization.

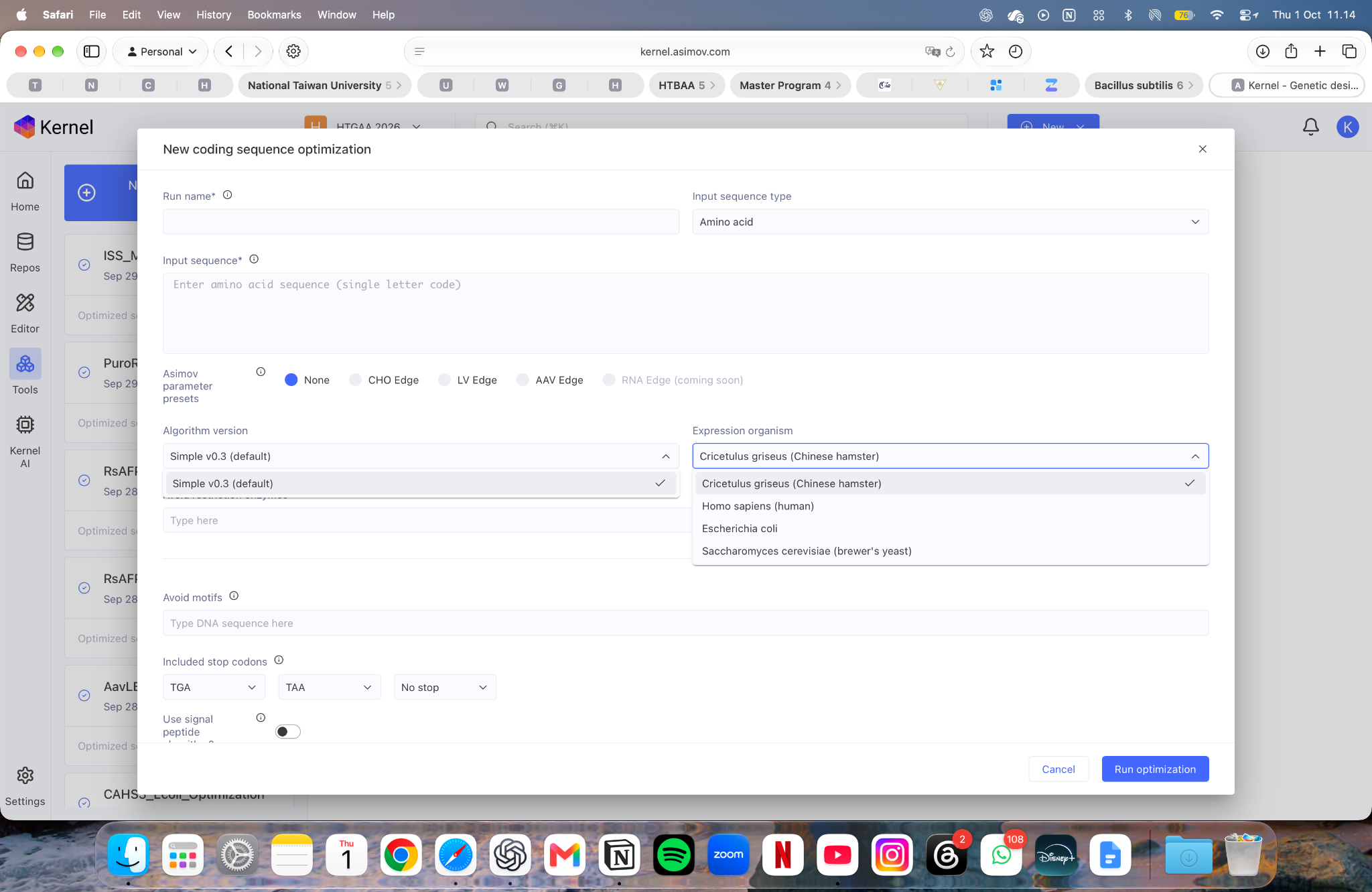

Figure 3. Original screenshot, 1 October 11:14 WIB. This documents the observed form, not a claim about every future Kernel version or workspace.

For a documented external comparison, I used DNA Chisel 3.2.16, CodonOptimize(method=“match_codon_usage”), and python_codon_tables 0.1.18 with b_subtilis_1423. The source is a species-level Kazusa/NCBI-derived table, not a selected production-strain or curated highly expressed-gene reference. Optimization covered the 261 sense codons, with seed 20261001. Constraints retained the protein, ATG start and TAA stop.

Different synonymous codons encode the same amino acid but may affect translation in a host. Matching a codon table offers a testable design hypothesis; it does not predict secretion or guarantee improved expression. DNA Chisel documentation and codon-table provider.

The candidate contains 52 nucleotide substitutions across 47 synonymous codons. Closer to zero means a closer table-profile match for this objective; the score is not CAI and is not measured expression. No GC target, restriction-site avoidance, mRNA-folding, secretion-efficiency or vendor-acceptance constraint was imposed.

The candidate FASTA, generation QC, change table, script, dependency versions and codon-table snapshot make the comparison inspectable.

The separate Kernel entry RootGuard_TasA_Bsub_DNAChisel_candidate_v1_2026-10-01, ID 61e38ea9-3d0f-4cc4-9b8a-629c57ec7736, is CDS-only, with tasA 1–786 forward. Its Sequence Stats shows 786 bp / 42.49% GC; editor validation shows 0 errors / 0 warnings. Those checks do not prove biological function. Its complete Kernel re-export has not been hash-compared; the supplied candidate GenBank is an external file, not that missing re-export. Native assembled v2 remains unchanged.

Sequence search: identity and nearest visible matches

I submitted complete CDS sequences to Kernel’s global sequence search. The results concern Kernel’s indexed repositories, including public iGEM entries and local constructs; this was not a separate NCBI BLAST run. Exact algorithm parameters and database snapshot were not displayed.

The native query is consistent with the known TasA sequence. For the candidate, several public/native entries tie at 93.4%. 734 / 786 × 100 = 93.3842%, matching the rounded display after 52 substitutions. This is a redesigned DNA sequence relative to the native reference, while local translation confirms the same protein. It is not evidence of globally novel sequence or a new protein function.

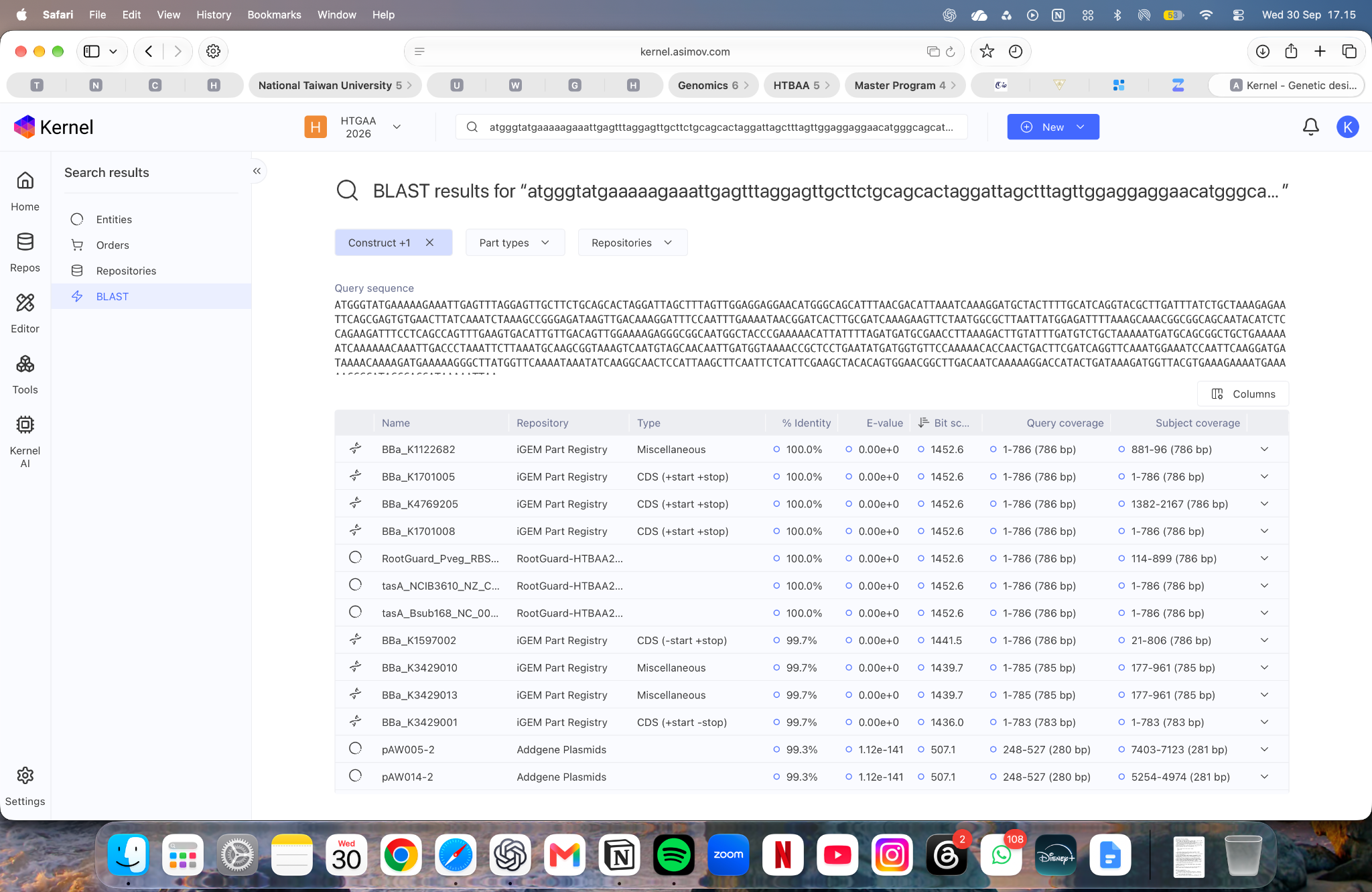

Figure 4. Native search, 30 September 17:15 WIB. BBa_K1701005 is a full-length 100% hit; other entries contain the same matching region.

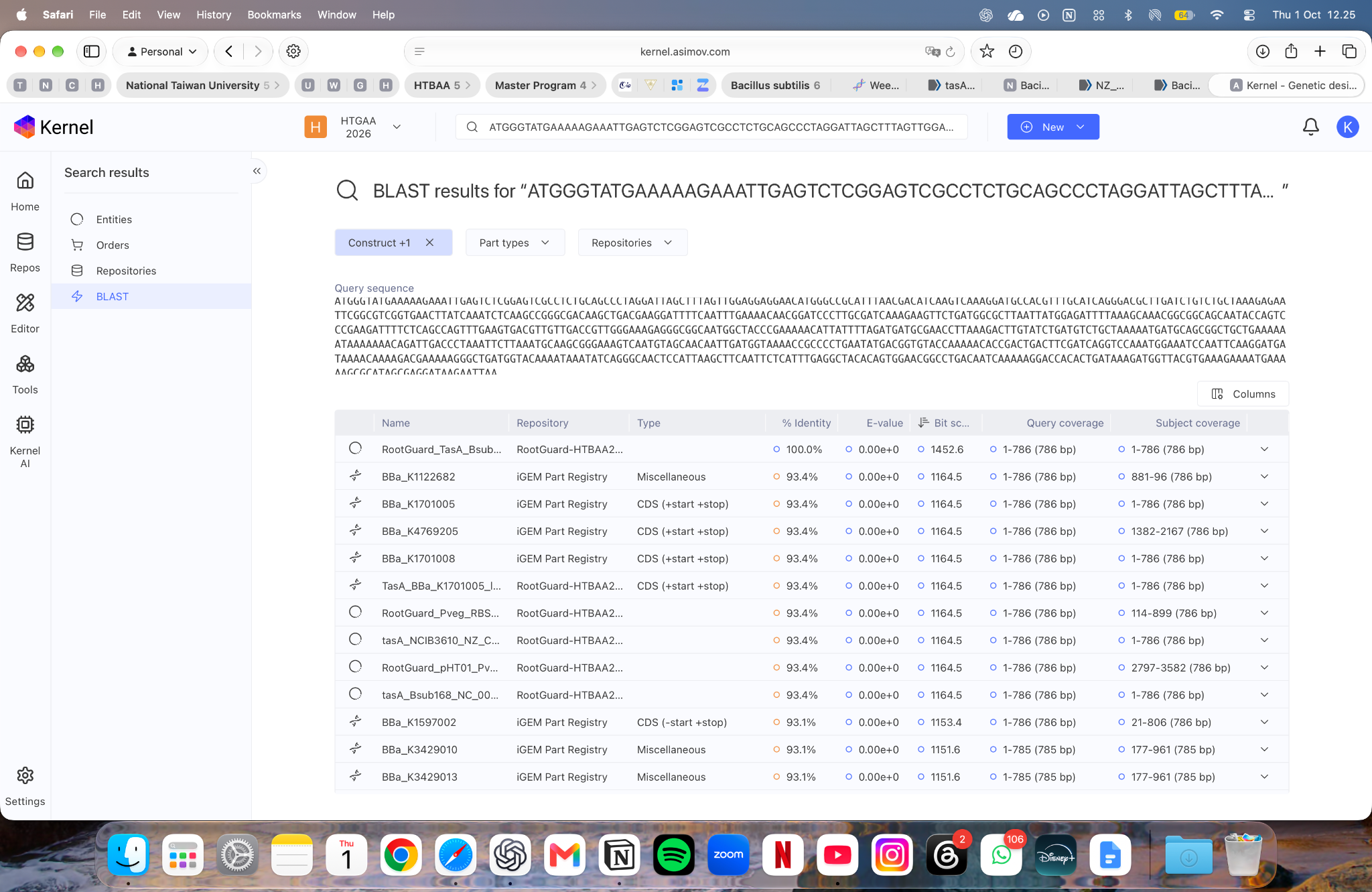

Figure 5. Candidate search, 1 October 12:25 WIB. The local candidate’s 100% self-match is not independent biological evidence. The visible filter is “Construct +1”; the additional entity type is not expanded. Subject coordinates differ between entries, including a reverse-oriented hit.

Biosecurity screening: what it checks and what happened

Kernel’s Biosecurity sequence scanner, powered by SecureDNA, compares nucleotide input against a database of potential biosecurity threats. The observed action button was Scan for Biohazards. The v2 workflow at 09:54 WIB and the candidate workflow at 12:14 WIB on 1 October reported No flagged sequences detected. Earlier v1 screening also reported no flags. Official Kernel documentation.

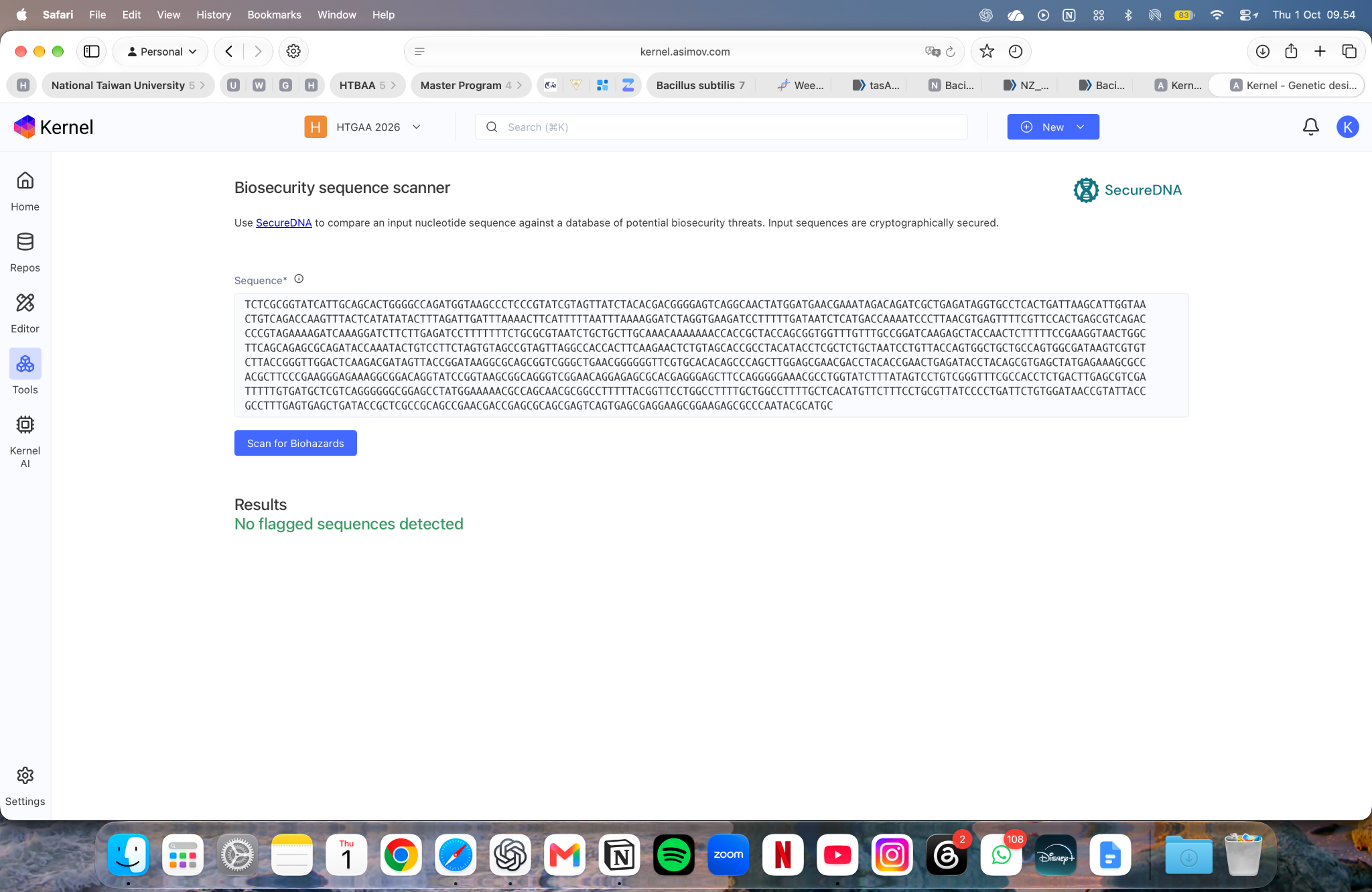

Figure 6. Whole-v2 workflow result, 1 October 09:54 WIB.

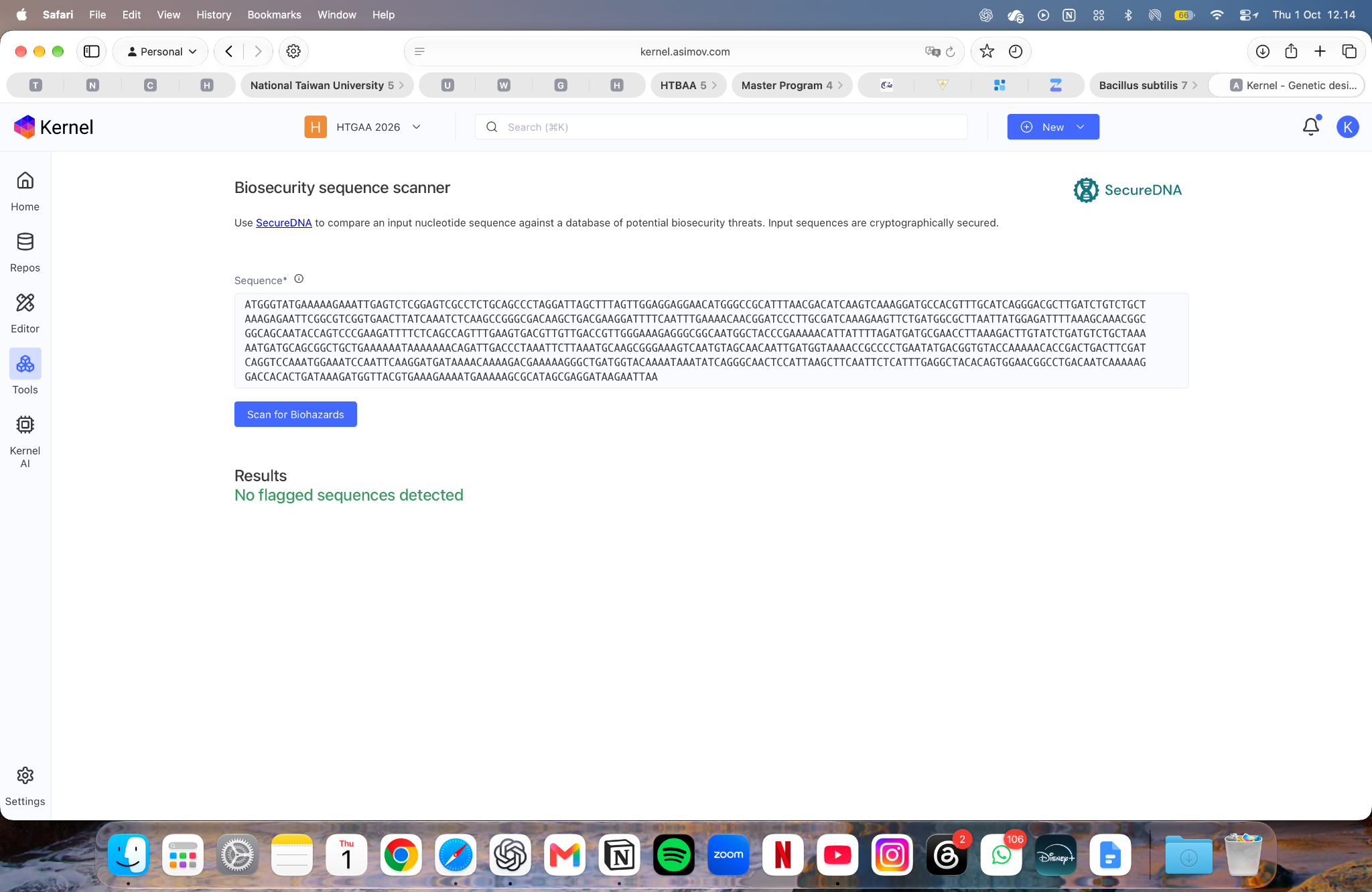

Figure 7. Candidate workflow result, 1 October 12:14 WIB.

The intended inputs were the 8,734-bp v2 and 786-bp candidate, and visible sequence endpoints agree with the source files. The screenshots do not independently establish full input length/hash, database version or a screening certificate. I retain this provenance limitation. No sequence flags in these runs does not establish living-strain safety, successful expression or suitability for environmental release. If a subsequent screen flags a region, I would review that region with the course team and screening provider rather than treat a digital pass as a substitute for review.

Historical QC files are kept unchanged. A generation-time field such as “candidate not imported or screened” describes that earlier snapshot; subsequent import, search and screening are documented here and in the dated re-verification record.

Part 5 — From design to build

How would I build one prototype?

I would start with a sequence-verified synthetic native cassette of 953 bp and an identified, compatible pHT01-derived vector. A fragment-based approach is reasonable for this modest cassette. Gibson assembly is a candidate route after the insertion boundaries and complementary overlaps are reviewed. I have not specified ready-to-order primers, overlaps or assembly scars, and no DNA has been ordered or built.

This is the minimum specification for review, not a completed commercial order. An entire 8.7-kb synthetic plasmid might be another route, but I have not checked vendor feasibility or cost and do not assume it is necessary for one prototype. A chip-derived oligo pool adds complexity that is not justified for this single initial cassette.

What does synthesis constrain?

Native CDS GC is 37.66%, its longest homopolymer is six bases, and it contains an EcoRI site at positions 150–155. That site matters if EcoRI is selected for restriction assembly; it does not inherently prevent an overlap-based assembly. The candidate’s longest homopolymer increases to seven bases, showing that codon-table matching does not automatically improve every synthesis property. These are CDS observations, not a full-vector vendor acceptance audit.

Before ordering fragments, I would review GC extremes, repeated or difficult regions, unwanted assembly-related sites and junctions. Splitting a difficult region into fragments may alter the build plan, but fragment assembly still needs sequence confirmation. There is no current vendor-specific difficulty report for this design.

Two assigned readings directly support this reasoning:

• Gibson et al. (2009) describes joining overlapping DNA fragments using exonuclease, polymerase and ligase in an isothermal reaction. It supports the proposed overlap-assembly route, without validating my chosen junctions. DOI: 10.1038/nmeth.1318.
• Carr et al. (2004) describes mismatch-protein-based error reduction in synthesized DNA. It supports considering synthesis errors and sequence verification of received DNA; I do not claim to have applied that error-correction method. Its historical error figures are not a current supplier guarantee. DOI: 10.1093/nar/gnh160.

Prototype versus scale

For a larger library of DNA variants, pooled synthesis and selective amplification, as in Kosuri et al. (2010), could become relevant. DOI: 10.1038/nbt.1716. This is distinct from scaling RootGuard production. After a strain and design are qualified, manufacturing focuses on cultivation, carrier formulation, recoverable viable cells and batch consistency; it does not require synthesizing new DNA for every inoculant batch. This keeps HW2 consistent with HW1’s proposed automated screening and later process-control workflow.

Part 6 — Three validation risks and how I would find out

Biochar can interfere with optical or colorimetric measurements, as already considered in HW1. Carrier blanks and recovery controls therefore matter. No matrix improvement, drought tolerance, maize-yield benefit or shelf-life claim follows from the software results.

Verified results versus assumptions

The handout asks for a defensible design, not a perfect lab-ready plasmid. The result is a documented computational prototype with explicit unresolved requirements, not a validated RootGuard product.

Questions for Homework Review

1. Does the visible HTGAA 2026 workspace satisfy the requested HTBAA 2026 workspace?
2. Can the documented external Bacillus codon comparison satisfy Part 4, or which available Kernel workflow supports this host?
3. Is TasA alone an appropriate HW2 scope, and which strain-context, replication and replacement-boundary checks should precede construction?

Documentation, files and evidence

• Process documentation: steps, decisions, errors and screenshots.
• Requirement-by-requirement coverage checklist.
• Actual Kernel GenBank, complete v2 DNA FASTA, typed-part sequences and annotation TSV.
• Native CDS, protein and external candidate CDS.
• Dated re-verification, standalone file-verification script, evidence manifest and file checksums.
• Complete dated Notion journal.

Sources and AI disclosure

Requirements follow the supplied HTBAA Homework #2: DNA Design handout and HTBAA Fall 2026 Syllabus. Project continuity follows my published HW1 and its supplied PDF. Sequence, part, vector and software links appear beside the relevant claims. Build reasoning uses the assigned Gibson (2009), Carr (2004) and Kosuri (2010) readings; I do not imply that every assigned reading was needed to select this simple cassette.

I used ChatGPT by OpenAI to interpret requirements and screenshots, review provenance/direction/frame, prepare the provisional pHT01 draft, run the external DNA Chisel comparison, recover/check files and revise this report. English translations of prompts originally submitted in Indonesian include:

• “How can I obtain it from an official source?”
• “Is this what you meant by exporting the map? Now that I have reached this stage, what should I do next to complete Homework 2 and publish it?”
• “Can you evaluate and analyze the entire narrative?”
• “Please prepare a fully revised write-up, including documentation and results, that answers all of the questions in Homework 2.”

I also consulted Kernel AI about Bacillus optimizer support. The exact English prompt asks for available controls, an explicit limitation if unsupported, and no substitution of another host or modification of native v2. AI suggestions were checked against available controls and sequence evidence. Proposed biological behavior remains an assumption wherever marked.

Week 3 HW: Cell-Free Reaction Design

Homework 3: Cell-Free Reaction Design

Student: Naufal Tsabitul Azmi
Last updated: 8 October 2026 (WIB; evidence and documentation update)
Initial submission: 5 October 2026 (WIB)
Assignment due: 6 October 2026, as stated in the official HW3 handout.

I compared two published cell-free formulations and submitted three initial 20 µL CFPS design hypotheses: a magnesium adjustment for sfGFP, a modest DsbC reduction for TfCut2/PETase, and a modest DsbC increase for Reteplase. The save confirmations and target groupings were verified on the class Coopetition platform. I also upvoted a Community Reagent and verified access to the class discussion channel. I did not conduct laboratory experiments for this submission; no new protein yield, enzyme activity, or experimentally improved cost is claimed.

The objective is to reduce cost per functional protein output, which depends on both mixing cost and the amount of active product. The reactions use Ginkgo-supplied lysate and target DNA. PETase here is Thermobifida fusca cutinase 2 (TfCut2), and Reteplase requires a disulfide-compatible framework. My three designs are small changes from target-specific reference presets. Each proposed change is intended to be evaluated against its unchanged reference under matched assay conditions. No results from an experimental comparison of these designs were found in the evidence reviewed for this report. Official assignment and target framework.

Completion record

Evidence status as of 8 October 2026

“Verified” below refers to the specific document, input check, or platform readback. It does not mean that the reactions have been run or their performance validated.

The detailed process and decision log and the dated cost observations below distinguish submission evidence from these unresolved items.

A. Compare cell-free reaction compositions

A1. Potassium and magnesium glutamate

Assignment question: Why does the concentration of potassium glutamate and magnesium glutamate differ between compositions? Which is more sensitive?

Potassium and magnesium glutamate help establish the ionic environment in which cell-free transcription and translation operate. Their useful concentrations depend on the whole formulation, including the lysate, its carried-over salts, nucleotides, energy substrates, and metabolites that accumulate during the reaction. A concentration optimized for one system should therefore be re-evaluated when those conditions change. Jewett and Swartz explicitly reoptimized magnesium when replacing PEP with pyruvate because PEP has a stronger affinity for magnesium and the expected phosphate accumulation also changes. Jewett & Swartz, 2004, PDF pp. 4–5, Tables I–II.

Magnesium was more sensitive around the optimum tested in their PANOx-SP system. Increasing added magnesium glutamate from 20 to 24 and 28 mM reduced normalized total CAT expression from 1.00 to 0.73 and 0.39. Increasing potassium glutamate from 175 to 200 and 225 mM reduced the corresponding values from 1.00 to 0.94 and 0.92. The magnesium response was therefore sharper in this experiment. Potassium still mattered: at 100 mM potassium glutamate, the relative yield was only 0.63. This supports a formulation-specific sensitivity conclusion rather than a universal statement that potassium is unimportant.

These are the authors’ measurements from Table II, using 15-µL PANOx-SP reactions at 37°C for 3 h, with one solute varied at a time. The magnesium values are additions: approximately 3.3 mM magnesium was also carried over from the extract. Nominal added or total magnesium must not be confused with measured free Mg²⁺. The data concern CAT in the paper’s system and do not establish the optimum for sfGFP, TfCut2, or Reteplase. Jewett & Swartz, Table II, PDF p. 4.

Design implication: salt optimization should be considered together with the energy/nucleotide strategy and the defined contributions from the class base buffer, rather than copying a literature value as an additional stock concentration.

A2. PEP + NTP versus ribose + NMP

Assignment question: Explain how a PEP+NTP reaction formulation is different from a Ribose+NMP reaction formulation.

The original PANOx-SP formulation adds phosphoenolpyruvate (PEP) as a phosphorylated energy substrate and supplies nucleotide triphosphates: ATP, GTP, UTP, and CTP. These provide nucleotide building blocks and support the energy-demanding transcription/translation system. ATP regeneration is supported by the supplied energy substrate and the enzymes present in the extract. PEP-based reactions can accumulate phosphate and experience pH changes; these effects are part of the chemical environment that must be optimized. Jewett & Swartz, Methods and homeostasis discussion, PDF pp. 2, 5–6.

Olsen’s RFopt instead uses ribose, glucose, phosphate, nucleotide monophosphates (AMP, GMP, UMP, and CMP), and other supporting components. No exogenous NTPs are listed in baseline RFopt. The reaction still requires NTPs: it relies on the lysate’s metabolic and nucleotide-regeneration activities to supply them. Thus, “no added ATP” does not mean “no ATP is required,” and ribose alone is not a direct replacement for every function of NTPs. Olsen et al., Table 1 and Fig. 2, PDF pp. 3, 5.

In Olsen’s own comparison, RFopt generated ATP despite starting without added ATP and maintained ATP around 250 µM, while phosphate remained approximately 10–15 mM during the measured reaction. Its PEP-based comparator showed a different ATP/phosphate profile. These observations support the importance of sustained metabolism and homeostasis. They are results under Olsen’s conditions, and the comparator reported by Olsen is a different implementation from the original 2004 PANOx-SP recipe. Olsen et al., Fig. 2, PDF p. 5.

Design implication: a ribose/NMP strategy is a plausible cost-focused baseline, but its performance depends on the lysate and reaction environment. It must be adapted to the class inventory and evaluated using functional output, rather than assumed to work because it uses cheaper ingredients.

A3. Comparison of two literature formulations

Assignment question: Choose two cell-free reaction compositions from the literature, compare and contrast the choice of reagents and the concentration of reagents.

I compare the original PANOx-SP formulation reported by Jewett and Swartz (2004) with RFopt reported by Olsen et al. (2026). The first represents a PEP/NTP-based strategy; the second represents a later ribose/NMP-based strategy optimized for low reagent cost and high sfGFP production.

The comparison uses Jewett’s original Methods/Table I, rather than substituting the PANOx-SP comparator column printed in Olsen’s Table 1. Those reported implementations differ: for example, original PANOx-SP contains 175 mM potassium glutamate and 20 mM added magnesium glutamate, while Olsen’s comparator column lists 130 and 8 mM, respectively. Keeping the versions separate makes the concentration comparison traceable. Jewett, PDF p. 2, Olsen, PDF p. 3.

Reading the table: concentrations are nominal amounts in the assembled reaction, not stock concentrations or measurements of free ions. “Not added” means no exogenous addition is specified; it does not mean that the molecule is absent from the lysate. Values are mM unless another unit is shown.

Jewett also reports extract contributions of approximately 2.4 mM Tris and 23.5 mM acetate. Original PANOx-SP therefore contains approximately 23.3 mM magnesium from its stated added glutamate salt plus extract carryover; this is not free Mg²⁺. RFopt’s Table 1 does not provide an equivalent quantified carryover correction. The class lysate fraction is fixed at 25%, so neither paper’s extract fraction can be transferred unchanged. Jewett, Methods/Table I, class specification.

Comparison and interpretation

Energy and nucleotide strategy. Original PANOx-SP uses PEP and externally added NTPs, whereas RFopt uses ribose/glucose/phosphate and NMPs. This changes the metabolic demands and the chemical environment, so the salt composition must also be considered.

Reagent choice and concentration. RFopt omits several separately supplied components listed in original PANOx-SP, including NAD, CoA, folinic acid, tRNA, and polyamines. At the same time, RFopt contains more potassium glutamate and amino acids, plus 75 mM HEPES. Low cost therefore does not mean reducing every concentration; it means choosing a productive combination and avoiding costs that do not improve the relevant output.

Experimental context. Jewett used CAT and an engineered K12-derived S30 extract at 37°C. Its Table II optimization used 15-µL reactions for 3 h, while other comparisons tracked reactions over 6 h. Olsen’s baseline RFopt measurements used sfGFP and BL21 Star (DE3) lysate, generally 15-µL reactions at 30°C for 20 h. Different proteins, lysates, temperatures, durations, and geometries prevent these literature results from being treated as a controlled head-to-head comparison of our two selected original recipes.

Results and cost scope. Olsen reports RFopt at 2.39 ± 0.28 g/L sfGFP, with reagent cost of USD 143 per liter of reaction and approximately USD 60 per gram of protein. These are the authors’ results and exclude lysate and DNA costs. Jewett’s original composition table does not supply the same modern costing basis, so I do not assign it a cost using Olsen’s differently composed comparator. The CAT expression measurements in Jewett and sfGFP measurements in Olsen should also retain their respective definitions and assay contexts. Olsen, Table 1, Jewett, Table II and Fig. 4.

Application to HW3. RFopt is a useful candidate baseline for a cost-focused design, but the class supplies fixed lysate, DNA, and base buffer. That base buffer already contributes salts, HEPES, and amino-acid components. Literature concentrations must therefore be converted into additions only after checking the actual inventory and those existing contributions. Reteplase also requires the prepared DSB framework and target-specific folding considerations; baseline RFopt is not the same formulation as oxidized RFopt. No published result above establishes that a new class composition will produce functional protein.

B. Design and participation

B1. One reaction composition for each target

Assignment: publish a first unique 20 µL CFPS composition for sfGFP, PETase, and Reteplase, and explain the reagents adjusted from the relevant categories. I designed one reagent perturbation from each target-specific preset and balanced the volume with water. These are proposed one-factor-at-a-time comparisons. No experimental evaluation of these proposals was found in the evidence reviewed for this report. Other energy substrates, building blocks, salts, cofactors, and redox components were retained from the corresponding reference unless explicitly changed below.

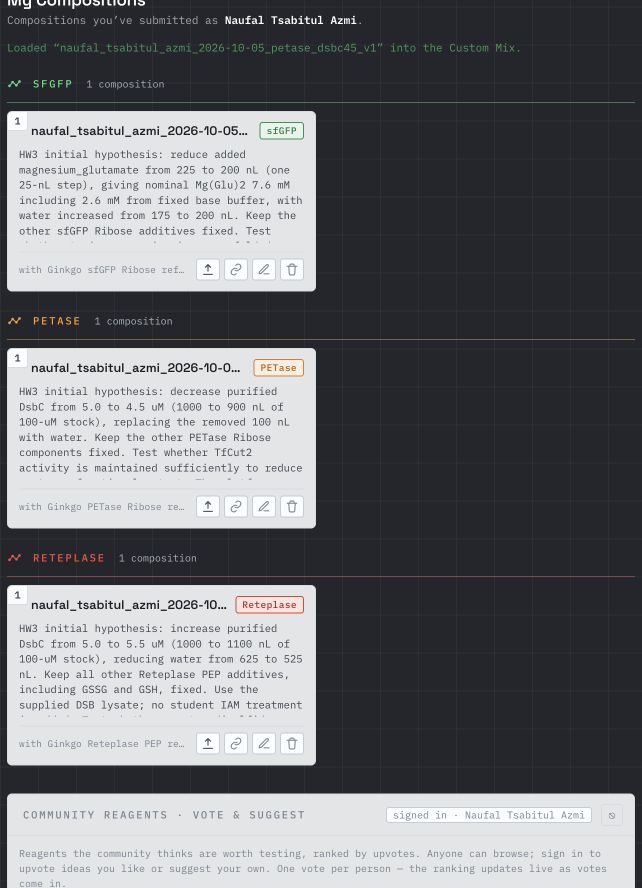

The three entries were saved and grouped under their corresponding targets in My Compositions. Each differs from its reference preset; I did not perform an exhaustive community-wide duplicate audit. The downloadable JSON files preserve the submitted inputs and are not raw server exports. Reloading a saved additive mix into Custom Mix can assign a new sample ID, reset metadata, and retain the currently selected DNA target, so that view alone does not verify a record’s saved target or final cost.

Archive qualification: the Submitted JSON files remain unchanged as historical inputs paired with the 5 October save evidence. Their comments contain the original cost estimates; the dated cost note below records subsequent unresolved display differences. The record links above open loaded copies and should be read with this limitation.

Download the submission-verification screenshot.

Volume, DNA-target, and local verification

All three reagent lists total exactly 20,000 nL. Every volume is a multiple of 25 nL. Each contains fixed base buffer 2000 nL, lysate 5000 nL, and exactly one target-matched DNA template 2000 nL; additives plus water total 11,000 nL. PETase/TfCut2 uses template_petase; Reteplase uses template_reteplase. The local JSON target keys were corrected to match the official specification.

Interface pitfall: loading a preset does not automatically switch the DNA/protein target. Check both the selected protein target and the exported template_* key before submission. A PETase or Reteplase preset can otherwise retain the previously selected sfGFP template. Matching fixed volume alone cannot detect this error.

Concentration basis

Stock labels for variable reagents come from the visible public DOM snapshot captured on 5 October 2026. DNA and base-buffer stock values come from the official specification. Nominal final concentration = stock concentration × reagent volume / 20,000 nL, plus any defined base-buffer contribution. The fixed buffer contributes HEPES 30 mM, potassium glutamate 200 mM, magnesium glutamate 2.6 mM, amino-acid mix 1 mM, and cysteine 1 mM. Tyrosine is represented within the base-buffer amino-acid contribution; the platform displays 1 mM tyrosine with no separate addition in these recipes. Listed amino-acid-mix levels are nominal mixture/per-component levels, not a sum across all amino acids. Base-buffer contributions are already included in affected table rows and must not be added twice. Unknown endogenous lysate contributions and free-ion concentrations are not determined by this calculation; potassium-glutamate concentration is not total potassium concentration. Folinic acid stays in mg/mL because that is the verified stock unit.

Cost estimates and unresolved display differences

The table preserves the paired UI estimates recorded on 5 October 2026, including the rounded costs visible immediately after the respective save confirmations. These estimates describe the reaction as mixed, not a full procurement or project budget. They do not represent a bottle purchase, minimum order, shipping, labor, capital, or complete downstream workflow. USD per 20 µL reaction is calculated as the displayed USD/mL × 0.020 mL; source values are rounded.

Loaded-copy observations on 8 October 2026:

An earlier PETase reload had retained the editor’s then-current Reteplase template. The 8 October checks show that selecting the corresponding target and DNA template did not resolve the observed price differences. These loaded copies generated new sample IDs and reset metadata; they are not raw server exports. The cause remains unresolved, so these observations do not establish definitive costs for the saved records.

The 91.7% PETase and 108.2% Reteplase thresholds below remain conditional calculations from the original paired estimates. They have not been recalculated from loaded-copy prices because matching reference costs were not established in those checks. Neither experimental activity nor improved cost per functional output has been established. Final costing requires a reconciled, target-matched reference/design pair under the same pricing basis.

B1.1. sfGFP: one-step magnesium adjustment

Reference: sfGFP Ribose (sfGFP_R2PC_054).

Submitted sample ID: naufal_tsabitul_azmi_2026-10-05_sfgfp_mg76_v1. Platform record ID: 14sqepz2b15y1o0.

Change: Supplemental magnesium glutamate: 225 → 200 nL; water: 175 → 200 nL. Nominal final magnesium glutamate: 8.225 → 7.600 mM, including the fixed base-buffer contribution.

Hypothesis: A one-droplet reduction in supplemental magnesium may preserve or improve folded sfGFP production by changing the ionic environment of the ribose/NMP formulation. Magnesium is sensitive to formulation context, so the direction of any effect remains unknown. The direct salt saving is small; the primary test is functional output relative to reaction cost.

Risk: A small volume step can still move the reaction away from its magnesium optimum. Nominal magnesium concentration does not measure free Mg²⁺, and the optimum from another energy system or lysate cannot be assumed here.

Planned evaluation: Use endpoint sfGFP fluorescence with the appropriate protein standard curve and plate controls; compare with the unchanged sfGFP Ribose reference under the same conditions.

Conditional break-even: The UI rounds baseline and draft costs to the same $5.79/mL. At that displayed precision, functional sfGFP output must exceed baseline to improve cost per functional output; the tiny underlying salt saving is not resolved by this rounded display.

Submitted input: sfGFP JSON.

B1.2. PETase/TfCut2: modest DsbC reduction

Reference: PETase Ribose (Cutinase_R2PC_054).

Submitted sample ID: naufal_tsabitul_azmi_2026-10-05_petase_dsbc45_v1. Platform record ID: ov0n7790fzd7f99.

Change: DsbC: 1000 → 900 nL of the displayed 100 µM stock, giving 5.0 → 4.5 µM; water: 225 → 325 nL. Other additives remain fixed.

Hypothesis: Reducing DsbC supplementation by 10% may retain enough folding assistance for TfCut2 while lowering reaction cost. Its single disulfide bond motivates a conservative dose test; it does not establish that DsbC is unnecessary.

Risk: Reduced folding assistance may lower active enzyme production more than the reagent saving can tolerate. The soluble p-nitrophenyl-ester assay measures esterase activity and does not directly demonstrate hydrolysis of solid PET.

Planned evaluation: Compare the initial PNP assay rate with the unchanged PETase Ribose reference, using consistent dilution, the linear assay range, standards, and controls. Product concentration is an activity proxy, not enzyme mass.

Conditional break-even, using the original paired UI snapshots: activity_new/activity_reference must exceed 0.91709, or about 91.7%, to improve cost per unit activity. A reduction in activity of roughly 8.3% would erase the estimated saving.

Submitted input: PETase JSON.

B1.3. Reteplase: modest DsbC increase

Reference: Reteplase PEP (Reteplase_R2PC_041).

Submitted sample ID: naufal_tsabitul_azmi_2026-10-05_reteplase_dsbc55_v1. Platform record ID: sfvi72kwto5mmc6.

Change: DsbC: 1000 → 1100 nL of the displayed 100 µM stock, giving 5.0 → 5.5 µM; water: 625 → 525 nL. GSSG and GSH remain fixed at nominal 4.0375 and 1.0 mM.

Hypothesis: A 10% increase in DsbC may improve disulfide isomerization and the functional fraction of Reteplase, which requires nine correctly paired disulfide bonds. The added folding helper increases reaction cost, so the hypothesis concerns cost per functional activity rather than cheaper mixing.

Risk: Extra DsbC may give little benefit or disturb the reaction; more folding helper does not guarantee correctly paired disulfides. Maintain the supplied DSB lysate and existing GSH/GSSG system. No student IAM treatment is included.

Planned evaluation: Compare the initial AMC-cleavage assay rate with the unchanged Reteplase PEP reference, using the defined assay window, elapsed time, standard curve, and controls. AMC concentration is a product/activity proxy, not Reteplase mass.

Conditional break-even, using the original paired UI snapshots: activity_new/activity_reference must exceed 1.08175, or about 108.2% of baseline, to improve cost per unit activity. The necessary gain is greater than approximately 8.2%.

Submitted input: Reteplase JSON.

B2. Community Reagent: FkpA

Assignment: contribute or upvote at least one reagent, explain why it was selected, and link relevant research. I selected an existing FkpA proposal because it tests folding assistance that complements the disulfide-isomerization strategy already used for Reteplase.

FkpA is worth testing as a complementary folding helper because Groff et al. (2014) found that purified FkpA improved antibody-chain solubility in E. coli cell-free synthesis and, together with DsbC, increased assembled IgG production. For HW3, I would test whether adding FkpA to the existing Reteplase DSB formulation increases functional activity sufficiently to justify its additional reagent cost. The study evaluated antibodies, so any benefit for Reteplase remains a hypothesis requiring target-specific activity and cost measurements. Groff et al. (2014), DOI 10.4161/mabs.28172.

Completion evidence: I upvoted FkpA on 5 October 2026. Readback showed “Remove your vote” and the displayed count increased from 3 to 4. FkpA is not present in these three submitted compositions. This records an upvote on an existing proposal; it does not claim a new reagent proposal or a published rationale comment.

B3. Access to the cfps-coopetition discussion

Assignment: visit the dedicated forum channel and ensure discussion access. I verified access to cfps-coopetition on 5 October 2026. Sending an optimization idea is a bonus in the handout. No forum message was posted for this submission.

C. Optional Asimov Kernel work

I did not undertake the optional T7-compatible plasmid construction or the bonus T7 helper-plasmid design in this submission. The three submitted reactions use the supplied target templates. This page makes no plasmid-design completion claim for HW3.

Process documentation and remaining questions

The working process was to read the official assignment and platform specification; compare the primary literature with its original concentration and cost definitions; inspect the available stocks and target-specific presets; make one change per design; balance the water volume; check fixed components, total volume, dispensing increments, and DNA-target identity; submit the three records; and read back the save confirmations and target groupings. Participation was documented by the FkpA upvote readback and forum access check.

The source and decision log is kept in the HW3 journal, the three-design documentation page, and the detailed process and decision log. The detailed log records 27 meaningful steps, 10 decisions, 10 source entries, and the submitted record IDs. These records preserve reasoning and limitations alongside the learning notes.

Two questions remain for subsequent work: reconcile the changing UI cost displays for loaded PETase and Reteplase recipes, and evaluate each hypothesis when controlled assay results become available. The break-even ratios above are calculations from paired UI estimates, not experimental findings. For PETase and Reteplase, PNP and AMC product measurements must retain their activity-proxy interpretation rather than being treated as grams of enzyme.

Recitation preparation

• Explain why magnesium sensitivity depends on the complete reaction formulation and distinguish added, nominal total, and free magnesium.
• Explain how a ribose/NMP reaction can require ATP/NTPs while adding no exogenous NTPs.
• Identify the original PANOx-SP and RFopt source versions and explain why their published outputs are not a controlled head-to-head comparison here.
• Describe the single variable changed in each submitted recipe and predict both possible benefits and failure modes.
• Show the 20,000 nL volume calculation, 25 nL increments, fixed components, and target-matched DNA templates.
• Explain the conditional 91.7% PETase and 108.2% Reteplase activity thresholds, together with the unresolved UI-cost limitation.
• Explain why FkpA’s antibody evidence motivates a Reteplase test without proving a benefit for that target.

AI assistance and prompts

AI client: Codex desktop. The specific AI model identifier was not captured in the preparation record. No trained yield-prediction model was built: these designs use literature-guided hypotheses, one-variable perturbations, volume/concentration arithmetic, and conditional cost/activity ratios. AI assisted with reading and extracting the supplied PDFs, explaining the concepts, comparing the literature, checking arithmetic, drafting the design hypotheses and documentation, and operating the authorized submission workflow. The reasoning and evidence need to be understood and explained by the student during recitation, as required by the assignment’s AI-use section.

Sources and downloadable evidence

• Official Homework 3 handout: assignment questions, target-specific folding requirements, assays, participation requirements, and AI disclosure.
• CFPS Coopetition specification: target templates, fixed reaction components, base-buffer contributions, Ginkgo preparation, and assay interpretation.
• Class Coopetition designer: reference compositions, visible stock concentrations, submitted-record readback, and UI estimates.
• Jewett, M. C., and Swartz, J. R. (2004). Mimicking the Escherichia coli cytoplasmic environment activates long-lived and efficient cell-free protein synthesis. Biotechnology and Bioengineering 86(1), 19–26. DOI 10.1002/bit.20026. Critical source locations: supplied PDF pp. 2 and 4–6; Tables I–II.
• Olsen et al. (2026). Design-driven optimization of low-cost reagent formulations for reproducible and high-yielding cell-free gene expression. Nature Communications, DOI 10.1038/s41467-026-69605-8. Critical source locations: supplied PDF pp. 2–7, Table 1, and Fig. 2.
• Groff et al. (2014). Engineering toward a bacterial “endoplasmic reticulum” for the rapid expression of immunoglobulin proteins. mAbs 6(3), 671–678. Primary paper, DOI 10.4161/mabs.28172. FkpA/DsbC evidence is from IgG experiments, principally Results and Figs. 3–5.
• Silverman, Karim, and Jewett (2020). Cell-free gene expression: an expanded repertoire of applications. Nature Reviews Genetics, DOI 10.1038/s41576-019-0186-3. Background reading on CFE, folding, and costs.
• Rasor et al. (2021). Toward sustainable, cell-free biomanufacturing. Current Opinion in Biotechnology, DOI 10.1016/j.copbio.2020.12.012. Background CFME principles; its nonprotein production context does not supply a direct recipe for these targets.
• Smith et al. (2026). Using a GPT-5-driven autonomous lab to optimize the cost and titer of cell-free protein synthesis. bioRxiv preprint, DOI 10.64898/2026.02.05.703998. Background reading on iterative automated optimization; labeled as a preprint.
• Submitted inputs: sfGFP JSON, PETase/TfCut2 JSON, and Reteplase JSON.
• Submission screenshot.

The supplied main PDFs and critical tables were checked. Supplementary and Source Data files were not included in the supplied reading folder and have not been fully audited or reanalysed for this report. Olsen’s article states that these materials are provided with the publication; this is a limitation of the reviewed source collection. Stock-preparation details not established by the main sources and raw-data reanalysis remain outside this report. Olsen, Data availability, PDF p. 12.

Literature results belong to their authors; the new work documented here consists of comparisons, hypotheses, locally checked compositions, and verified submission/participation records. The 8 October update clarifies evidence status and cost provenance; it adds no experimental results and does not change the three submitted compositions.

Final Project
